ORALOCK Carburetor Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your ORALOCK replacement carburetor. This carburetor is designed for specific Hoteche GT10000E series outdoor power equipment, including generators, pumps, compressors, tillers, washers, and cultivators. Adhering to these instructions will help ensure optimal performance and longevity of your equipment.

Before proceeding with any installation or maintenance, carefully read and understand all instructions and safety warnings.

2. Safety Information

Always prioritize safety when working with fuel systems and engine components. Failure to follow safety precautions can result in serious injury or property damage.

• Fuel Handling: Gasoline is highly flammable. Always work in a well-ventilated area, away from open flames, sparks, or other ignition sources. Store fuel in approved containers.
• Engine Temperature: Allow the engine to cool completely before performing any maintenance or installation. Hot engine parts can cause severe burns.
• Personal Protective Equipment (PPE): Wear appropriate safety glasses, gloves, and other protective gear as needed.
• Battery Disconnection: Disconnect the spark plug wire or battery terminal before working on the engine to prevent accidental starting.
• Proper Tools: Use the correct tools for each task to avoid damaging components or causing injury.

3. Compatibility

This ORALOCK carburetor is a replacement part specifically designed for use with Hoteche GT10000E series equipment. To ensure proper fit and function, it is crucial to compare the appearance and dimensions of this carburetor with your original part before installation. Refer to the product images for visual confirmation.

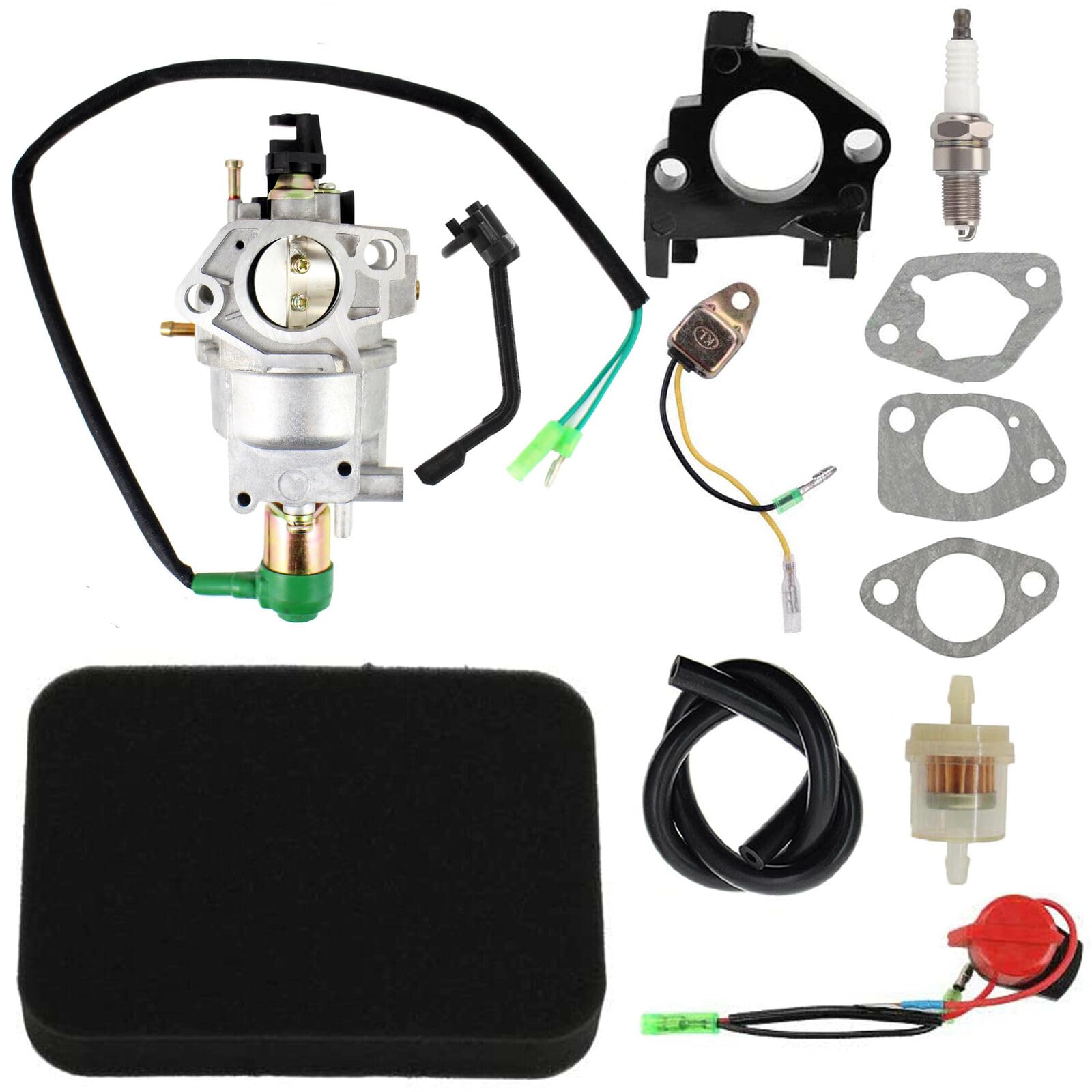

Image 1: Front view of the ORALOCK replacement carburetor. Note the fuel inlet and mounting points.

4. Setup and Installation

Installation of a carburetor requires mechanical aptitude. If you are unsure about any step, consult a qualified technician.

4.1 Pre-Installation Checks

• Ensure the engine is cool and the fuel tank is empty or fuel line is clamped.
• Have all necessary tools ready (wrenches, screwdrivers, pliers, gasket scraper).
• Obtain new gaskets if not included with the carburetor.

4.2 Installation Steps (General Guide)

1. Disconnect: Disconnect the spark plug wire. Turn off the fuel supply and drain any fuel from the carburetor bowl.
2. Remove Air Filter: Carefully remove the air filter housing and air filter.
3. Disconnect Linkages: Note the routing and connection points of all throttle and choke linkages, and fuel lines. Take photos if necessary. Disconnect them from the old carburetor.
4. Remove Old Carburetor: Unbolt the old carburetor from the engine manifold. Remove any old gaskets.
5. Clean Mounting Surface: Thoroughly clean the engine manifold mounting surface to ensure a good seal with the new gasket.
6. Install New Gaskets: Place new gaskets in their correct positions.
7. Mount New Carburetor: Carefully position the new ORALOCK carburetor onto the engine manifold and secure it with the bolts. Do not overtighten.
8. Reconnect Linkages: Reconnect all throttle and choke linkages, ensuring they move freely without binding.
9. Reconnect Fuel Line: Reconnect the fuel line, ensuring it is securely clamped and free of leaks.
10. Reassemble: Reinstall the air filter and air filter housing.
11. Final Checks: Double-check all connections, ensuring everything is tight and properly routed.

Image 2: Side view of the ORALOCK carburetor, showing the choke lever and fuel inlet.

5. Operating Instructions

After installation, follow these steps for initial startup and operation:

1. Refill Fuel: Restore the fuel supply to the engine.
2. Prime Carburetor (if applicable): If your engine has a primer bulb, press it several times until fuel is visible.
3. Choke Setting: Set the choke lever to the 'START' or 'CHOKE' position for cold starts.
4. Start Engine: Pull the recoil starter or engage the electric starter according to your equipment's manual.
5. Warm-up: Once the engine starts, gradually move the choke lever to the 'RUN' position as the engine warms up.
6. Adjustments: The carburetor is typically pre-set. If idle or performance issues persist, minor adjustments to the idle screw may be necessary, referring to your equipment's specific service manual.

6. Maintenance

Regular maintenance of your carburetor and fuel system is crucial for reliable operation.

• Fuel Quality: Always use fresh, clean fuel. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer if storing equipment for extended periods.
• Fuel Filter: Regularly inspect and replace the fuel filter according to your equipment's maintenance schedule. A clogged fuel filter can restrict fuel flow to the carburetor.
• Air Filter: Keep the air filter clean. A dirty air filter can cause the engine to run rich and affect carburetor performance.
• Carburetor Cleaning: If performance issues arise, the carburetor may need cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This is an advanced procedure and should only be attempted by experienced individuals.
• Storage: Before long-term storage, either run the engine until it runs out of fuel or drain the fuel system completely to prevent fuel degradation and gumming in the carburetor.

Image 3: Another view of the ORALOCK carburetor, highlighting the fuel line connection point.

7. Troubleshooting

If your equipment experiences issues after carburetor installation, consider the following common troubleshooting steps:

• Engine Not Starting:
  • Check for fuel in the tank.
  • Ensure the fuel line is connected and not kinked.
  • Verify the choke is set correctly for starting.
  • Check for spark at the spark plug.
• Engine Runs Poorly (Rough Idle, Stalling):
  • Inspect the air filter for cleanliness.
  • Check for vacuum leaks around the carburetor mounting gaskets.
  • Ensure throttle and choke linkages are moving freely and correctly.
  • If adjustable, try minor adjustments to the idle mixture screw (refer to equipment manual).
• Fuel Leaks:
  • Check all fuel line connections and clamps.
  • Inspect carburetor bowl gasket and mounting gaskets for proper sealing.
  • Ensure the fuel shut-off valve (if present) is functioning correctly.

For persistent issues, it is recommended to consult your equipment's service manual or a professional repair service.

8. Specifications

9. Warranty and Support

For specific warranty information regarding your ORALOCK carburetor, please refer to the purchase documentation or contact the seller directly. For technical support or further assistance, please reach out to the ORALOCK customer service channels provided at the point of purchase.
