Kingboss 12V 100Ah LiFePO4 Battery Instruction Manual

1. Introduction

Thank you for choosing the Kingboss 12V 100Ah LiFePO4 Battery, Model 001-NO10. This manual provides essential information for the safe and efficient use, installation, and maintenance of your battery. Please read this manual thoroughly before operating the battery and retain it for future reference.

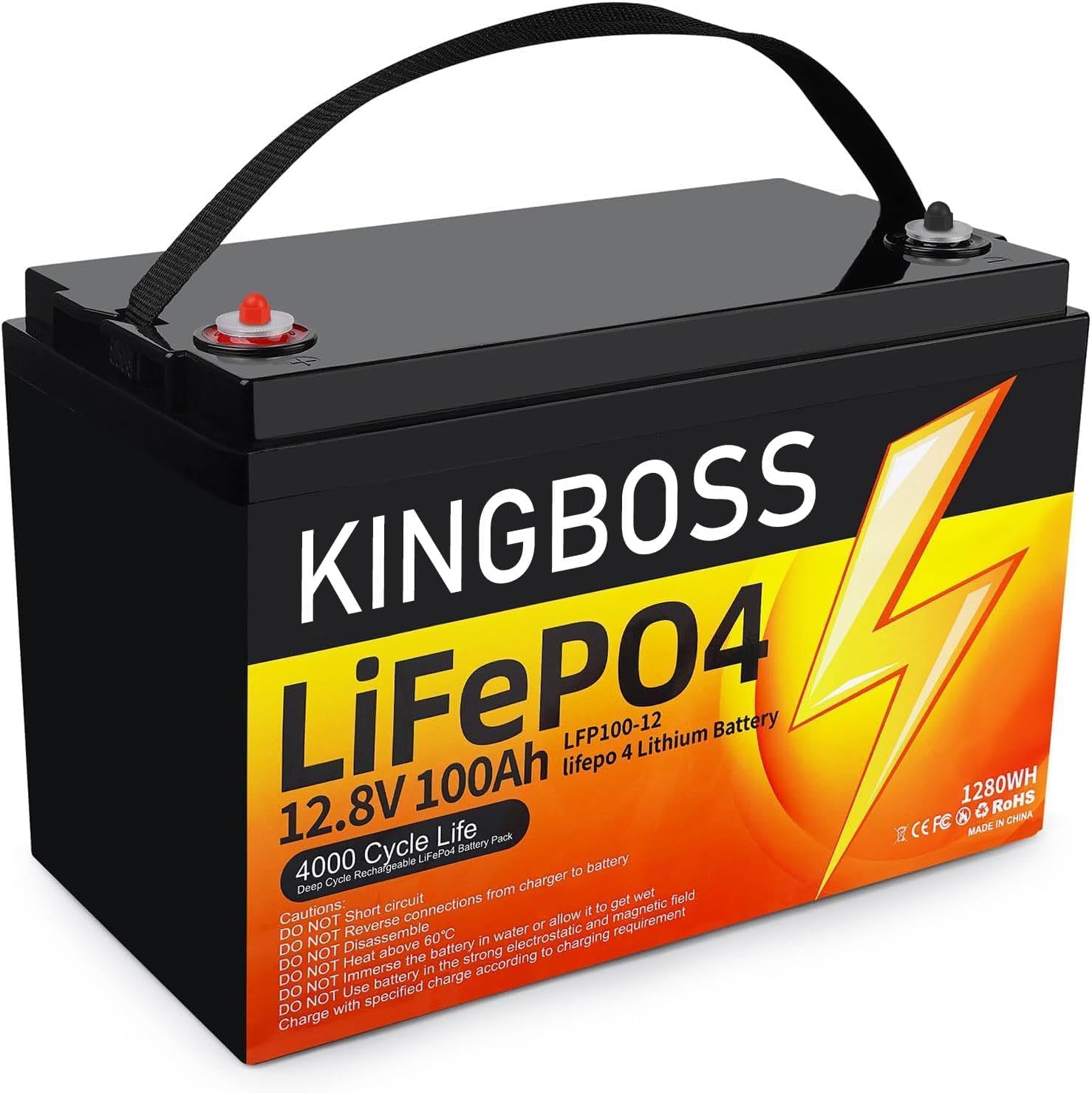

A front-side view of the Kingboss 12V 100Ah LiFePO4 battery, showcasing its black casing, red and black terminals, and a sturdy carrying handle. The label clearly displays 'KINGBOSS LiFePO4 12.8V 100Ah' and safety cautions.

2. Safety Information

Your Kingboss LiFePO4 battery is designed with safety in mind, featuring a built-in Battery Management System (BMS). However, it is crucial to follow all safety guidelines to prevent injury or damage.

General Safety Precautions:

• DO NOT short circuit the battery terminals.
• DO NOT reverse the connections from the charger to the battery.
• DO NOT disassemble the battery.
• DO NOT expose the battery to heat above 60°C (140°F).
• DO NOT immerse the battery in water or allow it to get wet.
• DO NOT use the battery in strong electrostatic or magnetic fields.
• Always charge the battery according to the specified charging requirements.
• Ensure proper ventilation when charging or discharging.
• Wear appropriate personal protective equipment (PPE), such as gloves and eye protection, when handling batteries.

Low-Temperature Protection:

The battery features integrated low-temperature protection to prevent damage during cold conditions. Charging will automatically cease if the internal temperature drops to 0°C (32°F) or below, and resume when the temperature rises above this threshold. The safe charging temperature range is -20°C to 40°C (-4°F to 104°F).

An image depicting the low-temperature charge protection feature of the Kingboss LiFePO4 battery. It indicates that charging turns on at 32°F (0°C) and turns off at 32°F (0°C), with a safe charging temperature range of -4°F to 104°F (-20°C to 40°C). The battery is shown in a winter camping setting.

3. Product Overview

The Kingboss 12V 100Ah LiFePO4 Battery (Model 001-NO10) is a high-performance, maintenance-free lithium iron phosphate battery designed for various applications, including solar systems, RVs, trolling motors, and home backup power.

Key Features:

• High Capacity: 12V 100Ah (1280Wh) usable energy output.
• Integrated BMS: Built-in 100A Smart Battery Management System provides protection against overcharging, over-discharging, over-current, and high-temperature cutoff (above 50°C).
• Long Cycle Life: Designed for over 4000 cycles, offering extended durability.
• Lightweight Design: Weighs approximately 24 pounds, making it significantly lighter than traditional lead-acid batteries.
• Compact Size: Measures 12.9 x 6.6 x 8.5 inches, fitting perfectly into BCI Group 31 battery boxes.
• Low-Temperature Protection: Ensures safe charging in cold environments.

An illustration highlighting the advanced 100A BMS (Battery Management System) of the Kingboss LiFePO4 battery. Icons represent various protections: BMS protection, over-discharging, overcharging, over-current, overheating, and short circuits. Key performance metrics like cycle life (>4000 cycles), charge efficiency (100%), and discharge efficiency (96-99%) are also displayed.

4. Setup and Installation

Unpacking and Initial Inspection:

Upon receiving your Kingboss battery, carefully unpack it and inspect for any signs of damage. The package should include the battery, metric thread terminal bolts, and insulating caps.

Connecting Batteries (Series and Parallel):

The Kingboss 12V 100Ah LiFePO4 battery supports connections in series (up to 4S for 48V) or parallel (up to 4P for 400Ah) to achieve higher voltage or capacity. Follow these guidelines for safe and effective connections:

• Voltage Consistency: Before connecting multiple batteries, ensure each battery is charged separately until their voltages are consistent.
• Identical Batteries: Use only identical batteries with the same capacity (Ah) and BMS from the same brand (Kingboss).
• Proper Wiring: Use appropriate gauge wiring and ensure all connections are secure and free from corrosion.

An illustrative diagram demonstrating how to connect multiple Kingboss LiFePO4 batteries in both series and parallel configurations to achieve higher voltage or capacity. It shows connections for solar panels, MPPT controllers, inverters, and household appliances, emphasizing the importance of consistent voltage, identical battery capacity, and using batteries from the same brand.

Charging Methods:

The Kingboss LiFePO4 battery can be recharged using several methods:

• LiFePO4 Battery Charger: A 14.6V 20A charger is recommended for optimal charging, achieving a full charge in approximately 5 hours.
• Solar Panel with Controller: Connect to a solar panel system equipped with a compatible charge controller.
• Alternator (Generator): Can be charged via an alternator in vehicles or generators, ensuring the charging profile is suitable for LiFePO4 batteries.

5. Operating Instructions

General Usage:

The Kingboss 12V 100Ah LiFePO4 battery provides a maximum continuous discharge current of 100A, suitable for powering most electrical equipment. Its 1280Wh usable energy output is efficient for various applications.

Applications:

This battery is versatile and ideal for:

• Recreational Vehicles (RVs)
• Backup Power Systems
• Home Solar Off-Grid Systems
• Lighting Applications
• Trolling Motors (suitable for 30-70 lbs motors)
• Marine Applications
• Trailers and Automotive Replacements

A collage of images showcasing diverse applications for the Kingboss 12V 100Ah LiFePO4 battery, including RVs, camping setups, trolling motors for boats, and powering electric lamps, highlighting its versatility for off-grid and mobile power needs.

6. Maintenance

The Kingboss LiFePO4 battery is designed to be largely maintenance-free. However, following these general care tips can help ensure optimal performance and longevity:

• Regular Inspection: Periodically check the battery terminals for cleanliness and tightness. Ensure there is no corrosion.
• Cleaning: If necessary, clean the battery casing with a dry or slightly damp cloth. Avoid using harsh chemicals.
• Storage: If storing the battery for an extended period, ensure it is charged to approximately 50% state of charge and stored in a cool, dry place, away from direct sunlight and extreme temperatures.
• Avoid Deep Discharge: While LiFePO4 batteries tolerate deep discharge well, avoiding consistently draining them to 0% can extend overall life.

7. Troubleshooting

This section addresses common issues you might encounter with your Kingboss LiFePO4 battery. Due to the integrated BMS, many potential issues are automatically managed.

Common Scenarios:

• Battery Not Charging:
  • Check all connections to the charger and battery terminals for proper contact.
  • Verify the charger is specifically designed for LiFePO4 batteries and has the correct voltage (e.g., 14.6V).
  • Ensure the ambient temperature is within the safe charging range (-20°C to 40°C / -4°F to 104°F). The low-temperature protection will prevent charging below 0°C (32°F).
  • If multiple batteries are in series/parallel, ensure all are balanced and correctly connected.
• Battery Not Discharging/No Power Output:
  • Check all load connections for proper contact.
  • Verify the battery's state of charge. If it's too low, the BMS may have disconnected the output to protect the cells.
  • Ensure the load's current draw does not exceed the battery's maximum continuous discharge current (100A). The BMS will disconnect if overloaded.
  • Check for any short circuits in the load or wiring. The BMS provides short-circuit protection.
• Unusual Heat:
  • If the battery feels unusually hot, immediately disconnect it from both the charger and the load.
  • The BMS has a high-temperature cutoff (above 50°C), but continuous overheating indicates an underlying issue.
  • Ensure the battery is in a well-ventilated area.

If you encounter persistent issues not covered here, please contact Kingboss customer support for assistance.

8. Specifications

Below are the technical specifications for the Kingboss 12V 100Ah LiFePO4 Battery, Model 001-NO10:

A diagram showing the physical dimensions of the Kingboss 12V 100Ah LiFePO4 battery: 12.9 inches (length), 6.6 inches (width), and 8.5 inches (height). Also includes small diagrams of the terminal bolts and insulating caps with their dimensions.

9. Warranty and Support

Information regarding the product warranty and customer support details for the Kingboss 12V 100Ah LiFePO4 Battery (Model 001-NO10) was not provided in the available product data. For warranty claims, technical assistance, or further inquiries, please refer to the product packaging or contact the seller directly.
