1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of the Generic RDT-3210 Digital Temperature Controller. This device is designed for precise temperature regulation in various industrial and scientific applications, operating on a 230V, 50/60Hz power supply. Please read this manual thoroughly before installation and operation to ensure correct usage and optimal performance.
2. Safety Information
WARNING: Risk of Electric Shock. Disconnect power before installation or servicing.
- Ensure all wiring is performed by a qualified electrician in accordance with local and national electrical codes.
- Do not operate the device with damaged wires or if the casing is compromised.
- This device is designed for indoor use in a dry environment. Avoid exposure to moisture or extreme temperatures.
- Verify the power supply voltage matches the device's requirements (230V AC).
3. Product Overview
The RDT-3210 is a compact digital temperature controller featuring a clear LED display and intuitive button controls for easy temperature management. It includes multiple terminals for power, sensors, and control outputs.

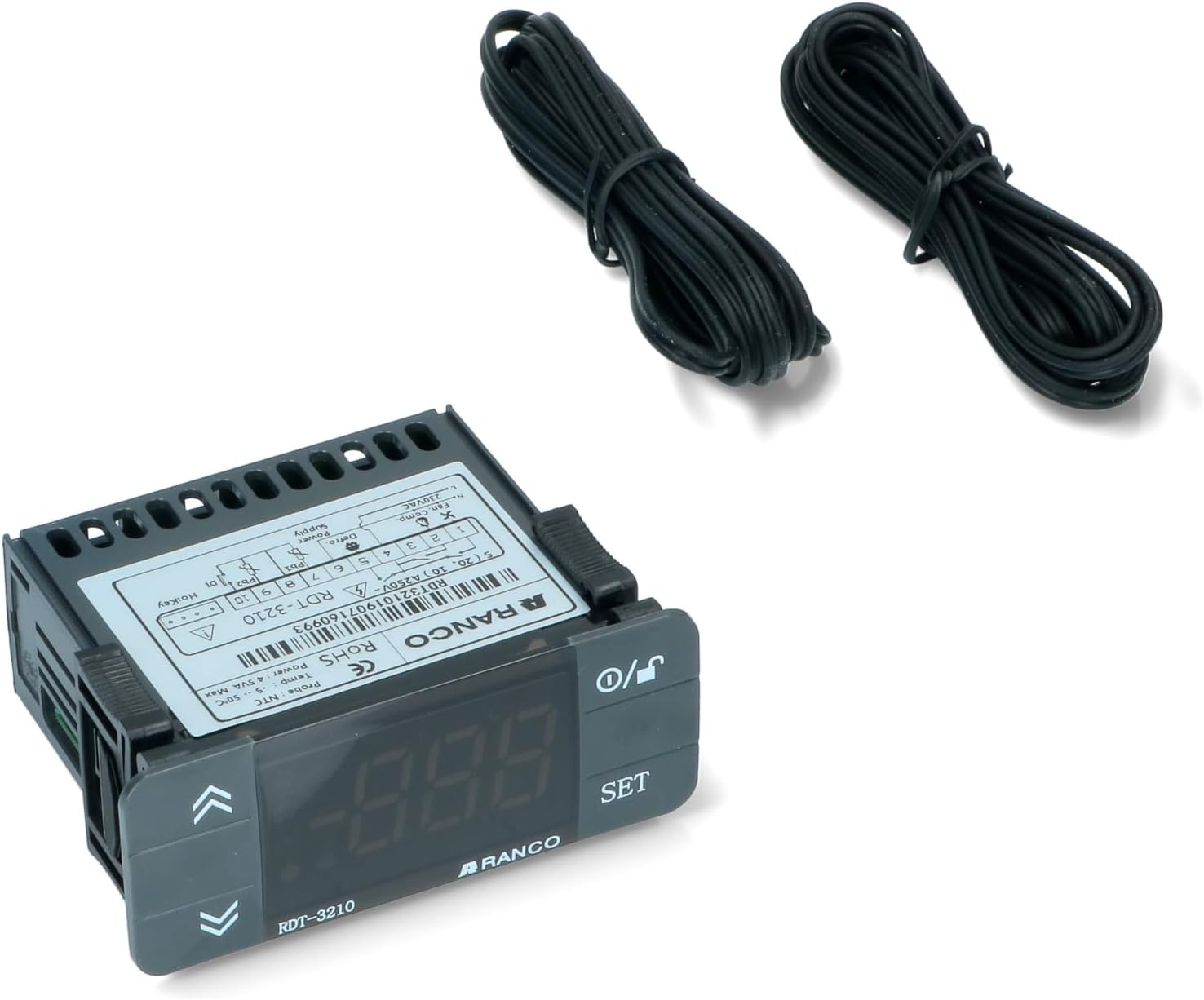

Image 3.1: The RDT-3210 Digital Temperature Controller, shown with its two included NTC sensor cables. The device features a digital display and control buttons on the front panel.
Front Panel Controls:
- Digital Display: Shows current temperature and parameter values.
- SET Button: Used to enter and confirm parameter settings.
- Up Arrow Button (▲): Increases values or navigates menus.
- Down Arrow Button (▼): Decreases values or navigates menus.
- Power/Function Button (⏻): Powers the unit on/off or accesses specific functions.
4. Setup and Installation
4.1 Mounting
The RDT-3210 is designed for panel mounting. Ensure adequate ventilation around the unit to prevent overheating. Cut an appropriate opening in the control panel and secure the controller using the provided clips.
4.2 Wiring Diagram
Refer to the wiring diagram on the side label of the controller and the image below for correct connections. Ensure all connections are secure and insulated.
Image 4.1: A detailed view of the RDT-3210 controller's side label, illustrating the wiring diagram for power supply, outputs, and sensor connections. Key specifications like voltage and probe type are also visible.
| Terminals | Description |
|---|---|
| 1-2 | Power Supply (230V AC, 50/60Hz) |
| 3-4 | Fan/Compressor Output (Relay 1) |
| 5-6 | Defrost Output (Relay 2) |
| 7-8 | Probe 1 (NTC Sensor) |
| 9-10 | Probe 2 (NTC Sensor) |
| 11-12 | Digital Input (DI) / HotKey |
Important: Connect the NTC temperature probes to terminals 7-8 and 9-10. Ensure the probes are placed in the desired temperature monitoring locations.
5. Operating Instructions
5.1 Power On/Off
Press and hold the Power/Function button (⏻) for approximately 3 seconds to turn the controller on or off.
5.2 Setting the Desired Temperature (Setpoint)
- Press the SET button once. The display will show the current setpoint value.
- Use the Up (▲) or Down (▼) arrow buttons to adjust the setpoint to your desired temperature.
- Press the SET button again to confirm the new setpoint and exit the setting mode.
5.3 Accessing and Adjusting Parameters
The RDT-3210 has various configurable parameters (e.g., differential, calibration, alarm settings). Refer to the full parameter list in the manufacturer's detailed technical manual for specific functions.
- Press and hold the SET button for approximately 3 seconds to enter the parameter menu.
- Use the Up (▲) or Down (▼) arrow buttons to scroll through the parameter codes.
- Once the desired parameter code is displayed, press the SET button to view its current value.
- Use the Up (▲) or Down (▼) arrow buttons to adjust the parameter value.
- Press the SET button to confirm the new value.
- To exit the parameter menu, press and hold the SET button for 3 seconds, or wait for the automatic timeout.
6. Maintenance
6.1 Cleaning
To clean the controller, wipe the surface with a soft, damp cloth. Do not use abrasive cleaners, solvents, or immerse the unit in water. Ensure the device is powered off and disconnected from the power supply before cleaning.
6.2 Sensor Care
Periodically inspect the temperature probes and their wiring for any signs of damage or corrosion. Ensure the probes are securely in place and free from debris that could affect accurate readings.
7. Troubleshooting
If you encounter issues with your RDT-3210 controller, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Controller does not power on | No power supply; incorrect wiring; faulty unit | Check power connections (Terminals 1-2); verify power source; ensure correct voltage; contact support if issue persists. |
| Inaccurate temperature reading | Faulty sensor; incorrect sensor placement; sensor wiring issue | Check sensor connections (Terminals 7-8, 9-10); ensure sensor is correctly positioned; replace sensor if damaged. |
| Output (Fan/Defrost) not activating | Incorrect setpoint; parameter settings; wiring issue; faulty relay | Verify setpoint and differential settings; check wiring to output devices (Terminals 3-4, 5-6); consult parameter manual for specific settings. |
| Display shows 'Err' or error code | Sensor fault; out of range temperature; internal error | Check sensor connections and integrity; ensure temperature is within operating range (-50°C to 99°C); power cycle the unit. |
For issues not listed above, or if troubleshooting steps do not resolve the problem, please contact the manufacturer or your supplier for further assistance.
8. Specifications
| Feature | Specification |
|---|---|
| Model | RDT-3210 |
| Brand | Generic (Manufacturer: RANCO) |
| Voltage | 230 Volts AC, 50/60Hz |
| Power Consumption | 4.5 VA Max |
| Display Type | Digital LED |
| Temperature Range | -50°C to 99°C |
| Probe Type | NTC (Negative Temperature Coefficient) |
| Outputs | 2 Relay Outputs (Fan/Compressor, Defrost) |
| ASIN | B0CTWPLVN6 |
9. Warranty and Support
Specific warranty information for the Generic RDT-3210 Digital Temperature Controller is not provided in this document. For details regarding warranty coverage, technical support, or service, please contact your original point of purchase or the manufacturer directly. Keep your purchase receipt as proof of purchase.
