GGM Gastro GE500ND Dishwasher User Manual

Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your GGM Gastro GE500ND digital dishwasher. Please read this manual thoroughly before using the appliance and keep it for future reference.

Figure 1: The GGM Gastro GE500ND digital dishwasher with its door open, showcasing its capacity for various dishes, glasses, and cutlery.

Safety Instructions

• Always connect the appliance to the electricity grid as a single group for safety reasons.
• Refer to the user manual for information regarding network voltage before connection.
• A hot water connection is recommended for optimal performance.
• This appliance is only suitable for chlorine-free cleaning agents.
• Regularly descale the appliance and its components for problem-free dishwashing.
• If an upstream descaler is used, regeneration may be required after approximately 1500 - 2000 liters of water, depending on water hardness.

Setup and Installation

Proper installation is crucial for the dishwasher's performance and longevity. Follow these guidelines carefully.

Drainage Connection

The GE500ND dishwasher includes a drain pump, which is essential for installations where the wastewater needs to be pumped over a height difference into the sewer connection. If the drain is at or below the appliance's base level, a drain pump may not be necessary, but it is included for versatility.

Figure 2: Diagram illustrating the requirement for a drain pump based on the height of the drain connection relative to the dishwasher's base.

Dimensions and Loading Capacity

The dishwasher is designed to accommodate various dishware sizes. The maximum insert height is 320mm, allowing for larger plates and glasses. The included baskets are optimized for efficient loading.

Figure 3: Illustration of the maximum insert height (320mm) for dishes and glasses within the dishwasher.

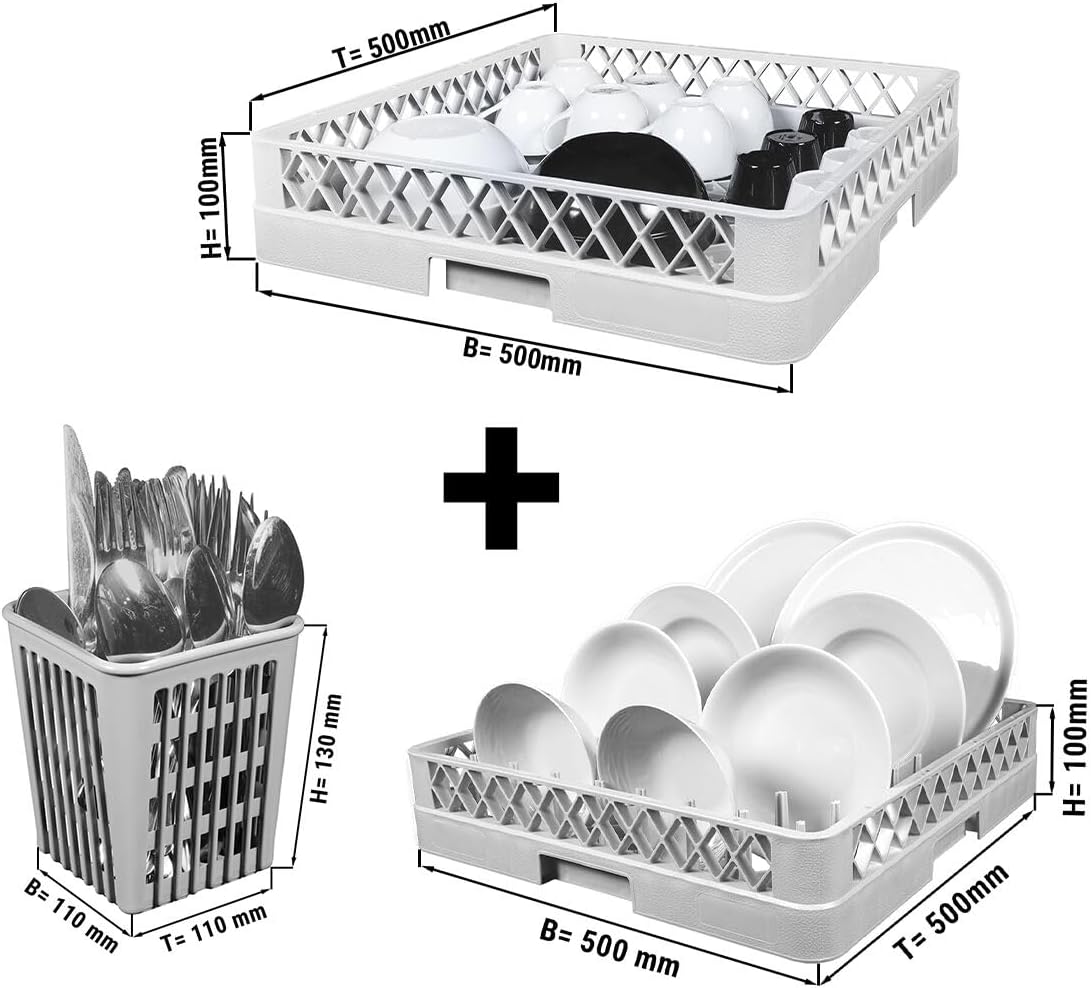

Figure 4: Dimensions of the standard dishwasher baskets, including a cutlery holder, designed for optimal loading of various items.

Electrical Connection

The appliance requires an electrical connection of 220 V/1N/PE / 50Hz with a power rating of 3.55 kW. Ensure the electrical supply meets these specifications and is installed by a qualified professional.

Operating Instructions

The GE500ND features intuitive controls for easy operation.

Control Panel

The dishwasher is equipped with a touchscreen control panel and a digital display for selecting programs and monitoring the wash cycle.

Figure 5: Front view of the dishwasher, highlighting the integrated touchscreen control panel and digital display.

Wash Programs

The dishwasher offers 4 distinct wash programs with varying rinse times to suit different cleaning needs:

• Program 1: 60 seconds
• Program 2: 90 seconds
• Program 3: 120 seconds
• Program 4: 180 seconds

The appliance can wash up to 500 plates per hour, ensuring high efficiency for commercial use.

Detergent and Rinse Aid

The GE500ND features an electric gloss rinse aid supply for optimal drying results. Ensure to use only chlorine-free cleaning agents with this appliance to prevent damage and ensure proper operation.

Figure 6: Close-up interior view of the dishwasher, showing the robust spray arm and internal washing components.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your dishwasher.

• Descaling: It is highly recommended to regularly descale the appliance and its components. This prevents limescale buildup, which can affect washing performance and damage internal parts.
• Inlet Hose: The appliance features a maintenance flap for easy access and maintenance of the inlet hose. Periodically check the hose for kinks or blockages.
• Water Softener Regeneration: If an upstream water softener or descaler is installed, it typically requires regeneration after approximately 1500 - 2000 liters of water flow. The actual regeneration frequency depends on the hardness of your water supply.
• Cleaning: Regularly clean the interior of the dishwasher, including filters and spray arms, to remove food debris and ensure hygienic operation.

Figure 7: Detailed interior view, highlighting the upper and lower spray arms and the integrated filter system, all crucial for effective cleaning and maintenance.

Troubleshooting

If you encounter issues with your GGM Gastro GE500ND dishwasher, refer to the following common troubleshooting tips:

• Appliance not starting: Check the power connection and ensure the appliance is properly plugged in. Verify that the circuit breaker has not tripped.
• Poor washing results: Ensure that dishes are loaded correctly, not obstructing spray arms. Check that the correct amount of chlorine-free detergent and rinse aid is being used. Verify that spray arms are clean and not clogged.
• Water not draining: Check the drain hose for kinks or blockages. Ensure the drain pump (if applicable) is functioning correctly. Clean the dishwasher filter.
• Unusual noises: Inspect for any foreign objects inside the dishwasher. Ensure dishes are securely placed and not rattling.

For persistent issues, please contact GGM Gastro customer support.

Specifications

Note: Specifications are subject to change without prior notice.

Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official GGM Gastro website. Ensure you have your model number (GE500ND) and purchase details ready when contacting support.

The product is manufactured according to hygiene and safety guidelines and bears the CE marking, confirming compliance with relevant directives. Materials comply with European food standards.
