Introduction
This manual provides essential instructions for the safe assembly, operation, and maintenance of your PHI VILLA 10x20 ft Carport. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

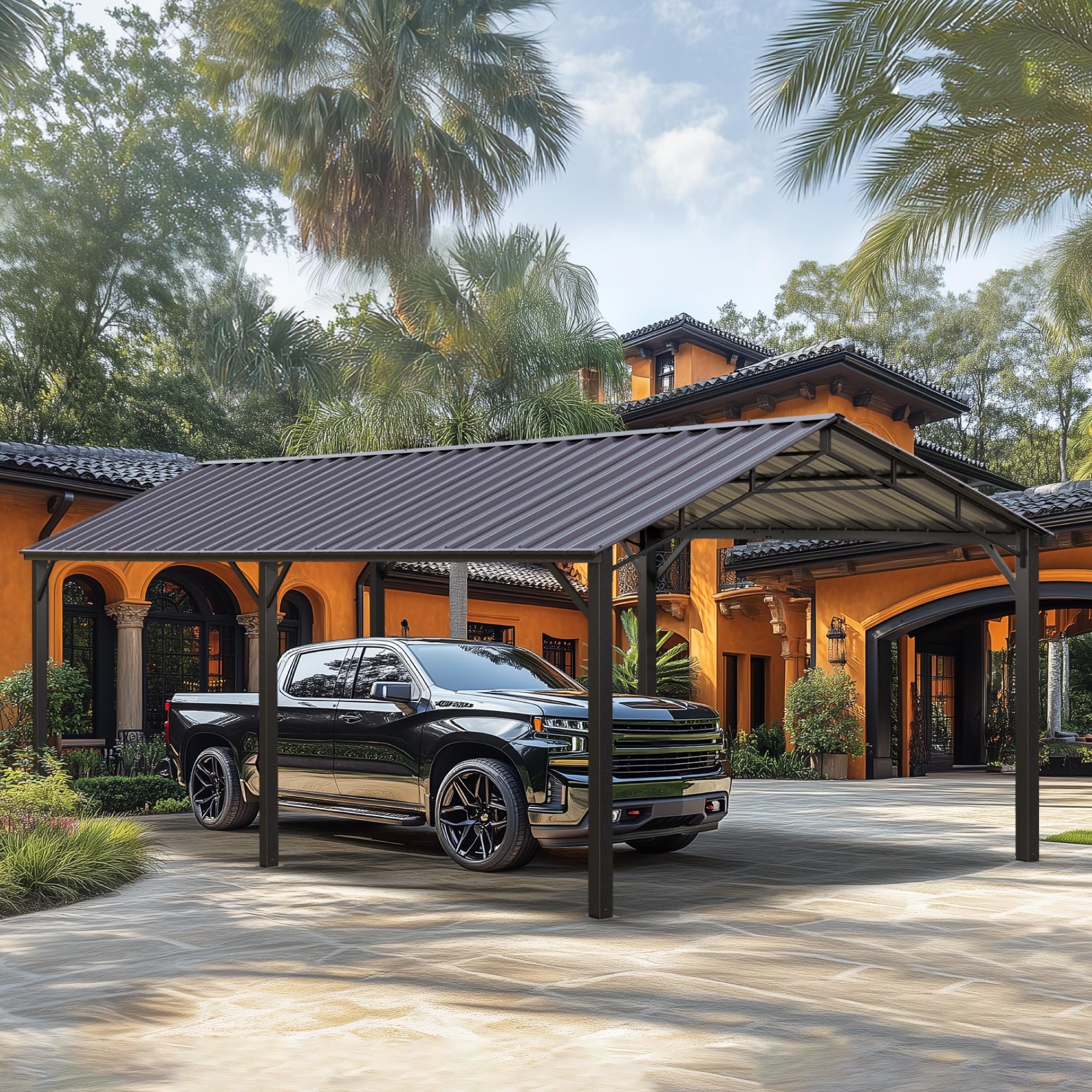

Image: The PHI VILLA 10x20 ft Carport providing shelter for a vehicle.
Safety Information
Important Safety Warnings:
- Always follow local building codes and ordinances for installation. Conformance to local codes is the responsibility of the purchaser.
- Ensure the carport is securely anchored to a stable foundation. This is crucial for stability, especially in adverse weather conditions.
- Clear snow from the roof regularly to prevent excessive accumulation. Heavy snow loads can damage the structure and make it unsafe.
- Wind and snow load ratings (100 MPH wind, 35 PSF snow load capacity) are for reference only and assume a standalone unit without an enclosure kit, securely anchored.
- Manufacturer is not responsible for consequences due to improper installation or damage from weather conditions or acts of God.
Image: Carport in winter, illustrating its resistance to snow, wind, rain, and UV rays.
Setup and Assembly
The PHI VILLA carport features an upgraded self-adaptive screw-pipe framework for simplified installation. All necessary hardware and instructions are included.
- Unpacking: The carport is delivered in a total of 3 boxes. Please wait patiently for all boxes to arrive before beginning assembly.
- Site Preparation: Ensure the installation area is a level surface. The carport can be anchored on various surfaces including grass, rocky soil, gravel, asphalt, or concrete. For concrete or flat surfaces, use concrete expansion square head bolts (not included).
- Frame Assembly: Follow the provided step-by-step instructions to assemble the powder-coated anti-rust square pipe iron frame.
- Roof Installation: Attach the corrugated steel roofing panels. The roof is equipped with water-stop strips to minimize rainwater leakage.
- Anchoring: Securely anchor the assembled carport to the ground using appropriate methods for your chosen surface.
Image: Demonstrating the easy assembly of the roof panels.
Image: Visual guide to the assembly process, highlighting UV-resistant, stable, rust-resistant, and water-resistant features.
Operation and Use
The PHI VILLA 10x20 ft Carport is designed for multi-use applications, providing shelter for vehicles, trucks, boats, or serving as an activity shelter for outdoor events.
- Vehicle Protection: Park your car, truck, or boat under the carport to protect it from sun, rain, snow, and other weather elements.
- Event Shelter: Utilize the spacious area for outdoor gatherings, parties, weddings, or commercial fairs.
- Environmental Protection: The galvanized steel roof and powder-coated frame offer resistance against corrosion, UV rays, rain, and wind.
Image: The carport configured as an outdoor living area with seating.
Video: Official product video showcasing the PHI VILLA carport's features and versatility in various settings and weather conditions.
Maintenance
Regular maintenance ensures the longevity and safety of your carport.
- Snow Removal: It is recommended to clear snow from the roof on a regular basis. Heavy amounts of snow can damage the structure and make it unsafe. This extends the product's life and protects your vehicle.
- Cleaning: Periodically clean the roof and frame with mild soap and water to remove dirt and debris. Avoid abrasive cleaners that could damage the finish.
- Inspection: Regularly inspect all bolts, screws, and anchoring points to ensure they remain tight and secure. Tighten any loose fasteners.
- Rust Prevention: While the frame is powder-coated anti-rust, inspect for any scratches or chips in the coating and touch up as needed to prevent rust.
Image: Carport demonstrating snow accumulation, emphasizing the need for regular snow removal.
Troubleshooting
If you encounter issues with your carport, consider the following common solutions:
- Stability Issues: Ensure all anchoring points are properly secured and tightened. Verify the carport is installed on a level surface.
- Water Leakage: Check that all roof panels are correctly installed and the water-stop strips are properly aligned.
- Missing Parts: If any parts are missing upon delivery, refer to the "Warranty & Support" section for contact information. Remember the product ships in 3 boxes.
For persistent issues or concerns not addressed here, please contact customer support.
Product Specifications
| Brand | PHI VILLA |
| Model Number | GA2 |
| Product Dimensions (L x W x H) | 234.2" x 122.7" x 100.4" (10' x 20' x 8.37') |
| Material | Alloy Steel, Aluminum, Metal (Galvanized Steel Frame) |
| Water Resistance Level | Waterproof |
| Ultraviolet Light Protection | Yes |
| Wind Rating | 100 MPH (reference only) |
| Snow Load Capacity | 35 PSF (reference only) |
| Assembly Required | Yes |
Image: Dimensional drawing of the carport, showing length, width, and height measurements.
Warranty and Customer Support
Warranty Information:
PHI VILLA offers a guaranteed 3-year warranty for this carport. This warranty covers manufacturing defects under normal use conditions.
Customer Support:
For customer support, questions, or concerns regarding your PHI VILLA carport, please contact us. We are committed to responding to all customer messages within 24 hours.
Please have your model number (GA2) and purchase details ready when contacting support.
