CLLOMAGY DC-001

CLLOMAGY THU9476 Deodorizer Filter Instruction Manual

For TOTO Washlet Models S300E, S350E, C100, C200, S500E, K300

1. Product Overview

The CLLOMAGY THU9476 Deodorizer Filter is a replacement cartridge designed to maintain air freshness in bathrooms equipped with compatible TOTO Washlet bidet seats. This filter utilizes activated carbon to effectively neutralize odors, contributing to a more comfortable environment.

CLLOMAGY THU9476 Deodorizer Filter
Image 1.1: The CLLOMAGY THU9476 Deodorizer Filter, a rectangular cartridge with a white grated top and gray activated carbon material.

2. Compatibility

This deodorizer filter is a direct replacement for the TOTO Washlet THU9476 deodorizer catalyst. It is compatible with the following TOTO Washlet models:

  • S300E / S350E: SW573, SW574, SW583, SW584
  • C100: SW2034, SW2034T20
  • C200: SW2044, SW2044T20, SW2043
  • S500E: SW3044, SW3046, SW3054, SW3056, SW3056AT40
  • K300: SW3036

Please verify your Washlet model number before installation to ensure proper fit and function.

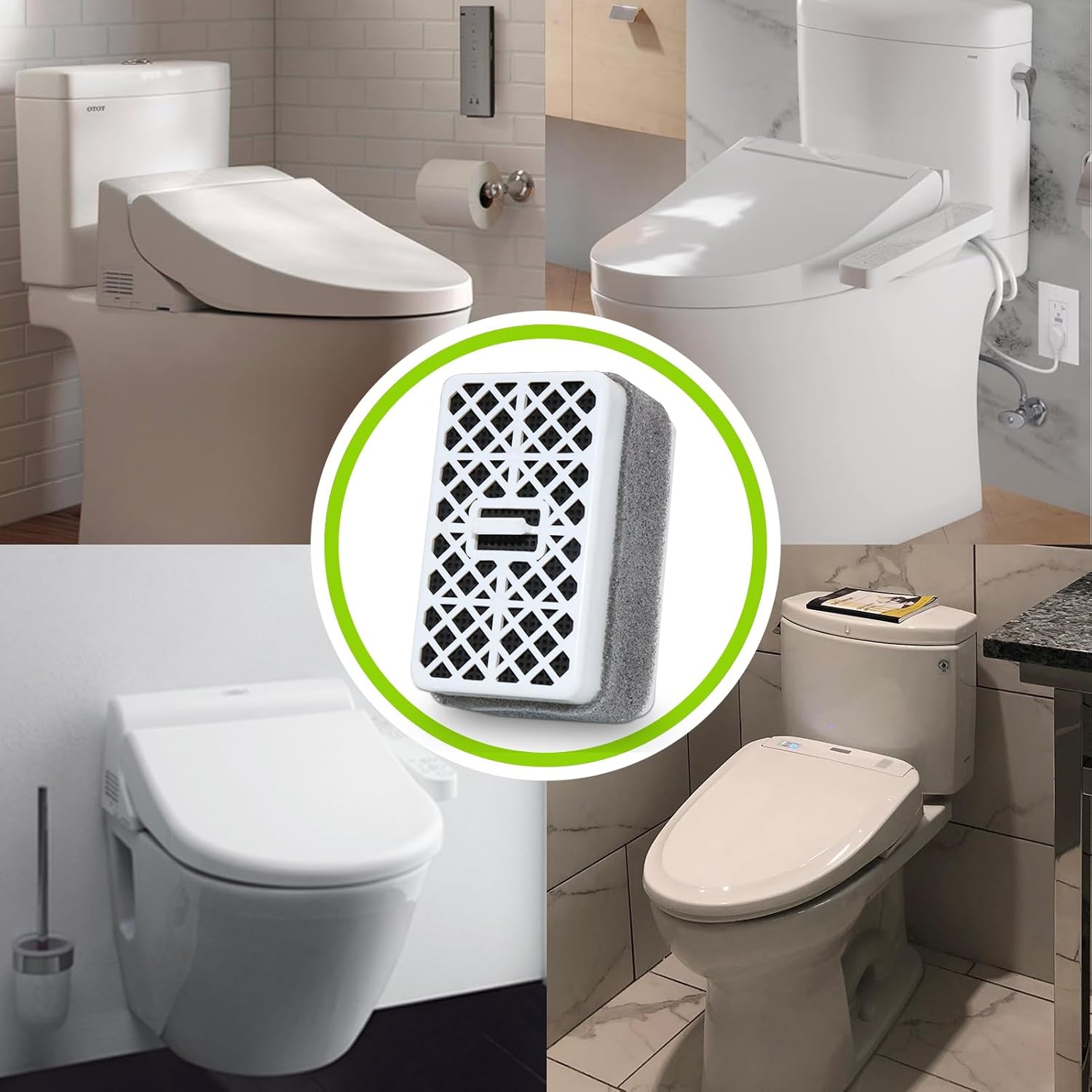

Various TOTO Washlet models with the deodorizer filter highlighted
Image 2.1: A collage showing the CLLOMAGY deodorizer filter in context with several different TOTO Washlet bidet seats, illustrating its compatibility.

3. Installation Instructions

Replacing the deodorizer filter is a straightforward process. Follow these steps for proper installation:

  1. Locate the Filter Compartment: The deodorizer filter compartment is typically located on the side or rear of your TOTO Washlet bidet seat. Refer to your specific Washlet model's manual for the exact location. Note: Some TOTO 500 series Washlets may have two filters; ensure you are replacing the correct deodorizer cartridge.
  2. Open the Cover: Gently open the cover of the filter compartment. This may involve pressing a tab or sliding a panel.
  3. Remove the Old Filter: Carefully slide out the existing deodorizer catalyst cartridge. Dispose of the old filter responsibly.
  4. Insert the New Filter: Slide the new CLLOMAGY THU9476 deodorizer filter into the compartment. Ensure it is seated correctly and securely.
  5. Close the Cover: Close the filter compartment cover until it clicks into place or is securely fastened.
Close-up of a TOTO Washlet filter compartment with the filter being inserted
Image 3.1: A close-up view of a TOTO Washlet bidet seat's filter compartment, showing the deodorizer filter being inserted into its slot, indicating a perfect fit.
TOTO Washlet with an arrow pointing to the filter location
Image 3.2: A TOTO Washlet bidet seat with a visual indicator highlighting the location of the deodorizer filter compartment on the side of the unit.

4. Operating Principle

The deodorizer filter functions by drawing air from the toilet bowl area through its activated carbon material. Activated carbon is highly porous and has a large surface area, allowing it to adsorb odor-causing molecules. This process effectively removes unpleasant smells, releasing cleaner air back into the bathroom environment.

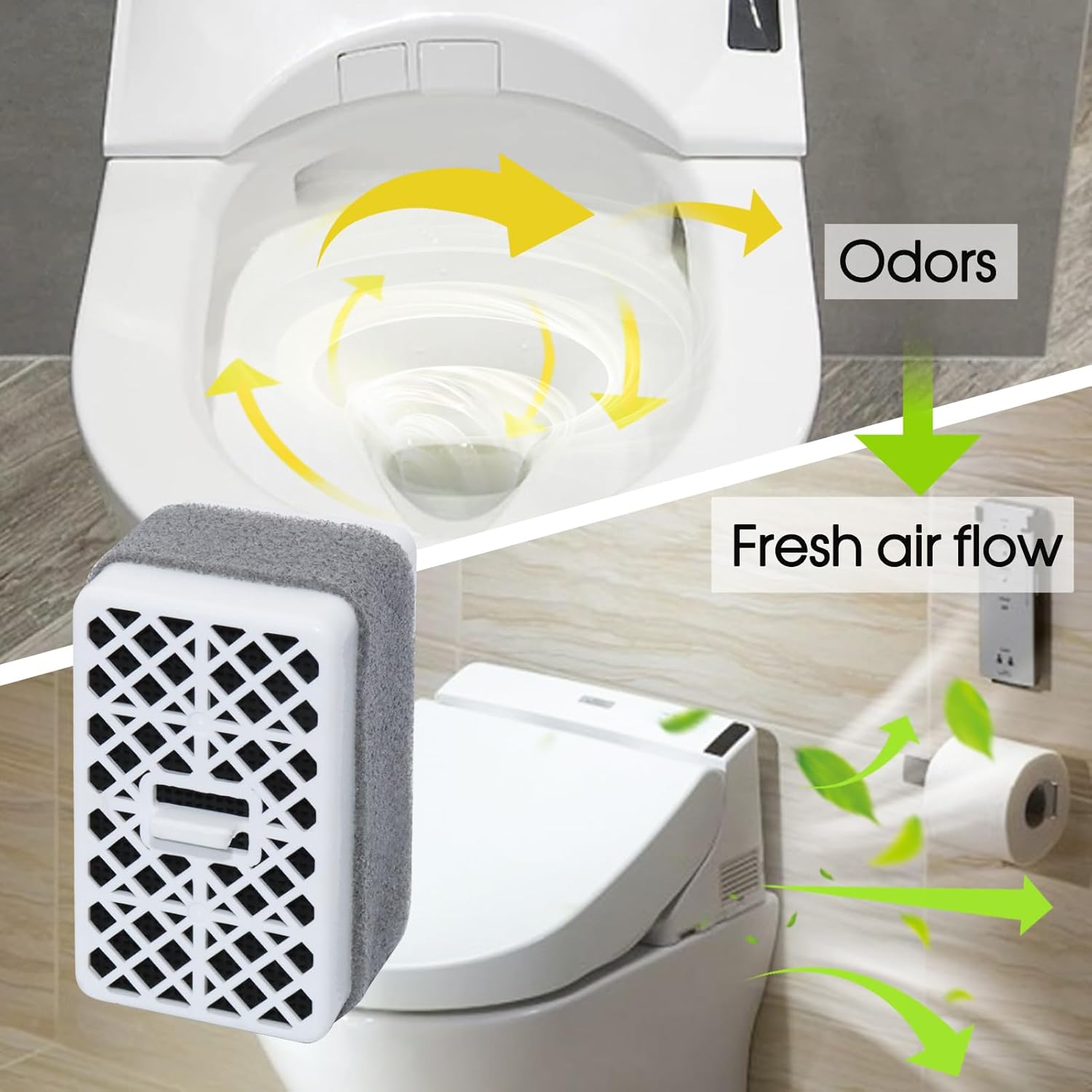

Diagram showing air flow and odor removal by the filter
Image 4.1: A visual representation illustrating how the deodorizer filter captures odors from the toilet bowl and releases fresh air, demonstrating its air purification function.
Illustration of air freshening with the filter
Image 4.2: An illustration depicting the deodorizer filter actively freshening the air in a bathroom, with arrows indicating the removal of various odor-causing particles and the circulation of clean air.

5. Maintenance

For optimal performance and continuous odor removal, it is recommended to replace the CLLOMAGY THU9476 deodorizer filter approximately every 6 months, or sooner if you notice a return of odors. Regular replacement ensures the activated carbon remains effective in adsorbing smells.

6. Troubleshooting

  • Persistent Odors After Replacement:
    • Ensure the filter is correctly seated in its compartment.
    • Verify that your Washlet model only uses one deodorizer filter. Some TOTO 500 series Washlets have a second filter located on the back side of the unit, which may also require replacement.
    • Confirm that the filter compartment cover is fully closed.
  • Filter Does Not Fit:
    • Double-check the compatibility list in Section 2 to ensure this filter is appropriate for your specific TOTO Washlet model.
    • Ensure the filter is oriented correctly before attempting to slide it into the compartment.

7. Specifications

AttributeDetail
ManufacturerCLLOMAGY
Part NumberDC-001
Item Weight2.39 ounces
Product Dimensions2.24 x 1.29 x 1.33 inches
Item Model NumberDC-001
ColorGray
Included ComponentsDeodorizer Filter Cartridge Catalyst

8. Warranty and Support

Specific warranty information for this product is not provided in the available data. For any product-related inquiries, technical support, or warranty claims, please contact the manufacturer, CLLOMAGY, directly through their official customer service channels.
