NEALMART 50A55-474 Furnace Control Board Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of the NEALMART 50A55-474 Furnace Control Board. This board serves as a direct replacement for various furnace control boards, including White-Rodgers 50A55-3797, 50A55-474, 50A55-476, 50A55-571, and Trane Integrated Furnace Control Boards CNT02891, CNT03799, CNT02789. It is designed to monitor, analyze, and control the proper operation of the gas burner, inducer, and fan in your furnace system.

2. Safety Information

WARNING: Before attempting any installation or maintenance, ensure that the main power supply to the furnace is completely disconnected. Failure to do so can result in electrical shock, property damage, or serious injury. Installation should only be performed by qualified personnel.

Always wear appropriate personal protective equipment (PPE) during installation. Handle the control board by its edges to avoid damaging electronic components or introducing static electricity. The board is shipped with anti-static protection, as shown in the image below, and should be kept in its protective packaging until ready for installation.

Figure 2.1: The NEALMART 50A55-474 furnace control board packaged in an anti-static bag, emphasizing proper handling and protection during transport and before installation.

3. Product Overview

The NEALMART 50A55-474 is an automatic gas interrupted ignition control board. It utilizes a microprocessor to ensure continuous monitoring and precise control of your furnace's critical functions. The board is designed for reliability and compatibility with a range of existing systems.

3.1 Key Features and Components

• Microprocessor Control: Continuously monitors and controls gas burner, inducer, and fan operations.
• Broad Compatibility: Replaces White-Rodgers 50A55-3797, 50A55-474, 50A55-476, 50A55-571, and Trane CNT02891, CNT03799, CNT02789.
• Quality Components: Features Zettler relays, Littelfuse fuses, and TE/AMP connectors for enhanced stability and durability.

Figure 3.1: Front view of the NEALMART 50A55-474 furnace control board, showing the layout of relays, connectors, and other electronic components.

Figure 3.2: Back view of the furnace control board, illustrating the solder points and circuit traces.

Figure 3.3: The NEALMART 50A55-474 furnace control board shown with a list of compatible Goodman and White-Rodgers part numbers, confirming its broad replacement capabilities.

Figure 3.4: A detailed view of the furnace control board, pointing out key components such as Zettler relays, Littelfuse parts, and TE/AMP connectors, which contribute to the board's stability and durability.

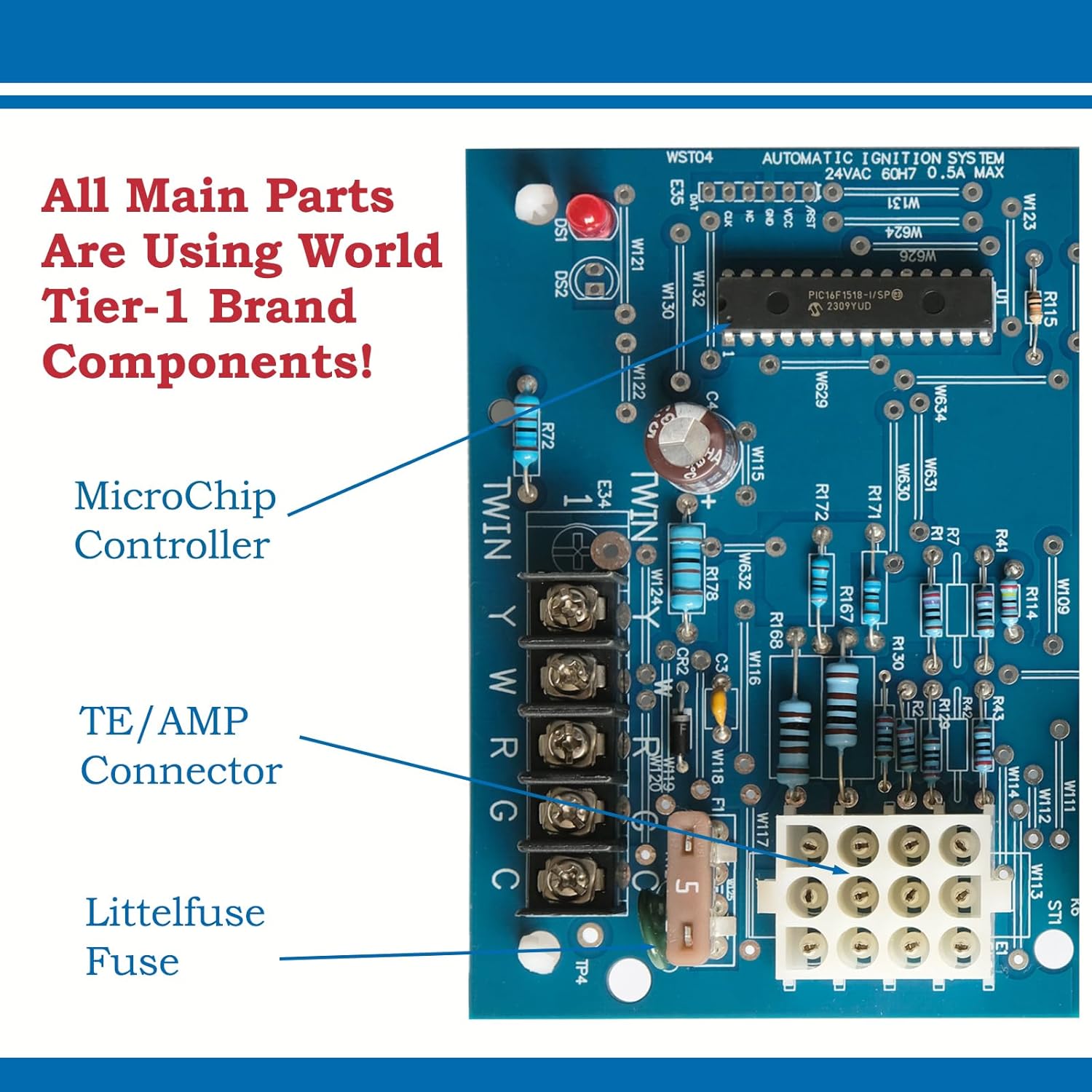

Figure 3.5: Another close-up of the furnace control board, identifying the MicroChip controller, a TE/AMP connector, and a Littelfuse fuse, highlighting the quality of integrated components.

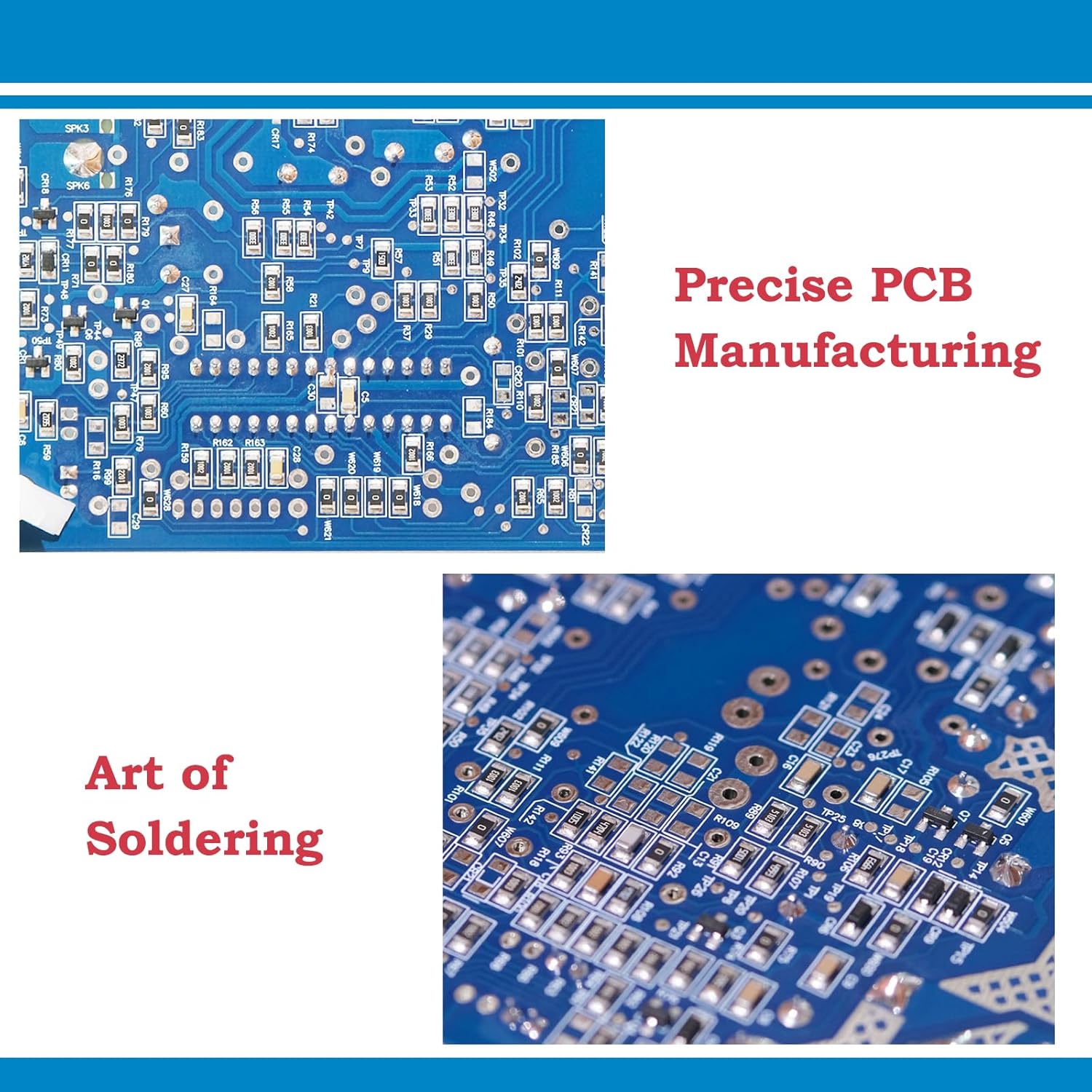

Figure 3.6: Images demonstrating the precise manufacturing of the Printed Circuit Board (PCB) and the quality of soldering, indicating high production standards.

4. Setup and Installation

Replacing a furnace control board requires careful attention to detail. It is highly recommended to consult a professional HVAC technician if you are not experienced with furnace repairs.

4.1 Pre-Installation Steps

1. Disconnect Power: Turn off all electrical power to the furnace at the main breaker or fuse box. Verify power is off using a voltage tester.
2. Access Control Board: Locate and open the furnace access panel to expose the existing control board.
3. Document Wiring: Before disconnecting any wires, take clear photographs of the existing wiring connections. This will serve as a crucial reference during the installation of the new board. Label wires if necessary.
4. Remove Old Board: Carefully disconnect all wires and mounting screws holding the old control board in place.

4.2 Installation Steps

1. Mount New Board: Secure the NEALMART 50A55-474 control board in the same location as the old board using the appropriate mounting hardware.
2. Connect Wiring: Refer to your photographs and wiring diagrams to connect all wires to the correct terminals on the new board. Ensure all connections are secure.
3. Verify Connections: Double-check all wiring connections against your documentation to prevent miswiring.
4. Restore Power: Close the furnace access panel. Restore electrical power to the furnace at the main breaker.
5. Test Operation: Initiate a heating cycle to verify proper furnace operation.

5. Operating Instructions

The NEALMART 50A55-474 control board operates automatically once installed and powered. It continuously monitors the system and manages the sequence of operations for the gas burner, inducer motor, and circulating fan. No user intervention is typically required for its basic operation.

6. Maintenance

The NEALMART 50A55-474 furnace control board is not field-repairable and requires no routine maintenance. If a malfunction occurs, the entire control board should be replaced. Regular furnace maintenance by a qualified technician, including checking electrical connections and cleaning components, can help ensure the longevity of all furnace parts, including the control board.

7. Troubleshooting

The 50A55-474 control board is equipped with an LED indicator to assist in diagnosing system failures. If a failure occurs, the LED will flash a specific code. Refer to the furnace manufacturer's service manual for a detailed explanation of these fault codes.

• LED Indicator: Observe the LED on the control board for flash patterns.
• Internal Control Failure: If the LED remains off when the furnace is powered, it may indicate an internal failure of the control board itself. In this scenario, the control board is not repairable and must be replaced.
• Common Issues: Before concluding a board failure, ensure all wiring is secure, the furnace filter is clean, and other safety devices (e.g., limit switches, pressure switches) are functioning correctly.

8. Specifications

9. Support

For any questions regarding the NEALMART 50A55-474 Furnace Control Board, please contact our customer support. Your satisfaction is our priority.
