Jocisland Queen Size Platform Bed Frame BHB020 Instruction Manual

1. Introduction

Thank you for choosing the Jocisland Queen Size Platform Bed Frame. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Important Safety Information

• Do not exceed a weight limit of 1000 lbs.
• Keep away from open flames and high heat sources to prevent fire hazards.
• Ensure all parts are securely fastened before use. Periodically check and tighten all connections.
• Assembly requires two people for optimal safety and ease.

2. Parts List

Please verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• Headboard
• Footboard
• Side Rails
• Slats (Total 12 pieces hardwood slats)
• Metal Center Beams (3 pieces)
• Solid Wood Legs
• Installation Manual
• Hardware Pack (bolts, washers, nuts, Allen wrench)

3. Setup and Assembly Instructions

Assembly of this bed frame is designed to be straightforward and tool-free, with all parts clearly labeled. We recommend two people for assembly, which typically takes about 30 minutes.

Assembly Steps:

1. Unpack and Identify Parts: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Refer to the included parts list to ensure all items are present.
2. Attach Side Rails to Headboard and Footboard: Connect the side rails to the headboard and footboard using the provided hardware. Ensure all connections are finger-tight before fully tightening.
3. Install Center Support Beams: Position the three metal center support beams evenly across the frame. Secure them to the side rails using the designated hardware.
4. Place Slats: Lay the 12 hardwood slats across the frame. The Velcro slats design simplifies installation and helps fix the slats in place. Ensure the EVA foam strips are positioned correctly to reduce noise.
5. Tighten All Connections: Once all components are in place, systematically tighten all bolts and screws using the provided Allen wrench. Do not overtighten.
6. Attach Solid Wood Legs: Screw the solid wood legs into the designated points on the frame.

Figure 3.1: Queen Size Bed Frame Dimensions and Specifications

Figure 3.2: Sturdy Structure with Metal Beams and Hardwood Slats

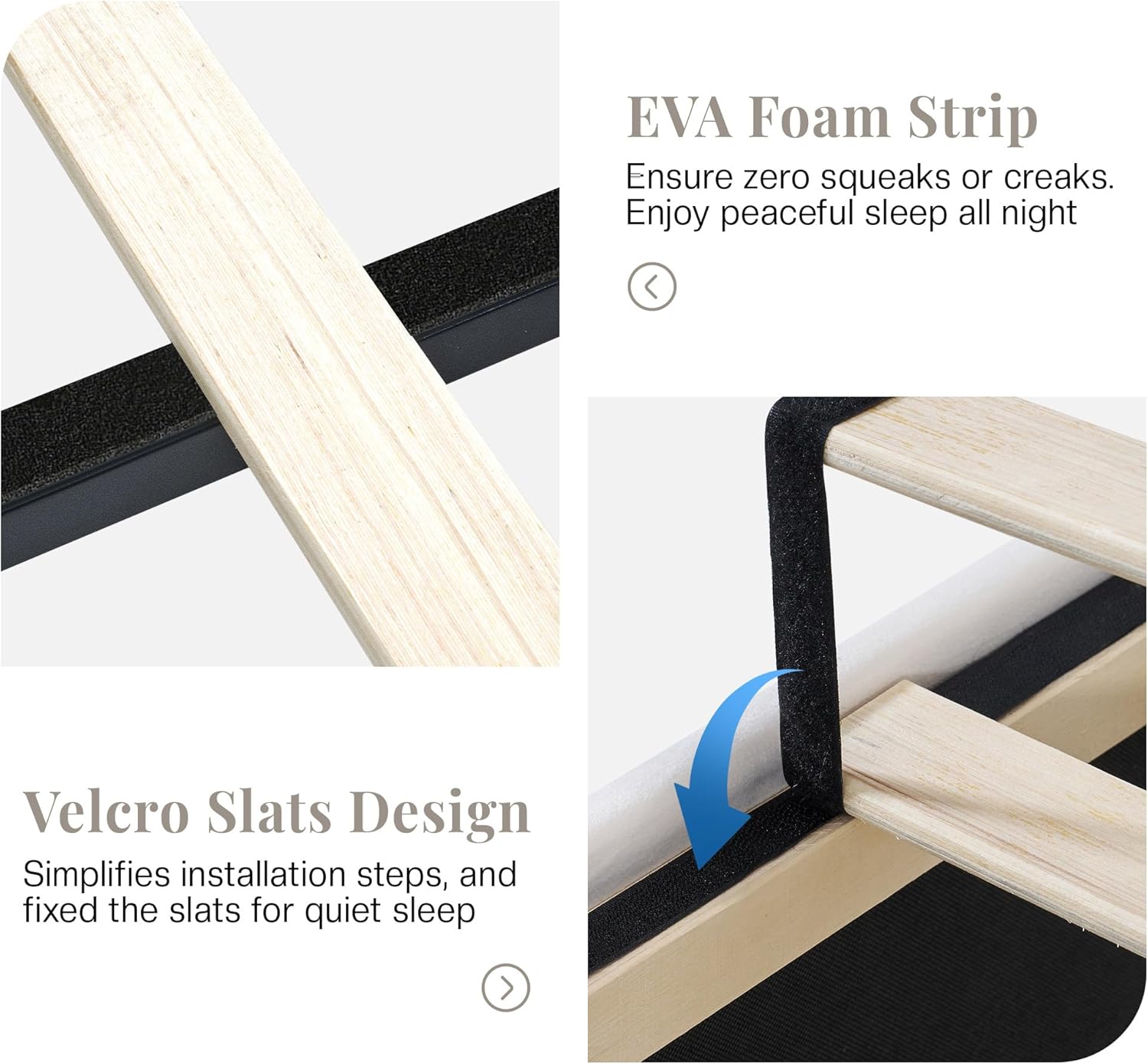

Figure 3.3: EVA Foam Strip and Velcro Slats Design for Noise Reduction

4. Operating and Usage Guidelines

Mattress Compatibility

This platform bed frame is designed for use without a box spring. It is compatible with Queen size mattresses with a recommended thickness between 8 to 17 inches.

Weight Capacity

The bed frame has a maximum weight capacity of 1000 lbs, providing robust support for various mattress types and users.

Noise Reduction

Equipped with EVA foam strips and anti-slip slats, the bed frame is engineered to significantly reduce squeaks and shifting, ensuring a quiet and undisturbed sleep environment.

Under-Bed Clearance

The frame provides 4.3 inches of under-bed clearance, allowing for easy cleaning, including access for most robot vacuums.

Figure 4.1: Under-Bed Clearance for Easy Cleaning

Adjustable Bed Base Compatibility

This bed frame may be compatible with an adjustable bed base if the following conditions are met:

• The legs of the adjustable base are higher than 11.8 inches.
• The lifting mechanism of the adjustable base is not located in the mattress center.

Secure Mattress Design

The frame features an embedded design to securely hold your mattress in place, preventing sliding and ensuring stability.

5. Maintenance and Care

Cleaning Instructions

The velvet upholstery is easy to maintain. For general cleaning, wipe the fabric with a damp cloth. For spills, blot immediately with a clean, dry cloth. Avoid using harsh chemicals or abrasive cleaners, as these may damage the fabric.

General Care

• Periodically check all bolts and connections to ensure they remain tight. Retighten as necessary to maintain stability and prevent squeaks.
• Avoid exposing the bed frame to direct sunlight for prolonged periods to prevent fading of the upholstery.
• Do not jump on the bed frame, as this can compromise its structural integrity.

6. Troubleshooting

If you encounter any issues with your Jocisland bed frame, please refer to the following common solutions:

Squeaking Noises

• Ensure all bolts and screws are securely tightened. Loose connections are a common cause of squeaks.
• Verify that the EVA foam strips are correctly placed between the slats and the frame. These strips are designed to prevent friction and noise.
• Check that the slats are properly seated and not rubbing against each other or the frame.

Unstable Frame

• Re-check all assembly points to ensure every component is correctly installed according to the manual.
• Confirm that the solid wood legs are firmly screwed into the frame.
• Ensure the bed frame is placed on a level surface.

Mattress Sliding

• The bed frame features an embedded design to prevent mattress sliding. Ensure your mattress is properly positioned within the frame's edges.
• If sliding persists, consider using a non-slip mattress pad between the mattress and the slats.

If you are unable to resolve an issue, please contact Jocisland customer support for assistance.

7. Specifications

8. Warranty and Support

Warranty Information

For specific warranty details regarding your Jocisland bed frame, please refer to the warranty card included with your product or contact Jocisland customer support directly. Typically, warranties cover manufacturing defects under normal use.

Customer Support

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Jocisland customer support. Contact information can usually be found on the product packaging or the official Jocisland website.

Please have your model number (BHB020) and purchase date available when contacting support.
