Craftsman 54" Gas Zero-Turn Riding Lawn Mower User Manual

Introduction

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Craftsman 54" Gas Zero-Turn Riding Lawn Mower. This powerful machine is designed to efficiently maintain large lawn areas, featuring a 24.0 HP* Kohler 7000 Series Engine and dual hydrostatic transmission for precise control. Please read this manual thoroughly before operating the mower to ensure proper use and longevity of the product.

Figure 1: The Craftsman 54" Gas Zero-Turn Riding Lawn Mower. This image shows the overall design of the mower, highlighting its red and black color scheme, large rear tires, and comfortable high-back seat.

Safety Information

Operating a riding lawn mower can be dangerous if safety precautions are not followed. Always prioritize safety to prevent serious injury or death.

General Safety Rules:

• Read the Manual: Always read and understand the entire operator's manual before assembly, operation, or maintenance.
• Personal Protective Equipment (PPE): Wear appropriate eye protection, hearing protection, sturdy footwear, and long pants while operating the mower.
• Clear the Area: Before mowing, clear the area of objects such as rocks, toys, wires, or other debris that could be thrown by the blades.
• No Passengers: Never allow passengers, especially children, to ride on the mower.
• Slope Operation: Exercise extreme caution when operating on slopes. Mow across slopes, not up and down. Avoid excessively steep slopes.
• Engine Off for Maintenance: Always turn off the engine, remove the ignition key, and disconnect the spark plug wire before performing any maintenance, adjustments, or clearing clogs.
• Fuel Safety: Handle gasoline with extreme care. Store fuel in approved containers, in a well-ventilated area, away from sparks or open flames. Do not refuel a hot engine.
• Children and Pets: Keep children and pets away from the mowing area.
• Visibility: Operate only in daylight or good artificial light.
• Blade Engagement: Disengage blades when not mowing, before crossing surfaces other than grass, and before transporting the unit.

Setup

Before operating your new Craftsman Zero-Turn Mower, ensure it is properly set up and inspected.

1. Unpacking and Inspection:

• Carefully remove the mower from its packaging.
• Inspect for any shipping damage. Contact your dealer immediately if damage is found.
• Ensure all components listed in the packing list are present.

2. Initial Fluid Checks:

• Engine Oil: Check the engine oil level using the dipstick. Add recommended oil if necessary. Refer to the engine manual for specific oil type and capacity.
• Fuel: Fill the fuel tank with fresh, unleaded gasoline. Do not overfill.

3. Battery Connection:

• Locate the battery. Connect the positive (+) cable first, then the negative (-) cable. Ensure connections are tight.

4. Deck Leveling:

• For optimal cutting performance, ensure the mower deck is level from side-to-side and slightly lower at the front. Refer to the detailed instructions in the full operator's manual for adjustment procedures.

Figure 2: Front view of the Craftsman Zero-Turn Mower. This perspective is useful for checking the front caster wheels and the leading edge of the cutting deck during initial setup and leveling.

Operating

Familiarize yourself with the controls and operating procedures before starting the engine.

1. Controls Overview:

• Lap Bars: Control steering and speed. Pushing both forward moves the mower forward; pulling both back moves it backward. Pushing one forward and pulling the other back turns the mower.
• Deck Lift Lever: Adjusts the cutting height of the mower deck.
• Ignition Switch: Used to start and stop the engine.
• PTO (Power Take-Off) Switch: Engages and disengages the mower blades.
• Parking Brake: Engages to prevent the mower from moving when parked.

2. Starting the Engine:

1. Ensure the parking brake is engaged.
2. Ensure the PTO (blade engagement) switch is in the disengaged position.
3. Sit firmly in the operator's seat.
4. Insert the ignition key and turn it to the "START" position. Release the key once the engine starts.
5. Allow the engine to warm up for a few minutes before engaging the blades.

3. Driving and Mowing:

• Disengage Parking Brake: Release the parking brake before moving.
• Engage Blades: Once in the mowing area, engage the PTO switch to start the blades.
• Cutting Height: Adjust the deck lift lever to your desired cutting height. The 54" deck offers precise cutting.
• Mowing Pattern: For best results, overlap each pass slightly. Zero-turn capability allows for efficient turns at the end of rows, minimizing uncut areas.
• Speed: Adjust your ground speed based on grass conditions. Mow at a slower speed in thick or tall grass.

4. Stopping the Engine:

1. Disengage the PTO (blades).
2. Move the lap bars to the neutral position.
3. Engage the parking brake.
4. Turn the ignition key to the "OFF" position and remove it.

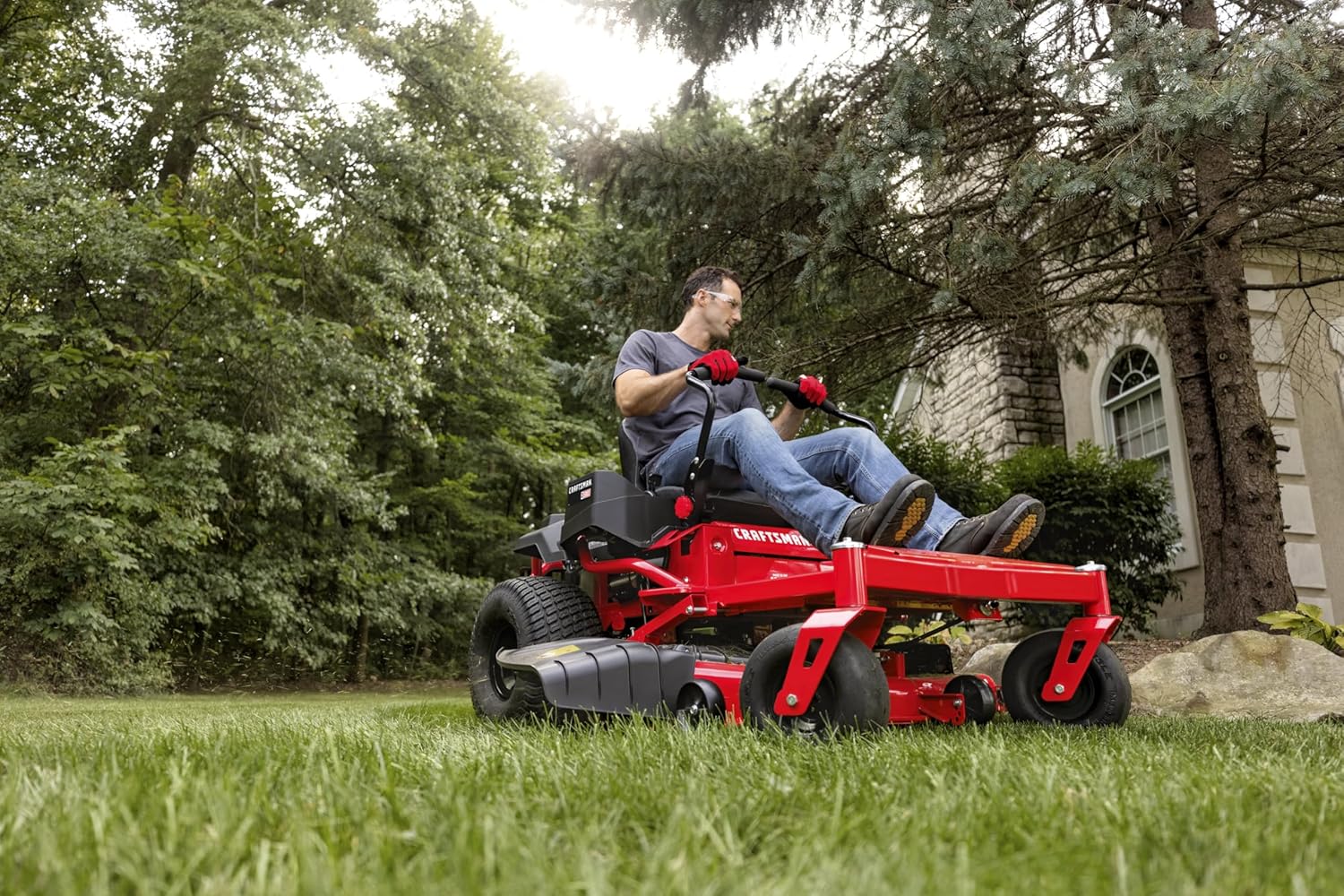

Figure 3: An operator using the Craftsman Zero-Turn Mower. This image demonstrates the typical operating posture and the mower in action, highlighting its maneuverability in a residential lawn setting.

Maintenance

Regular maintenance is crucial for the performance, safety, and longevity of your Craftsman Zero-Turn Mower. Always refer to the engine manufacturer's manual for specific engine maintenance schedules and procedures.

General Maintenance Schedule:

• Before Each Use: Check engine oil level, inspect blades for damage, check tire pressure, clear debris from deck and engine cooling fins.
• Every 25 Hours or Annually: Clean/replace air filter, check spark plug, inspect belts, lubricate pivot points.
• Every 50 Hours or Annually: Change engine oil and oil filter, inspect fuel filter.
• Annually (or more often if needed): Sharpen or replace blades, inspect battery, check all fasteners for tightness.

Key Maintenance Tasks:

• Engine Oil Change: Drain old oil when the engine is warm. Refill with the recommended type and amount of new oil.
• Air Filter: Clean or replace the air filter regularly, especially in dusty conditions, to ensure proper engine performance.
• Spark Plug: Inspect the spark plug for wear and proper gap. Replace if necessary.
• Deck and Blades: Regularly clean the underside of the mower deck to prevent grass buildup. Inspect blades for sharpness and balance. Replace bent or damaged blades.
• Tire Pressure: Maintain recommended tire pressure for optimal traction and an even cut.
• Storage: For extended storage, prepare the mower by stabilizing fuel, cleaning thoroughly, and disconnecting the battery.

Figure 4: Common maintenance parts for the Craftsman Zero-Turn Mower. This image displays various components such as an AGM battery, engine oil, deck belt, drive belt, spindle assembly, fuel filter, siphon pump, wheels, blade removal tool, high-lift blade, low-lift blade, and mulch blade, illustrating the range of parts that may require periodic inspection or replacement.

Figure 5: Available attachments and accessories for the Craftsman Zero-Turn Mower. This image shows optional items like a bagger, mulch kit, armrest kit, tire chains, hauler, all-season plow, and deck-mounted striped roller kit, which can enhance the mower's versatility.

Troubleshooting

This section provides solutions to common operational issues. For more complex problems, consult a qualified service technician.

Specifications

Key technical specifications for the Craftsman 54" Gas Zero-Turn Riding Lawn Mower.

Warranty and Support

Your Craftsman 54" Gas Zero-Turn Riding Lawn Mower is backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Craftsman website.

For technical assistance, parts, or service, please contact Craftsman Customer Support. Have your model number (17ARFACW093) and serial number ready when contacting support.

Online Resources: For additional information, FAQs, and instructional videos, visit the official Craftsman support page.

Customer Support: Refer to the contact information provided in your product packaging or on the Craftsman website.
