1. Introduction
Thank you for choosing the CREA Pull Down Faucet Head Replacement. This manual provides essential information for the proper installation, operation, and maintenance of your new faucet head. Please read these instructions carefully before installation and retain them for future reference.

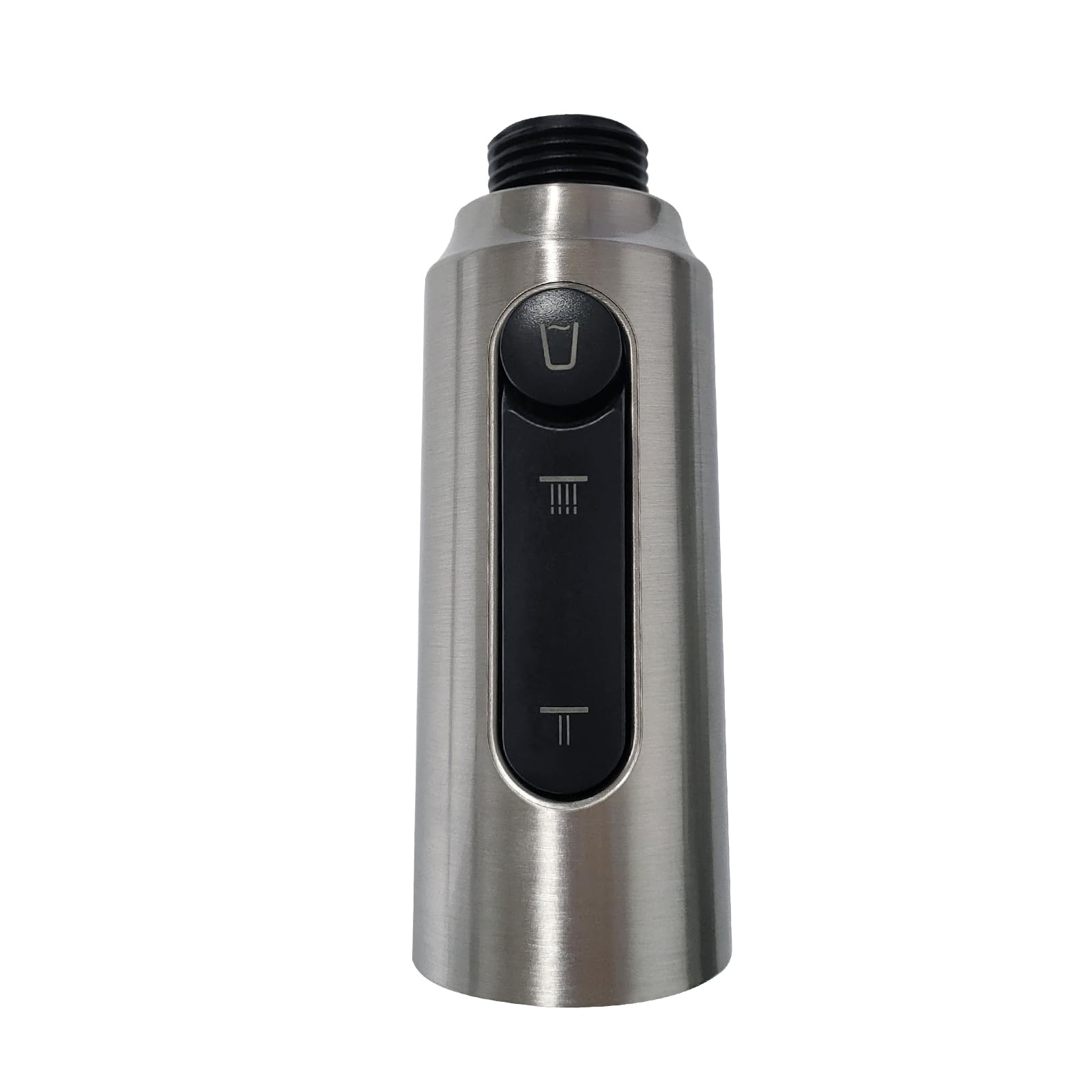

Image 1.1: CREA Pull Down Faucet Head Replacement. This image displays the brushed nickel finish and the general design of the faucet head.
2. Setup and Installation
The CREA Pull Down Faucet Head is designed for easy installation without the need for specialized tools. It features a standard G 1/2 connection, compatible with most pull-down kitchen faucets.
2.1 Before You Begin
- Ensure your existing faucet hose has a G 1/2 connection. Verify compatibility before proceeding.
- Turn off the water supply to your kitchen faucet.
- Have a towel or small bucket ready to catch any residual water.
2.2 Installation Steps
- Remove Old Faucet Head: Unscrew your existing pull-down faucet head from the hose. Turn counter-clockwise to loosen.
- Prepare New Faucet Head: Ensure the rubber washer is properly seated inside the new CREA faucet head's connection point.
- Attach New Faucet Head: Screw the new CREA faucet head onto the pull-down hose. Turn clockwise until hand-tight. Do not overtighten.
- Check for Leaks: Turn the water supply back on slowly and check for any leaks around the connection point. If leaks occur, tighten slightly more or re-seat the washer.
3. Operating Instructions
The CREA Pull Down Faucet Head features a three-function sprayer, allowing you to switch between different water flow modes for various tasks.
3.1 Switching Spray Modes
- Stream Mode: Ideal for filling pots and general washing. This mode provides a steady, concentrated flow to easily flush food debris and dishes.
- Spray Mode: Provides a wider, softer water flow with no splash, suitable for rinsing fruits, vegetables, or delicate items.
- Pause Mode: (If applicable, based on product description, this model has 2 modes, stream and spray. I will adjust to reflect 2 modes)
To switch between the stream and spray modes, simply press and release the button located on the faucet head. The faucet head will toggle between the two available functions.
4. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your CREA faucet head.
4.1 Cleaning the Aerator Filter
The faucet head includes a removable filter (aerator) that helps create a perfect water flow and filters impurities. Over time, mineral deposits or debris can accumulate, affecting water flow.
- Unscrew the Filter: Gently unscrew the aerator filter from the end of the faucet head.
- Clean the Filter: Rinse the filter under running water to remove any debris. For stubborn mineral deposits, soak the filter in a solution of equal parts white vinegar and water for 15-30 minutes, then scrub with a soft brush.
- Reinstall the Filter: Screw the clean filter back into the faucet head until snug. Do not overtighten.
4.2 Cleaning Silicone Nozzles
The sprayer features silicone nozzles that are easy to clean. If you notice reduced water flow or irregular spray patterns, mineral buildup may be present.
- Simply rub your finger or a soft cloth over the silicone nozzles to dislodge any mineral deposits.
- For more stubborn buildup, use a soft brush or a toothpick to gently clear the nozzle openings.
4.3 General Cleaning
To maintain the brushed nickel finish, clean the exterior with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
5. Troubleshooting
This section addresses common issues you might encounter with your faucet head.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Clogged aerator filter or nozzles. | Clean the aerator filter and silicone nozzles as described in Section 4.1 and 4.2. |
| Water Leaks from Connection | Loose connection or improperly seated washer. | Ensure the faucet head is securely hand-tightened. Check that the rubber washer is correctly positioned and not damaged. Replace washer if necessary. |
| Water Leaks Between Buttons/Modes | Internal seal issue or debris. | Ensure the buttons are not stuck. If the issue persists, contact customer support for further assistance. |
| Inconsistent Spray Pattern | Clogged silicone nozzles. | Clean the silicone nozzles as described in Section 4.2. |
6. Specifications
Key technical specifications for the CREA Pull Down Faucet Head Replacement.
- Brand: CREA
- Model Number: 109377BN-US
- Material: Metal
- Finish Type: Brushed
- Thread Size: G 1/2
- Number of Items: 1 (faucet head)
7. Warranty Information
For specific warranty details regarding your CREA Pull Down Faucet Head Replacement, please refer to the warranty documentation provided at the time of purchase or contact your retailer. Warranty terms typically cover manufacturing defects under normal use.
8. Customer Support
If you have any questions, require technical assistance, or need to report an issue that cannot be resolved using the troubleshooting guide, please contact CREA customer support through the retailer where the product was purchased or visit the official CREA website for contact information.
