1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of the RWRAPS XMTD-7000 PID Intelligent Temperature Controller. This device is engineered for precise temperature regulation across various industrial and scientific applications. It features a dual display for both Fahrenheit and Celsius, individually programmable control parameters (P, I, D), and versatile dual output options including relay and SSR control voltage. Its user-friendly interface ensures straightforward operation and reliable performance.
2. Safety Information
Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in equipment damage, personal injury, or improper operation.
- Ensure the power supply voltage matches the specifications of the controller.
- Disconnect power before performing any wiring or maintenance.
- Installation and wiring should be performed by qualified personnel.
- Do not operate the controller in environments with corrosive gases, excessive dust, or high humidity.
- Avoid exposing the device to direct sunlight or extreme temperatures.
3. Product Overview
The RWRAPS XMTD-7000 is a compact and robust PID temperature controller. Below are key visual references and descriptions of its components.

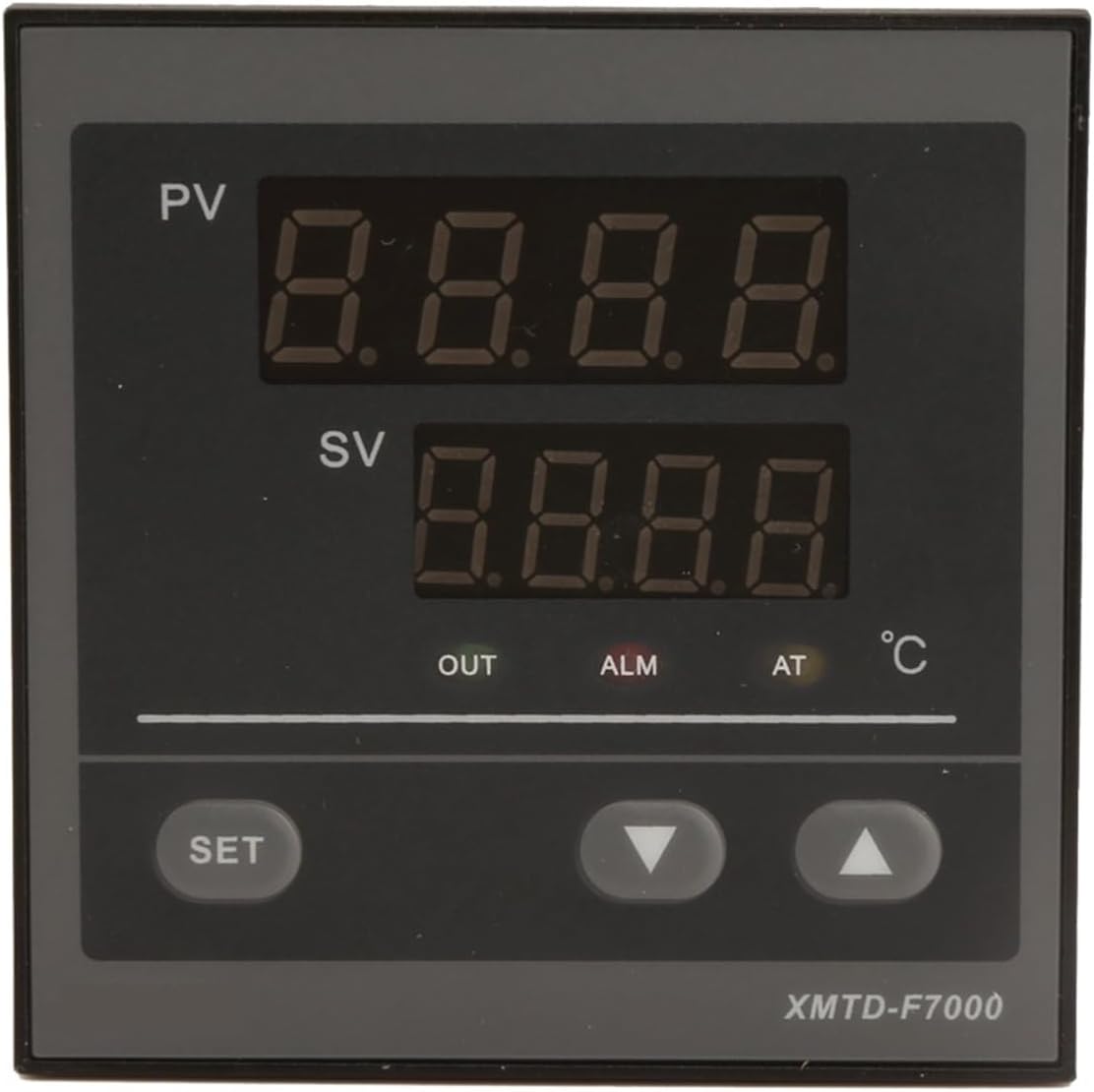

Figure 3.1: Front Panel View
This image displays the front panel of the XMTD-7000 controller, featuring the dual digital displays for Process Value (PV) and Set Value (SV), along with indicator lights for Output (OUT), Alarm (ALM), and Auto-tuning (AT). Control buttons for 'SET', 'Down', and 'Up' are located below the displays.
Figure 3.2: Side and Back Panel Overview
This angled view shows the side and a portion of the back panel, highlighting the model number (XMTD-7111, indicating a specific variant or component), voltage, output, and supply specifications. Ventilation slots are visible on the top and sides.
Figure 3.3: Rear Wiring Terminals
The rear view illustrates the screw terminals for electrical connections. These terminals are used for power input, sensor input (K, J, E, S type thermocouples), and control outputs (relay and SSR).
3.1. Front Panel Indicators and Buttons
- PV (Process Value) Display: Shows the current measured temperature.
- SV (Set Value) Display: Shows the target temperature set by the user.
- OUT Indicator: Illuminates when the control output is active.
- ALM Indicator: Illuminates when an alarm condition is met.
- AT Indicator: Illuminates when the auto-tuning function is active.
- SET Button: Used to enter parameter setting mode and confirm selections.
- Up/Down Buttons: Used to navigate through parameters and adjust values.
4. Specifications
| Parameter | Value |
|---|---|
| Accuracy | ±1.0% ± 1.0 character; ±0.5% ± 1.0 character (two levels) |
| Temperature Coefficient | Not more than 0.05%/°C (operating within 0-50°C) |
| Additional Cold End Compensating Error | Not more than ±2°C |
| PID Set Range (P) | 0-100% |
| PID Set Range (I) | 0-4320 seconds |
| PID Set Range (D) | 0-1200 seconds |
| Phase Style Controller Hysteresis Set Range | At P value |
| Controlling and Alarm Value Set Range | Full scale 0-100% |
| Working Power | AC 100V-240V, 50Hz, Power dissipation ≤3W, or AC240V±10% |
| Working Environment Temperature | 0 to 50°C |
| Working Environment Humidity | 30-85% relative humidity (non-corrosive air) |
| Output Contact Volume | AC 250V 3A |
| Input Signal | K, J, E, S type thermocouples |
| Law of Regulation | Full scale, maximum absolute value alarm |
| Output | Relay contact output |
| Size (L×W×H) | 72×72×113mm |
| Hole Size | 68+1×68+1mm |
| Item Weight | 10.6 ounces |
| Assembly Required | No |
| Number of Pieces | 1 |
5. Setup
5.1. Mounting
The XMTD-7000 controller is designed for panel mounting. Prepare a cutout in your control panel with the dimensions of 68+1mm by 68+1mm. Insert the controller into the cutout and secure it using the provided mounting brackets.
5.2. Wiring
Refer to the wiring diagram printed on the side of the controller (as shown in Figure 3.2) and the terminal layout on the back (Figure 3.3). Ensure all connections are secure and correctly matched to your power supply, sensor, and output devices.
- Power Supply: Connect AC 100V-240V, 50Hz to the designated power terminals.
- Sensor Input: Connect your K, J, E, or S type thermocouple to the sensor input terminals. Observe polarity for proper operation.
- Output Connections: Connect your heating/cooling element or other controlled device to the relay contact output terminals. The controller also supports SSR control voltage output.
Warning: Incorrect wiring can damage the controller or connected equipment. Always verify connections before applying power.
5.3. Initial Power-Up
After completing all wiring, apply power to the controller. The PV display will show the current temperature, and the SV display will show the default set temperature. The controller is now ready for operation and parameter configuration.
6. Operation
6.1. Setting the Target Temperature (SV)
- Press the SET button once. The SV display will begin to flash.
- Use the Up and Down arrow buttons to adjust the SV to your desired target temperature.
- Press the SET button again to confirm the new SV. The display will stop flashing, and the controller will begin to regulate temperature based on the new setting.
6.2. Understanding Display Indicators
- PV (Process Value): Displays the real-time temperature measured by the sensor.
- SV (Set Value): Displays the user-defined target temperature.
- OUT: Indicates that the control output (e.g., heating element) is currently active.
- ALM: Indicates that an alarm condition has been met (e.g., temperature exceeding limits).
- AT: Indicates that the auto-tuning process is currently running.
6.3. Advanced Parameter Settings (PID Control)
The XMTD-7000 allows for advanced configuration of PID control parameters (Proportional, Integral, Derivative) for optimized temperature stability. Accessing and adjusting these parameters typically involves pressing and holding the SET button for several seconds to enter the parameter menu. Refer to the detailed wiring diagram and parameter list on the device for specific navigation and adjustment procedures.
- P (Proportional Band): Range 0-100%. Controls the output power proportional to the difference between PV and SV.
- I (Integral Time): Range 0-4320 seconds. Eliminates steady-state errors (offset) by adjusting output based on the duration and magnitude of the error.
- D (Derivative Time): Range 0-1200 seconds. Responds to the rate of change of the error, helping to prevent overshoot and undershoot.
Note: Adjusting PID parameters requires an understanding of control theory. Incorrect settings can lead to unstable temperature control. It is recommended to use the auto-tuning function or consult an expert if you are unfamiliar with PID tuning.
6.4. Auto-Tuning Function
The auto-tuning function automatically calculates optimal PID parameters for your specific system. To initiate auto-tuning, typically press and hold the SET button until the AT indicator starts flashing. The controller will cycle the output to determine the system's characteristics. Once complete, the AT indicator will turn off, and the new PID parameters will be saved.
7. Maintenance
7.1. Cleaning
Keep the controller's front panel clean. Use a soft, dry cloth to wipe away dust. For stubborn dirt, a slightly damp cloth with mild detergent can be used, ensuring no liquid enters the device. Do not use abrasive cleaners or solvents.
7.2. Environmental Conditions
To ensure long-term reliability, operate the controller within the specified environmental conditions: temperature 0 to 50°C and relative humidity 30-85% (non-condensing, non-corrosive air). Avoid installing the unit near heat sources or in areas with excessive vibration.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No display after power-up | No power supply; incorrect wiring; faulty power source. | Check power connections and voltage. Verify wiring according to the diagram. Test power source. |
| PV display shows "HHHH" or "LLLL" | Sensor open circuit (HHHH) or short circuit/reverse connection (LLLL); sensor out of range. | Check sensor wiring and connections. Ensure correct sensor type is used. Replace faulty sensor. |
| Temperature unstable or oscillating | Incorrect PID parameters; sensor not properly installed; external disturbances. | Run auto-tuning. Verify sensor placement. Check for drafts or rapid temperature changes in the environment. |
| Output (OUT) indicator not activating | SV is equal to or outside the PV range; output device faulty; wiring issue. | Adjust SV. Check the connected output device. Verify output wiring. |
| Alarm (ALM) indicator constantly on | Alarm set points are too close to PV; actual temperature is outside alarm limits. | Review and adjust alarm parameters. Check if the system is operating within expected temperature ranges. |
If the problem persists after attempting these solutions, please contact customer support.
9. Warranty and Support
9.1. Warranty Information
RWRAPS products are manufactured to high-quality standards. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. Specific warranty duration and terms may vary; refer to your purchase documentation for details.
9.2. Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact RWRAPS customer support through the retailer where the product was purchased or visit the official RWRAPS website for contact information.
