Merax Full Horizontal Murphy Bed Cabinet with Shelves and Drawers

1. Product Overview

The Merax Full Horizontal Murphy Bed Cabinet is designed to maximize space efficiency in various living environments such as guest rooms, home offices, or studios. This unit integrates a full-size bed that folds into a cabinet, flanked by storage shelves and drawers.

• Space-Saving Design: The bed folds away into a cabinet, freeing up floor space when not in use.
• Integrated Storage: Features two four-layer shelves and four drawers for organized storage of household items.
• Comfortable Sleep: The mattress support system utilizes flexible slats designed to conform to body curves and absorb pressure.
• Mattress Compatibility: Accommodates mattresses up to 8 inches in thickness. (Mattress not included).
• Weight Capacity: The bed has a maximum weight capacity of 600 pounds.

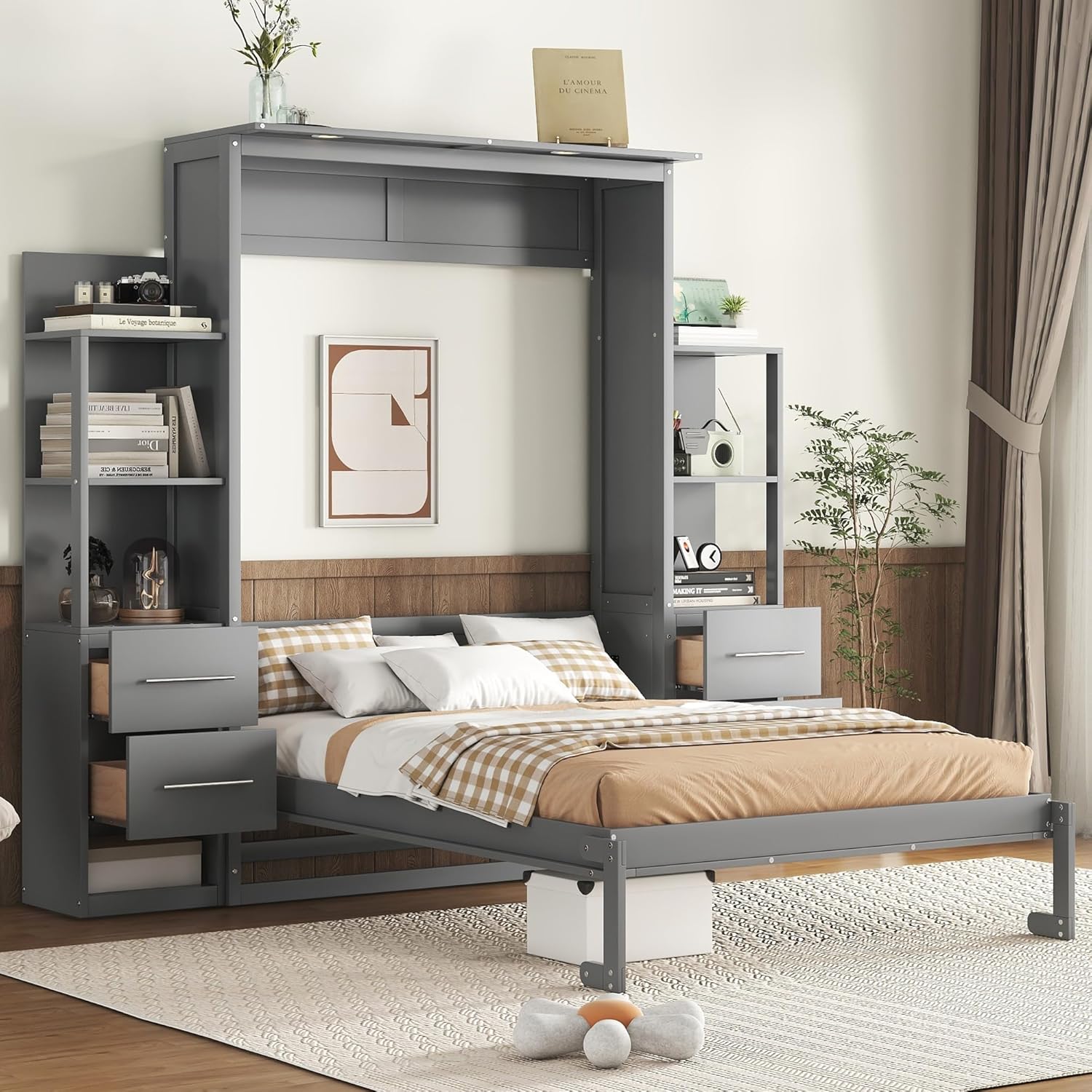

Figure 1.1: Merax Murphy Bed in open (bed extended) configuration.

Figure 1.2: Merax Murphy Bed in closed (cabinet) configuration.

2. Safety Information

Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury or product damage.

• Wall Mounting is Essential: This Murphy bed unit must be securely anchored to a wall to prevent tipping. Use appropriate hardware for your wall type.
• Adult Assembly Required: Assembly should be performed by at least two adults.
• Weight Limit: Do not exceed the maximum weight capacity of 600 pounds.
• Mattress Thickness: Use a mattress no thicker than 8 inches. Thicker mattresses may prevent proper closing or cause damage.
• Clearance: Ensure adequate clearance around the bed when opening and closing to avoid obstruction or injury.
• Children and Pets: Keep children and pets away from the unit during operation to prevent pinching or other injuries.
• Regular Inspection: Periodically check all fasteners and connections to ensure they remain tight and secure.

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.

• Cabinet panels (various sizes)
• Bed frame components
• Slats for mattress support
• Drawer components and slides
• Shelving units
• Hardware pack (screws, bolts, cam locks, wall anchors, etc.)
• Assembly tools (basic tools may be included, but a screwdriver and hammer are recommended)
• Instruction manual

4. Setup and Assembly

Assembly requires two adults and approximately 2-4 hours. Follow the detailed step-by-step instructions provided in the separate assembly guide included with your product. Key steps include:

1. Prepare the Area: Clear a spacious area for assembly. Lay out all parts and hardware.
2. Assemble Cabinet Frame: Construct the main cabinet structure, including the side shelving units and drawers, according to the assembly guide.
3. Install Bed Mechanism: Integrate the folding bed mechanism into the cabinet frame.
4. Attach Bed Frame: Secure the bed frame to the folding mechanism.
5. Install Slats: Place the mattress support slats onto the bed frame.
6. Wall Mounting: This is a critical safety step. Securely anchor the entire unit to a sturdy wall using the provided anti-tip hardware. Ensure the wall material can support the weight and forces exerted by the bed.
7. Final Checks: Verify all connections are tight and the unit is stable.

Figure 4.1: Product dimensions for planning installation space.

Figure 4.2: Open bed frame and slat system.

Figure 4.3: Detail of an integrated storage drawer.

5. Operating Instructions

To operate your Merax Murphy Bed, follow these steps:

1. To Open the Bed:
   • Ensure the area in front of the cabinet is clear of obstructions.
   • Grasp the handles on the front panel of the cabinet.
   • Gently pull the bed panel downwards. The bed frame will pivot out from the cabinet.
   • As the bed lowers, extend the support legs down to the floor to stabilize the bed.
   • Ensure the support legs are fully extended and locked into position before use.
2. To Close the Bed:
   • Remove any bedding or items from the bed that would prevent it from folding.
   • Fold the support legs back into their stored position.
   • Grasp the handles on the bed frame and gently lift the bed upwards, guiding it back into the cabinet.
   • Push firmly until the bed panel is fully recessed and latched securely within the cabinet.

Figure 5.1: Closed cabinet with handles for operation.

6. Maintenance

Proper maintenance ensures the longevity and safe operation of your Murphy bed.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners. For painted surfaces, use a dry cloth or a slightly damp cloth with mild soap if necessary, then dry immediately.
• Hardware Check: Periodically inspect all screws, bolts, and wall anchors. Tighten any loose fasteners.
• Mechanism Lubrication: If the folding mechanism becomes stiff, apply a small amount of silicone-based lubricant to the pivot points. Do not use oil-based lubricants as they can attract dust.
• Mattress Care: Follow your mattress manufacturer's care instructions. Ensure the mattress is within the specified thickness limit (8 inches).

7. Troubleshooting

If you encounter issues with your Merax Murphy Bed, refer to the following common problems and solutions:

If the issue persists, please contact Merax customer support.

8. Specifications

9. Warranty and Support

Merax provides customer support for product inquiries and assistance. For any questions regarding your Merax Full Horizontal Murphy Bed Cabinet, including assembly, missing parts, or operational concerns, please contact us directly.

Contact Information:
Email: csr@merax.com

Please have your model number (KK2409-2) and purchase information ready when contacting support.
