Sotipevs RGB Smart Floor Lamp User Manual

Introduction

Thank you for choosing the Sotipevs RGB Smart Floor Lamp. This 65-inch LED corner lamp is designed to enhance your living space with dynamic and customizable lighting. Featuring compatibility with smart home systems like Alexa and Google Assistant, along with app and remote control options, it offers millions of colors, 44+ preset scenes, DIY modes, and music synchronization. This manual provides essential information for setup, operation, and maintenance to ensure optimal performance and longevity of your lamp.

The Sotipevs RGB Floor Lamp, showcasing its sleek design, remote control, and smartphone app interface.

Package Contents

Please verify that all components are present and in good condition before proceeding with assembly.

• Lamp Body (with integrated LED beads)
• 4-Section Pole
• Remote Control
• Base
• Power Adapter (Corded Electric)
• Multi-language Instruction Manual

Setup and Assembly

Follow these steps to assemble your Sotipevs RGB Floor Lamp:

1. Run the wires: Carefully run the wires through the light poles. Twist and assemble all the light poles according to the order of the interface threads.
2. Connect the ends: Insert the ends of the wires into each other, ensuring a secure connection. Match the light body wire connector to the pole wire connector.
3. Twist the light pole: Twist the assembled light pole firmly to the light body.
4. Fix to the base: Fix the fully assembled light pole into the base, ensuring it is stable and upright.

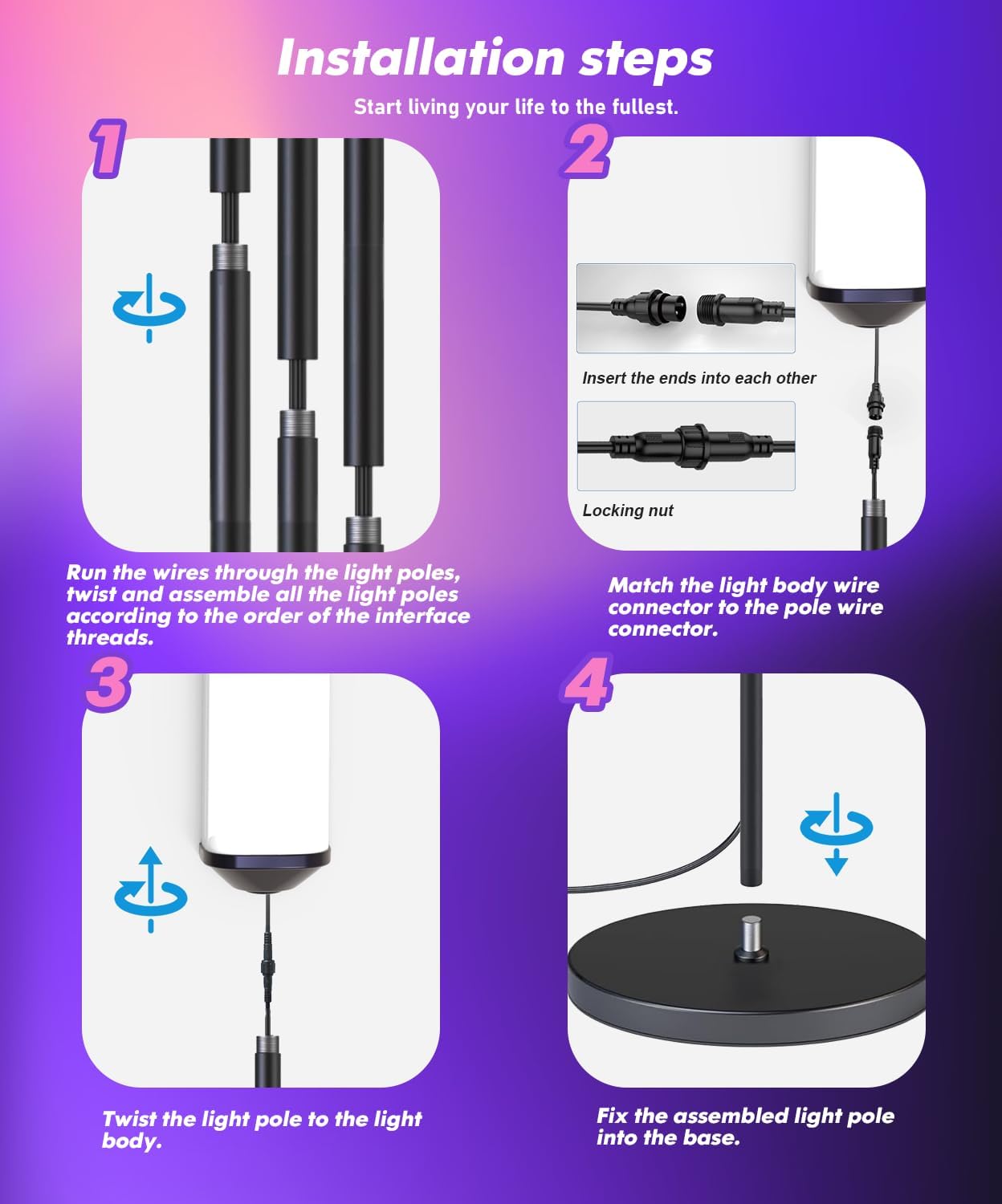

Visual guide for the four-step assembly process of the Sotipevs RGB Floor Lamp.

Operating Instructions

Your Sotipevs RGB Floor Lamp offers multiple control methods for a personalized lighting experience.

Control Methods:

• Smart Life App: Download the Smart Life App from your device's app store. Connect the lamp to your home Wi-Fi network (2.4 GHz only). The app provides access to millions of colors, 44+ preset scenes, DIY lighting effects, and music sync modes.
• Remote Control: Use the included remote control to adjust colors, brightness, and switch between pre-programmed scenes.
• Foot Switch: A convenient foot switch is located on the power cable for simple on/off functionality.
• Voice Control: Compatible with Alexa and Google Assistant. Once connected via the Smart Life App, you can use voice commands to control the lamp (e.g., "Alexa, turn on the lamp").

The Sotipevs lamp offers versatile control options including voice, app, and remote, unlike some other models.

Color and Brightness Adjustment:

Beyond RGB modes, the lamp functions as daily lighting with adjustable color temperature and brightness:

• Color Temperature: Supports 2200K-6500K adjustment.
• Brightness: Adjustable from 1% to 100%.

The lamp offers three distinct color temperatures for various needs: 6500K for working, 4000K for reading, and 2200K for relaxing.

Smart Features:

• Voice Control: Integrate with Alexa or Google Assistant for hands-free operation.
• Scene Creation: Create and customize various lighting scenes via the Smart Life App.
• Music Sync: The lamp can synchronize with music for dynamic lighting effects.
• Timer Function: Set schedules for turning the lamp on/off at specific times using the app.

The lamp supports intelligent voice control, allowing users to manage lighting with simple commands.

Explore a wide range of smart app features, including over 20 million colors, 800+ multi-color effects, music modes, and scheduling.

Product Specifications

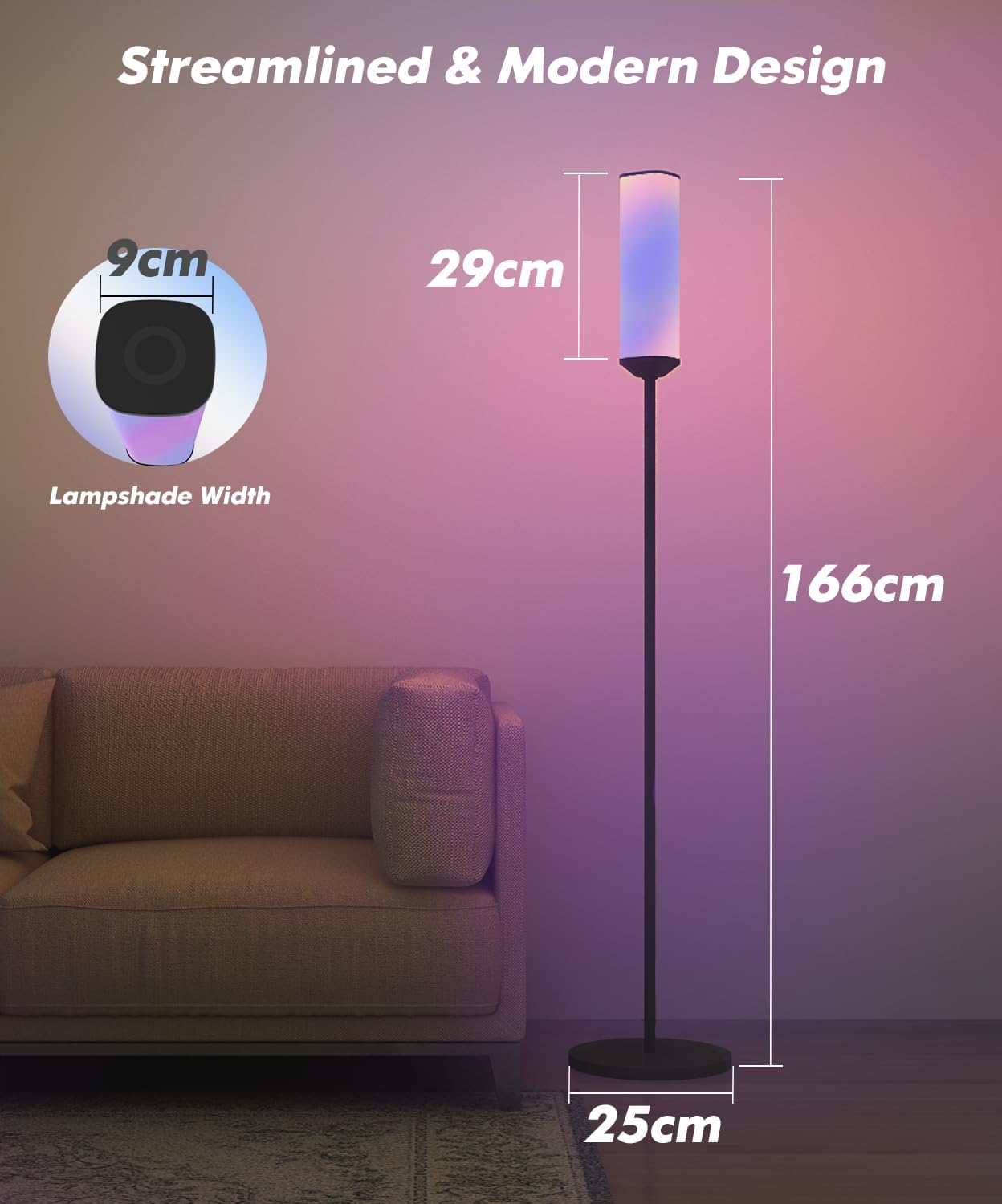

Detailed dimensions of the Sotipevs RGB Floor Lamp.

Care and Maintenance

To ensure the longevity and optimal performance of your Sotipevs RGB Floor Lamp, please follow these care and maintenance guidelines:

• Cleaning: Disconnect the lamp from the power source before cleaning. Use a soft, dry cloth to wipe down the lamp body and shade. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish and acrylic.
• Placement: Place the lamp on a stable, flat surface to prevent tipping. Ensure it is not in a high-traffic area where it could be easily knocked over.
• Environment: This lamp is designed for indoor use only and is not waterproof. Avoid exposing it to moisture, high humidity, or extreme temperatures.
• LED Longevity: The lamp uses integrated LED beads, which are designed for long-term use and do not require replacement.

Troubleshooting

If you encounter any issues with your Sotipevs RGB Floor Lamp, please refer to the following common troubleshooting tips:

• Lamp Not Turning On:
  • Ensure the power adapter is securely plugged into both the lamp and a working wall outlet.
  • Check the foot switch to ensure it is in the "on" position.
  • Verify that all pole sections are correctly and securely twisted together, as improper assembly can prevent the lamp from powering on.
• Remote Control Not Working:
  • Ensure the remote control has working batteries.
  • Point the remote directly at the lamp's receiver.
• App Connectivity Issues (Wi-Fi):
  • Confirm your Wi-Fi network is 2.4 GHz. The lamp is not compatible with 5 GHz networks.
  • Ensure your smartphone is connected to the same 2.4 GHz Wi-Fi network during the initial setup process.
  • Restart your Wi-Fi router and the lamp, then attempt to reconnect via the app.
  • Ensure the lamp is within range of your Wi-Fi router.
• Colors Not Changing/Lamp Malfunctioning:
  • Try resetting the lamp by unplugging it for a few minutes and then plugging it back in.
  • If using the app, ensure the app is updated to the latest version.

If these steps do not resolve the issue, please contact Sotipevs customer support for further assistance.

Warranty and Support

The Sotipevs RGB Smart Floor Lamp comes with a 24-month guarantee from the date of purchase. This warranty covers manufacturing defects and ensures the quality of your product.

For any questions, technical support, or warranty claims, please do not hesitate to contact Sotipevs customer service. Refer to the contact information provided in your product packaging or visit the official Sotipevs website for support details.

We are committed to providing you with a high-quality product and excellent customer service.
