TianQinLang 3000W Electric Griddle User Manual

1. Introduction

Thank you for purchasing the TianQinLang 3000W Electric Griddle. This versatile countertop grill is designed for both home and commercial use, offering a large cooking area with both flat and fluted surfaces. With adjustable temperature control, it is ideal for preparing a wide variety of foods. Please read this manual thoroughly before operation to ensure safe and efficient use.

Figure 1.1: Wide Application. This image illustrates the diverse uses of the electric griddle, showcasing various cooked foods and different environments, from home kitchens to commercial settings, where the griddle can be effectively utilized.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions before operating the griddle.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The product is shipped without a plug. Ensure installation is performed by a qualified electrician, connecting the wire to a suitable control switch (gate) in accordance with local electrical codes.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended household use.
• Ensure the griddle is placed on a stable, heat-resistant surface.
• Keep hands and face away from hot steam and oil splatter during operation.

3. Product Features

• Stainless Steel Construction: Made primarily of 410 stainless steel, ensuring high strength, durability, and a smooth, easy-to-clean surface.
• Dual Cooking Surfaces: Features a large worktable (73x44cm / 29x17.3in) divided into flat and fluted sections, allowing for simultaneous cooking of various foods. The fluted part is ideal for meats, while the flat part is perfect for pancakes, bacon, and eggs.
• Precise Temperature Control: Adjustable temperature range from 50~300℃ (122℉-572℉) with independent control knobs, power, and heating indicator lights for easy operation.
• Fast and Even Heating: Equipped with 3000W power and built-in dense heating coils for rapid and uniform heat distribution.
• Integrated Oil Collection: A drawer-type oil collection box at the bottom simplifies the collection of residual oil and food scraps, making cleaning convenient.
• Splash Guards: Raised splash guards around the sides prevent food and oil spills, contributing to a cleaner cooking environment.
• Efficient Heat Dissipation: Multiple cooling holes ensure better heat dissipation and extend the appliance's service life.
• Stable Placement: Non-slip feet on the bottom provide stable and secure placement during operation.

Figure 3.1: Front view of the TianQinLang Electric Griddle. This image shows the overall design of the griddle, highlighting its stainless steel construction, the two distinct cooking surfaces (flat and fluted), and the two control panels with temperature selection knobs and indicator lights.

Figure 3.2: 410 Stainless Steel with Excellent Craftsmanship. This close-up image emphasizes the quality of the stainless steel material used for the griddle's construction, showcasing its smooth finish and durability.

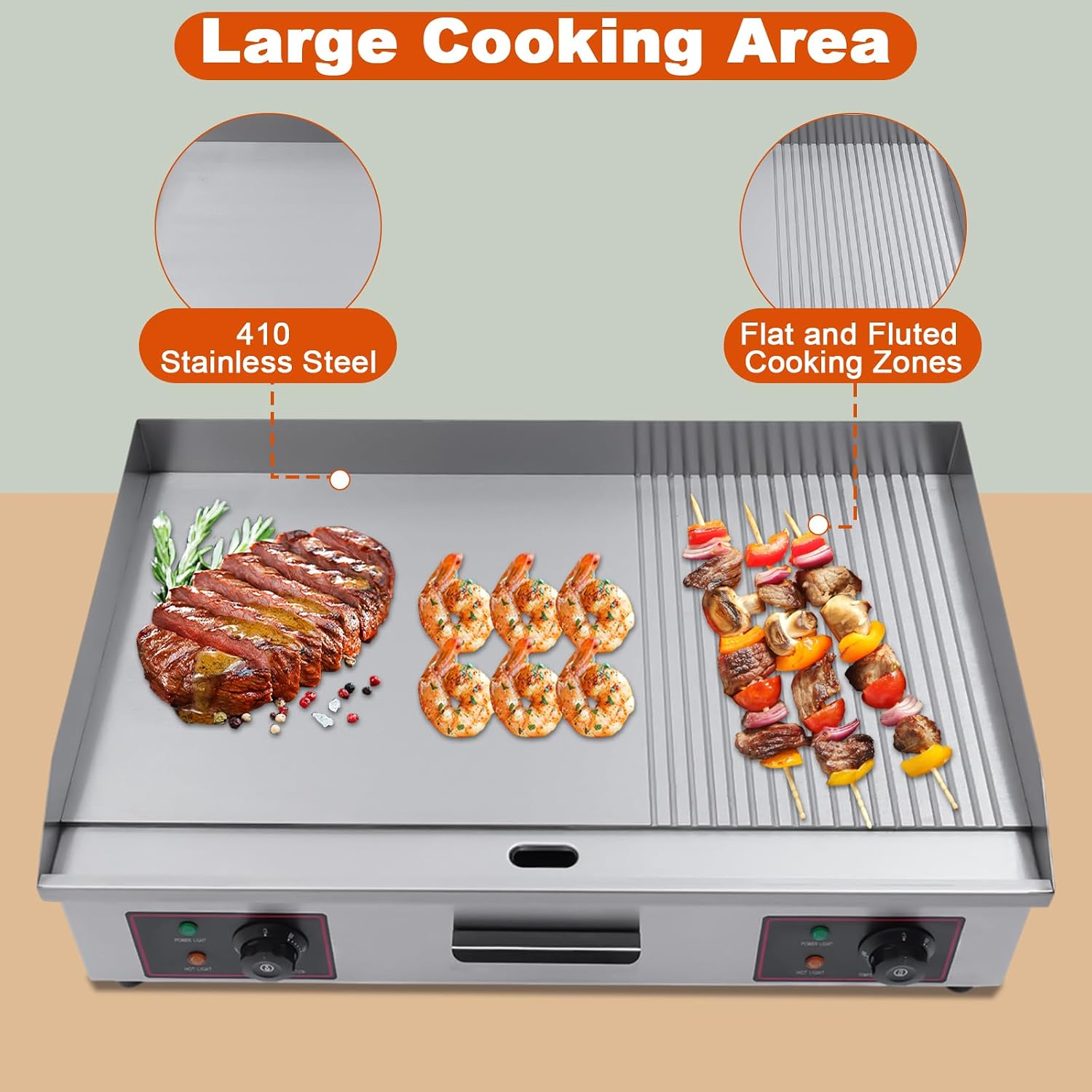

Figure 3.3: Large Cooking Area. This diagram visually explains the griddle's spacious cooking surface, emphasizing the division into flat and fluted zones and the use of 410 stainless steel for durability.

Figure 3.4: High Power and Heating Tube. This image provides a visual representation of the internal heating elements, illustrating how the dense heating coils are designed to provide rapid and even heat distribution across the griddle surface.

Figure 3.5: Detailed Features. This image provides close-up views of key design elements such as the raised splash guards, non-slip rubber feet, oil leakage holes, the convenient drawer-type oil collection box, and the cooling vents for heat dissipation.

4. Setup and Installation

1. Unpacking: Carefully remove the griddle from its packaging. Inspect for any damage during transit. Retain packaging for future storage or transport if needed.
2. Placement: Place the griddle on a stable, flat, and heat-resistant surface. Ensure there is adequate clearance around the unit for ventilation and safe operation.
3. Electrical Connection: IMPORTANT: This product is shipped without a plug. Electrical installation must be performed by a qualified electrician. The electrician should connect the griddle's wires to an appropriate control switch (gate) or circuit breaker, ensuring compliance with all local electrical codes and safety regulations. The griddle operates on 110 Volts and requires 3000 Watts of power.
4. Initial Cleaning: Before first use, wipe down the cooking surface and exterior with a damp cloth and mild detergent. Rinse thoroughly and dry completely.
5. Seasoning (Optional but Recommended): For optimal non-stick performance and longevity, lightly coat the cooking surface with a high-smoke-point cooking oil (e.g., vegetable oil, grapeseed oil). Heat the griddle to a medium temperature (around 150-200℃) for 10-15 minutes, then turn off and let cool. Wipe off any excess oil. Repeat this process 2-3 times.

Figure 4.1: Rear view of the griddle, illustrating the electrical wiring connection point. This image highlights the area where the power cable connects to the unit, emphasizing the need for professional electrical installation as the product does not come with a pre-installed plug.

Figure 4.2: Top-down view of the griddle with included accessories. This image shows the griddle from above, alongside the user manual and small components like the rubber feet, indicating what is included in the package for setup.

5. Operating Instructions

1. Power On: Ensure the griddle is properly connected to the power supply. Turn the temperature selection knob to the desired temperature. The "Power Light" (green) will illuminate, indicating the unit is receiving power.
2. Preheating: The "Hot Light" (orange) will illuminate when the heating elements are active. Allow the griddle to preheat for 10-15 minutes, or until the "Hot Light" cycles off, indicating the set temperature has been reached. The light will cycle on and off during operation to maintain the temperature.
3. Temperature Selection: Adjust the temperature knob between 50℃ and 300℃ (122℉-572℉) according to the food being cooked. Lower temperatures are suitable for delicate items like pancakes, while higher temperatures are for searing meats.
4. Cooking:
   • Flat Surface: Ideal for breakfast foods such as pancakes, eggs, bacon, and grilled sandwiches.
   • Fluted Surface: Perfect for grilling meats like steaks, chicken, and vegetables, providing attractive grill marks.
   Lightly oil the cooking surface before placing food to prevent sticking.
5. Oil Collection: During cooking, excess oil and food residue will drain into the drawer-type oil collection box located at the front of the unit. Empty this box regularly to prevent overflow.
6. Power Off: After cooking, turn the temperature selection knob to the "OFF" position. Unplug the unit from the power supply if it is connected via a plug, or turn off the dedicated control switch. Allow the griddle to cool completely before cleaning.

Figure 5.1: Griddle in operation, demonstrating the simultaneous cooking of various foods on both the flat and fluted surfaces. This image shows the versatility of the griddle for different cooking styles.

Figure 5.2: Flexible and Efficient Use. This diagram highlights the user-friendly control panel with its temperature selection knob and indicator lights, as well as the internal heating coils that ensure fast and even heat distribution across the cooking surface.

Figure 5.3: Flexible Temperature Control. This close-up image focuses on the griddle's control panel, illustrating the precise temperature selection knob and indicator lights that allow for easy and flexible adjustment of cooking temperatures.

6. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your electric griddle.

1. Cool Down: Always ensure the griddle is completely cool before attempting any cleaning.
2. Empty Oil Collection Box: Slide out the drawer-type oil collection box and dispose of the collected oil and food scraps. Wash the box with warm, soapy water, rinse, and dry thoroughly before reinserting.
3. Clean Cooking Surface:
   • For light residue, wipe the surface with a damp cloth.
   • For stubborn food particles, use a plastic scraper or a non-abrasive cleaning pad. Avoid metal scouring pads or abrasive cleaners that can scratch the stainless steel surface.
   • A mixture of warm water and mild dish soap can be used. Rinse thoroughly by wiping with a clean, damp cloth.
   • Dry the cooking surface completely to prevent water spots and maintain its finish.
4. Clean Exterior: Wipe the exterior stainless steel surfaces with a damp cloth and mild detergent. For a streak-free shine, use a stainless steel cleaner.
5. Splash Guards: Clean the raised splash guards to remove any accumulated grease or food splatter.
6. Storage: Store the griddle in a clean, dry place when not in use.

Figure 6.1: Griddle in a commercial setting, showcasing its application for cooking various items like chicken and steak. This image implies the griddle's suitability for high-volume use and the importance of regular cleaning in such environments.

7. Troubleshooting

If you encounter issues with your griddle, please refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support for further assistance.

8. Specifications

Figure 8.1: Multi-functional Electric Griddle. This image provides a visual representation of the griddle's dimensions (73.5cm/29in length, 47cm/18.5in width, 24cm/9.4in height) and illustrates the variety of foods that can be prepared, such as steak, eggs, pancakes, and noodles.

9. Warranty and Support

This TianQinLang Electric Griddle comes with a limited warranty. For specific details regarding the warranty period and coverage, please refer to the warranty card included with your product or contact the manufacturer directly.

For technical support, troubleshooting assistance, or inquiries regarding parts and service, please contact the manufacturer, TNiceOne, or your point of purchase. Please have your model number (Electric Griddle) and UPC (764331307350) ready when contacting support.
