Generic Feiyue TS1541 Industrial Sewing Machine Tabletop User Manual

1. Introduction

This manual provides essential instructions for the proper setup, operation, and maintenance of your Generic Feiyue TS1541 Industrial Sewing Machine Tabletop. This tabletop is designed for use with various single needle lockstitch industrial sewing machines, including models such as DL8700, 5550, and DU1118. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

Note: This product includes the tabletop only. Legs, motor, sewing machine head, and other accessories are sold separately and are not included.

2. Safety Instructions

• Always ensure the tabletop is securely mounted on a stable and appropriate stand or legs before placing any heavy equipment on it.
• Keep the work area clean and well-lit.
• Do not overload the tabletop beyond its structural capacity.
• Avoid placing liquids directly on the tabletop surface to prevent damage.
• When installing the sewing machine head, ensure all connections are secure and stable.

3. Setup

3.1 Unpacking

Carefully remove the tabletop from its packaging. Inspect for any signs of damage during transit. Report any damage to the supplier immediately.

3.2 Component Identification

The package should contain one (1) industrial sewing machine tabletop. Verify that the tabletop matches the model TS1541.

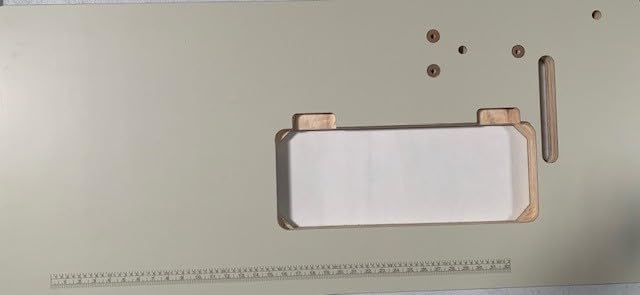

Figure 1: Overview of the TS1541 Industrial Sewing Machine Tabletop. This image displays the full tabletop from a top-down perspective, highlighting the main work surface, the rectangular opening designed to accommodate the sewing machine head, and various pre-drilled holes for mounting accessories or components.

3.3 Assembly and Installation

1. Prepare the Stand: Ensure you have a compatible industrial sewing machine stand or legs (not included) that can support the tabletop and the sewing machine. The stand must be level and stable.
2. Mount the Tabletop: Carefully place the TS1541 tabletop onto the prepared stand. Align the pre-drilled holes on the underside of the tabletop with the mounting points on the stand. Secure the tabletop using appropriate bolts and nuts (not included) as per your stand's instructions.
3. Install the Sewing Machine Head: Lower your industrial sewing machine head (e.g., DL8700, 5550, DU1118) into the rectangular cutout on the tabletop. Ensure it sits flush and is properly supported by the tabletop's internal brackets or the machine's own mounting points.

Figure 2: Detail of the machine head cutout. This image provides a closer look at the rectangular opening where the sewing machine head is to be installed. It shows the precise dimensions and smooth finish of the cutout, along with small circular holes nearby for securing the machine or its components.

Figure 3: Underside view of the machine head mounting area. This image shows the structural support beneath the tabletop's cutout, including wooden blocks and metal brackets designed to hold the sewing machine head securely in place. It illustrates how the machine is supported from below.

4. Secure the Machine: Use the appropriate screws or fasteners (typically provided with your sewing machine or stand) to secure the sewing machine head to the tabletop's mounting points. Ensure it is stable and does not wobble.
5. Connect Accessories: Install any additional accessories such as thread stands, lamp holders, or motor controls into the designated holes or mounting areas on the tabletop.

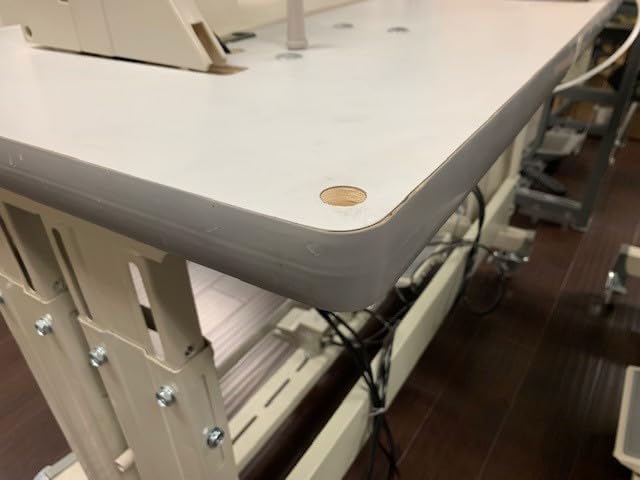

Figure 4: Tabletop edge detail. This image provides a close-up of a corner of the tabletop, showcasing its thickness, the smooth finish of the surface, and the durable edge banding. It highlights the overall construction quality of the tabletop.

4. Operating Instructions

The TS1541 tabletop itself does not have operational controls. Its function is to provide a stable and ergonomic work surface for your industrial sewing machine. Refer to your specific sewing machine's user manual for detailed operating instructions.

• Ensure the tabletop surface is clean and free of obstructions before starting any sewing project.
• Periodically check that the sewing machine head remains securely fastened to the tabletop.
• Utilize the integrated ruler markings (if present) for precise measurements during sewing.

5. Maintenance

• Cleaning: Wipe the tabletop surface regularly with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
• Inspection: Periodically check all mounting screws and bolts for tightness. Re-tighten if necessary to maintain stability.
• Protection: To prolong the life of the tabletop, avoid direct exposure to excessive moisture or extreme temperatures.

6. Troubleshooting

As the TS1541 is a passive component (tabletop), most operational issues will relate to the sewing machine itself. However, if you experience issues related to the tabletop:

• Wobbling Tabletop: Check if the tabletop is securely fastened to the stand. Ensure the stand itself is stable and on a level surface.
• Machine Not Sitting Flush: Verify that the sewing machine head is correctly positioned within the cutout and that no obstructions prevent it from seating properly. Check for any debris in the cutout area.
• Damage to Surface: For minor scratches, consider using a furniture repair kit. For significant damage, replacement may be necessary.

For issues related to the sewing machine's performance, refer to the machine's specific user manual.

7. Specifications

8. Warranty Information

This product is typically covered by a limited manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation or contact your retailer for specific warranty terms and conditions. Keep your proof of purchase for warranty claims.

9. Support

For technical assistance, replacement parts, or further inquiries regarding the Generic Feiyue TS1541 Industrial Sewing Machine Tabletop, please contact your original point of purchase or the manufacturer's customer service. When contacting support, please have your model number (TS1541) and purchase details readily available.
