Introduction
This manual provides detailed instructions for the safe and effective use of your VUKARUAL L8 Car Jump Starter with Air Compressor. This device combines a powerful jump starter, a 150PSI digital tire inflator, a portable power bank, and an LED flashlight, designed for automotive emergencies and outdoor activities.
The jump starter is capable of starting 12V vehicles with up to 8.5L gas and 6.0L diesel engines. The integrated air compressor can inflate tires up to 150 PSI, and the unit features multiple USB outputs for charging electronic devices.
Important Safety Information
Read all safety warnings and instructions before using this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Do not operate the jump starter if the cables or clamps are damaged.
- Ensure proper polarity when connecting to a vehicle battery (red to positive, black to negative).
- Do not jump start a frozen battery.
- Keep the device away from children.
- Do not expose the device to rain or wet conditions.
- Store in a cool, dry place when not in use.
- The device features multiple protections including spark-proof, reverse-polarity, high/low-temperature, and over-load protection.
The device incorporates an intelligent protection system for safe operation, including safeguards against low voltage, high temperature, reverse polarity, overload, spark-proof connections, short-circuit, over-discharge, and over-current.
Package Contents
Verify that all items are present in the package:
- 1 x VUKARUAL L8 Jump Starter with Air Compressor
- 1 x Smart Jumper Cable
- 1 x USB-C Charging Cable
- 3 x Gas Nozzles (for various inflatables)
- 1 x DC Cigarette Lighter Adapter
- 1 x Air Pump Hose
- 1 x User Manual
Image showing the VUKARUAL L8 Jump Air Pump, Emergency Start Power Clip, Air Tube, Type C Cable, and various nozzles (Pesta Valve, Nozzle, Needle).
Product Overview

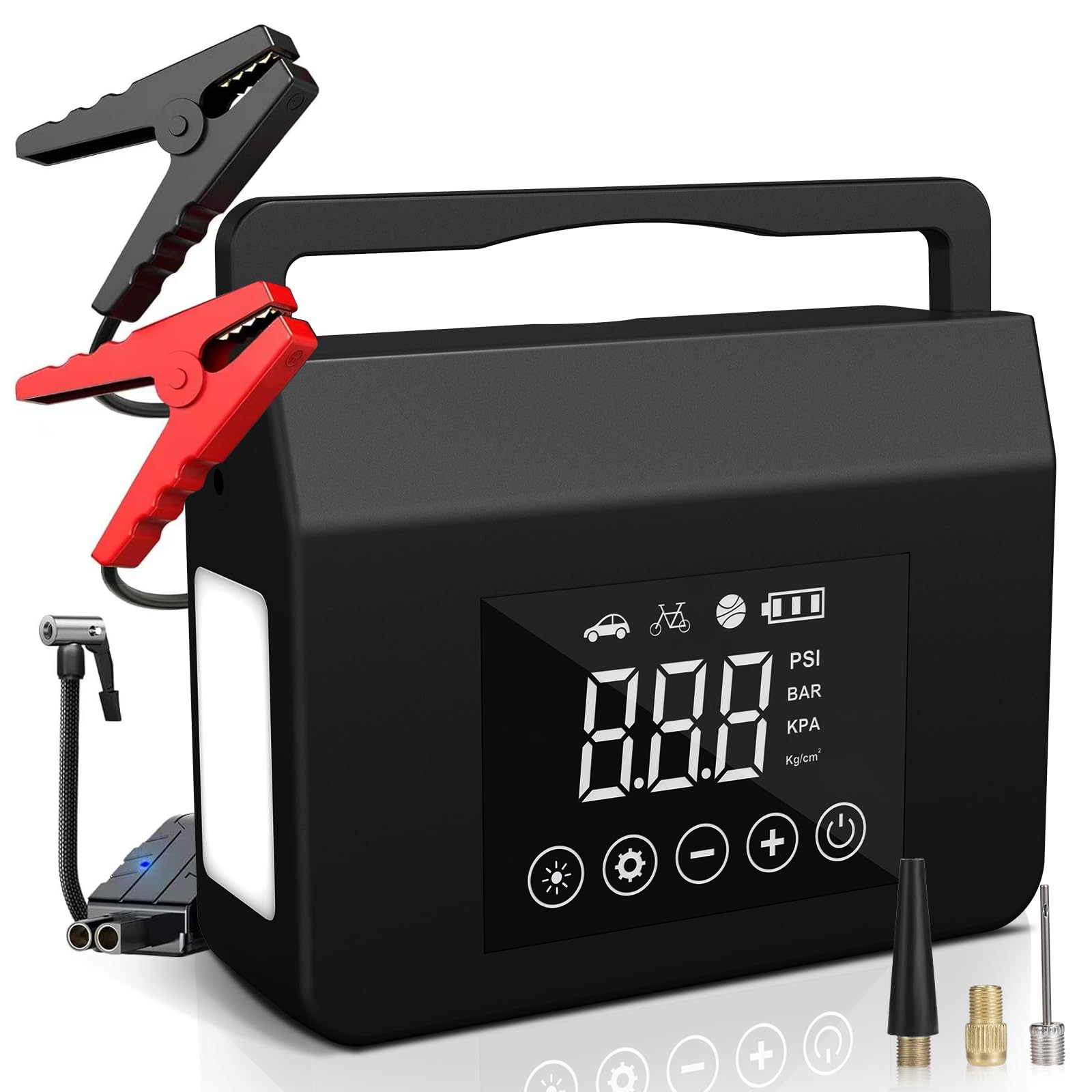

The VUKARUAL L8 features a robust design with an integrated digital display and control panel. The display shows battery level, inflation mode, and real-time tire pressure. The unit includes a handle for portability and various ports for functionality.

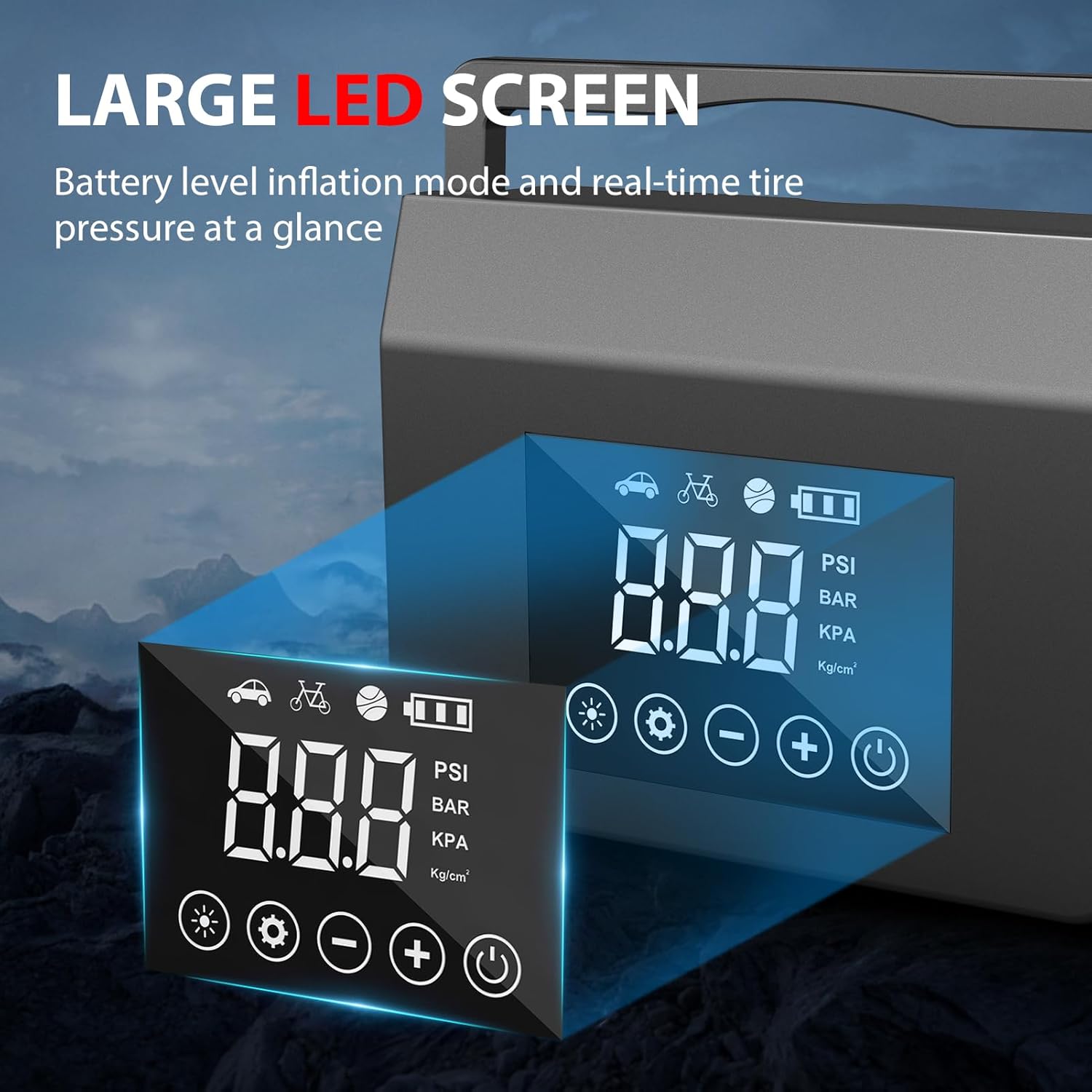

The large LED screen displays battery level, selected inflation mode (car, motorcycle, bicycle, ball), and real-time pressure readings in PSI, BAR, or KPA.
Setup and Initial Charging
Before first use, fully charge the VUKARUAL L8 unit. Connect the provided USB-C charging cable to the input port on the device and to a USB power adapter (not included). The LED display will indicate the charging status. A full charge is recommended for optimal performance.
Operating Instructions
1. Jump Starting a Vehicle
- Ensure the jump starter is fully charged.
- Turn off the vehicle's ignition and all accessories.
- Connect the red clamp of the smart jumper cable to the positive (+) terminal of the vehicle's battery.
- Connect the black clamp to the negative (-) terminal of the vehicle's battery.
- Plug the smart jumper cable into the jump starter's port. The jump starter will perform a self-check.
- Start the vehicle. If it doesn't start immediately, wait 30 seconds and try again. Do not attempt more than 3 consecutive starts.
- Once the vehicle starts, immediately disconnect the smart jumper cable from the jump starter, then remove the black clamp from the vehicle battery, followed by the red clamp.
The VUKARUAL L8 jump starter connected to a car battery with red and black clamps, ready to start the vehicle.
2. Using the Air Compressor
- Connect the air pump hose to the inflation port on the jump starter and tighten it securely.
- Attach the other end of the hose to the tire valve or use the appropriate nozzle for other inflatables (e.g., bicycle tires, sports balls).
- Press the power button to turn on the device. The LED display will show the current pressure.
- Use the mode button (often depicted as a gear or car icon) to select the desired inflation mode (car, motorcycle, bicycle, ball).
- Use the '+' and '-' buttons to set the target pressure.
- Long press the power button for 5 seconds to start inflation. The compressor will automatically stop once the preset pressure is reached.
- Disconnect the hose and store it properly.
Visual guide for tire inflation: Step 1 - Connect and tighten the inflation tube. Step 2 - Press the power button, then the gear icon to select inflation mode. Step 3 - Long press the power button for 5 seconds to start inflation.
The VUKARUAL L8 unit with its digital display and air hose connected to a car tire, demonstrating its air pump function.
3. Using the LED Flashlight
The VUKARUAL L8 is equipped with a 400-lumen LED flashlight with multiple modes:
- White Constant Bright: For general illumination.
- Blue Stroboscopic: For signaling or emergency alerts.
- Red Stroboscopic: For signaling or emergency alerts.
- SOS Mode: Flashes the international distress signal.
To activate and cycle through modes, press the flashlight button (often depicted as a light bulb icon) on the control panel.
The VUKARUAL L8 unit with its LED flashlight illuminated, showing icons for SOS, Strobe, and Illumination modes.
4. Using as a Portable Power Bank
The device can charge various electronic devices via its USB output ports.
- Connect your device's charging cable to one of the USB output ports (Output1 or Output2) on the VUKARUAL L8.
- The device will automatically begin charging.
The VUKARUAL L8 unit connected via USB-C to a smartphone and a laptop, demonstrating its quick charging capabilities as a portable power bank.
Diagram showing the input and output ports (Output1, Output2, DC) for charging various devices like smartphones, earbuds, and tablets.
Maintenance
- Charging: To maintain battery health, charge the device every 3-6 months, even if not in use.
- Cleaning: Wipe the device with a dry, soft cloth. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure all accessories are stored together to prevent loss.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Battery is depleted. | Charge the device fully. |
| Vehicle does not start. | Incorrect clamp connection; vehicle battery severely discharged; engine too large. | Check clamp polarity. Ensure device is fully charged. Verify engine compatibility (max 8.5L gas/6.0L diesel). |
| Air compressor not inflating. | Hose not securely connected; target pressure not set; device not powered on. | Ensure hose is tightly connected. Set desired pressure. Turn on the device and long press the power button to start inflation. |
| LED flashlight not working. | Battery is depleted; flashlight button not pressed. | Charge the device. Press the flashlight button to activate. |
Specifications
| Feature | Detail |
|---|---|
| Model | L8 |
| Peak Current | 3000A |
| Battery Capacity | 11000mAh (or 12000mAh as per some descriptions) |
| Engine Compatibility | Up to 8.5L Gas / 6.0L Diesel 12V vehicles |
| Air Compressor Pressure | Max 150 PSI |
| LED Flashlight Brightness | 400 Lumens |
| USB Output | QC 3.0 (specific outputs not detailed, but typically 5V/2.4A, 9V/2A, 12V/1.5A) |
| Charging Input | USB-C |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Dimensions | Approximately 15.2"D x 5.9"W x 12.2"H (Note: Product dimensions from specs seem large for a portable unit, likely packaging dimensions. Item weight 1.76 pounds suggests a smaller unit.) |
| Weight | Approximately 1.76 pounds (0.8 Kilograms) |
Warranty Information
The VUKARUAL L8 Car Jump Starter with Air Compressor is covered by a 36-month warranty service. This warranty covers manufacturing defects and issues arising from normal use.
Customer Support
For any questions, concerns, or warranty claims, please contact VUKARUAL customer support. All inquiries will receive a response within 24 hours.
Refer to the product packaging or the official VUKARUAL website for specific contact details.
