Glooglitter JEI-Glooglitter-0687
Makeup Mirror Replacement LED Bulbs User Manual
Brand: Glooglitter
1. Introduction
This manual provides essential information for the proper use, installation, and maintenance of your Glooglitter Makeup Mirror Replacement LED Bulbs. These bulbs are designed to replace existing incandescent bulbs in lighted makeup mirrors, offering energy efficiency and a cooler touch.
The package includes two clear and two blue LED bulbs, providing versatility for different lighting settings. The blue bulbs are particularly useful for daylight settings, while the clear bulbs cater to other lighting needs.
Figure 1: Glooglitter Makeup Mirror Replacement LED Bulbs (2 Clear, 2 Blue)
2. Product Overview: LED vs. Incandescent
Understanding the differences between LED and traditional incandescent bulbs is crucial for appreciating the benefits of your new replacement bulbs.
Incandescent Bulbs:
Incandescent bulbs generate light by heating a filament to high temperatures (above 2000 degrees Celsius) until it glows. This process, while effective, has several disadvantages:
- High Heat Generation: The high operating temperature can pose a safety risk and may lead to product burnout.
- Inefficient Energy Conversion: A significant portion of electrical energy is converted into heat rather than light, leading to higher power consumption.
- Color Cast: The light emitted can have an unbalanced color composition, resulting in a color cast.
LED Bulbs:
LED (Light Emitting Diode) bulbs produce light through a process where electrons and holes recombine in a quantum well, emitting energy as photons. This technology offers significant advantages:
- Lower Power Consumption: LEDs consume less power while providing higher brightness, leading to energy savings.
- Minimal Heat Radiation: Most energy is converted directly into light, resulting in very little heat generation and a cooler touch.
- Green Light Source: LEDs are a direct current driven, flicker-free light source with no infrared or UV components, ensuring no radiation pollution. They also offer high color rendering and strong luminous directionality.
Figure 2: Energy Saving Comparison: LED vs. Traditional Tungsten Bulb
3. Installation
Follow these steps to safely replace the bulbs in your lighted makeup mirror:
- Step 1: Prepare the Mirror. Turn off the power to the mirror and unplug it from the electrical outlet. Ensure the old bulbs are cool to the touch by waiting at least 3 minutes before proceeding.
- Step 2: Remove Mirror Ring Screws. Locate and remove the two 2mm screws on the side of the mirror's ring using a screwdriver.
- Step 3: Replace Old Bulbs. Gently unscrew the old bulbs in a counter-clockwise direction. Carefully insert the new LED bulbs and screw them in clockwise until secure.
- Step 4: Reassemble Mirror. Replace the mirror ring cover and push it back into place. Screw in the two 2mm screws on each side of the mirror using a screwdriver to secure the cover.
- Step 5: Test. Plug in the mirror and turn on the power to enjoy your newly illuminated mirror.
Figure 3: Bulb Installation Steps
4. Operation
Your Glooglitter replacement LED bulbs come in two colors: clear and blue. These different colors allow for varied lighting settings to suit your needs.
- Clear Bulbs: Provide standard, bright illumination suitable for general makeup application and other tasks.
- Blue Bulbs: Designed to assist with daylight settings, offering a cooler light temperature that mimics natural daylight, ideal for precise color matching.

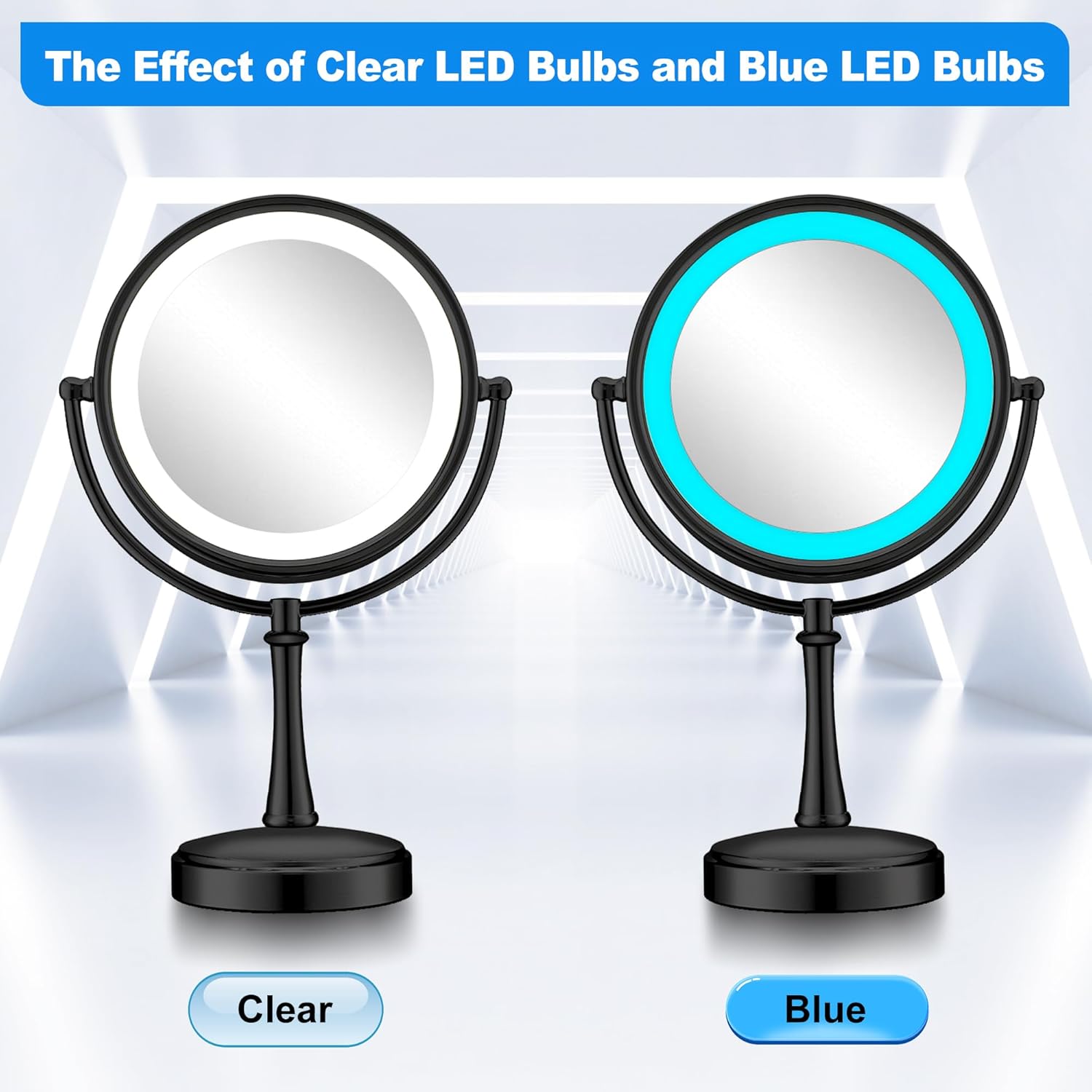

Figure 4: Effect of Clear and Blue LED Bulbs
Product Compatibility
These universal E12 Candelabra Base T20 LED bulbs are compatible with various lighted makeup mirror models, including but not limited to:
- BE66 series
- BE67 series
- BE18LC
- BE18LCX
- BE104X series
Figure 5: Compatible Makeup Mirror Series
Instructional Video
Video 1: Replacement LED Bulbs Compatible with Conair. This video demonstrates the appearance and general use of the replacement LED bulbs.
5. Maintenance
Glooglitter LED bulbs are designed for long-lasting performance with minimal maintenance. The estimated lifespan of these LED bulbs is approximately 10,000 hours, significantly reducing the frequency of bulb replacement compared to traditional incandescent bulbs.
- Cleaning: If necessary, gently wipe the bulbs with a soft, dry cloth when the mirror is unplugged and the bulbs are cool. Do not use liquid cleaners directly on the bulbs.
- Storage: If storing spare bulbs, keep them in their original packaging in a cool, dry place to protect them from damage.
6. Troubleshooting
If you encounter any issues with your replacement LED bulbs, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bulbs are not lighting up. |
|
|
| Light is dimmer than expected. |
|
|
| Blue light appears too blue. |
|
|
7. Specifications

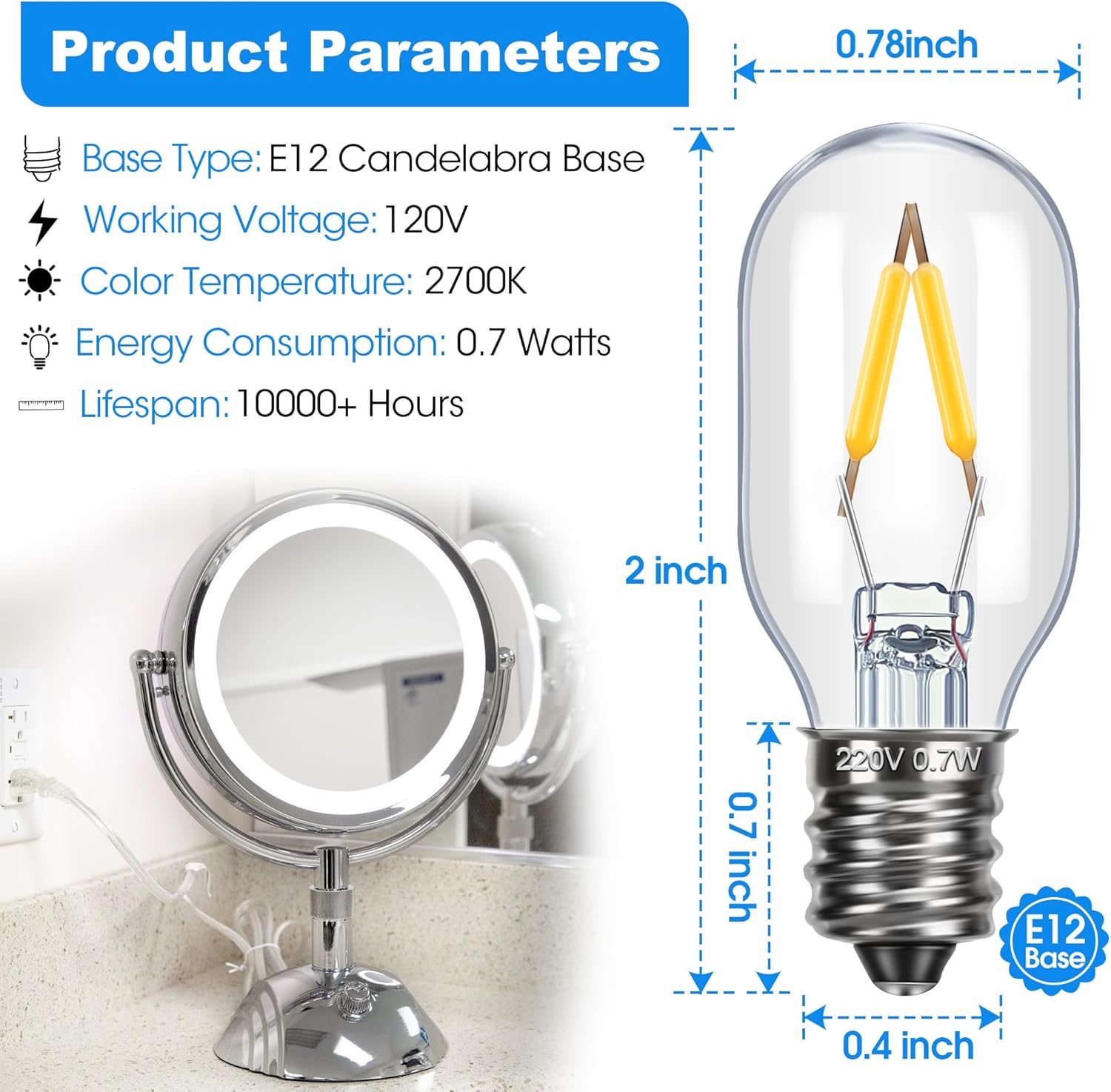

Figure 6: Product Parameters and Dimensions
| Feature | Detail |
|---|---|
| Brand | Glooglitter |
| Light Type | LED |
| Special Feature | Energy Efficient |
| Wattage | 0.7 Watts (per bulb, as per product title and images) |
| Bulb Shape Size | T20 (E12 Candelabra Base) |
| Bulb Base | E12 Candelabra Base |
| Light Color | Clear, Blue |
| Voltage | 120 Volts |
| Unit Count | 4 (2 Clear, 2 Blue) |
| Brightness | 200 Lumen |
| Shape | Tubular (T) |
| Material | Copper |
| Indoor/Outdoor Usage | Indoor |
| Average Life | 10,000 Hours |
| Product Dimensions | 0.79"W x 2.17"H |
| Model Number | JEI-Glooglitter-0687 |
| Country of Origin | China |
8. Warranty and Support
Glooglitter is committed to providing high-quality products. For any questions, concerns, or support needs regarding your Makeup Mirror Replacement LED Bulbs, please contact our customer service. While specific warranty details are not provided in this manual, we encourage you to retain your proof of purchase for any potential claims.
For further assistance, please visit the official Glooglitter website or contact the retailer where the product was purchased.
