1. Introduction
Thank you for choosing the EVVO 6L 1700W Dual Cyclone Air Fryer. This appliance is designed to provide a healthier way to cook your favorite foods, using little to no oil. Please read this instruction manual carefully before using the appliance to ensure safe and efficient operation. Keep this manual for future reference.
Image 1.1: The EVVO 6L 1700W Dual Cyclone Air Fryer, showcasing its design and capacity for cooking crispy fries.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions before use.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse the cord, plugs, or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use the appliance for other than intended use.
- Ensure the appliance is placed on a stable, heat-resistant surface, away from walls or other appliances to allow adequate air circulation.
3. Product Overview
The EVVO Air Fryer features a compact design with a user-friendly interface. Familiarize yourself with the main components:
- Main Unit
- Control Panel with LED Display
- Removable Frying Basket
- Basket Handle
- Air Inlet and Outlet Vents
Image 3.1: The compact design of the EVVO 6L Air Fryer, suitable for various kitchen spaces.

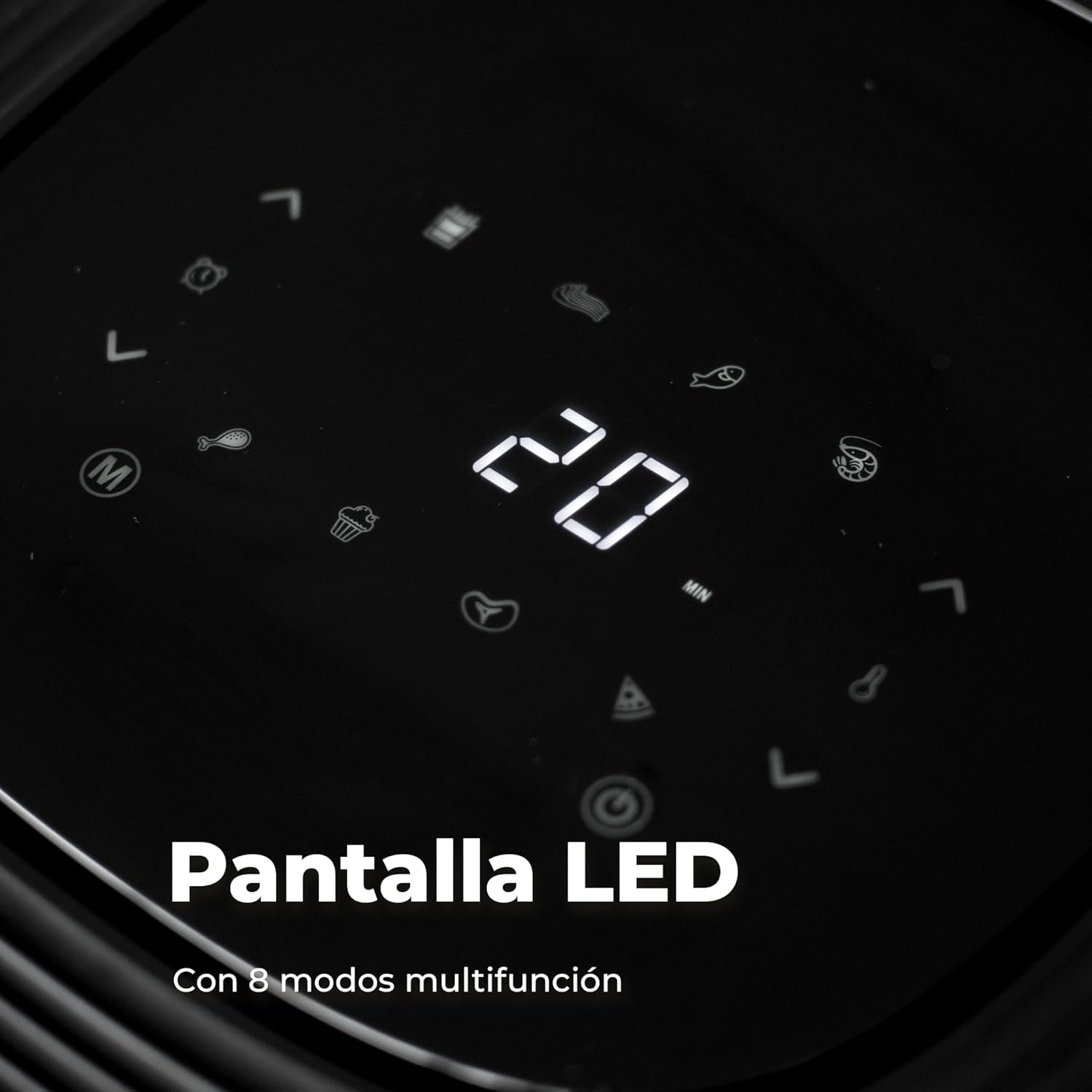

Image 3.2: Detailed view of the intuitive LED display, showing temperature and time controls.
4. Setup
4.1 Unpacking
Carefully remove the air fryer and all packaging materials. Ensure all components are present and undamaged. Dispose of packaging materials responsibly.
4.2 Initial Cleaning
Before first use, clean the frying basket and any removable accessories with warm soapy water. Wipe the main unit with a damp cloth. Dry all parts thoroughly.
4.3 Placement
Place the air fryer on a stable, heat-resistant, and level surface. Ensure there is at least 10 cm (4 inches) of clear space around the back and sides of the appliance for proper ventilation. Do not place it directly against a wall or under cabinets.
4.4 First Use
During the first few uses, a slight odor may be present. This is normal and will dissipate. To minimize this, run the air fryer empty for about 10-15 minutes at 180°C (356°F) before cooking food.
5. Operating Instructions
5.1 Powering On/Off
Plug the power cord into a grounded wall outlet. The appliance will beep, and the display will illuminate briefly. Press the power button to turn the unit on or off.
5.2 Setting Temperature and Time
- Pull out the frying basket. Place ingredients inside the basket. Do not overfill.
- Slide the frying basket back into the air fryer.
- Press the temperature control button to adjust the temperature (up to 200°C).
- Press the time control button to set the cooking time (up to 60 minutes).
- Press the start button to begin cooking.
5.3 Using Preset Programs
The EVVO Air Fryer features 8 multifunction programs for common dishes:
- Oil-free potatoes
- Chicken wings
- Steaks
- Shrimp
- Fish
- Cupcakes
- Dehydrate
- Defrost
To use a preset program, press the 'M' (Mode) button repeatedly until the desired program icon is selected on the LED display. The appliance will automatically set the recommended temperature and time. You can manually adjust these settings if needed before pressing start.
5.4 Shaking Ingredients
For some recipes, especially smaller ingredients like fries, it is recommended to shake the basket halfway through the cooking time to ensure even cooking and crispiness. The appliance may beep to remind you to shake the basket.
5.5 Automatic Shut-Off
The intelligent control system ensures the air fryer automatically turns off at the end of the programmed cooking time. A timer will count down, and the appliance will beep when cooking is complete. You can also manually turn off the appliance at any time by pressing the power button.
6. Cooking Tips
- Preheating: For best results, preheat the air fryer for 3-5 minutes at the desired temperature before adding food.
- Oil Usage: While designed for oil-free cooking, a small amount of oil (1-2 teaspoons) can be added to some foods for extra crispiness. Use a spray bottle for even coating.
- Food Quantity: Avoid overfilling the basket. Cook in smaller batches if necessary to ensure even air circulation and cooking.
- Frozen Foods: Most frozen foods can be cooked directly in the air fryer. Refer to packaging for recommended temperatures and times, adjusting as needed.
- Homemade Fries: For crispy homemade fries, soak potato sticks in cold water for 30 minutes, pat dry, then toss with a teaspoon of oil before air frying.
Image 6.1: The EVVO Air Fryer promotes healthier cooking by reducing the need for excessive oil.
7. Maintenance and Cleaning
Regular cleaning will extend the life of your EVVO Air Fryer and ensure optimal performance.
7.1 Before Cleaning
Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
7.2 Cleaning the Frying Basket and Interior
The frying basket has a non-stick coating and is removable for easy cleaning. Wash it with warm soapy water and a non-abrasive sponge. For stubborn residue, soak the basket in warm water for about 10 minutes before cleaning. The interior of the air fryer can be wiped with a damp cloth.
7.3 Cleaning the Exterior
Wipe the exterior of the appliance with a soft, damp cloth. Do not use abrasive cleaners or scourers, as they may damage the surface.
Image 7.1: The EVVO Air Fryer features a non-stick, detachable basket for easy cleaning.
8. Troubleshooting
If you encounter any issues with your air fryer, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet malfunction. | Ensure the power cord is securely plugged into a working outlet. |
| Food is not cooked evenly. | Basket is overfilled; food not shaken. | Cook in smaller batches. Shake the basket halfway through cooking. |
| White smoke coming from the appliance. | Grease residue from previous use; fatty ingredients. | Clean the basket and interior thoroughly. For fatty foods, absorb excess oil with a paper towel. |
| Food is not crispy. | Too much moisture; insufficient cooking time/temperature. | Pat food dry before cooking. Increase cooking time or temperature slightly. Consider adding a small amount of oil. |
9. Specifications
Technical details for the EVVO 6L 1700W Dual Cyclone Air Fryer:
| Feature | Specification |
|---|---|
| Brand | EVVO |
| Model | V0381 |
| Color | Black |
| Capacity | 6 Liters |
| Wattage | 1700 Watts |
| Voltage | 230 Volt |
| Material | Metal |
| Product Dimensions (L x W x H) | 37 x 37 x 37 cm |
| Item Weight | 3.15 Kilograms |
| Special Features | Programmable, Dual Cyclone Technology, Non-stick basket, Automatic shut-off, 8 multifunction programs |

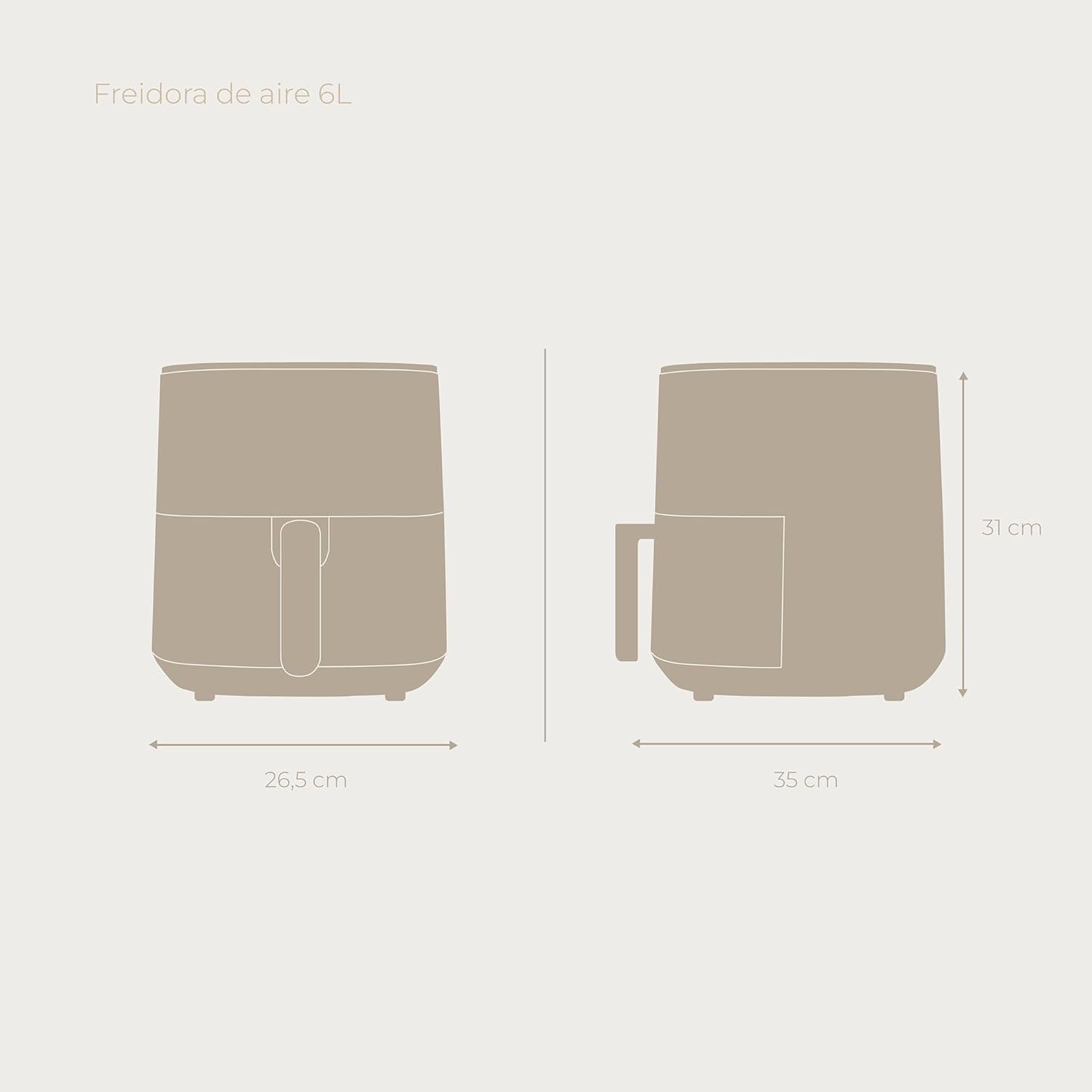

Image 9.1: Dimensional diagram of the EVVO 6L Air Fryer, indicating its height and width.
10. Warranty and Support
Your EVVO Air Fryer is covered by a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact EVVO customer service through the retailer where the product was purchased or visit the official EVVO website for contact information.
