EVVO Mi30 Black 21L Built-in Microwave with 1000W Grill User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your new EVVO Mi30 Black 21L Built-in Microwave with 1000W Grill. Please read these instructions thoroughly before installation and use, and retain them for future reference. This appliance is designed for domestic use only.

2. Safety Instructions

To reduce the risk of fire, electric shock, injury to persons, or exposure to excessive microwave energy when using your appliance, follow basic precautions, including the following:

• Read all instructions before using the appliance.
• Do not attempt to operate this oven with the door open as this can result in harmful exposure to microwave energy.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the door (e.g., bent), hinges and latches (e.g., broken or loosened), or door seals and sealing surfaces.
• The appliance should only be serviced by qualified service personnel.
• Liquids or other foods must not be heated in sealed containers since they are liable to explode.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The microwave oven must be operated with the decorative door open.

3. Product Description and Features

The EVVO Mi30 Black is a 21-liter built-in microwave oven designed for seamless integration into your kitchen cabinetry. It combines microwave cooking with a powerful grill function for versatile meal preparation.

Key Features:

• Built-in Design: Integrates perfectly into kitchen furniture for a sleek appearance.
• 21 Liter Capacity: Suitable for various cooking needs.
• 1000W Grill Function: For browning and crisping dishes.
• Digital Display and Touch Control Panel: For easy and modern operation.
• Defrost Function: Defrosts food by weight or time.
• Child Lock: Enhances safety by preventing unintended operation.
• 60-Minute Timer: Allows precise cooking time settings.
• Turntable: Ensures even cooking.

Figure 1: Front view of the EVVO Mi30 Black built-in microwave, showcasing its sleek black finish and digital display.

Figure 2: The EVVO Mi30 Black microwave seamlessly integrated into a modern kitchen cabinet, highlighting its elegant design.

4. Installation and Setup

Proper installation is crucial for the safe and efficient operation of your built-in microwave. It must be installed in a cabinet opening that meets the specified dimensions.

Installation Requirements:

• Ensure the cabinet opening dimensions match the microwave's requirements.
• The appliance must be connected to a properly grounded electrical outlet.
• Do not block any ventilation openings on the appliance.
• Refer to the detailed installation diagram for precise measurements and mounting instructions.

Figure 3: Dimensional diagram for the EVVO Mi30 Black microwave, showing front and side measurements for cabinet integration. Dimensions are approximately 38.5 cm (height) x 59.5 cm (width) x 33.7 cm (depth).

Initial Setup:

1. After installation, plug the microwave into a suitable power outlet.
2. The digital display will illuminate. Set the current time according to the instructions in the operating section.
3. Before first use, clean the interior with a damp cloth.

5. Operating Instructions

The EVVO Mi30 features a digital display and a touch control panel for intuitive operation.

Figure 4: Close-up view of the digital display and touch control panel, showing various function icons and the rotary knob.

Basic Operation:

• Setting the Clock: When the microwave is first plugged in or after a power outage, the display will show "0:00". Press the "Clock" button, then use the rotary knob to set the hour and minutes. Press "Clock" again to confirm.
• Starting a Program: Place food in a microwave-safe container on the turntable. Close the door firmly. Select the desired function and time/weight, then press the "Start" button.
• Pausing/Canceling: To pause operation, open the door or press the "Stop/Cancel" button once. To cancel a program completely, press "Stop/Cancel" twice.

6. Functions

6.1 Microwave Cooking

This function uses microwave energy to heat or cook food. You can adjust the power level and cooking time.

1. Press the "Microwave" button.
2. Use the rotary knob to select the desired power level (e.g., P100 for 100% power).
3. Press "Microwave" again to confirm the power level.
4. Use the rotary knob to set the cooking time.
5. Press "Start" to begin cooking.

6.2 Grill Function

The 1000W grill function is ideal for browning, toasting, or crisping food. Use a heat-resistant rack if provided, and ensure food is placed directly under the grill element.

Figure 5: The EVVO Mi30 Black microwave with the grill function active, showing the interior heating element for browning food.

1. Press the "Grill" button.
2. Use the rotary knob to set the grilling time.
3. Press "Start" to begin grilling.

6.3 Defrost Function

The defrost function allows you to thaw frozen food quickly and efficiently, either by weight or by time.

1. Press the "Defrost" button (often indicated by a snowflake icon).
2. Select defrost by weight or time using the rotary knob or repeated presses of the "Defrost" button.
3. Adjust the weight or time using the rotary knob.
4. Press "Start" to begin defrosting.

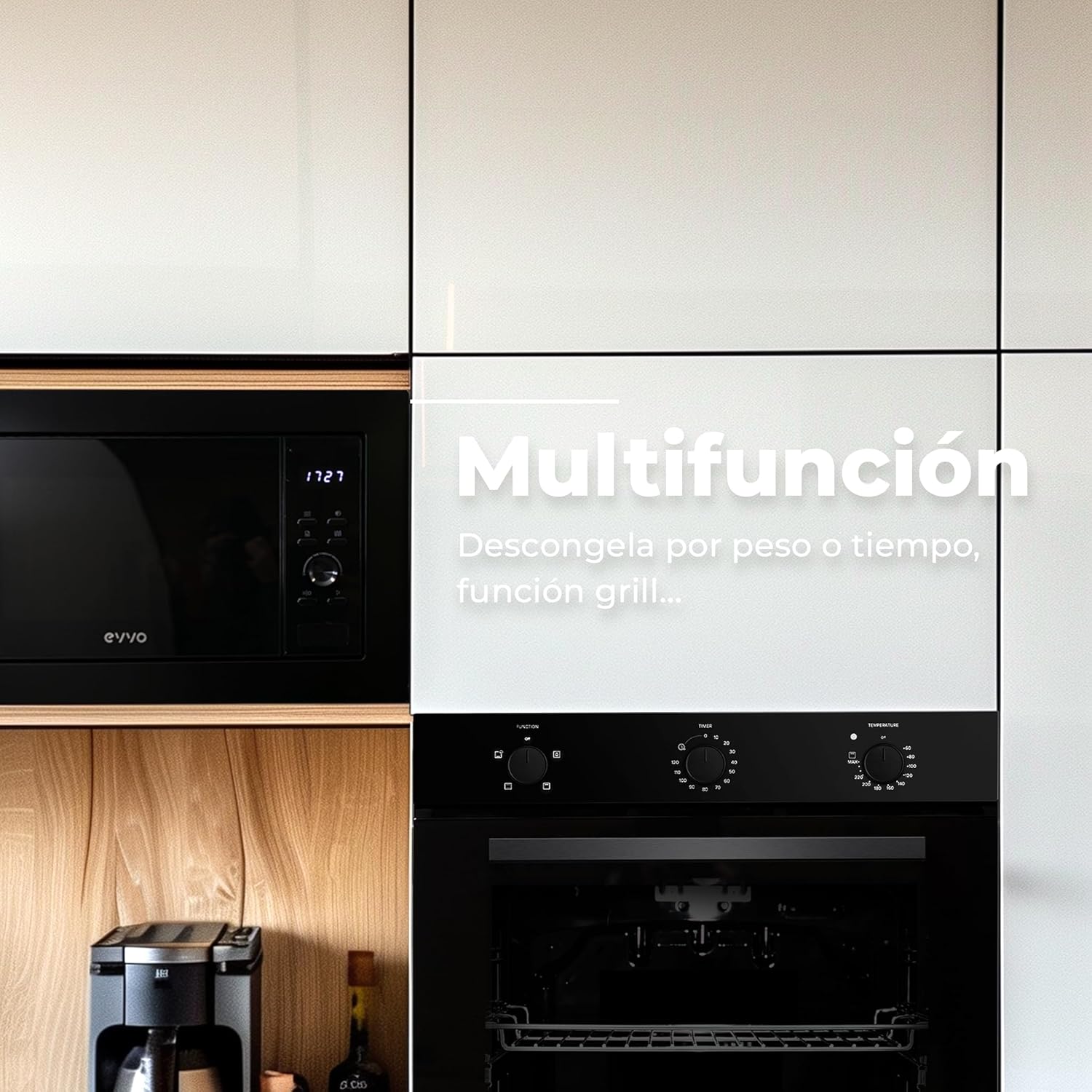

Figure 6: The EVVO Mi30 Black microwave highlighting its multifunction capabilities, including defrosting by weight or time, and the grill function.

6.4 Child Lock

To activate the child lock, press and hold the "Stop/Cancel" button for approximately 3 seconds until a lock icon appears on the display. To deactivate, repeat the process.

7. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your microwave oven.

• Interior Cleaning: Wipe the interior cavity, door seals, and turntable with a damp cloth after each use. For stubborn stains, use a mild detergent. Do not use abrasive cleaners or harsh chemicals.
• Exterior Cleaning: Clean the exterior surfaces with a soft, damp cloth. Avoid getting water into the ventilation openings.
• Turntable: The glass turntable and roller ring can be removed for cleaning in warm soapy water or a dishwasher. Ensure they are dry before placing them back in the oven.
• Odor Removal: To remove odors, combine a cup of water with several lemon slices or a tablespoon of vinegar in a microwave-safe bowl. Heat on high for 5 minutes, then let it sit for 10 minutes before wiping the interior.

Figure 7: Interior view of the EVVO Mi30 Black microwave, showing the clean cavity and glass turntable, emphasizing ease of cleaning.

8. Troubleshooting

If you encounter issues with your microwave, consult the following table before contacting customer service.

9. Specifications

Technical specifications for the EVVO Mi30 Black 21L Built-in Microwave.

10. Warranty and Support

Your EVVO Mi30 microwave oven is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.

For technical support, service, or spare parts, please contact EVVO customer service through their official website or the retailer where the product was purchased. When contacting support, please have your model number (Mi30 or V0312) and purchase date available.

You can visit the EVVO brand store for more information: EVVO Brand Store
