TELESTAR Antenna 15 LTE - Active DVB-T2 Outdoor Antenna Instruction Manual

1. Introduction

The TELESTAR Antenna 15 LTE is an advanced active outdoor antenna designed for reliable reception of terrestrial television signals. It features an integrated LTE filter to minimize interference from mobile networks. This antenna supports various digital terrestrial TV standards including DVB-T2, DVB-T, ISDB-T, DMB-T/H, and ATSC. Its robust, weather-resistant construction ensures long-lasting performance in diverse environmental conditions.

Key features include a built-in preamplifier and a 4G/5G filter for enhanced signal quality, along with omnidirectional 360-degree reception for a wide coverage area. The Antenna 15 LTE offers flexible installation options, making it suitable for mast, wall, vehicle, camping, or tabletop use.

2. Package Contents

Please verify that all items are present in the package:

• TELESTAR Antenna 15 LTE unit
• Mounting accessories for mast, wall, vehicle, and tabletop installation
• Power supply unit (if applicable for active amplifier)
• Coaxial cable (may be included or sold separately)
• Instruction Manual

3. Safety Instructions

• Read all instructions before installation and use.
• Ensure the antenna is securely mounted to prevent falling, especially in windy conditions.
• Avoid installing the antenna near power lines or other electrical hazards.
• Use appropriate tools and safety equipment during installation.
• Protect all cable connections from moisture using the provided weather protection housing.
• Do not open the antenna housing; there are no user-serviceable parts inside.

4. Setup and Installation

The TELESTAR Antenna 15 LTE offers versatile 4-in-1 installation options. Choose the method best suited for your environment.

4.1 General Antenna View

Figure 1: TELESTAR Antenna 15 LTE mounted on a pole.

4.2 Connecting the Antenna

Connect the coaxial cable to the antenna's F-connector. Ensure the connection is tight and then cover it with the provided weather protection housing to prevent moisture ingress.

Figure 2: Antenna connection with weather protection housing for durability.

4.3 Antenna Positioning

The antenna features a swivel mechanism allowing for optimal positioning to maximize signal reception. Adjust the angle as needed after initial installation.

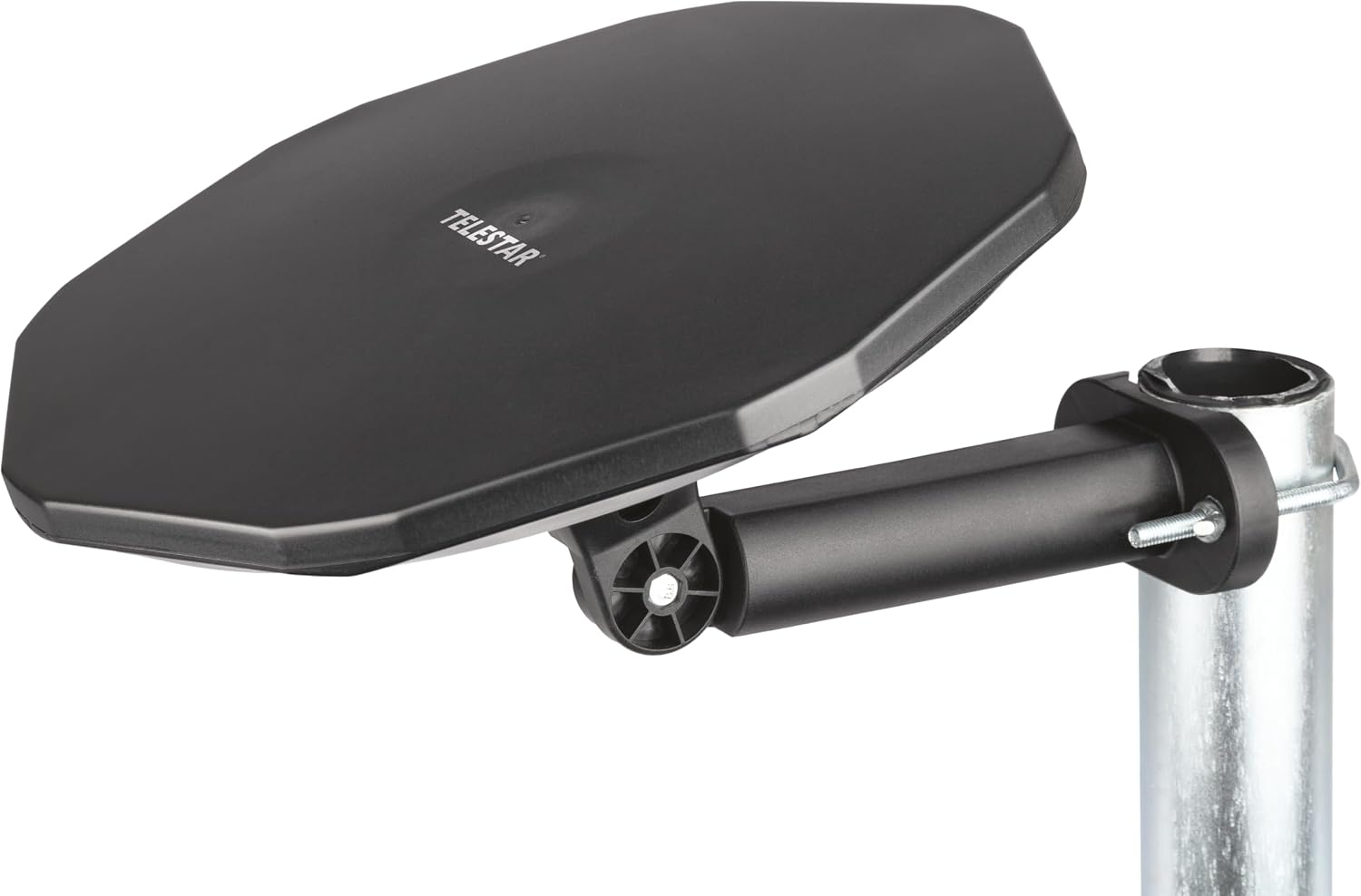

Figure 3: Antenna swivel mechanism for fine-tuning reception.

4.4 Flexible Installation Options

The Antenna 15 LTE supports four primary installation methods:

Figure 4: Overview of flexible installation options.

4.4.1 Mast Installation

Attach the antenna to a mast using the provided clamps and hardware. Ensure the mast is stable and securely anchored.

Figure 5: Example of mast installation.

4.4.2 Wall Installation

Mount the antenna directly to a wall using the wall bracket and screws. Choose a location with minimal obstructions for best signal.

Figure 6: Example of wall installation.

4.4.3 Vehicle or RV Installation

For mobile use, the antenna can be installed on a vehicle or RV. Secure it to a flat surface using the appropriate mounting base.

Figure 7: Example of vehicle or RV installation.

4.4.4 Tabletop Installation

For indoor or temporary outdoor use, the antenna can be placed on a flat surface using the tabletop stand.

Figure 8: Example of tabletop installation.

5. Operating Instructions

After successful installation, connect the antenna's coaxial cable to your DVB-T2 receiver or television's antenna input. Ensure the active amplifier is powered, if applicable.

1. Power On: Turn on your television and DVB-T2 receiver.
2. Channel Scan: Access the menu on your TV or receiver and initiate an automatic channel scan. The omnidirectional reception of the Antenna 15 LTE (Figure 9) should help in finding available channels without precise aiming.
3. Signal Optimization: If signal quality is poor, try slightly adjusting the antenna's position or angle using its swivel mechanism.

Figure 9: Illustration of 360-degree omnidirectional reception.

6. Maintenance

The TELESTAR Antenna 15 LTE is designed for minimal maintenance due to its robust construction from high-quality ABS plastic and stainless steel screws.

• Cleaning: Periodically wipe the antenna surface with a soft, damp cloth to remove dirt or debris. Do not use harsh chemicals or abrasive cleaners.
• Connection Check: Annually inspect all cable connections for tightness and ensure the weather protection housing is intact.
• Mounting Security: Verify that the antenna's mounting hardware remains secure, especially after severe weather conditions.

7. Troubleshooting

8. Specifications

• Model Number: 5102230
• Manufacturer: TELESTAR-DIGITAL GmbH
• Antenna Type: Active DVB-T2 Outdoor Antenna
• Supported Standards: DVB-T2, DVB-T, ISDB-T, DMB-T/H, ATSC
• Frequency Range: DVB-T2/FM/DAB+ (specific frequencies not detailed, but implied by support)
• Gain: 25-30 dBi (with optional 20 dB amplifier)
• Impedance: 75 Ohms
• Max Range: Up to 75 Miles (approx. 120 km)
• Filter: Integrated 4G/5G (LTE) filter
• Reception: Omnidirectional (360 degrees)
• Material: High-quality ABS plastic, stainless steel screws
• Color: Black
• Product Dimensions (L x W x H): 25.5 x 5 x 25.5 cm
• Item Weight: 360 Grams
• Country of Origin: China

9. Warranty Information

This product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the TELESTAR official website for detailed terms and conditions regarding warranty coverage and claims.

10. Customer Support

For technical assistance, troubleshooting, or any questions regarding your TELESTAR Antenna 15 LTE, please contact TELESTAR customer support. You can find contact information, including phone numbers and email addresses, on the official TELESTAR website or in the documentation provided with your product.
