1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your WallBeyond 22x28 Inch Recessed Medicine Cabinet. Please read this manual thoroughly before installation and retain it for future reference.
Figure 1: WallBeyond 22x28 Inch Recessed Medicine Cabinet (Closed)
2. Safety Information
Observe the following safety precautions to prevent injury and damage to the product:
- Always wear appropriate safety gear, including safety glasses and gloves, during installation.
- Ensure the mounting surface is structurally sound and capable of supporting the cabinet's weight.
- Handle glass components, such as the mirror and shelves, with care to avoid breakage.
- Keep small parts and packaging materials away from children.
- Do not overtighten screws during assembly, as this may damage the cabinet frame.
3. Package Contents
Verify that all components are present before beginning installation:
- Medicine Cabinet Assembly (1)
- Adjustable Tempered Glass Shelves (2)
- Mounting Hardware Kit (Screws, Anchors)
- Installation Template (if included)
If any parts are missing or damaged, contact customer support immediately.
4. Setup & Installation
The WallBeyond medicine cabinet supports both recessed and surface mount installations. Recessed installation is recommended for a seamless appearance.
4.1 Installation Options
Figure 2: Wall Mount vs. Recessed Mount Installation
- Recessed Mount: The cabinet body is inserted into a wall opening, with only the mirror frame visible. This requires cutting an opening in the wall.
- Surface Mount: The entire cabinet is mounted directly onto the wall surface.
4.2 Preparing for Recessed Installation
- Determine the desired location for the cabinet. Ensure no electrical wires or plumbing are present within the wall cavity.
- Measure and mark the wall opening. The required rough opening for the cabinet body is approximately 21.9 inches wide by 24 inches high by 3.8 inches deep. Refer to the product dimensions diagram for precise measurements.
- Carefully cut the opening in the wall using appropriate tools.
- Frame the opening if necessary to provide a secure mounting surface.

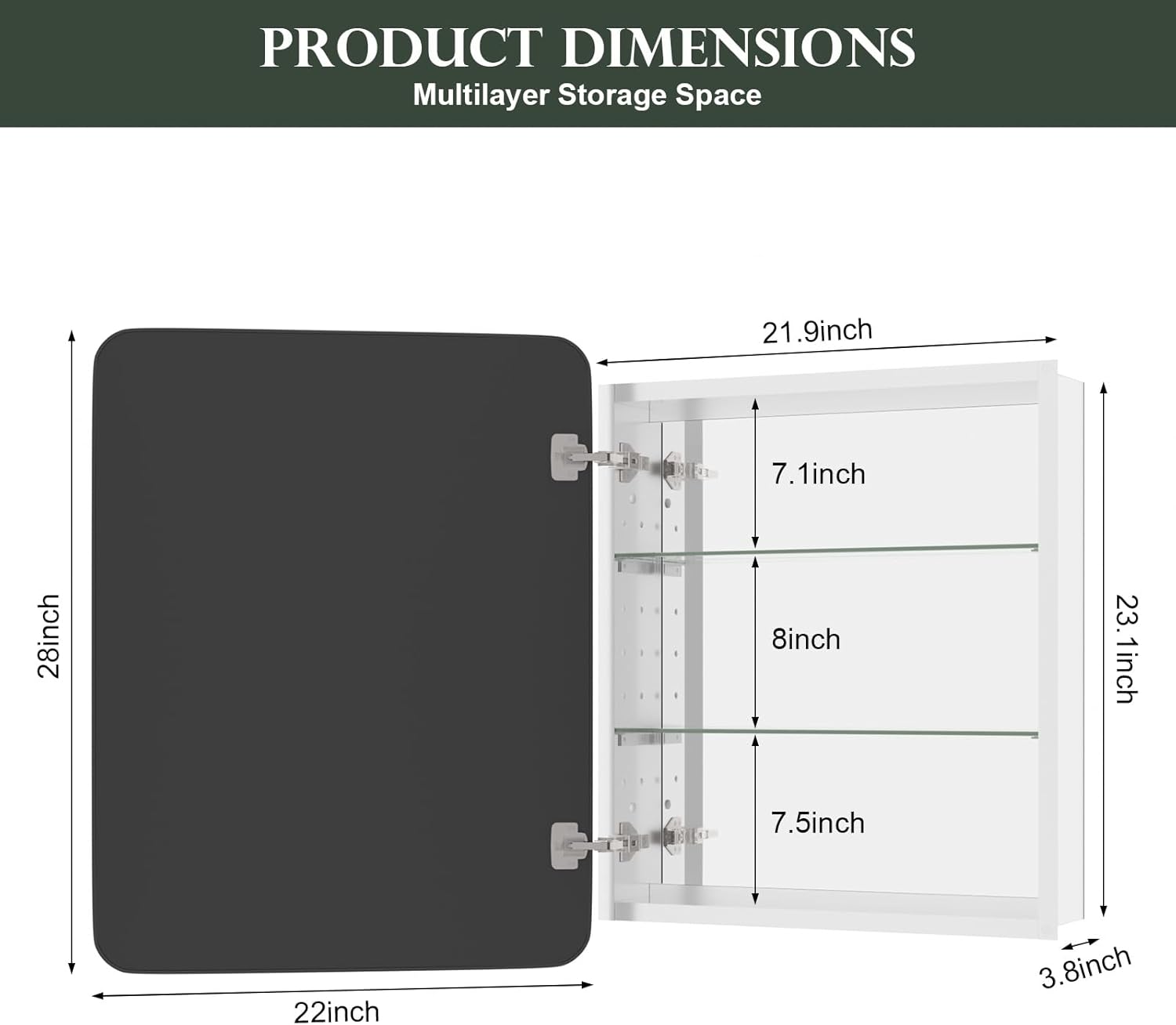

Figure 3: Product Dimensions for Recessed Installation
4.3 Mounting the Cabinet
- Carefully lift the cabinet into the prepared wall opening (for recessed mount) or against the wall surface (for surface mount).
- Ensure the cabinet is level and plumb.
- Secure the cabinet to the wall studs or appropriate wall anchors using the provided mounting hardware. Use a drill to create pilot holes if necessary.
- Confirm the cabinet is firmly attached and stable.
4.4 Adjusting Door Opening Direction
The cabinet can be flipped for reverse installation, allowing the door to open from either the left or the right side.
Figure 4: Left and Right Door Opening Options
- To change the opening direction, simply rotate the entire cabinet 180 degrees before mounting. The hinges are designed to function in either orientation.
4.5 Installing Shelves
- Locate the reserved internal holes inside the cabinet.
- Insert the shelf pins into the desired holes at the desired height.
- Carefully place the tempered glass shelves onto the shelf pins. Ensure they are stable before placing items on them.
Figure 5: Adjustable Tempered Glass Shelves
5. Operation
5.1 Opening and Closing the Door
The cabinet features soft-close hinges for quiet and gentle operation. Simply pull the door open and push it closed. The damping device will automatically slow the door in the last few centimeters, preventing impact sounds.
Figure 6: Soft Close Hinge Mechanism
5.2 Utilizing Storage Space
Arrange personal care items, toiletries, and medicines on the adjustable tempered glass shelves. Adjust shelf heights as needed to accommodate taller items.

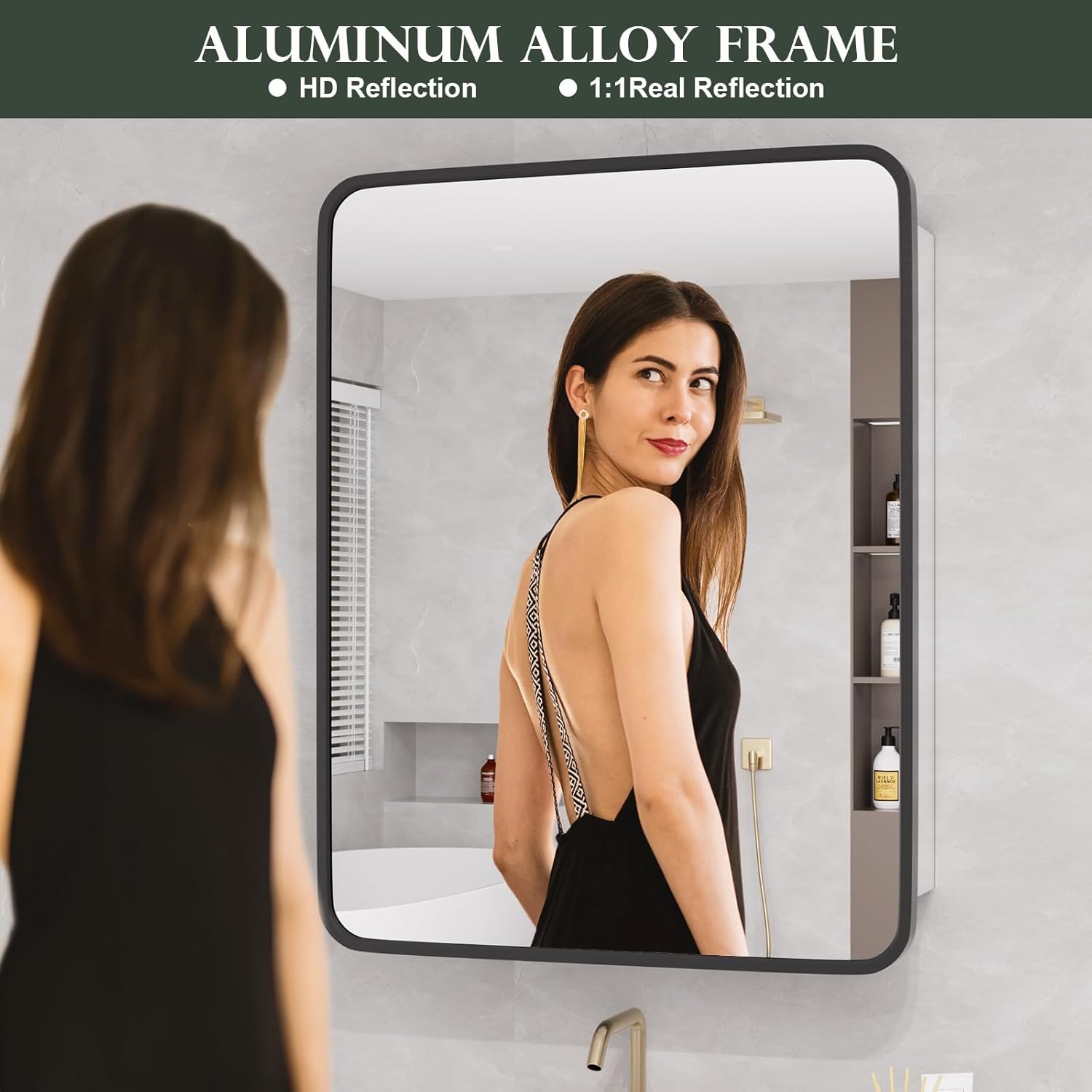

Figure 7: HD Silver Lens Mirror Reflection
6. Maintenance
6.1 Cleaning the Cabinet
- Mirror: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into edges.
- Frame and Interior: Wipe with a soft, damp cloth and mild soap if necessary. Avoid harsh chemicals or abrasive cleaners, which can damage the matte black powder coating and aluminum finish.
- Shelves: Tempered glass shelves can be removed for thorough cleaning with glass cleaner.
6.2 Hinge Care
The soft-close hinges are designed for long-term performance. If the door action becomes stiff or noisy, apply a small amount of silicone-based lubricant to the hinge points. Do not use oil-based lubricants.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Door does not close softly. | Hinge mechanism obstructed or worn. | Check for obstructions. Apply silicone lubricant to hinges. If issue persists, contact support. |
| Cabinet appears crooked after installation. | Not level during installation. | Loosen mounting screws, adjust cabinet until level, then re-tighten. |
| Shelves are unstable. | Shelf pins not fully inserted or damaged. | Ensure shelf pins are securely seated in the holes. Replace damaged pins if necessary. |
| Mirror reflection is distorted. | Mirror surface is dirty or damaged. | Clean the mirror with a glass cleaner. If distortion persists, the mirror may be damaged; contact support. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | WallBeyond |
| Model Number | WB-T531741A01-1P |
| Mirror Dimensions | 22 inches (Width) x 28 inches (Height) |
| Frame Dimensions | 21.9 inches (Width) x 24 inches (Height) x 3.8 inches (Depth) |
| Material | Aluminum Alloy Frame, Tempered Glass Shelves, HD Silver Lens Mirror |
| Color | Black |
| Mounting Type | Recessed Mount, Surface Mount (Wall Mount) |
| Door Style | Single Door, Reversible Opening (Left/Right) |
| Special Features | Soft-Close Hinges, Adjustable Shelves, Unlit |
| Product Weight | Approximately 13.13 kg (28.9 lbs) |
9. Warranty & Support
For warranty information or technical support, please contact WallBeyond customer service. Keep your purchase receipt and model number (WB-T531741A01-1P) readily available when contacting support.
Contact information can typically be found on the WallBeyond official website or through your retailer.
