FLRONGSUN HJDZ-1210 AC to DC Converter Instruction Manual

1. Introduction

The FLRONGSUN HJDZ-1210 AC to DC Converter is designed to convert standard household alternating current (AC) from 100V-240V to direct current (DC) 12V, providing a 10A (120W max) output through a car cigarette lighter socket. This allows you to power various 12V car-powered devices and appliances in your home, office, or other indoor environments.

2. Safety Information

Please read and understand all safety instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Power Rating: Do not use this converter with devices that have a rated power greater than 120W or draw more than 10A. Exceeding these limits can damage the converter and the connected device.
• Voltage Stability: Avoid using the converter in environments with extremely unstable voltage, as this may cause damage.
• Unplug When Not in Use: Always unplug the power cord from the wall outlet when the converter is not in use.
• Ventilation: Ensure the product is used in an environment with good heat dissipation to prevent overheating. Do not cover the converter during operation.
• Protection Features: The converter is equipped with multiple safety protections, including over-voltage, over-current, short-circuit, and over-temperature protection.
• Indoor Use Only: This product is designed for indoor use and is not waterproof. Avoid exposure to moisture or liquids.

3. Package Contents

Verify that all items are present in the package:

• 1 x FLRONGSUN HJDZ-1210 AC to DC Converter Unit
• 1 x AC Power Cord (for wall outlet connection)
• 1 x DC Cigarette Lighter Socket Output Cable

4. Product Overview

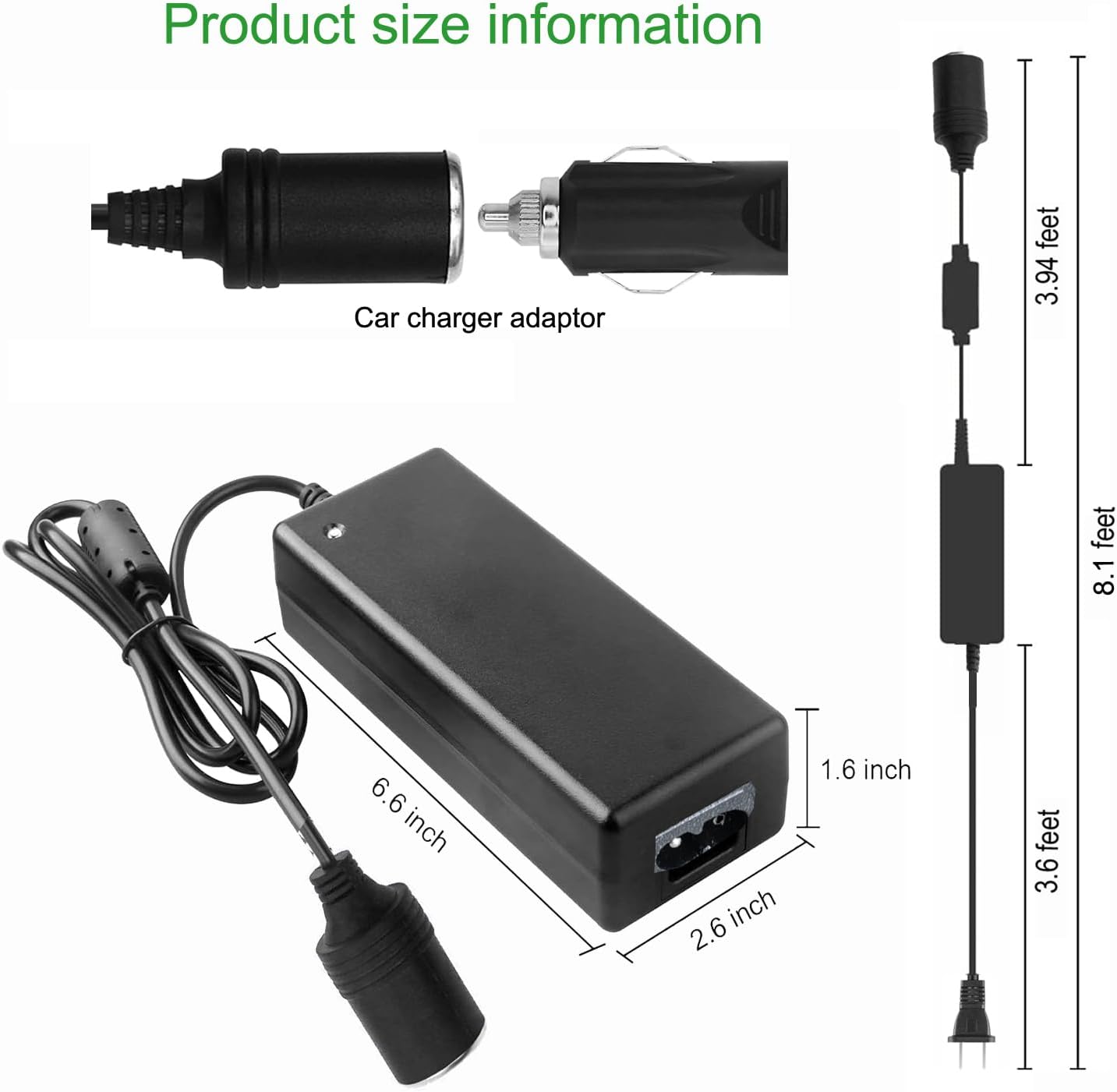

The FLRONGSUN HJDZ-1210 converter features a compact design with essential components for safe and efficient power conversion.

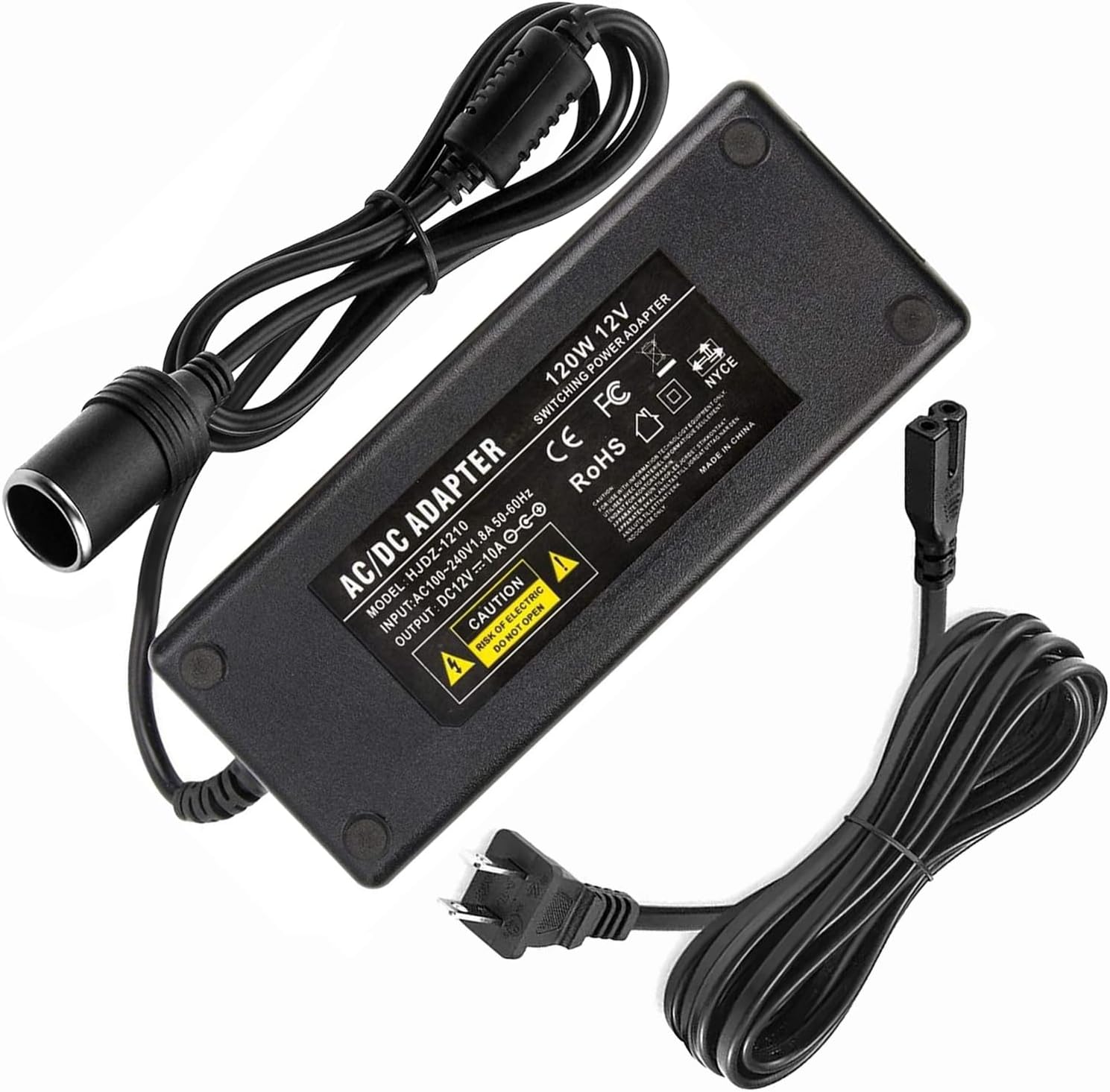

The main unit (power brick) converts the AC input to 12V DC. It includes an input port for the AC power cord and an integrated output cable terminating in a standard car cigarette lighter socket. A small LED indicator on the unit illuminates when power is supplied.

5. Setup Instructions

Follow these steps to set up your AC to DC converter:

1. Connect AC Power Cord: Insert the AC power cord into the input port on the converter unit.
2. Plug into Wall Outlet: Plug the other end of the AC power cord into a standard 100V-240V household wall outlet. The LED indicator on the converter unit should illuminate, indicating it is receiving power.
3. Connect Car Device: Insert the cigarette lighter plug of your 12V car device into the cigarette lighter socket on the converter's output cable.

Once connected, your car device should be ready for operation.

6. Operating Instructions

After successful setup, operate your 12V car devices as follows:

• Ensure the converter is properly plugged into a wall outlet and its indicator light is on.
• Connect your 12V car device (e.g., tire inflator, car vacuum cleaner, car refrigerator) to the converter's cigarette lighter socket.
• Activate your car device according to its own operating instructions.
• Always ensure the total power consumption of the connected device(s) does not exceed 120W.

7. Maintenance

To ensure the longevity and proper functioning of your converter:

• Keep the unit clean and free from dust. Use a soft, dry cloth for cleaning.
• Store the converter in a cool, dry place when not in use.
• Avoid dropping the unit or subjecting it to strong impacts.
• Do not attempt to open or repair the unit yourself. Refer to qualified personnel for service.

8. Troubleshooting

If you encounter issues with your converter, refer to the following common problems and solutions:

9. Specifications

Detailed technical specifications for the FLRONGSUN HJDZ-1210 AC to DC Converter:

10. Warranty and Support

FLRONGSUN provides a 3-year warranty for replacement of this product. Additionally, technical support is available for the lifetime of the product. For any inquiries or assistance, please contact FLRONGSUN customer service through your purchase platform.
