1. Introduction and Product Overview
The PLASMARGON CT418 is a versatile 3-in-1 inverter welding machine designed for plasma cutting, TIG welding, and MMA (Stick) welding. This compact and portable unit is suitable for a wide range of applications, from DIY projects to professional use, offering efficient and precise performance across various metal types.
This manual provides essential information for the safe and effective operation, setup, and maintenance of your CT418 machine. Please read it thoroughly before use.
Image 1.1: Overview of the PLASMARGON CT418 machine highlighting its multi-process protection, CUT/TIG/MMA capabilities, gas/gas-free options, and smart cooling system.
2. Safety Information
Operating welding and cutting equipment involves significant risks. Always prioritize safety to prevent injury or damage. This section outlines general safety precautions. Refer to local regulations and specific safety data sheets for materials being processed.
- Electric Shock: Can kill. Ensure proper grounding. Do not touch live electrical parts. Wear dry welding gloves and protective clothing.
- Fumes and Gases: Can be hazardous to health. Work in a well-ventilated area. Use fume extractors if necessary.
- Arc Rays: Can burn eyes and skin. Wear a welding helmet with appropriate shade filter and protective clothing.
- Fire and Explosion: Welding sparks and hot materials can cause fires. Keep flammable materials away from the work area. Have a fire extinguisher readily available.
- Hot Parts: Can cause severe burns. Allow equipment and workpieces to cool before handling.
- Noise: Excessive noise can damage hearing. Wear hearing protection.
- Compressed Gas Cylinders: Handle with care. Secure cylinders to prevent falling.
- Maintenance: Disconnect power before performing any maintenance or service.
3. Product Components and Accessories
The PLASMARGON CT418 machine comes with the following standard components and accessories:
- PLASMARGON CT418 Main Unit
- PT-31 Plasma Cutting Torch
- TIG-17FV TIG Welding Torch
- MMA Electrode Holder (Stick Holder)
- Earth Clamp
- Power Cable
- Air Hose
- Consumables for Plasma and TIG torches
Image 3.1: The CT418 machine displayed with its various included accessories, such as torches, cables, and consumables.
4. Technical Specifications
| Parameter | Value |
|---|---|
| Rated Input Voltage | 220 V ± 15% |
| Frequency | 50/60 Hz |
| Rated Input Power | 3.5 KVA |
| No-Load Voltage | 60 V |
| Rated Duty Cycle | 60% |
| Power Factor | 0.93 |
| Plasma Cutting Output Current | 10-40 A |
| TIG Welding Output Current | 10-180 A |
| MMA Welding Output Current | 20-160 A |
| Max Clean Cut Thickness (Plasma) | 2/5" (approx. 10mm) |
| Dimensions (L x W x H) | 44 x 35 x 26 cm (17.3 x 13.7 x 10.5 inches) |
| Weight | 9.5 kg |
Image 4.1: Visual representation of the CT418's technical specifications and various application scenarios.
5. Setup Instructions
5.1 General Connections
- Power Connection: Connect the power cable to a suitable 220V ± 15% power outlet. Ensure the circuit can handle the machine's rated input power.
- Earth Clamp: Connect the earth clamp cable to the designated terminal on the machine. Securely attach the earth clamp to the workpiece or a clean, bare metal part of the work table to ensure proper grounding.
5.2 Plasma Cutting Setup
- Air Compressor: Connect an air compressor to the machine's air inlet using the provided air hose. Plasma cutting requires compressed air. The optimal air pressure is between 0.4 and 0.6 MPa.
- Plasma Torch: Connect the PT-31 plasma cutting torch to the appropriate connection points on the front panel of the machine.
- Consumables: Ensure the plasma torch has the correct consumables (electrode, nozzle, shield cup) installed for the material thickness you intend to cut.
Image 5.1: The CT418 machine configured for plasma cutting, showing the torch in action and emphasizing the need for an air compressor.
5.3 TIG Welding Setup
- TIG Torch: Connect the TIG-17FV torch to the designated TIG connection on the machine.
- Gas Cylinder: Connect a shielding gas cylinder (e.g., Argon) to the gas inlet on the machine via a regulator and hose. Ensure gas flow is set appropriately for the material and current.
- Tungsten Electrode: Install a sharpened tungsten electrode of the correct type and size into the TIG torch collet.
Image 5.2: The CT418 machine set up for TIG welding, demonstrating the process and highlighting the PULSE TIG feature.
5.4 MMA (Stick) Welding Setup
- Electrode Holder: Connect the MMA electrode holder cable to the positive (+) terminal on the machine.
- Electrode: Insert the appropriate welding electrode (stick) into the electrode holder.
Image 5.3: The CT418 machine configured for MMA welding, showing the electrode holder and the welding process.
6. Operating Instructions
6.1 Power On and Mode Selection
- Ensure all connections are secure and correct for the desired process.
- Turn on the main power switch located on the rear panel of the machine.
- Use the mode selection switch on the front panel to choose between "CUT" (Plasma Cutting), "TIG" (TIG Welding), or "MMA" (Stick Welding).
- Adjust the output current using the control knob. The digital LCD screen will display the current setting.
6.2 Plasma Cutting Operation
- Set the machine to "CUT" mode.
- Adjust the air pressure to the recommended range (0.4-0.6 MPa).
- Set the cutting current based on the material type and thickness.
- Position the plasma torch nozzle close to the workpiece.
- Press the torch trigger to initiate the arc and begin cutting. Maintain a steady travel speed for a clean cut.
6.3 TIG Welding Operation
- Set the machine to "TIG" mode.
- Adjust the shielding gas flow rate.
- Set the welding current according to the material and tungsten electrode size. The PULSE function can be activated for enhanced weld appearance and reduced heat input.
- Initiate the arc using the high-frequency (HF) start.
- Maintain a consistent arc length and feed filler rod if required.
6.4 MMA (Stick) Welding Operation
- Set the machine to "MMA" mode.
- Select the appropriate electrode for your material and application.
- Set the welding current based on the electrode diameter and material thickness.
- Strike the arc by lightly touching and then quickly lifting the electrode from the workpiece.
- Maintain a consistent arc length and travel speed to achieve a stable arc and deep weld pool.

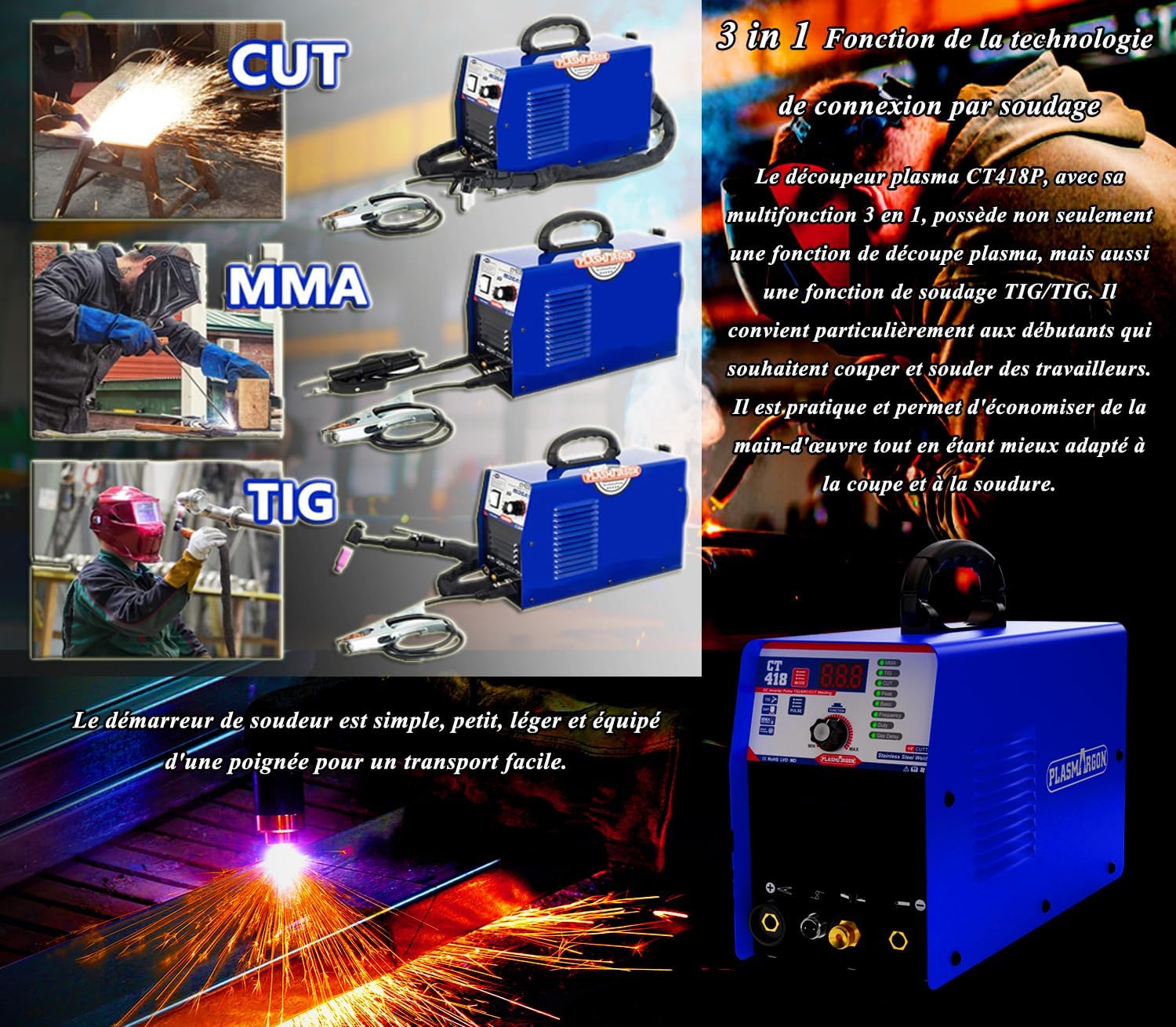

Image 6.1: The CT418 machine demonstrating its 3-in-1 functionality with plasma cutting, MMA, and TIG welding torches attached.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your PLASMARGON CT418 machine.
- Cleaning: Periodically clean the machine's exterior with a dry, soft cloth. Use compressed air to blow out dust and debris from inside the machine, especially from cooling vents. Ensure the machine is disconnected from power before cleaning.
- Torch Consumables: Regularly inspect and replace plasma torch electrodes, nozzles, and shield cups as they wear out. For TIG welding, ensure the tungsten electrode is clean and properly sharpened.
- Cables and Connections: Check all cables for damage (cuts, fraying) and ensure connections are tight and free from corrosion. Replace damaged cables immediately.
- Air Filter (Plasma): If your air compressor or the machine has an inline air filter, check and clean/replace it regularly to ensure clean, dry air supply for plasma cutting.
- Storage: Store the machine in a dry, clean environment, away from excessive dust, moisture, and extreme temperatures.
8. Troubleshooting
This section provides solutions to common issues you might encounter. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not power on | No power supply; Power switch off; Faulty power cable | Check power outlet and circuit breaker; Turn on power switch; Inspect and replace power cable if damaged. |
| No arc in any mode | Poor earth clamp connection; Incorrect mode selection; Faulty torch connection | Ensure earth clamp is securely attached to clean metal; Verify correct mode is selected; Check all torch connections. |
| Plasma cutter not cutting cleanly or not starting | Insufficient air pressure; Worn plasma consumables; Incorrect current setting | Check air compressor and pressure regulator (0.4-0.6 MPa); Replace plasma electrode and nozzle; Adjust current for material thickness. |
| TIG arc unstable or difficult to start | Contaminated or improperly sharpened tungsten; Insufficient shielding gas flow; Incorrect current setting | Clean or re-sharpen tungsten; Check gas cylinder and flow rate; Adjust current. |
| MMA electrode sticking or poor weld | Incorrect current setting; Damp or incorrect electrode; Poor earth connection | Adjust current for electrode type and size; Use dry, appropriate electrodes; Ensure good earth connection. |
| Overheat indicator active | Exceeded duty cycle; Blocked cooling vents; High ambient temperature | Allow machine to cool down; Clear any obstructions from vents; Operate in a cooler environment. |
9. Warranty and Support
The PLASMARGON CT418 machine comes with a 12-month warranty from the date of purchase, covering manufacturing defects. This warranty does not cover damage caused by improper use, neglect, unauthorized modifications, or normal wear and tear of consumables.
For technical assistance, warranty claims, or any questions regarding your PLASMARGON CT418, please contact our customer service. Have your model number (CT418) and purchase details ready when contacting support.
We are committed to providing friendly and helpful customer service to ensure your satisfaction with our product.
