1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your perfektGarten Carburetor, Model 863. This carburetor is designed as a direct replacement part for Fuxtec FX-4MS142 (FX-4MS 142) brush cutters. Please read these instructions carefully before proceeding with installation or use to ensure safe and efficient operation.
2. Safety Information
WARNING: Always prioritize safety when working with fuel systems and power tools. Failure to follow safety instructions can result in serious injury or damage.
- Ensure the brush cutter's engine is off and cool before beginning any work.
- Disconnect the spark plug wire to prevent accidental starting.
- Work in a well-ventilated area to avoid inhaling fuel fumes.
- Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
- Handle fuel with extreme care. Avoid spills and ensure no open flames or ignition sources are nearby.
- Refer to your Fuxtec FX-4MS142 brush cutter's original manual for additional safety guidelines.
3. Package Contents
Verify that your package contains the following item:
- 1 x perfektGarten Carburetor Model 863
4. Product Overview and Dimensions
The perfektGarten Carburetor Model 863 is a precision-engineered component responsible for mixing air and fuel in the correct ratio for your brush cutter's engine. Accurate dimensions are crucial for proper fitment and function.

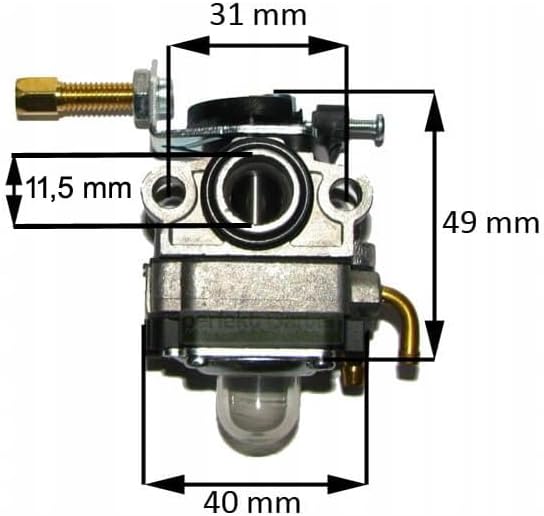

Figure 4.1: Front View with Dimensions
This image displays the front view of the carburetor, highlighting critical dimensions for installation. The mounting hole distance horizontally is 31 mm, and vertically it is 11.5 mm. The overall height of the carburetor is 49 mm, and the width at the base is 40 mm.
Figure 4.2: Side View with Throttle Bore Dimension
This image provides a side view of the carburetor, indicating the throttle bore diameter, which measures 9 mm. This dimension is important for ensuring proper airflow and fuel mixture.
Figure 4.3: General Product View 1
A standard view of the carburetor, illustrating its external features and connections.
Figure 4.4: General Product View 2
An alternative angle of the carburetor, providing a comprehensive look at its construction.
5. Installation (Setup)
Follow these steps carefully to replace the carburetor on your Fuxtec FX-4MS142 brush cutter. If you are unsure about any step, consult a qualified technician.
- Prepare the Brush Cutter: Ensure the engine is off and cool. Disconnect the spark plug wire. Place the brush cutter on a stable, flat surface.
- Drain Fuel: If necessary, drain any remaining fuel from the fuel tank into an approved container.
- Remove Air Filter Assembly: Locate and remove the air filter cover and the air filter element. You may need to unbolt the entire air filter housing to access the carburetor.
- Disconnect Linkages and Hoses: Carefully disconnect the throttle cable and any choke linkages from the old carburetor. Note their positions for reassembly. Disconnect the fuel lines (inlet and return) from the carburetor. Be prepared for minor fuel spills.
- Remove Old Carburetor: Unbolt the carburetor from the engine manifold. There are typically two nuts or bolts holding it in place. Remove the old carburetor and any gaskets.
- Inspect and Clean: Inspect the engine manifold and intake port for any debris or old gasket material. Clean thoroughly if necessary.
- Install New Carburetor: Place new gaskets (if supplied, or use existing good condition ones) onto the manifold. Position the new perfektGarten Carburetor Model 863 onto the manifold, ensuring it aligns correctly with the mounting studs/holes. Secure it with the nuts/bolts, tightening them evenly. Do not overtighten.
- Reconnect Linkages and Hoses: Reconnect the fuel lines to their correct ports on the new carburetor. Reattach the throttle cable and choke linkages, ensuring they operate smoothly without binding.
- Reinstall Air Filter Assembly: Reinstall the air filter element and housing, then secure the air filter cover.
- Refuel and Test: Refill the fuel tank with the appropriate fuel mixture for your brush cutter. Reconnect the spark plug wire. Start the engine and check for proper operation, idle, and acceleration. Inspect for any fuel leaks.
6. Operation
This carburetor is a replacement component for your Fuxtec FX-4MS142 brush cutter. Its function is to regulate the air-fuel mixture for the engine. For detailed instructions on operating your brush cutter, including starting procedures, throttle control, and safety guidelines during use, please refer to the original Fuxtec FX-4MS142 brush cutter owner's manual.
7. Maintenance
Regular maintenance of your carburetor and brush cutter will ensure longevity and optimal performance.
- Air Filter: Regularly clean or replace the air filter element as per your brush cutter's manual. A clogged air filter can restrict airflow and affect carburetor performance.
- Fuel Quality: Always use fresh, clean fuel mixed to the correct ratio specified by Fuxtec. Stale or improperly mixed fuel can cause carburetor issues.
- Fuel Lines: Periodically inspect fuel lines for cracks, hardening, or leaks. Replace damaged lines promptly.
- Carburetor Cleaning: If performance issues arise due to fuel contamination, the carburetor may need internal cleaning. This is an advanced procedure and may require professional service.
- Storage: Before long-term storage, run the engine until it runs out of fuel, or drain the fuel tank and carburetor to prevent fuel degradation and gumming.
8. Troubleshooting
If you experience issues after installing the new carburetor, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, incorrect fuel mixture, clogged fuel filter, spark plug issue, air filter clogged, choke not set correctly. | Check fuel level and mixture. Inspect fuel filter. Check spark plug. Clean/replace air filter. Ensure choke is engaged for cold start. |
| Engine runs poorly (stalling, rough idle, lack of power) | Clogged air filter, old/bad fuel, fuel lines restricted, carburetor adjustments needed, spark plug issue. | Clean/replace air filter. Use fresh fuel. Check fuel lines. Consult brush cutter manual for idle adjustment. Check spark plug. |
| Fuel leaks from carburetor | Improperly seated gaskets, loose mounting bolts, damaged fuel lines, float needle issue (internal). | Check carburetor mounting bolts for proper tightness. Inspect fuel lines and connections. Ensure gaskets are correctly installed. If internal, professional service may be required. |
If these troubleshooting steps do not resolve the issue, it is recommended to seek assistance from a qualified service technician.
9. Specifications
- Brand: perfektGarten
- Model: 863
- Compatibility: Fuxtec FX-4MS142 (FX-4MS 142) Brush Cutter
- Overall Height: Approximately 49 mm
- Mounting Hole Distance (Width): Approximately 31 mm
- Mounting Hole Distance (Height): Approximately 11.5 mm
- Base Width: Approximately 40 mm
- Throttle Bore Diameter: Approximately 9 mm
10. Warranty and Support
For warranty information, technical support, or any questions regarding your perfektGarten Carburetor Model 863, please contact the seller directly through the Amazon platform where the purchase was made. Provide your order details and a clear description of your inquiry for prompt assistance.
