BFDIEEM FN2-4D Electric Four Lines Overlock Sewing Machine User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your BFDIEEM FN2-4D Electric Four Lines Overlock Sewing Machine. Please read this manual thoroughly before using the machine to ensure proper function and to prevent damage or injury.

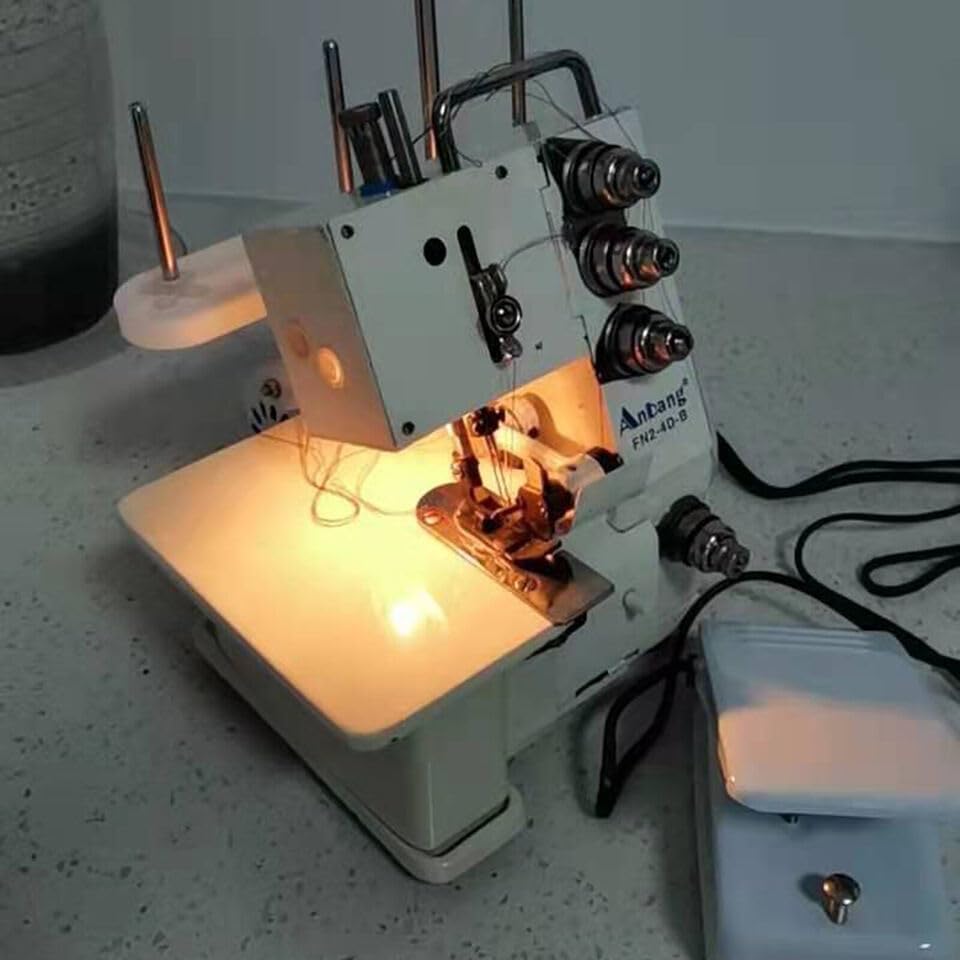

Figure 1: The BFDIEEM FN2-4D Electric Four Lines Overlock Sewing Machine, including the main unit, foot pedal, and thread stand.

2. Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons.

• Ensure the machine is unplugged before cleaning, servicing, or when not in use.
• Keep fingers away from all moving parts, especially the needle and cutting blades.
• Use only the accessories specified by the manufacturer.
• Never operate the machine with any air openings blocked. Keep ventilation openings of the sewing machine and foot controller free from the accumulation of lint, dust, and loose cloth.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

3. Package Contents

Verify that all items listed below are included in your package:

• 1 x BFDIEEM FN2-4D 4-Thread Overlock Sewing Machine
• 1 x Foot Controller
• 1 x English Manual

4. Product Features

The BFDIEEM FN2-4D overlock sewing machine is designed for efficient and reliable performance, offering several key features:

• Four-Line Stitching: Capable of producing strong, professional four-thread overlock stitches.
• High Speed Operation: Achieves up to 1200 stitches per minute for increased productivity.
• Compact Design: Features an integrated motor and body for a small footprint and ease of use.
• Versatile Fabric Compatibility: Suitable for a wide range of fabrics including cotton, silk, denim, chemical fibers, and for sewing items like undershirts and cotton sweaters.
• Heat Dissipation: Equipped with a heat sink window to ensure continuous and stable operation by dissipating heat from internal electronic components.
• Integrated LED Light: Provides illumination for the working area, enhancing visibility in various lighting conditions.
• Anti-slip Mats: Base includes anti-slip mats to prevent tipping and maintain machine stability during operation.

5. Setup

Follow these steps to set up your overlock sewing machine:

1. Unpacking: Carefully remove the machine and all accessories from the packaging.
2. Placement: Place the machine on a stable, flat surface. Ensure there is adequate space around the machine for fabric handling.
3. Thread Stand Assembly: Assemble the thread stand and insert the thread spools onto the pins.
4. Power Connection: Connect the foot controller to the machine and then plug the machine's power cord into a standard 110V electrical outlet.
5. Threading: Refer to the threading diagram located on the machine or in the included English manual for the correct four-thread path. Proper threading is crucial for correct stitch formation.

Figure 2: Threading diagram on the machine, illustrating the correct path for each of the four threads.

Setup and Operation Video Guide

6. Operation

Once the machine is set up and threaded, you can begin sewing:

1. Prepare Fabric: Place the fabric under the presser foot.
2. Lower Presser Foot: Lower the presser foot using the lever.
3. Start Sewing: Gently press the foot controller to start the machine. The speed of sewing is controlled by the pressure applied to the foot pedal.
4. Guide Fabric: Guide the fabric smoothly through the machine, ensuring it feeds evenly.
5. Finish Sewing: When finished, lift the presser foot and carefully pull the fabric away, cutting the thread chain.

Figure 3: Examples of overlock stitches produced by the machine on various fabric types.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your sewing machine:

• Cleaning: Regularly clean lint and dust from the feed dogs, needle plate, and looper area using a small brush.
• Oiling: Apply a small amount of sewing machine oil to designated oiling points as indicated in the full manual or by a service technician.
• Needle Replacement: Replace needles frequently, especially when working with different fabric types or if the needle becomes dull or bent. Use DP5*80-95 needles.
• Blade Inspection: Periodically check the cutting blades for sharpness. Dull blades can lead to uneven cuts.

8. Troubleshooting

If you encounter issues, refer to the following common troubleshooting tips:

• Skipped Stitches: Check if the needle is inserted correctly, if it's bent or dull, or if the machine is threaded properly.
• Thread Breaking: Ensure tension settings are correct for your thread and fabric, check for burrs on thread guides, and verify the needle is not damaged.
• Uneven Stitches: Adjust tension dials for each thread. Ensure the fabric is fed evenly without pulling or pushing excessively.
• Machine Not Starting: Check if the power cord is securely plugged in and if the foot controller is properly connected.

9. Specifications

Detailed technical specifications for the BFDIEEM FN2-4D Overlock Sewing Machine:

Figure 4: Detailed dimensions of the BFDIEEM FN2-4D overlock sewing machine.

10. Warranty and Support

Your BFDIEEM FN2-4D Electric Four Lines Overlock Sewing Machine comes with a quality warranty. For any questions or support needs, please contact the seller. We are committed to addressing your inquiries within 24 hours.
