Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the TUWODE Hydraulic Motor, Model 104-1388-006. This motor is designed as a replacement for Eaton Char-Lynn 2000 Series Hydraulic High Speed Motors, offering reliable rotary motion for various machinery and equipment.
Hydraulic motors are critical components in many industrial and mobile applications. They convert hydraulic energy into mechanical energy, providing precise control over output speed and rotary position by regulating the flow and pressure within the hydraulic system. This motor is engineered for performance in demanding environments.
Key Advantages of Hydraulic Motors:
- Precise Speed Control: The ability to precisely adjust hydraulic fluid flow allows for very accurate control of motor speed, which is crucial for applications requiring fine movement control.
- Durability: With fewer moving parts compared to some other motor types, hydraulic motors are inherently rugged and designed to operate reliably for extended periods in harsh conditions.
- Environmental Adaptability: These motors can function effectively in a wide range of environments, including those that are wet, dusty, or experience high temperatures, where electric motors might require specialized protection.
- Simple Maintenance: The relatively straightforward construction of hydraulic motors often translates to reduced maintenance requirements.
- Safety: Hydraulic systems are generally considered safer in hot or flammable environments as they do not produce sparks or excessive heat, unlike some electrical systems.
Important Note: Before proceeding with installation or operation, please verify that the part numbers are compatible with your existing system. This product is an aftermarket replacement component designed to be suitable for your application.
Product Overview and Components
The TUWODE Hydraulic Motor Model 104-1388-006 is a compact and powerful unit. Familiarize yourself with its key features and connection points before installation.

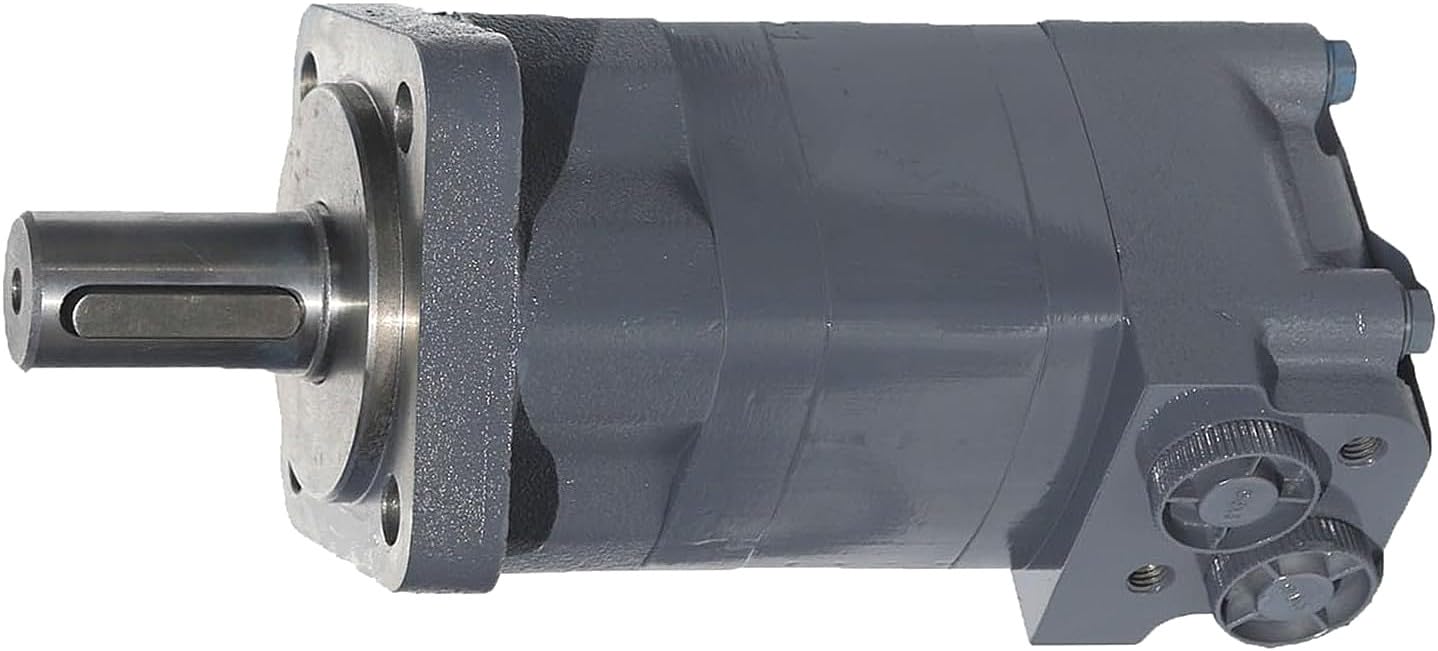

Figure 1: Main view of the TUWODE Hydraulic Motor. This image displays the primary body of the hydraulic motor, highlighting its robust construction and the output shaft.

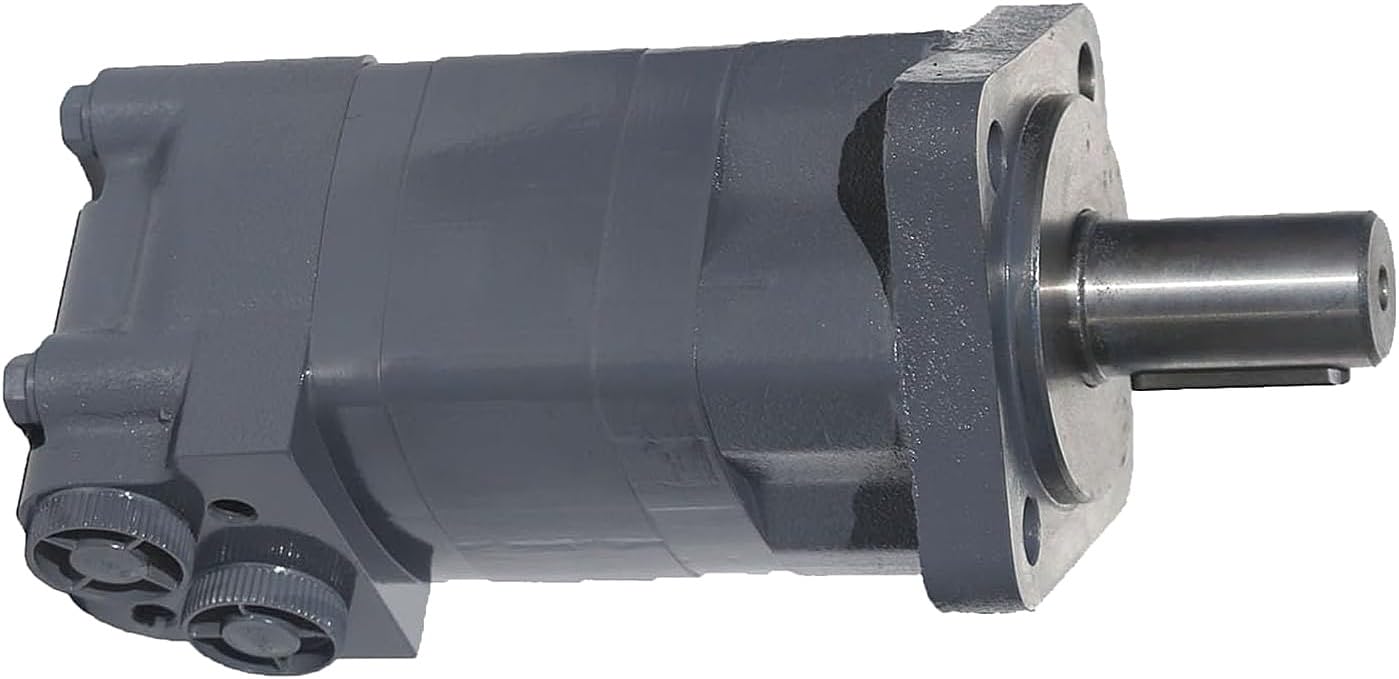

Figure 2: Angled view of the hydraulic motor, illustrating the hydraulic fluid inlet and outlet ports. Proper connection to these ports is essential for operation.
Figure 3: View of the hydraulic motor from the opposite side, showing the mounting flange and additional connection points. This flange is used to secure the motor to its application.
Setup and Installation
Proper installation is crucial for the safe and efficient operation of your hydraulic motor. Always follow standard hydraulic system safety procedures.
Safety Precautions:
- Ensure the hydraulic system is depressurized and locked out before beginning any installation work.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Handle the motor carefully; it is heavy. Use proper lifting techniques or equipment.
- Ensure the work area is clean and free of debris to prevent contamination of the hydraulic system.
Installation Steps:
- Mounting: Securely mount the hydraulic motor to the equipment using appropriate bolts and torque specifications for the mounting flange. Ensure the mounting surface is flat and rigid to prevent misalignment or vibration.
- Shaft Connection: Connect the motor's output shaft to the driven component. Ensure proper alignment to prevent premature wear on bearings and seals. Use a flexible coupling if misalignment is anticipated.
- Hydraulic Line Connections: Connect the pressure and return lines from your hydraulic system to the corresponding ports on the motor. Ensure all connections are clean, free of burrs, and tightened to prevent leaks. Use appropriate thread sealant.
- Drain Line (if applicable): If your motor has a case drain port, connect it to the hydraulic reservoir. This line is crucial for preventing pressure buildup within the motor casing.
- Initial Fluid Fill/Check: Before starting the system, ensure the hydraulic reservoir is filled with the correct type and amount of hydraulic fluid. Bleed air from the system as per your system's guidelines to prevent cavitation.
Operating Instructions
Once installed, the hydraulic motor's operation is controlled by the hydraulic system it is integrated into. Adhere to the following guidelines for optimal performance.
- System Start-up: Gradually increase hydraulic pressure and flow during initial start-up to allow the motor to fill with fluid and purge any remaining air.
- Flow and Pressure Control: The speed of the hydraulic motor is primarily controlled by the flow rate of the hydraulic fluid, while torque is determined by pressure. Operate within the recommended flow and pressure limits of your system and the motor.
- Directional Control: The direction of rotation is typically controlled by a directional control valve in the hydraulic circuit, which reverses the flow of fluid to the motor ports.
- Monitoring Performance: Regularly monitor the motor for unusual noises, excessive heat, or vibrations during operation. These can indicate potential issues requiring attention.
- Load Management: Avoid operating the motor continuously at its maximum rated load or beyond, as this can lead to overheating and reduced lifespan.
Maintenance
Regular maintenance extends the life and ensures the reliability of your hydraulic motor. A proactive approach to maintenance can prevent costly downtime.
Recommended Maintenance Schedule:
- Daily/Shiftly:
- Visually inspect for leaks around seals and connections.
- Check fluid level in the reservoir.
- Listen for unusual noises or vibrations.
- Weekly/Monthly (or as per system usage):
- Check hydraulic fluid condition (color, odor, presence of contaminants).
- Inspect hydraulic lines and hoses for wear or damage.
- Clean the exterior of the motor to prevent dirt buildup.
- Annually/Bi-annually (or as per manufacturer's fluid recommendations):
- Replace hydraulic fluid and filters according to system specifications.
- Inspect mounting bolts for tightness.
- Check shaft coupling for wear and alignment.
- Consider professional inspection of internal components if performance degrades.
Troubleshooting
This section provides solutions to common issues you might encounter with your hydraulic motor. For complex problems, consult a qualified hydraulic technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not rotate or rotates slowly | Insufficient hydraulic fluid flow or pressure; Air in the system; Clogged filter; Worn pump; Internal motor damage. | Check fluid level and pump operation; Bleed air from the system; Replace filter; Inspect pump; Consult technician for motor inspection. |
| Excessive noise or vibration | Cavitation (air in fluid); Misalignment of shaft; Loose mounting; Worn bearings; Contaminated fluid. | Bleed air from system; Check and correct shaft alignment; Tighten mounting bolts; Inspect and replace bearings if necessary; Change fluid and filter. |
| Overheating | Excessive load; Low fluid level; Contaminated or incorrect fluid; Clogged cooler; Internal leakage. | Reduce load; Top up fluid; Replace fluid with correct type; Clean or repair cooler; Consult technician for internal inspection. |
| Fluid leakage | Loose fittings; Damaged seals; Cracked housing; Excessive case pressure. | Tighten fittings; Replace worn or damaged seals; Inspect housing for cracks; Check case drain line for blockages. |
Specifications
The following table outlines the key technical specifications for the TUWODE Hydraulic Motor Model 104-1388-006.
| Feature | Value |
|---|---|
| Part Number | 104-1388-006 |
| Part Name | 2000 Series Hydraulic Motor |
| Applications | Compatible with Char-Lynn |
| Package Dimensions | 14.56 x 12.53 x 12 inches |
| Item Weight | 14 Pounds |
| Model Number | 104-1388-006 |
| Manufacturer | TUWODE |
| Material | Iron |
Warranty and Support
For information regarding warranty coverage for your TUWODE Hydraulic Motor, please refer to the terms and conditions provided at the time of purchase or contact the manufacturer directly. As an aftermarket component, specific warranty details may vary.
For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact TUWODE customer service through their official channels. When contacting support, please have your model number (104-1388-006) and purchase information readily available.
