1. Introduction and Overview
The Weceleh 30-inch Electric Cooktop is a versatile and efficient appliance designed to enhance your cooking experience. Featuring 5 powerful burners and intuitive knob controls, it is suitable for a wide range of culinary tasks, from quick boils to keeping food warm.
This built-in electric stove is compatible with all types of cookware, eliminating the need to worry about specific pot or pan requirements. Its vertical heat conduction technology ensures efficient heating and minimizes heat loss, achieving up to 90% heat transfer efficiency for rapid and effective cooking.

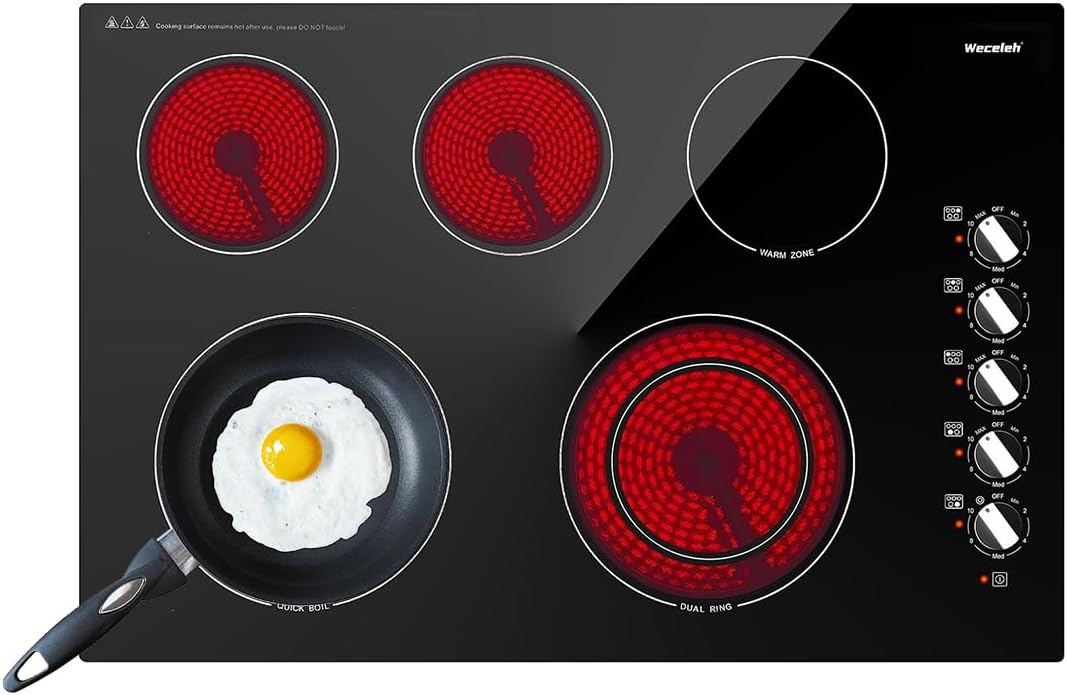

Figure 1: Overview of the Weceleh 30-inch Electric Cooktop.
Figure 2: Key features of the Weceleh Electric Cooktop, including its 30-inch black polished ceramic glass surface, five powerful cooking zones, independent knob controls, quick boil, dual ring, and warm zone functions, along with child safety lock and hot surface indicators.
2. Safety Information
Your safety is paramount. This cooktop is equipped with several safety features to ensure a secure cooking environment. Always read and understand all instructions before use.
- Child Safety Lock: Prevents accidental activation of the burners.
- Hot Surface Indicator: A light warns you when the cooktop surface is hot, even after the burner is turned off.
- Overheating Protection: Automatically shuts down the cooktop if it detects excessive temperatures.
- Auto Shut-Down Protection: Enhances safety by automatically turning off burners after a set period of inactivity or if certain conditions are met.
- Timer Function: A 99-minute timer allows for precise cooking control and can automatically turn off the burner.
WARNING: This cooktop must be installed by a professional electrician. Please read the instruction manual carefully before using this product.
Figure 3: Important safety and operational tips, emphasizing professional installation and detailing functions like Child Lock and Dual Ring Burner.
3. Installation
The Weceleh Electric Cooktop is designed for built-in installation to create a seamless and tidy kitchen aesthetic. Due to its high voltage requirements and the absence of a pre-installed plug, professional installation by a qualified electrician is mandatory.
The cooktop dimensions are approximately 30 inches (width) x 20 inches (depth) x 2.16 inches (height). The recommended cut-out size for installation is 28 inches (width) x 18.9 inches (depth).
Figure 4: Cooktop dimensions and electrical wiring diagram for proper installation.
4. Operating Instructions
The cooktop features user-friendly mechanical knob controls for straightforward operation. Each knob corresponds to a specific burner, allowing for precise heat adjustments.
4.1 Power Level Setting
- To turn on a burner, press the corresponding ON/OFF button. A red indicator light will illuminate.
- Rotate the knob to select from 11 power levels, ranging from Min to Max (1-10).
- To turn off, rotate the knob to the OFF position or press the ON/OFF button again.
Figure 5: Demonstrating the user-friendly knob control system.
Figure 6: The cooktop features 5 cooking elements with varying power levels (7300W total) and sizes, allowing for simultaneous cooking of diverse dishes.
4.2 Child Lock Function
- Activate: Press and hold the ON/OFF button for 3 seconds. The indicator light will flash continuously, signifying that the cooktop is locked and cannot be accidentally turned on.
- Deactivate: Press and hold the ON/OFF button for 3 seconds again. The indicator light will stop flashing, and the cooktop will be ready for use.
4.3 Dual Ring Burner
The dual ring burner offers flexibility for different pot sizes:
- Inner Ring Only: Turn the knob clockwise to activate only the inner heating element.
- Both Rings: Turn the knob counter-clockwise to activate both the inner and outer heating elements for larger cookware.
4.4 Warm Zone
The dedicated Warm Zone is designed to keep your food warm without further cooking. This zone does not turn red like the other burners, as it operates at a lower, consistent temperature.
4.5 Quick Boil Element
The Quick Boil element is specifically designed to rapidly heat water for tasks such as boiling pasta or preparing beverages. This burner heats up very quickly.
Figure 7: The cooktop is compatible with all types of pots and pans.
5. Maintenance and Cleaning
The elegant black glass surface of your Weceleh cooktop is designed for easy cleaning, maintaining its pristine condition with minimal effort.
- Always ensure the cooktop surface has cooled down completely before cleaning to prevent burns and damage.
- Simply wipe the glass surface with a damp cloth to remove spills and food residue.
- For stubborn stains, use a non-abrasive cleaner specifically designed for ceramic or glass cooktops.
- Avoid using abrasive pads, harsh chemicals, or sharp objects that could scratch the surface.
Figure 8: The smooth glass surface allows for effortless cleaning.
6. Troubleshooting
If you encounter any issues with your Weceleh Electric Cooktop, please refer to the following common troubleshooting tips. For problems not listed here, or if issues persist, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooktop does not turn on. | Child lock is active; power supply issue. | Deactivate child lock (press and hold ON/OFF for 3 seconds). Check circuit breaker and power connection. |
| Burner not heating up quickly. | Incorrect power level; not using Quick Boil zone for rapid heating. | Increase power level. Use the designated Quick Boil element for faster heating. |
| Hot surface indicator remains on. | Cooktop surface is still hot. | This is normal. Wait for the surface to cool down. The indicator will turn off automatically. |
| Knobs feel loose or unresponsive. | Possible internal issue or debris. | Ensure knobs are properly seated. If issue persists, contact customer support. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand Name | Weceleh |
| Model Info | WECF-A215 |
| Item Weight | 26.3 pounds |
| Product Dimensions | 20 x 30 x 2.16 inches |
| Installation Type | Drop-In |
| Special Features | Automatic Shut-Off, Hot Surface Indicator, Power-On Indicator, Safety Lock |
| Burner Type | Ceramic |
| Heating Elements | 5 |
| Color | Black |
| Voltage | 240 Volts |
| Wattage | 7300W (Total) |
| Fuel Type | Electric |
| Material Type | Glass |
| Included Components | Cooktop unit only |
8. Warranty and Support
Weceleh stands behind the quality of its 30-inch electric cooktop. We offer a comprehensive 2-year product warranty to provide you with peace of mind.
If you have any questions, concerns, or require assistance with your cooktop, our dedicated customer service team is ready to assist you. Please refer to your purchase documentation for contact information or visit the official Weceleh website.
