Product Overview
The Panasonic 1.5 Ton 5 Star Wi-Fi Inverter Smart Split AC (Model CS/CU-HU18AKYF) is designed to provide optimal cooling performance with advanced features for modern living. This air conditioner integrates intelligent controls, energy-saving capabilities, and air purification technology to ensure a comfortable and healthy indoor environment.
Figure 1: Panasonic 1.5 Ton 5 Star Wi-Fi Inverter Smart Split AC Indoor Unit.
Key Features
- 7-in-1 Convertible Modes with True AI Mode: This feature allows the AC to intelligently detect room temperature and forecast cooling needs, adjusting fan speed and cooling capacity (from 40% to 100%) for optimal comfort and energy savings.
- Energy Efficiency: With a 1.5 Ton capacity, a 5-star BEE rating, and an impressive ISEER of 5.10, this AC is designed for energy-efficient operation, suitable for medium-sized rooms (121-170 sq ft).
- Smart AC Capabilities: Control the unit remotely via the Miraie Mobile App, set customized sleep profiles, and schedule hourly temperatures. It also supports seamless voice control with Amazon Alexa and Google Assistant.
- nanoe X Air Purification Technology: Cleans and deodorizes the air by releasing hydroxyl radicals, which inhibit bacteria, viruses, pollen, allergens, and odors, ensuring a healthier indoor environment.
- Copper Condenser Coil: Provides enhanced cooling performance and requires minimal maintenance, contributing to the unit's durability.
- 4-Way Swing: Ensures uniform air distribution throughout the room for consistent cooling.
- Jetstream Airflow: Delivers powerful cooling with a long-reach airflow of up to 45 feet, quickly cooling down the room.
- Aerowings: Features a unique double-flap design with a 4-way swing mechanism for concentrated and widespread air delivery.
- Crystal Clean: An auto-cleaning mechanism that uses frost and defrost methods to clean the indoor coil in just 15 minutes, improving cooling efficiency.
- PM 0.1 Filter: Filters out the smallest dust particles, ensuring cleaner and fresher air.
- Stabilizer-Free Operation: Designed to operate reliably within a voltage range of 100-290V, protecting the unit from voltage fluctuations.
Figure 2: Overview of key features including inverter compressor, copper condenser, nanoe Technology, and low noise levels.
Figure 3: The remote control highlighting the 7-in-1 convertible modes for flexible cooling capacity adjustment.
Video 1: This video provides a comprehensive overview of the Panasonic 1.5 Ton 5 Star Wi-Fi Inverter Smart Split AC, detailing its intelligent features, energy efficiency, and air purification capabilities.
Setup and Installation
This section provides an overview of the components included and general setup information. For detailed installation, it is recommended to consult a qualified technician.
What's in the Box:
- 1 Indoor Unit
- 1 Outdoor Unit
- Remote Controller
- Remote Controller Holder
- 2 AAA Batteries
- User Manual (this document)
- Warranty Card
- Copper Tube (Length: 3.0m)
Video 2: This video demonstrates the unboxing process, showcasing the indoor unit, outdoor unit, remote control, and the included copper tubing, providing a visual guide to the package contents.
Figure 4: Dimensions of the indoor unit and the energy efficiency guide label, indicating the 5-star rating and ISEER value.

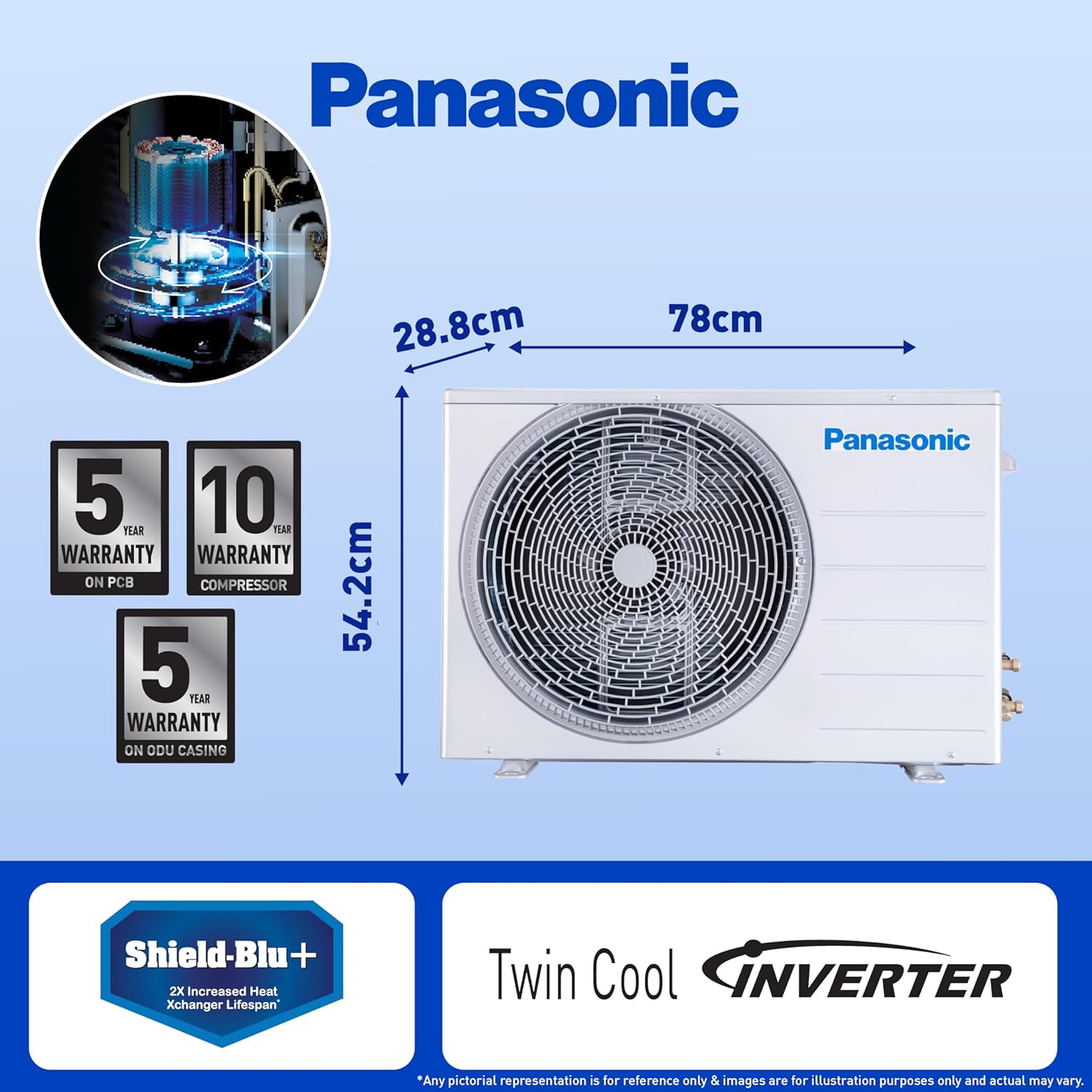

Figure 5: The outdoor unit of the Panasonic AC, highlighting its robust design and warranty information for the casing and compressor.
Operating Instructions
The Panasonic Smart AC offers various modes and smart features for enhanced user experience.
Using the Remote Control:
The remote control allows you to select different modes, adjust temperature, fan speed, and swing direction. The 7-in-1 convertible modes can be easily accessed to optimize cooling capacity based on your needs.
Smart Control with Miraie App:
Download the Miraie app to control your AC from anywhere. The app provides full control over settings, allows you to monitor air quality, and offers personalized features like custom sleep profiles and hourly temperature scheduling.
Figure 6: Control your Panasonic AC remotely using the Miraie app, even when you are away from home.
Figure 7: Customize your sleep experience by creating personalized sleep profiles through the Miraie app, avoiding midnight chills and scheduling temperatures.
Figure 8: Enjoy hands-free control of your AC using voice commands with Amazon Alexa and Google Assistant.
True AI Mode:
The True AI Mode uses built-in sensors and AI algorithms to automatically sense the room's temperature and adjust cooling needs, providing optimal comfort and energy efficiency.
Figure 9: The True AI Mode intelligently reads the room conditions for smarter and more efficient cooling.
Video 3: This video provides a detailed look at the Panasonic HU Series Air Conditioners, covering advanced features like Matter integration, custom sleep profiles, voice control, Jetstream, Aerowings, Crystal Clean, and the PM 0.1 filter.
Maintenance
Regular maintenance ensures optimal performance and longevity of your air conditioner.
Filter Cleaning:
The Miraie app provides preventive notifications when the PM 0.1 filter needs cleaning. Regularly cleaning the filter helps maintain air quality and cooling efficiency.
Crystal Clean Feature:
Utilize the Crystal Clean feature for automatic indoor coil cleaning. This process uses frost and defrost cycles to remove dirt and debris, ensuring better cooling efficiency and preventing mold growth.
Figure 10: nanoe X Technology actively inhibits bacteria and viruses, contributing to a cleaner and healthier indoor environment.
Troubleshooting
For common issues, refer to the troubleshooting section within the Miraie app or consult the detailed user manual provided with the product. If problems persist, contact Panasonic customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | Panasonic |
| Model | CS/CU-HU18AKYF |
| Capacity | 1.5 Tons |
| Energy Efficiency (ISEER) | 5.10 (5 Star BEE Rating) |
| Annual Energy Consumption | 774.19 Kilowatt Hours |
| Noise Level (Indoor) | 38 dB |
| Installation Type | Split System |
| Special Features | Wi-Fi enabled, MirAie App enabled, Voice Control (Alexa, Google), nanoe X Technology, 4 Way Swing, Hidden Display, 7-in-1 Convertible with True AI Mode, Stabilizer Free Operation (100-290V) |
| Condenser Coil | Copper |
| Air Purification | nanoe X Air Purification Technology, PM 0.1 Filter |
| Dimensions (Indoor Unit LxWxH) | 107 x 24.1 x 29.6 Centimeters |
| Item Weight | 39 kg 500 g |
Warranty and Support
The Panasonic 1.5 Ton 5 Star Wi-Fi Inverter Smart Split AC comes with comprehensive warranty coverage:
- 1 Year Comprehensive Warranty on the Product.
- 5 Years Warranty on the PCB (Printed Circuit Board).
- 10 Years Warranty on the Compressor.
- 5 Years Warranty on the Outdoor Unit.
For any support or service requests, please refer to the contact information provided in your warranty card or through the Miraie app.
