vidaXL White Iron Awning Post Set 315093 User Manual

1. Introduction

This manual provides essential information for the assembly, operation, and maintenance of your vidaXL White Iron Awning Post Set. Please read these instructions carefully before installation and retain them for future reference. This product is designed to provide support for outdoor shading structures such as awnings, enhancing your outdoor living space.

2. Product Overview

2.1 Features

• Durable Material: Constructed from strong iron for long-lasting use and resistance.
• Extra Stability: Designed with double posts to provide enhanced support and stability for your awning.
• Practical Design: Suitable for replacing existing awning posts or integrating with a new awning setup.
• Versatile Use: Ideal for terraces, balconies, or gardens to create shaded areas.
• Dimensions: Overall size of 118.1" x 96.5" (W x H).

2.2 Components

The delivery includes the complete awning post set. Please verify all components are present and undamaged upon receipt.

Image 1: Overview of the vidaXL White Iron Awning Post Set components.

Image 2: The awning post set installed, supporting an awning in an outdoor setting.

3. Safety Information

• Always ensure the posts are securely anchored to prevent tipping or collapse, especially in windy conditions.
• Do not overload the awning structure supported by these posts.
• Regularly inspect all connections and fasteners for tightness and wear.
• Keep children and pets away from the assembly area.
• Wear appropriate personal protective equipment (PPE) during assembly, such as gloves.
• This product is not water-resistant. Ensure proper drainage for any supported awning to prevent water accumulation.

4. Setup and Assembly Instructions

Assembly is required for this awning post set. Please follow these general steps. For detailed, product-specific instructions, refer to the separate assembly guide included in your package (if applicable).

1. Unpack Components: Carefully unpack all parts and lay them out. Verify against the parts list (if provided).
2. Identify Parts: Familiarize yourself with the different sections of the posts and connecting hardware.
3. Assemble Post Sections: Connect the vertical post sections as indicated in the assembly diagram. Secure with provided bolts and nuts.
4. Attach Horizontal Bar: Connect the horizontal support bar to the top of the assembled vertical posts. Ensure all connections are tight.
5. Position the Set: Place the assembled post set in the desired location.
6. Secure to Ground: Anchor the base of the posts to a stable surface using appropriate fasteners (not included, as specific ground conditions vary).
7. Connect to Awning: Attach your awning to the horizontal support bar of the post set. Ensure the awning is securely fastened and evenly distributed.
8. Final Check: Double-check all connections for tightness and stability before use.

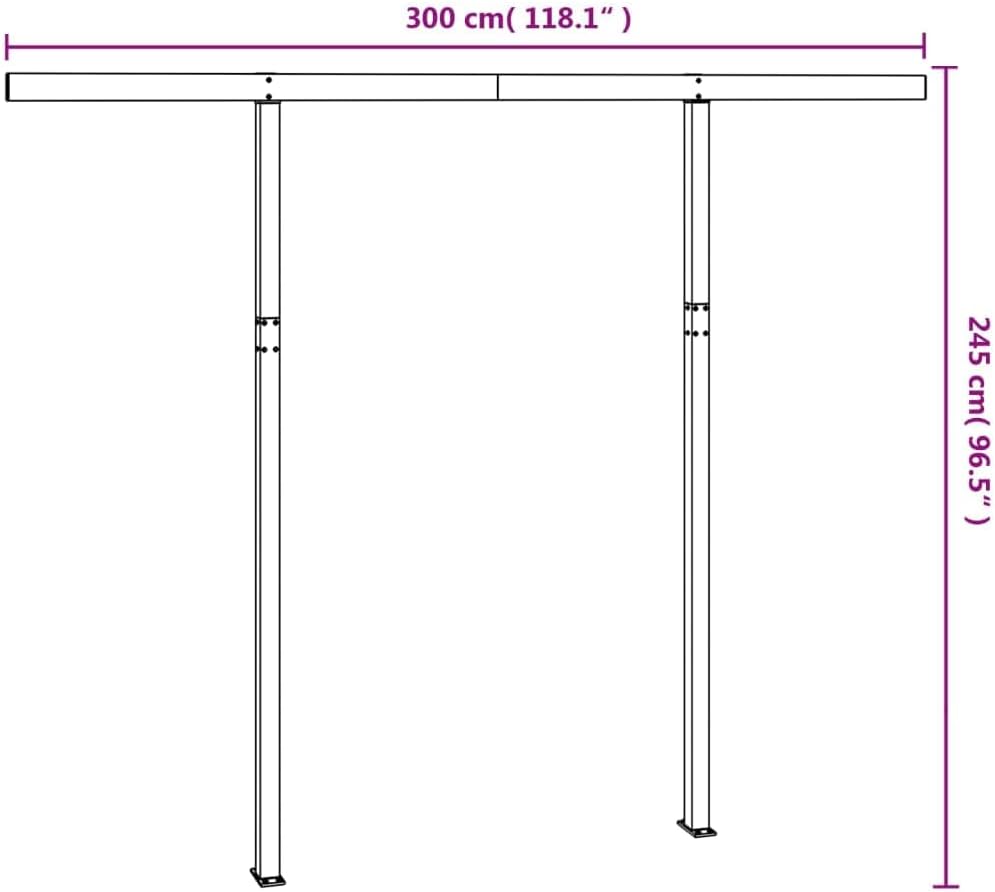

Image 3: Dimensional diagram of the awning post set, showing width and height.

5. Operating Instructions

The vidaXL Awning Post Set functions as a static support structure. Once assembled and securely installed, its operation primarily involves ensuring the supported awning is correctly attached and maintained.

• Awning Attachment: Ensure your awning is securely fastened to the horizontal bar of the post set. Follow the awning manufacturer's instructions for proper attachment.
• Stability Check: Periodically check the stability of the entire setup, especially after strong winds or heavy rain.
• Weight Distribution: Distribute the weight of the awning evenly across the support structure.

6. Maintenance

• Cleaning: Clean the iron posts with a damp cloth and mild detergent. Avoid abrasive cleaners that could damage the finish.
• Rust Prevention: Although made of iron, regular inspection for rust is recommended. Address any signs of rust promptly with appropriate rust-inhibiting treatments.
• Fastener Check: Periodically check all bolts and nuts for tightness and re-tighten if necessary.
• Seasonal Storage: If possible, disassemble and store the post set in a dry, protected area during harsh weather conditions or off-season to prolong its lifespan.
• Product Care Instructions: Hand wash is recommended for cleaning.

7. Troubleshooting

• Instability: If the post set feels unstable, ensure all fasteners are tightened correctly and the bases are securely anchored to the ground. Verify the ground surface is level and firm.
• Rust Formation: Small spots of rust can be treated with rust remover and then painted over with a suitable outdoor metal paint to prevent further corrosion.
• Difficulty Assembling: Review the assembly instructions carefully. Ensure all parts are correctly oriented. Do not force components together.

8. Specifications

9. Warranty and Support

For warranty information or technical support regarding your vidaXL Awning Post Set, please refer to the documentation provided with your purchase or contact vidaXL customer service directly. Contact details can typically be found on the manufacturer's official website or on your purchase receipt.

Note: Protection plans offered by third parties are separate from the manufacturer's product warranty.
