DE81-07744A Genuine Range Hood Electronic Control Board User Manual

1. Product Overview

The DE81-07744A is a genuine OEM electronic control board designed as a direct replacement part for various Samsung range hood models. This board is responsible for activating essential functions such as the range hood's fan and lights, ensuring proper ventilation and illumination in your kitchen. It is manufactured to meet high standards for durability and performance.

Figure 1: Top view of the DE81-07744A control board, showing the main components and wiring connections.

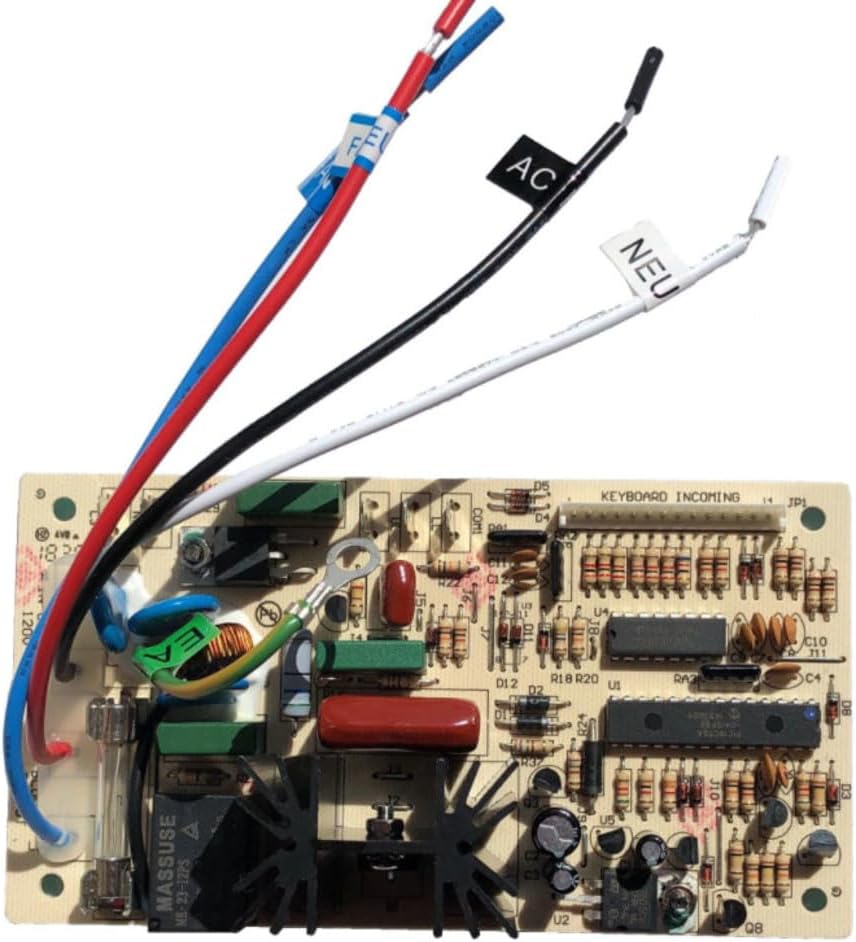

Figure 2: Alternate top view of the DE81-07744A control board, highlighting the arrangement of various electronic components.

Figure 3: Bottom view of the DE81-07744A control board, displaying the intricate circuit traces and solder points.

2. Key Features

• Direct Replacement: Designed for seamless integration, restoring full functionality to your range hood.
• Genuine OEM Quality: Manufactured to the highest standards for durability and long-lasting performance.
• Versatile Compatibility: Compatible with a wide range of Samsung range hood models.
• Easy Installation: Engineered for straightforward DIY replacement, minimizing the need for professional assistance.
• Part Number Replacement: Replaces Part Number 700991, ensuring updated technology for improved performance.

3. Compatibility

This electronic control board is compatible with a variety of Samsung range hood models. Please confirm your specific model number before purchasing to ensure compatibility. Known compatible models include:

• RV30
• RV36
• RV46
• RVR30
• RVR36
• RVR46
• RVC30
• RVC36
RVC46

This part also replaces other part numbers including 700991, AP7014531, EAP16556807, and PS16556807.

4. Safety Information

Always prioritize safety when working with electrical appliances. Failure to follow these safety precautions may result in electric shock, injury, or damage to the appliance.

• Disconnect Power: Before attempting any installation, repair, or maintenance, always unplug the range hood from its power source or turn off the home circuit breaker supplying power to the range hood.
• Wear Protective Gear: Wear work gloves to protect your hands from sharp edges or components during handling and installation.
• Professional Assistance: If you are unsure about any step or uncomfortable performing the installation, consult a qualified technician.
• Handle with Care: Electronic components can be sensitive to static electricity. Handle the board by its edges and avoid touching the circuit board directly.

5. Installation Instructions

5.1. Before You Begin

1. Ensure the range hood is completely disconnected from power.
2. Gather necessary tools, which may include screwdrivers, pliers, and work gloves.
3. Familiarize yourself with the location of the existing control board within your range hood.

5.2. Step-by-Step Installation

1. Carefully open the range hood housing to access the control board. Refer to your range hood's specific service manual if needed.
2. Take clear photos of the existing wiring connections before disconnecting anything. This will serve as a reference for reassembly.
3. Gently disconnect all wires from the old control board, noting their positions.
4. Unscrew or unclip the old control board from its mounting points.
5. Position the new DE81-07744A control board in the same location and secure it using the original screws or clips.
6. Reconnect all wires to the new control board, ensuring they match the connections from your reference photos. Verify that all connections are secure.
7. Carefully close the range hood housing.
8. Restore power to the range hood and test its functions (fan speeds, lights) to ensure proper operation.

6. Operation

Once installed, the DE81-07744A electronic control board functions as the central command unit for your range hood. It processes inputs from the user interface (buttons or touch controls) and sends signals to activate the fan motor at various speeds and to turn the range hood lights on or off. No specific user operation is required for the board itself; its functionality is integrated into the range hood's existing controls.

7. Maintenance

The DE81-07744A control board is a sealed electronic component and generally requires no routine maintenance. To ensure its longevity and proper function:

• Keep Dry: Ensure the area around the control board remains dry and free from moisture, which can damage electronic components.
• Clean Vents: Regularly clean the range hood's filters and vents to prevent excessive heat buildup, which can stress electronic components.
• Avoid Physical Damage: Protect the control board from physical impact or bending.

8. Troubleshooting

If your range hood is not functioning correctly after installing the new control board, consider the following troubleshooting steps:

• No Power: Check if the range hood is properly plugged in and if the circuit breaker is on.
• Incorrect Wiring: Double-check all wire connections against your reference photos to ensure they are correctly and securely attached. Loose or incorrect connections are a common cause of malfunction.
• Component Damage: Visually inspect the new board for any signs of physical damage or burnt components.
• Other Components: If the board appears to be correctly installed and powered, the issue might lie with other components of the range hood (e.g., fan motor, light bulbs, user interface panel).
• Professional Diagnosis: If the problem persists, it is recommended to seek assistance from a qualified appliance technician.

9. Product Specifications

10. Warranty Information

This product is covered by a warranty for 30 days from the date of purchase. To be eligible for warranty service, the item must be unused and returned in its original packaging. If you are dissatisfied within this 30-day period, please contact customer service for return instructions. Refunds or replacements will be processed upon verification of the returned item's condition. Exclusions to this warranty include damage resulting from accidents, misuse, or unauthorized alterations.

11. Customer Support

For further assistance, technical support, or warranty claims, please contact the seller or manufacturer through the platform where the product was purchased. When contacting support, please have your product model number (DE81-07744A) and purchase details readily available.
