QANYEGN Wood Edge Banding Trimmer

1. Introduction

Thank you for choosing the QANYEGN Wood Edge Banding Trimmer. This manual provides essential information for the safe and effective use of your new tool. Please read these instructions carefully before operation and retain them for future reference.

This manual edge banding trimmer is designed for precise trimming of various edge banding materials, including melamine paper, veneer, plastic, and PVC. Its compact and manual design makes it suitable for both professional and DIY woodworking projects.

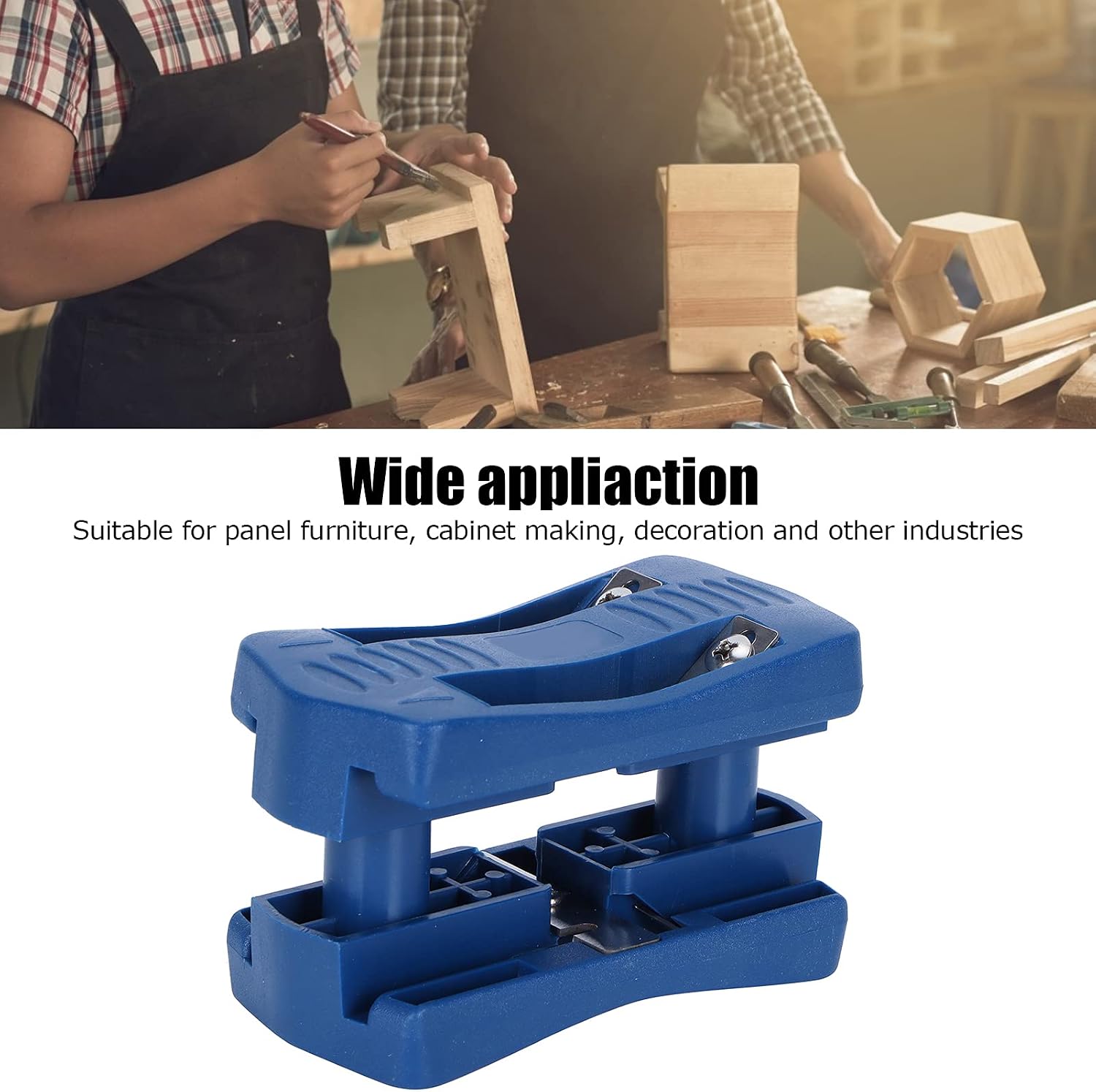

Figure 1: The QANYEGN Wood Edge Banding Trimmer, a manual tool for trimming edge banding. The image shows the blue trimmer with a person working on wood in the background, illustrating its application.

Key Features:

• Durable PVC Construction: Made from high-quality PVC material for long-lasting performance and a non-slip surface.
• Dual Blade System: Equipped with two sets of blades (original and replacement) for easy installation and disassembly.
• Versatile Application: Suitable for edge bands with a thickness of less than 0.5 mm and a width between 15-40 mm.
• Effortless Operation: Designed for easy, manual use in panel furniture, cabinet making, decoration, and other woodworking industries.

2. Setup and Blade Installation

Before using the trimmer, ensure all components are present and the blades are correctly installed and secured.

Package Contents:

• 1 x Wood Edge Banding Trimmer
• 4 x Blades (2 installed, 2 spare)
• 2 x Gaskets (pre-installed)

Blade Installation/Replacement:

1. Identify the two blade compartments on the trimmer. Each compartment holds one blade.
2. Using a small screwdriver (not included), carefully loosen the screws securing the existing blades.
3. Remove the old or dull blades. Dispose of used blades safely.
4. Insert a new blade into each compartment, ensuring it is seated correctly against the gasket. The cutting edge should face outwards.
5. Tighten the screws firmly to secure the blades in place. Do not overtighten.
6. Verify that the blades are stable and properly aligned before use.

Figure 2: The trimmer shown with its included spare blades and gaskets, illustrating the components involved in blade installation.

3. Operating Instructions

The QANYEGN Wood Edge Banding Trimmer is designed for straightforward manual operation. Follow these steps for effective trimming:

Preparation:

• Ensure your workpiece (e.g., panel, cabinet part) is securely clamped or stable on a flat surface.
• Apply the edge banding material to your workpiece according to its specific instructions. Allow sufficient drying time if adhesive is used.
• Confirm the edge banding material has a thickness of less than 0.5 mm and a width between 15-40 mm for optimal performance with this trimmer.

Trimming Procedure:

1. Hold the trimmer firmly with both hands, ensuring a comfortable and stable grip. The ergonomic design allows for easy handling.
2. Position the trimmer over the edge banding, aligning the guides with the edge of your workpiece. The blades should be positioned to trim the excess banding.
3. Apply gentle, consistent pressure downwards onto the trimmer.
4. Slide the trimmer along the edge of the workpiece. The blades will simultaneously trim both sides of the excess edge banding.
5. Maintain a steady pace and even pressure to achieve a clean, flush cut.
6. After trimming, inspect the edge for any remaining excess or imperfections. Repeat the process if necessary, or use fine sandpaper for a smooth finish.

Figure 3: The trimmer in a workshop setting, demonstrating its wide applicability for various woodworking tasks such as panel furniture and cabinet making.

4. Maintenance

Proper maintenance ensures the longevity and optimal performance of your QANYEGN Wood Edge Banding Trimmer.

Cleaning:

• After each use, remove any accumulated dust, wood chips, or adhesive residue from the trimmer, especially around the blades and guides.
• Use a soft brush or cloth for cleaning. For stubborn residue, a small amount of appropriate cleaner (e.g., alcohol for adhesive) can be used, but avoid harsh chemicals that may damage the PVC.
• Ensure the trimmer is completely dry before storage.

Blade Care and Replacement:

• Regularly inspect the blades for sharpness and damage. Dull or chipped blades will result in poor cuts and may damage the edge banding.
• Replace blades as soon as they show signs of dullness or damage. Refer to the "Blade Installation/Replacement" section for detailed steps.
• Always handle blades with extreme caution to prevent injury.

Storage:

• Store the trimmer in a clean, dry place, away from direct sunlight and extreme temperatures.
• Keep out of reach of children.

5. Troubleshooting

If you encounter issues with your trimmer, refer to the following common problems and solutions:

6. Specifications

Detailed specifications for the QANYEGN Wood Edge Banding Trimmer:

• Item Type: Edge Banding Tool
• Brand: QANYEGN
• Model: B0CRZ2TDDR
• Material: PVC
• Weight: Approximately 116g / 4.1 oz
• Product Size (L x W x H): Approximately 10 x 5.5 x 5 cm / 3.9 x 2.2 x 2.0 inches
• Application Scope: Woodworking tools, suitable for panel furniture, cabinet making, decoration.
• Compatible Edge Banding Thickness: Less than 0.5 mm
• Compatible Edge Banding Width: 15-40 mm

Figure 4: Dimensional view of the QANYEGN Wood Edge Banding Trimmer, showing its approximate length, width, and height.

7. Warranty and Support

For warranty information, please refer to the terms and conditions provided by your retailer at the time of purchase. Specific warranty details may vary depending on your region and the point of sale.

If you require technical support, have questions about product operation, or need to inquire about replacement parts, please contact the seller or manufacturer directly through the platform where the product was purchased. Provide your product model number (B0CRZ2TDDR) and a detailed description of your issue to facilitate assistance.
