Outsunny 10' x 10' Pop Up Canopy Tent User Manual

Important Safety Information

WARNING: NEVER leave your outdoor tent canopy unattended; take it down before a major storm rolls through. Always use the included stakes and the guy ropes to secure the canopy. Failure to do so may result in damage to the product or personal injury.

Read all instructions carefully before assembly and use. Keep this manual for future reference.

Product Overview

The Outsunny 10' x 10' Pop Up Canopy Tent with Netting is designed for outdoor use, providing a versatile and portable shelter solution. It features a pop-up design for quick setup, a UV-resistant canopy, and screen walls with windows for added functionality.

Key Features:

• Pop-up & Portable: Designed for quick setup by two people without tools, and includes a carrying bag for easy transport.
• Screen Wall with Windows: Features six roll-up service windows and a zippered door for convenient access and sealing.
• Weather-Resistant Canopy: Made with UV30+ Oxford fabric to block 90% of UV rays, and includes drainage holes to prevent water accumulation.
• Three-Level Adjustable Steel Frame: Constructed from powder-coated steel, offering durability and three height settings.
• Overall Dimensions: 117" L x 117" W x 113" H, with an eave height of 82.75" H.

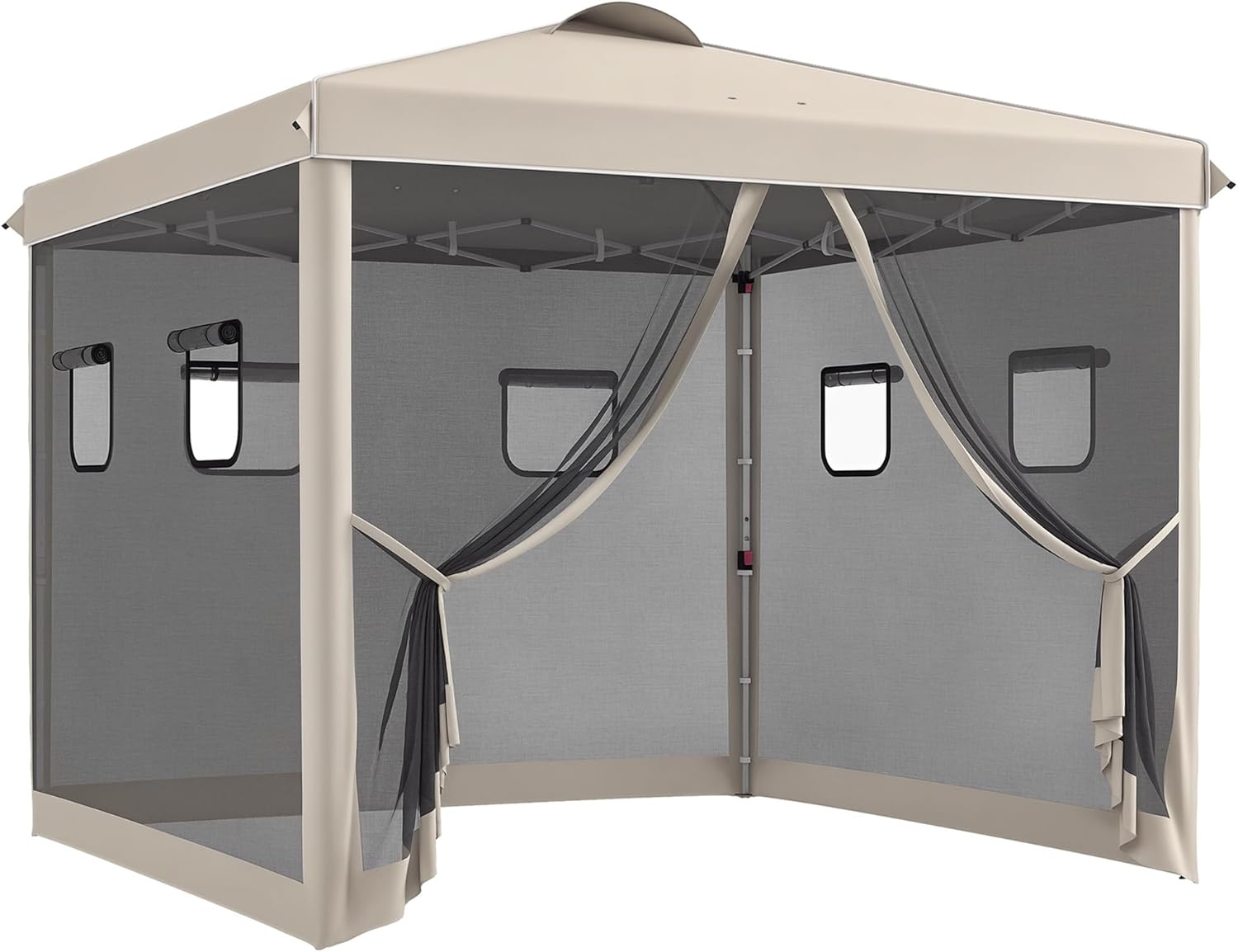

Image: The Outsunny 10' x 10' Pop Up Canopy Tent, showcasing its overall design with screen walls and a beige canopy.

Image: The Outsunny canopy tent set up on a wooden deck, providing a shaded area for outdoor furniture.

Components List

Before beginning assembly, ensure all components are present and undamaged.

• Pop-up Steel Frame
• Canopy Fabric (UV30+ Oxford Fabric)
• Screen Walls with Integrated Windows and Zippered Door
• Carry Bag
• Ground Stakes (Quantity: 8)
• Guy Ropes (Quantity: 4)

Image: Close-up views of key components including roof drain holes, roof vents, guy ropes, and ground stakes, highlighting features for stability and weather resistance.

Image: A display showing the texture of the UV30+ Oxford Fabric used for the canopy and the powder-coated steel frame material.

Setup Instructions

The Outsunny Pop Up Canopy Tent is designed for quick and easy setup, ideally with two people. No tools are required for assembly.

1. Step 1: Take it out from the carry bag. Remove the folded canopy frame and fabric from the provided carry bag.
2. Step 2: Unfold the frame. With a person at each end, gently pull the frame outwards to begin unfolding it. Ensure the legs are extending properly.
3. Step 3: Add the canopy and netting. Once the frame is partially extended, drape the canopy fabric over the top. Secure the canopy to the frame according to the attachment points. The netting is integrated into the canopy structure.
4. Step 4: Adjust to a proper height. Fully extend the frame and engage the locking mechanisms on each leg. Press the button on each leg to adjust the height to one of the three available levels. Ensure all legs are set to the same height for stability.
5. Secure the Canopy: Once fully set up, use the provided ground stakes to anchor each leg to the ground. Attach the guy ropes to the designated points on the canopy and stake them firmly into the ground at an angle to provide additional stability against wind.

Image: Visual guide illustrating the four main steps for setting up the canopy: taking it from the bag, unfolding the frame, adding canopy/netting, and adjusting height.

Image: A diagram demonstrating the 3-level adjustable height feature of the canopy tent, showing the button mechanism for height adjustment.

Operating Instructions

Adjusting Height:

To adjust the height of the canopy, locate the adjustment buttons on each leg. Press the button and slide the leg to the desired height setting. Ensure all four legs are adjusted to the same level for stability. There are three height levels available.

Using Screen Walls and Windows:

The canopy features integrated screen walls with six roll-up service windows and a zippered door.

• Zippered Door: Use the central zipper to open and close the main entrance for easy entry and exit.
• Roll-Up Windows: Each of the six windows can be rolled up and secured with the attached fasteners to allow for ventilation or to pass items through. This feature is particularly useful for vendors or catering setups.

Image: The canopy tent showcasing its six roll-up service windows, designed for convenience in various outdoor settings.

Image: A detailed view of the screen wall and one of the roll-up windows, showing the mechanism for opening and securing the window flap.

Maintenance

Cleaning:

• Canopy Fabric: Clean the Oxford fabric with mild soap and water. Use a soft brush or cloth to gently scrub away dirt. Rinse thoroughly with clean water and allow to air dry completely before folding and storing. Do not use harsh chemicals or abrasive cleaners.
• Steel Frame: Wipe down the powder-coated steel frame with a damp cloth to remove dirt and debris. Dry thoroughly to prevent rust.

Storage:

When not in use, or in anticipation of severe weather, disassemble the canopy and store it in the provided carry bag. Ensure the fabric is completely dry before storage to prevent mold and mildew. Store in a cool, dry place away from direct sunlight.

Weather Precautions:

The canopy is designed for sun protection and light rain. It is not intended for use in heavy rain, strong winds, or other severe weather conditions. Always take down the canopy before a major storm. The roof features drainage holes to minimize water weight during light rain, but this does not negate the need to take it down in adverse weather.

Troubleshooting

• Difficulty Unfolding/Folding Frame: Ensure all locking pins are disengaged when folding. When unfolding, ensure the frame is on a flat surface and that two people are pulling evenly from opposite sides. Do not force the frame.
• Canopy Not Fitting Properly: Double-check that the frame is fully extended and locked into place. Ensure the canopy fabric is oriented correctly before attempting to attach it.
• Water Pooling on Roof: While the canopy has drainage holes, excessive water pooling indicates heavy rain. Take down the canopy immediately in such conditions to prevent damage.
• Canopy Instability: Always use all provided ground stakes and guy ropes. Ensure they are securely anchored. In windy conditions, additional weights (not included) may be necessary for extra stability.

Specifications

Image: A detailed diagram showing the key dimensions of the Outsunny Pop Up Canopy Tent, including length, width, and height.

Warranty and Support

For specific warranty information and details regarding your Outsunny 10' x 10' Pop Up Canopy Tent, please refer to the warranty card included with your purchase or visit the official Outsunny website.

If you require technical support, have questions about assembly, or need to report missing/damaged parts, please contact Outsunny customer service. Contact details can typically be found on the manufacturer's website or on your purchase receipt.

You can also visit the Outsunny Store on Amazon for more product information and support resources.
