Hitow 9-Drawer Dresser (Model KF250020) Instruction Manual
Brand: Hitow
Model: KF250020
Introduction
Thank you for choosing the Hitow 9-Drawer Dresser. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Important Safety Information
- Do not exceed the recommended weight limit for each drawer.
- Always place the dresser on a flat, stable surface.
- Secure the dresser to a wall using the provided anti-tip kit to prevent tipping, especially in households with children.
- Keep small parts and packaging materials away from children during assembly.
- Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
- Do not stand or climb on the dresser.
Package Contents
Before beginning assembly, verify that all components and hardware are present. Refer to the included parts list and hardware pack for a complete inventory. If any items are missing or damaged, please contact customer support.
Figure 1: Dimensions of the Hitow 9-Drawer Dresser and its individual drawer components. The overall dimensions are 15.7 inches deep, 63 inches wide, and 31.5 inches high. Individual drawers have varying widths (20.3 inches and 20.6 inches) and a consistent depth of 13.8 inches and height of 7.8 inches.
Setup and Assembly
Assembly is required for this dresser. Detailed instructions and tools are included in the package. All pieces are well-labeled to facilitate the process. It is recommended to assemble the dresser on a soft, clean surface to prevent scratches.
General Assembly Tips:
- Use a battery-powered drill on the lowest setting (level 1 or 2) to avoid stripping screws or damaging parts.
- When attaching parts, partially tighten all bolts and screws first to ensure proper alignment before fully tightening them.
- Whenever possible, use an elevated work table for assembly steps that do not require working on the floor to improve comfort and reduce strain.
Assembly Process Overview:
- Unpack all components and verify against the parts list.
- Assemble the main frame of the dresser according to the step-by-step diagrams in your included manual.
- Attach the drawer slides to the dresser frame and to the individual drawer boxes.
- Assemble each of the nine drawer boxes. Ensure the ball bearing slides are correctly installed for smooth operation.
- Insert the assembled drawers into the dresser frame.
- Secure the dresser to a wall using the provided anti-tip hardware.
Video: This video provides three essential assembly tips to help build the dresser easily, focusing on using power tools correctly and ensuring proper alignment of parts.
Video: This video demonstrates the assembly process of a 9-drawer dresser, offering a visual guide to putting the unit together.
Operating Instructions
The Hitow 9-Drawer Dresser features a handle-free design for a modern aesthetic. To open a drawer, gently pull from the top edge of the drawer front. The ball bearing slides ensure smooth and quiet operation.

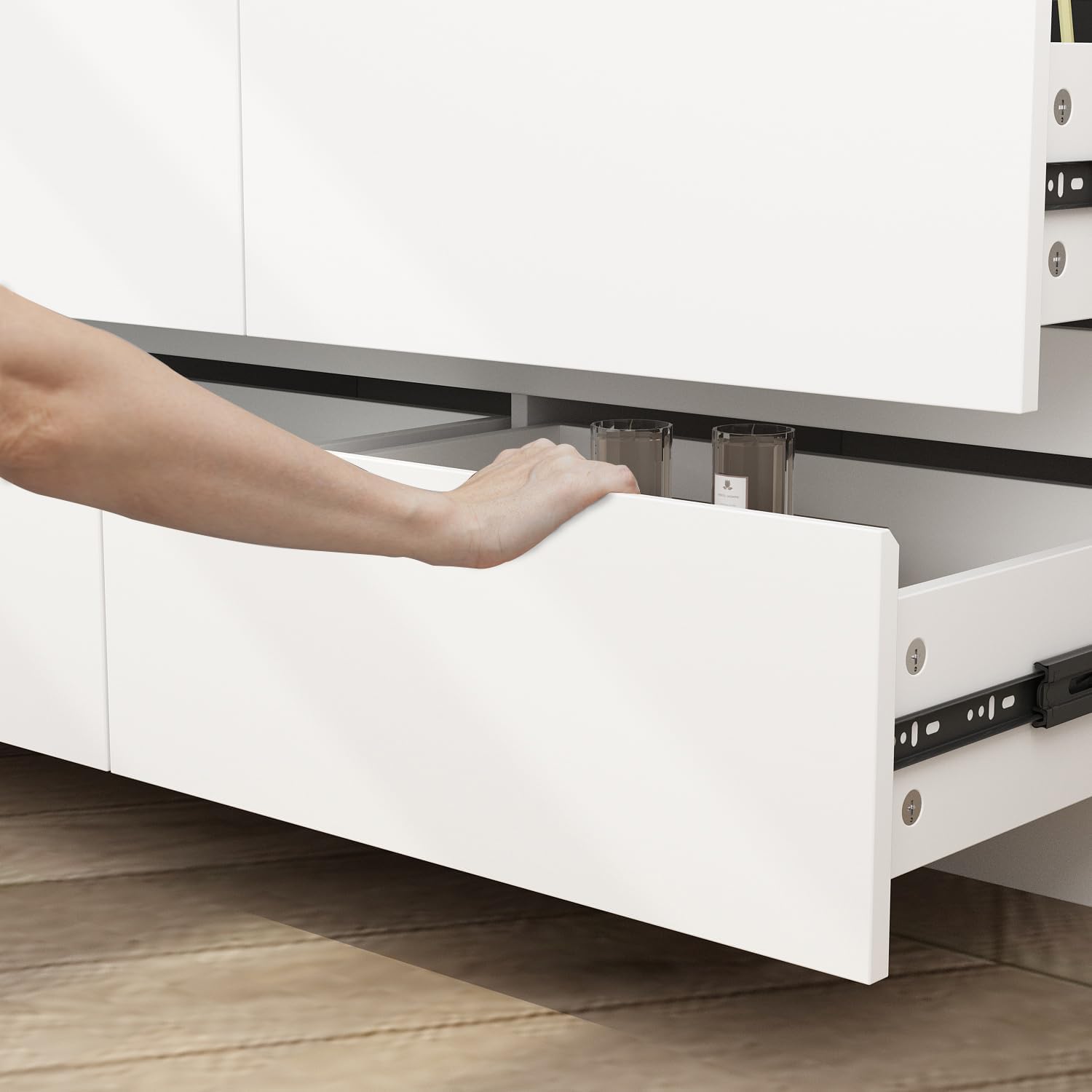

Figure 2: A hand demonstrating how to open a handle-free drawer by pulling from the top edge.
Figure 3: A close-up view of the ball bearing drawer slide, highlighting the mechanism that allows for smooth drawer movement.
Maintenance and Care
- Cleaning: Wipe the dresser surfaces with a dry cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Spills: Immediately wipe up any spills with a soft, dry cloth to prevent staining or damage to the manufactured wood.
- Inspection: Periodically inspect all fasteners and connections to ensure they remain tight. Re-tighten if necessary.
- Placement: Avoid placing the dresser in direct sunlight or near heat sources to prevent warping or discoloration.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawers do not slide smoothly. | Misaligned drawer slides or loose screws. | Check the alignment of the drawer slides on both the drawer box and the dresser frame. Ensure all screws securing the slides are tightened. |
| Dresser feels wobbly or unstable. | Loose assembly fasteners or uneven floor. | Verify all assembly screws are fully tightened. Adjust the dresser's position or use shims under the feet if the floor is uneven. Ensure the anti-tip kit is installed. |
| Parts do not fit together during assembly. | Incorrect orientation of parts or over-tightened initial fasteners. | Double-check the instruction manual for correct part orientation. Loosen any partially tightened screws and re-align parts before re-tightening. |
Specifications
- Brand: Hitow
- Model Name: KF250020
- Product Dimensions (D x W x H): 15.7" x 63" x 31.5"
- Color: White
- Room Type: Bedroom, Living Room, Hallway, Entryway
- Furniture Finish: White
- Drawer Type: Ball Bearing Slide
- Material: Manufactured Wood
- Assembly Required: Yes
- Product Care Instructions: Wipe with Dry Cloth
Warranty and Support
For warranty information, missing parts, or any questions regarding your Hitow 9-Drawer Dresser, please contact Hitow customer support. Refer to your purchase documentation for specific warranty terms and contact details.
You can also visit the official Hitow Store on Amazon for additional product information and support.
