Generic Queen Size Velvet Blue Gas Lift Storage Bed with RF LED Lights and Storage Headboard User Manual

1. Introduction

This manual provides essential instructions for the assembly, operation, maintenance, and troubleshooting of your Generic Queen Size Velvet Blue Gas Lift Storage Bed. Please read this manual thoroughly before assembly and use to ensure safe and correct operation of the product. Keep this manual for future reference.

2. Safety Information

• Assembly: Assembly is required. Ensure all components are correctly installed and tightened according to instructions. Do not overtighten screws.
• Gas Lift Mechanism: Exercise caution when operating the gas lift mechanism. Keep hands and fingers clear of moving parts to prevent pinching. Ensure the mattress is placed on the frame before operating the gas lift to provide necessary weight for proper function.
• Weight Capacity: The bed frame is designed to support up to 1000 lbs. Do not exceed this weight limit.
• Electrical Components (LED Lights & Outlets): Ensure all electrical connections are secure. Do not expose LED lights or power outlets to water or excessive moisture. Disconnect power before cleaning or maintenance of electrical components.
• Stability: Place the bed on a flat, stable surface. Do not allow children to play on or around the gas lift mechanism unsupervised.

3. Package Contents

Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

• Bed Frame Components (Headboard, Side Rails, Footboard)
• Steel Base and Slat System
• Gas Lift Mechanism
• RF LED Light Kit with Remote Controller
• Storage Headboard Shelf with Integrated Outlets
• Assembly Hardware (screws, bolts, washers, Allen wrench)

4. Assembly Instructions

Assembly of this bed frame requires two adults. Follow the detailed instructions provided in the separate assembly guide included with your product. Ensure all connections are secure before use.

1. Unpack all components and lay them out on a clean, soft surface to prevent scratches.
2. Assemble the headboard, attaching the LED light strip and integrated shelf with outlets.
3. Connect the side rails and footboard to the headboard.
4. Install the steel base and slat system, ensuring all slats are securely fastened.
5. Attach the gas lift mechanism to the bed frame according to the specific instructions.
6. Place your mattress on the assembled frame.

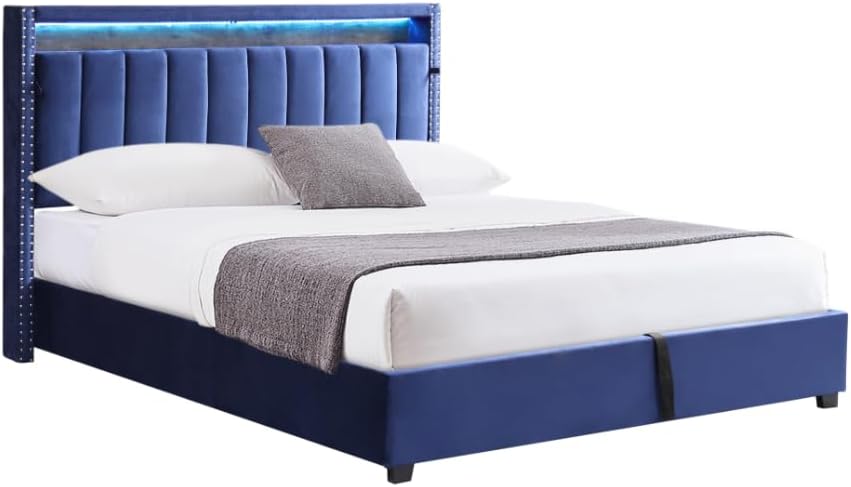

Figure 4.1: Fully assembled Queen size velvet blue gas lift storage bed with LED lights on the headboard.

Figure 4.2: Bed frame without mattress, illustrating the slat system and headboard with integrated shelf.

5. Operating Instructions

5.1. RF LED Lights Operation

The integrated LED lights on the headboard are controlled by the included RF remote controller.

• Power On/Off: Press the power button on the remote to turn the lights on or off.
• Color Selection: Choose from 8 optional colors using the color buttons on the remote.
• Brightness Adjustment: Adjust the light intensity using the brightness control buttons (2 modes available).
• Speed Adjustment: Adjust the speed of dynamic light modes (if applicable) across 2 levels.

Figure 5.1: Headboard with LED lights illuminated, showcasing the ambient lighting feature.

5.2. Gas Lift Storage Mechanism

The gas lift mechanism allows easy access to the under-bed storage space.

• To Open: From the foot of the bed, firmly grasp the frame and lift upwards. The gas lift mechanism will assist in raising the mattress platform automatically.
• To Close: Gently press the mattress platform downwards until it fully lowers and locks into place. Ensure no objects or body parts are in the way during closing.

Figure 5.2: Gas lift mechanism in action, providing access to under-bed storage.

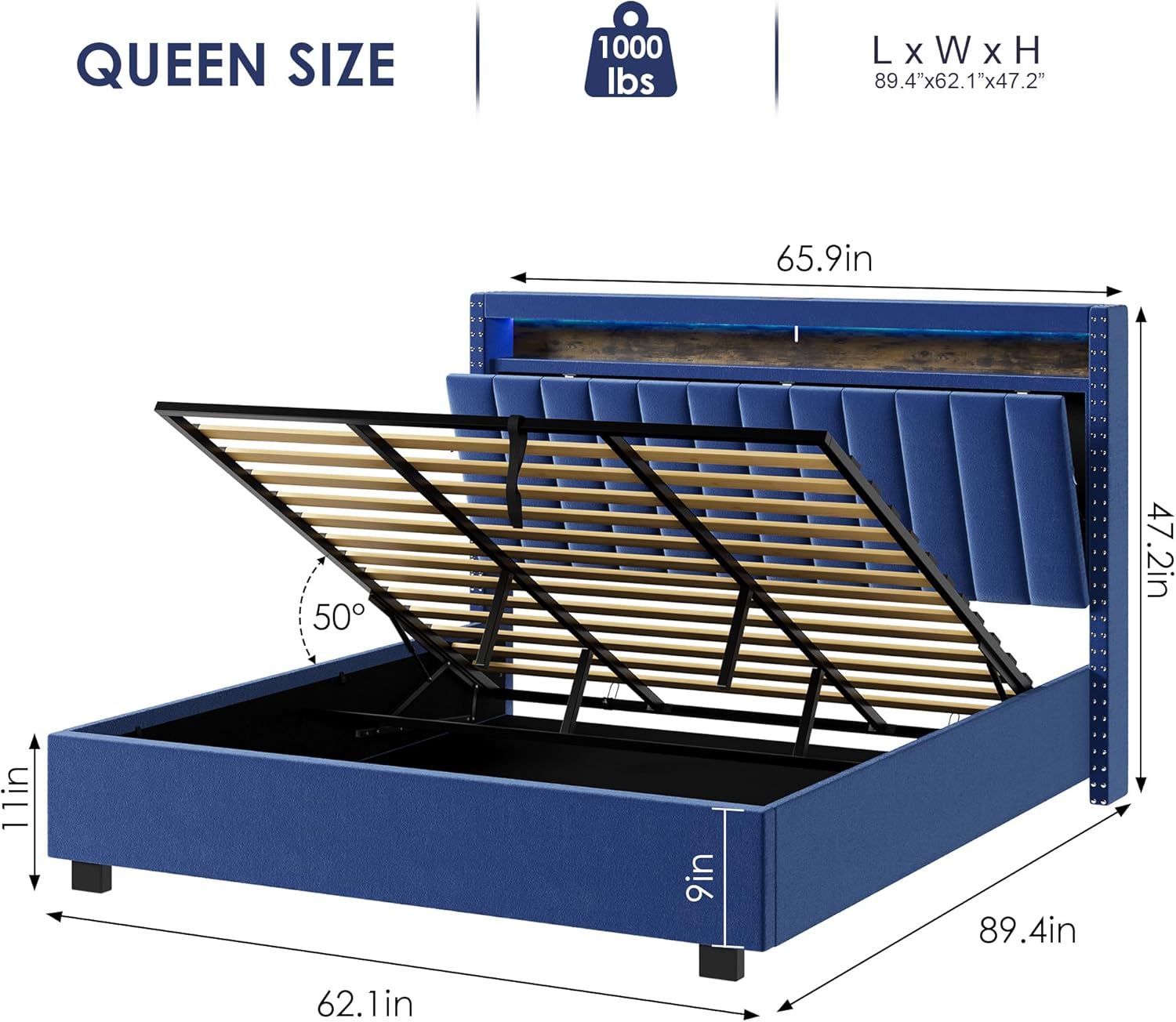

Figure 5.3: Bed dimensions and gas lift angle for storage access.

5.3. Storage Headboard with Outlets

The headboard features a tiered shelf with integrated power outlets for convenience.

• Top Shelf: Use the top tier to display items such as perfumes, books, or small electronic devices.
• Integrated Outlets: Utilize the built-in power outlets (AC and USB) to charge your phone or power other small electronics.
• Hidden Storage: The front panel of the headboard can be pulled down to reveal an additional hidden storage cabinet for private goods.

Figure 5.4: Headboard with integrated shelf and power outlets.

Figure 5.5: Close-up of the headboard's integrated power outlets.

6. Maintenance and Care

• Upholstery Care: The velvet upholstery requires Dry Clean Only. Do not use liquid cleaners or abrasive materials.
• General Cleaning: Dust the bed frame regularly with a soft, dry cloth. For spills on non-upholstered parts, wipe immediately with a damp cloth and dry thoroughly.
• Hardware Check: Periodically check all bolts and screws to ensure they remain tight. Retighten as necessary.
• Electrical Components: Ensure power is disconnected before cleaning the headboard outlets or LED lights. Wipe with a dry cloth only.

Figure 6.1: Side view of the bed, showcasing the velvet upholstery.

7. Troubleshooting

• LED Lights Not Working:
  • Check if the power adapter is securely plugged into a working outlet.
  • Ensure the remote control has fresh batteries and is pointed towards the receiver.
  • Verify all connections of the LED strip are secure.
• Gas Lift Mechanism Difficult to Operate:
  • Ensure a mattress is placed on the frame. The gas lift requires the weight of a mattress to function smoothly.
  • Check for any obstructions preventing the mechanism from moving freely.
  • If the mechanism feels stiff, ensure all assembly bolts are tightened correctly but not excessively.
• Bed Frame Squeaks or Makes Noise:
  • Retighten all assembly bolts and screws. Loose connections are a common cause of noise.
  • Ensure the bed is on a level surface.
  • Verify that the slats are properly seated and secured within the frame.
• Headboard Outlets Not Providing Power:
  • Ensure the bed's main power cord (if applicable) is plugged into a working wall outlet.
  • Check if the device you are trying to charge is functioning correctly.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact the seller directly. Please have your model number (B0CRS48SFY) and purchase date available when contacting support.
