Introduction
This instruction manual provides detailed guidance for the safe and efficient use of your Hikenture Carry Wagon Model 1194-A3. Designed for outdoor activities, this wagon features a large capacity, robust construction, and easy portability. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper usage and longevity of your product.
Safety Information
Always observe the following safety precautions to prevent injury or damage to the product:
- Do Not Exceed Weight Capacity: The maximum load capacity for this wagon is 150 kg (330.7 lbs). Overloading can cause structural damage and potential injury.
- Not for Human Transport: This wagon is designed for transporting goods, not people. Do not allow children or adults to ride in the wagon.
- Supervise Children: Keep children away from the wagon during assembly, disassembly, and loading/unloading to prevent accidents.
- Secure Loads: Ensure all items are securely placed within the wagon to prevent shifting or falling during transport.
- Use Brakes on Slopes: Always engage the brakes when parking on uneven ground or slopes to prevent unintended movement.
- Inspect Before Use: Before each use, check the wheels, frame, and fabric for any signs of damage or wear. Do not use if damaged.
- Avoid Sharp Objects: Do not place sharp objects directly into the wagon without proper protection, as this may damage the fabric.
Package Contents
Verify that all components are present upon opening the package:
- Hikenture Carry Wagon (Pre-assembled frame with fabric body)
- Handle
- User Manual (This document)
Setup and Assembly
The Hikenture Carry Wagon is designed for quick and easy setup. It can be unfolded and ready for use in approximately 10 seconds.
- Unfolding the Wagon:
Place the folded wagon on a flat, stable surface. Gently pull the sides of the wagon outwards until the frame fully extends and locks into place. Ensure the fabric body is properly seated within the frame.
Figure 1: Wagon unfolding and compact storage. The wagon measures 84cm in length and 53cm in height when unfolded, and 23cm in width and 53cm in height when folded for self-standing storage.
- Attaching the Handle:
Insert the handle into the designated slot on the front of the wagon. Ensure it clicks securely into position. The handle's height can be adjusted for comfortable pulling.
- Folding for Storage:
To fold, locate the pull strap or mechanism in the center of the wagon's floor. Pull upwards firmly to collapse the frame. Once collapsed, secure it with the integrated magic tape or strap to maintain its compact form. The wagon is designed for self-standing storage.

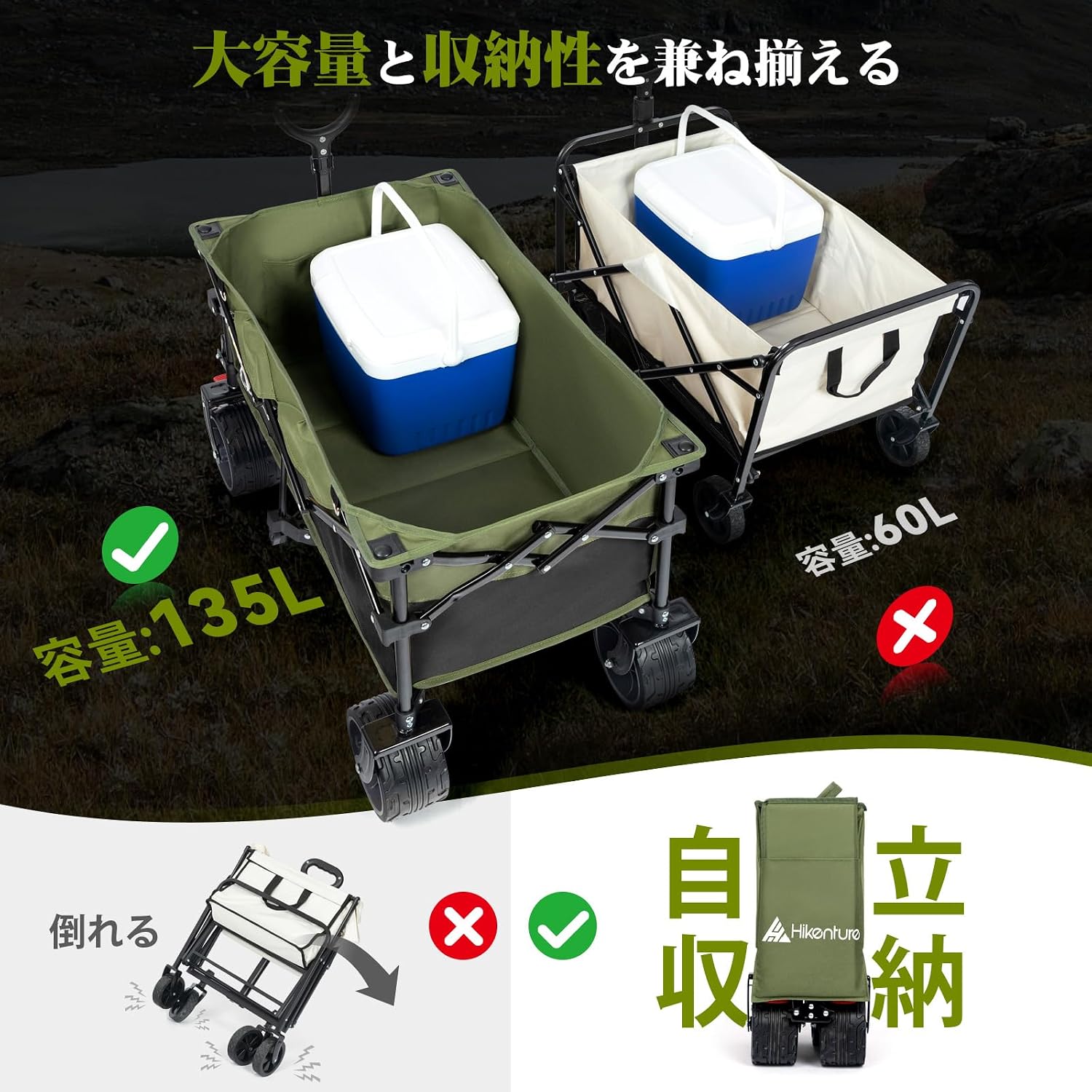

Figure 2: Comparison of wagon capacities and demonstration of self-standing storage.
Operating Instructions
- Loading the Wagon:
Distribute weight evenly within the wagon. Place heavier items at the bottom and center to maintain stability. Do not exceed the 150 kg (330.7 lbs) weight limit.
- Pulling and Steering:
Hold the handle firmly and pull the wagon. The 360° rotating front wheels allow for easy maneuverability and direction changes, even on uneven terrain.
Figure 3: Detailed view of the large, 360° rotating tires, suitable for various terrains including grass, sand, gravel, and steps.
- Using the Brakes:
Each front wheel is equipped with a brake. To engage, press down on the brake lever located above the wheel. Ensure both brakes are engaged when parking, especially on inclines, to prevent the wagon from rolling.
- Navigating Different Terrains:
The wagon's large, extra-thick tires (17cm diameter, 9.5cm width) are designed for stability and smooth movement across various surfaces, including sandy beaches, gravel paths, and uneven ground.
Maintenance
- Cleaning the Fabric:
The wagon's fabric body is removable and washable. To clean, detach the fabric from the frame. Hand wash with mild soap and water, or follow care instructions on the fabric label if available. Allow to air dry completely before reattaching to the frame.
Figure 4: The wagon's fabric is made from durable, water-resistant 600D nylon and is designed for easy removal and washing.
- Frame Care:
The frame is constructed from rust-resistant hardened steel alloy. Wipe down the frame with a damp cloth to remove dirt and debris. Ensure the frame is dry before storing to prevent rust.
Figure 5: The robust 'X' crossing frame structure, made of hardened steel alloy, ensures stability and supports heavy loads.
- Wheel Maintenance:
Periodically check the wheels for debris or entanglement. Clean as needed to ensure smooth rotation. Lubricate axles if necessary with a suitable lubricant.
- Storage:
When not in use, fold the wagon into its compact, self-standing position. Store in a dry place away from direct sunlight and extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Wagon difficult to unfold/fold | Frame mechanism is stiff or obstructed. | Ensure no fabric or debris is caught in the frame. Apply light lubricant to moving parts if necessary. |
| Wheels not rotating smoothly | Debris caught in wheels or axles. | Inspect wheels and axles for dirt, sand, or hair. Clean thoroughly. Lubricate axles if needed. |
| Wagon unstable or tipping | Overloaded or unevenly distributed load. | Reduce load to within 150 kg limit. Redistribute items evenly, placing heavier items at the bottom and center. |
| Brakes not holding | Brake mechanism is dirty or worn. | Clean brake mechanism. If wear is significant, contact customer support for assistance. |
Specifications
| Model Number | 1194-A3 |
| Brand | Hikenture |
| Product Dimensions (Unfolded) | 20.87"D x 33.07"W x 19.29"H (53cm D x 84cm W x 49cm H approx.) |
| Item Weight | 10.2 Kilograms (22.5 lbs) |
| Weight Capacity Maximum | 150 Kilograms (330.7 lbs) |
| Capacity | 135 Liters (35.7 US gallons) |
| Materials | Carbon steel (frame), 600D oxford (fabric), polypropylene (handle) |
| Wheel Type | 360° Rotation, Double Casters, 17cm Diameter, 9.5cm Width |
| Special Features | Compact folding, Self-standing storage, Brakes included, Tear-resistant and water-resistant fabric |
Warranty and Support
Your Hikenture Carry Wagon comes with a 365-day worry-free warranty from the date of purchase.
For warranty claims, technical support, or any inquiries regarding your product, please contact us through your purchase platform:
- Navigate to your "Account Service" on the platform where you made the purchase.
- Go to "Order History".
- Locate your order for the Hikenture Carry Wagon.
- Click on "Sold by" to find seller contact information and initiate communication.
Please have your order number and product model (1194-A3) ready when contacting support.
