wsdhswhdhsdsds 20-180x100 High Powered Binoculars User Manual

1. Introduction

Thank you for choosing the wsdhswhdhsdsds 20-180x100 High Powered Binoculars. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your binoculars. Please read these instructions carefully before use to ensure optimal performance and longevity of your device.

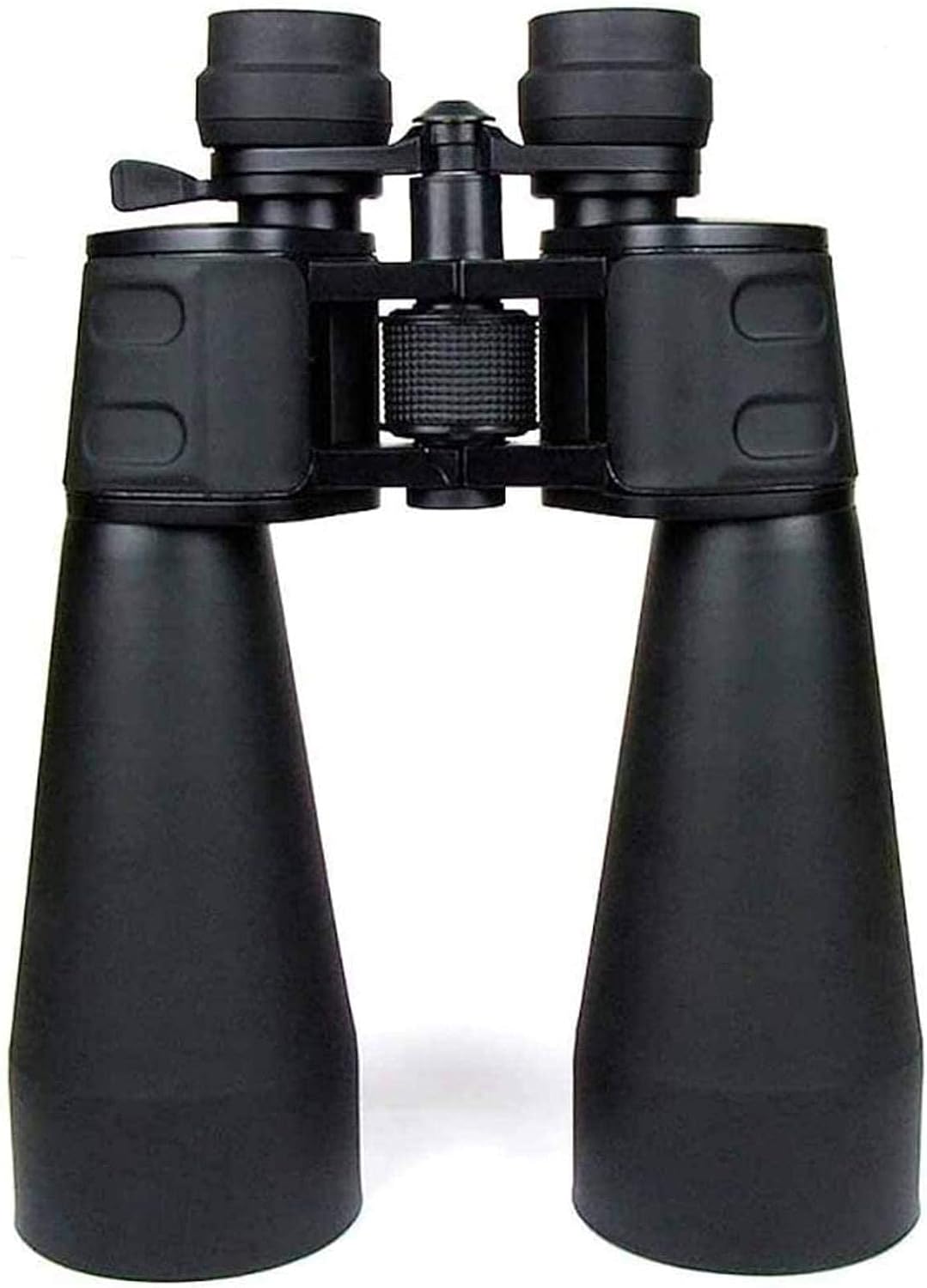

Image 1.1: Front view of the wsdhswhdhsdsds 20-180x100 High Powered Binoculars.

2. Product Overview

The wsdhswhdhsdsds 20-180x100 Binoculars are designed for versatile viewing experiences, featuring high magnification and durable construction. Key components and features include:

• High Magnification: Variable 20x to 180x zoom for detailed viewing.
• Large Objective Lenses: 85mm objective lenses gather ample light for bright images.
• BAK4 Prisms: High-quality BAK4 prism system for clear and sharp images.
• FMC Lens Coating: Fully Multi-Coated (FMC) optics reduce glare and enhance light transmission.
• Waterproof Design: Ensures durability and performance in various weather conditions.
• Central Focusing System: For quick and precise focus adjustments.
• Diopter Adjustment: Compensates for differences in eye strength.
• Tripod Interface: Allows for stable, extended viewing sessions.

Image 2.1: Labeled diagram showing key components: Diopter adjustment, Eyepiece, Compact and lightweight body, Tripod interface, Natural rubber material, Objective lens.

Image 2.2: Visual representation of light passing through a BAK4 prism, illustrating its high-level optical performance.

3. Setup

3.1 Unpacking

Carefully remove the binoculars and all accessories from the packaging. Verify that all items listed in the package contents are present:

• 20-180x100 Binoculars
• Hand-held strap
• Carrying bag
• Cleaning cloth
• User's manual

3.2 Attaching the Neck Strap

Thread the provided hand-held strap through the strap lugs on the sides of the binoculars. Ensure the strap is securely fastened to prevent accidental drops.

3.3 Adjusting Interpupillary Distance (IPD)

Hold the binoculars with both hands and look through the eyepieces. Adjust the distance between the two barrels by gently pushing them closer together or pulling them apart until you see a single, circular field of view. This ensures proper alignment with your eyes.

3.4 Diopter Adjustment

The right eyepiece features a diopter adjustment ring to compensate for differences in vision between your left and right eyes.

1. Close your right eye and look through the left eyepiece. Rotate the central focus wheel until the image is sharp and clear.
2. Close your left eye and look through the right eyepiece. Rotate only the diopter adjustment ring on the right eyepiece until the image is sharp. Do not use the central focus wheel for this step.
3. With both eyes open, the image should now be clear and focused. Use the central focus wheel for subsequent focusing on different distances.

4. Operating Instructions

4.1 Focusing

Once the interpupillary distance and diopter are set, use the central focus wheel to bring objects at various distances into sharp focus. Rotate the wheel slowly for precise adjustments.

4.2 Zoom Adjustment

These binoculars feature variable magnification. To adjust the zoom level, locate the zoom lever or ring, typically near the right eyepiece. Rotate it to increase or decrease the magnification from 20x to 180x. Re-focus with the central focus wheel after changing the zoom.

Image 4.1: Illustration of the binoculars' high zoom capability, showing magnified views of distant subjects.

4.3 General Usage Tips

• For stable viewing, especially at higher magnifications, consider mounting the binoculars on a tripod using the integrated tripod interface.
• When observing moving objects, try to anticipate their path and focus slightly ahead.
• Avoid direct exposure to the sun through the binoculars, as this can cause severe eye damage.

Image 4.2: Example of binoculars used for observing distant subjects, such as a bird over water, with a viewing distance of 3500m.

Image 4.3: Example of binoculars used for sharp imaging of distant cityscapes at night, with a viewing distance of 4500m.

5. Maintenance

5.1 Cleaning Lenses

To clean the lenses, first use a soft brush or compressed air to remove any dust or debris. Then, gently wipe the lenses with the provided cleaning cloth or a specialized lens cleaning cloth. For stubborn smudges, use a small amount of lens cleaning fluid applied to the cloth, not directly to the lens.

5.2 Body Cleaning

Wipe the body of the binoculars with a soft, damp cloth. Avoid using harsh chemicals or abrasive materials, as these can damage the finish.

5.3 Storage

When not in use, store the binoculars in their carrying bag in a cool, dry place. Avoid extreme temperatures and high humidity. Ensure the lens caps are in place to protect the optics from dust and scratches.

5.4 Waterproof Care

While these binoculars are waterproof, it is recommended to wipe them dry after exposure to water to prevent water spots and maintain their appearance. Do not submerge them for extended periods or expose them to high-pressure water jets.

6. Troubleshooting

• Blurry Image: Ensure the central focus wheel is adjusted correctly for the distance of your subject. Re-check the diopter adjustment for your individual eye strength.
• Double Image or Eye Strain: Adjust the interpupillary distance (IPD) until you see a single, circular field of view.
• Dark or Dim Image: Ensure lens caps are fully removed. Check for dirt or smudges on the objective lenses and eyepieces and clean them as per maintenance instructions.
• Difficulty with Zoom: Ensure the zoom lever moves freely. If it feels stiff, avoid forcing it and contact customer support.

7. Specifications

Image 7.1: Binoculars showing approximate dimensions: 280mm height, 85mm objective lens diameter, 49mm eyepiece diameter.

8. Warranty and Support

For product support, please refer to the retailer or manufacturer's contact information provided at the point of purchase. Information regarding optional protection plans may be available from your retailer.
