Decare 6D Shiatsu Neck and Back Massager User Manual

1. Introduction

Thank you for choosing the Decare 6D Shiatsu Neck and Back Massager. This device is designed to provide a professional kneading massage experience, mimicking the hands of a masseuse for deep muscle relaxation. It features a cordless, rechargeable design for convenient use at home, in the office, or while traveling. Please read this manual thoroughly before use to ensure proper operation and maintenance.

Decare 6D Deep Kneading Massager with icons for hand simulation, multi-intensity, heating, multi-mode, 100mins working time, and 10 mins auto off — Figure 1.1: Overview of the Decare 6D Deep Kneading Massager highlighting its key features such as hand simulation, multi-intensity settings, heating function, multiple modes, long working time, and automatic shut-off.

2. Important Safety Information

To reduce the risk of electric shock, burns, fire, or injury, please observe the following precautions:

Always unplug the massager from the power outlet immediately after charging and before cleaning.
Do not use while bathing or in a shower.
Do not place or store the massager where it can fall or be pulled into a tub or sink.
Do not place in or drop into water or other liquid.
Never use pins or other metallic fasteners with this appliance.
Close supervision is necessary when this appliance is used by, on, or near children, invalids, or disabled persons.
Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water.
Keep the cord away from heated surfaces.
Never drop or insert any object into any opening.
Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
Do not use on sensitive skin areas or where circulation is poor.
The massager has a heated surface. Persons insensitive to heat must be careful when using the appliance.
This appliance is designed for household use only.

3. Product Overview

The Decare 6D Shiatsu Neck and Back Massager is designed for versatile use across various body parts, providing deep tissue relief.

Decare 6D Shiatsu Neck and Back Massager with packaging and a person wearing it — Figure 3.1: Overall view of the Decare 6D Shiatsu Neck and Back Massager, showing its ergonomic design, control panel, and adjustable straps. The image also includes the product packaging and a user demonstrating how it is worn around the neck and shoulders.

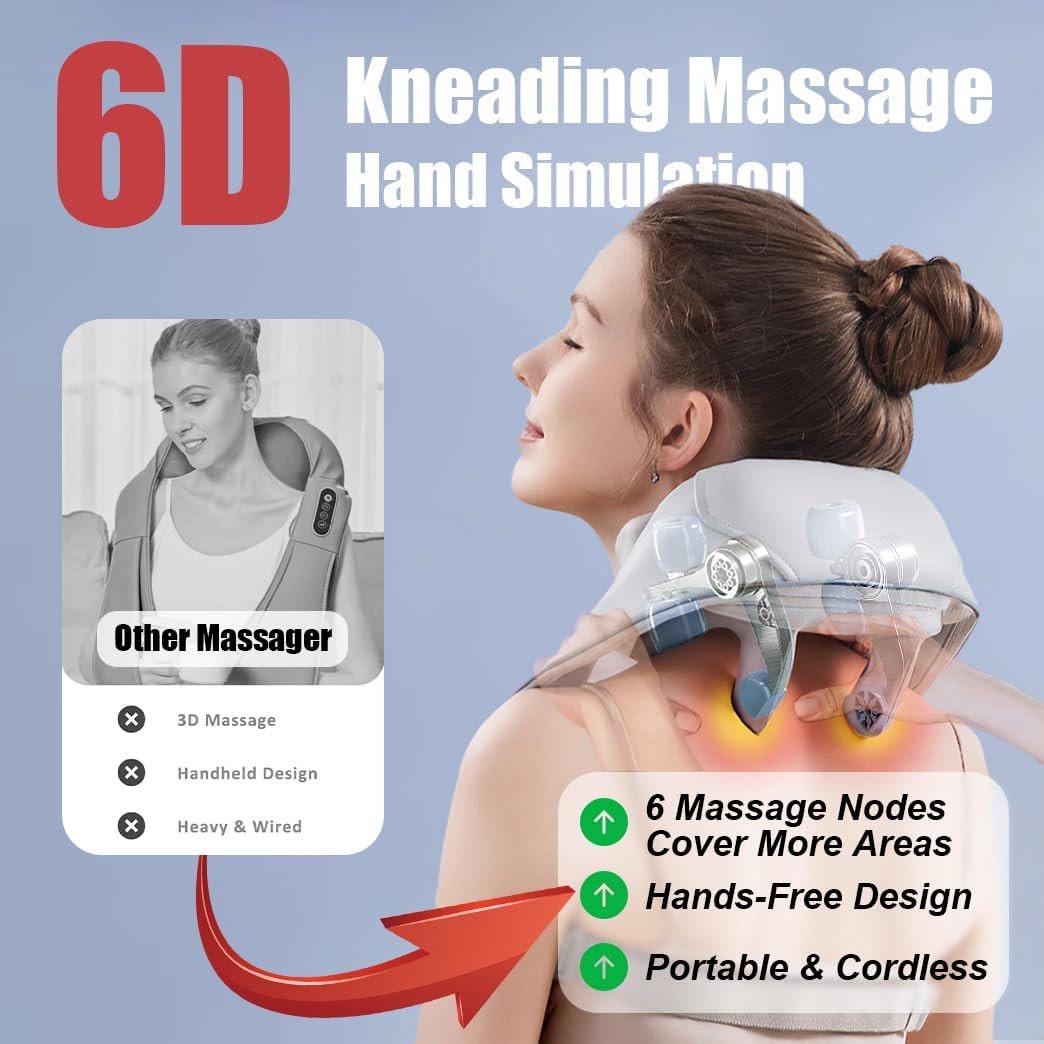

Internal mechanism of 6D kneading massage with 6 massage nodes — Figure 3.2: Illustration detailing the 6D kneading massage mechanism, highlighting the 6 built-in massage nodes that simulate hand grasping and kneading motions for comprehensive coverage and deep tissue relief.

Control panel with power, mode, level, and heating buttons — Figure 3.3: Close-up of the control panel, showing the intuitive buttons for Power, Mode selection (3 modes), Intensity Level adjustment (3 levels), and Heating function. An indicator for the 10-minute auto shut-off feature is also visible.

Diagram showing 2024 Upgrade 6D Deep Kneading Massage with simulate hand grasping and kneading and 6 massage nodes — Figure 3.4: Detailed diagram illustrating the upgraded 6D deep kneading massage technology, emphasizing its ability to simulate hand grasping and kneading, and the expanded coverage provided by 6 massage nodes.

Components:

Main Massager Unit: Contains the 6D kneading massage heads and internal mechanisms.
Control Panel: Located on the side of the massager for easy access to functions.
Adjustable Straps: For securing the massager in place and allowing hands-free operation.
Hand Pull Straps: Traditional straps for manual adjustment of pressure and position.
Type-C Charging Port: For recharging the internal battery.
Removable Cover: For easy cleaning and maintenance.

4. Setup and Charging

Before first use, ensure the massager is fully charged. The device is cordless and operates on a rechargeable battery.

Charging Instructions:

Locate the Type-C charging port on the massager.
Connect the included USB Type-C cable to the massager's charging port.
Connect the other end of the USB cable to a compatible USB power adapter (not included) or a computer USB port.
The charging indicator light will illuminate to show that the device is charging.
A full charge typically provides up to 100 minutes of use. Disconnect the charger once fully charged.

Rechargeable massager showing Type-C port, battery icon, and week's daily use icon — Figure 4.1: Visual representation of the massager's rechargeable features, including the Type-C charging port, the internal rechargeable battery, and an icon indicating sufficient power for a week's daily use on a single charge.

5. Operating Instructions

The Decare 6D Shiatsu Massager offers multiple modes and intensities for a customized massage experience.

Wearing the Massager:

The massager can be used in two primary ways:

Traditional Hand Pull: Hold the hand pull straps to adjust the position and pressure of the massage nodes on your desired area. This allows for dynamic adjustment during use.
Hands-Free with Adjustable Strap: Utilize the adjustable strap and back buckle to secure the massager around your neck or other body parts, freeing your hands for other activities.

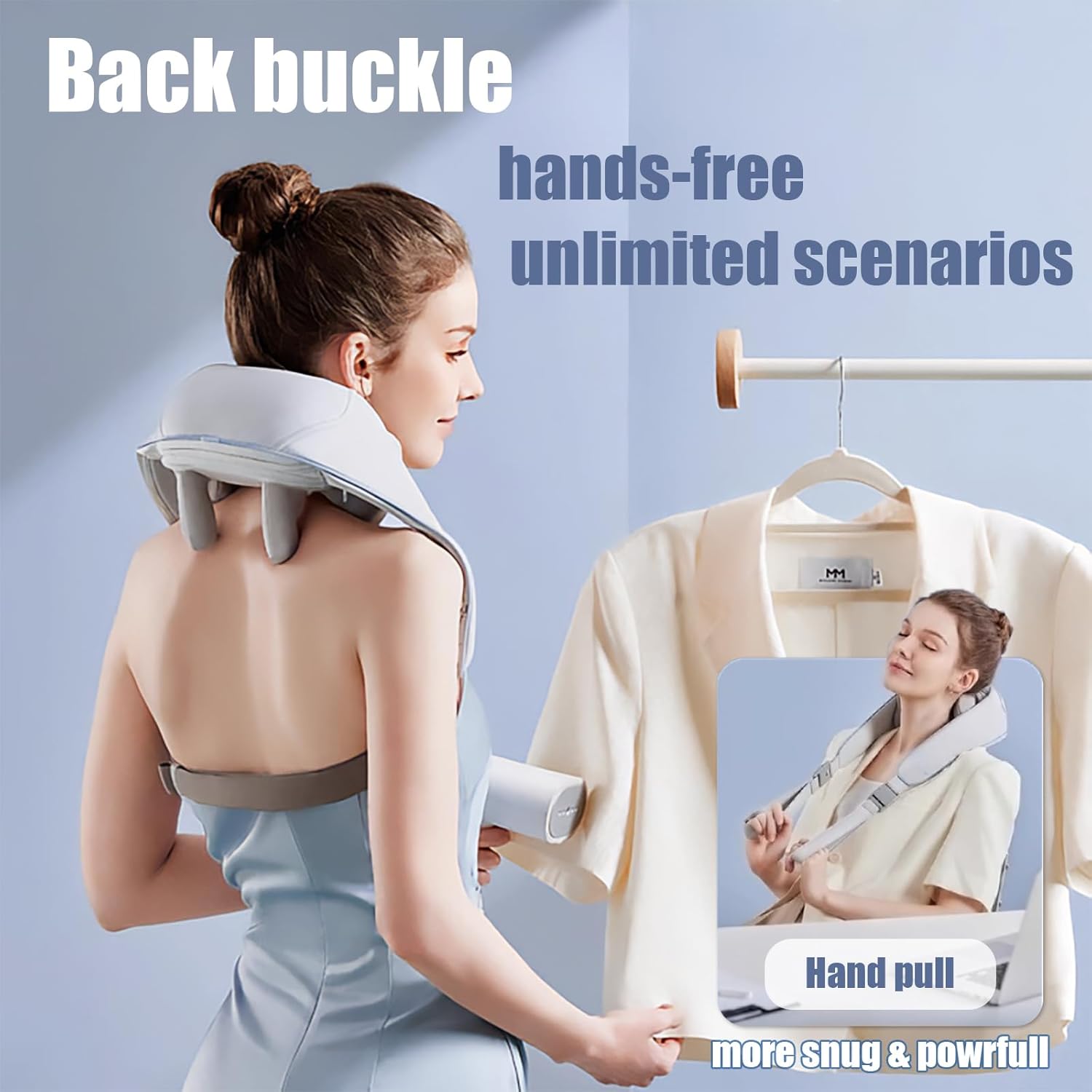

Woman wearing massager hands-free with back buckle, and inset showing hand pull method — Figure 5.1: Demonstrates the two wearing methods: the main image shows the hands-free method using the back buckle for unlimited scenarios, while the inset image illustrates the traditional hand pull method for more snug and powerful pressure.

Control Panel Functions:

Refer to Figure 3.3 for button layout.

Power Button (⏻): Press to turn the massager ON/OFF.
Mode Button (↻): Press to cycle through 3 different massage modes. Each mode offers a unique kneading pattern.
Level Button (|||): Press to adjust the massage intensity. There are 3 levels of intensity to choose from.
Heating Button (♨): Press to activate or deactivate the infrared heating function. The heating provides gentle warmth to soothe muscles.

The massager features a 10-minute auto shut-off function to prevent overuse and ensure safety.

Application Areas:

This versatile massager can be applied to various parts of the body for targeted relief:

Neck and Shoulders
Upper and Lower Back
Waist
Thighs
Calves
Arms

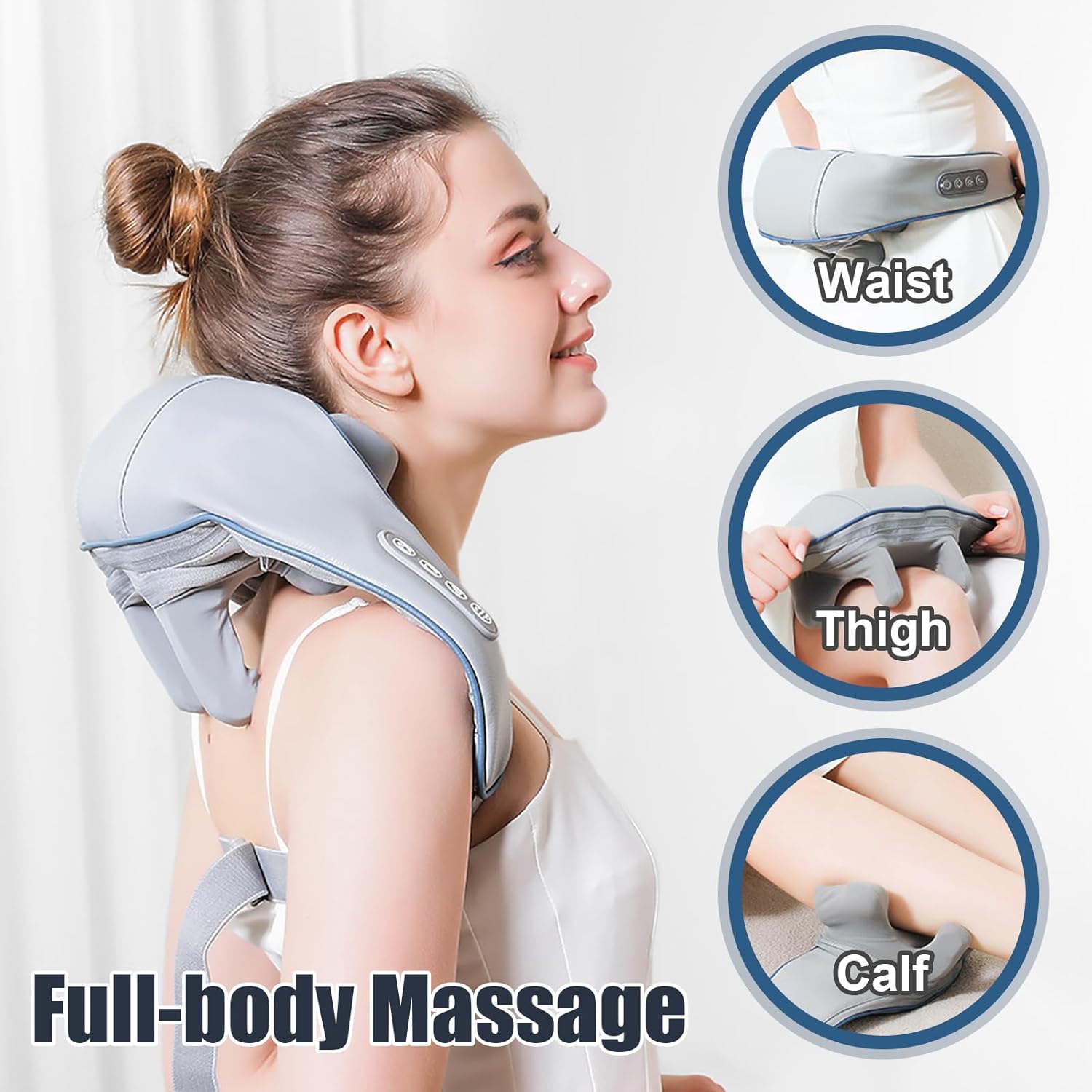

Woman using massager on neck, with insets showing use on waist, thigh, and calf — Figure 5.2: Illustrates the multi-purpose use of the massager, showing it applied to the neck and shoulders, with additional insets demonstrating its effectiveness on the waist, thigh, and calf areas for full-body massage.

6. Care and Maintenance

Proper care will extend the life of your massager.

Cleaning:

Always unplug the massager before cleaning.
Wipe the surface of the massager with a soft, slightly damp cloth.
Do not use abrasive cleaners, solvents, or harsh detergents.
The massager features a removable cover for easier cleaning. Gently remove the cover and hand wash if necessary, then air dry completely before reattaching.

Close-up of soft PU leather, removable cover, and adjustable strap — Figure 6.1: Details of the massager's material and design features, including the soft PU leather for comfort, the removable cover for easy cleaning, and the adjustable strap for secure fitting.

Storage:

Store the massager in a cool, dry place.
Avoid direct sunlight and extreme temperatures.
Do not hang the unit by the power cord or straps.

7. Troubleshooting

If you encounter any issues with your massager, please refer to the table below:

Problem	Possible Cause	Solution
Massager does not turn on.	Battery is depleted.	Charge the massager fully using the provided Type-C cable.
Massage intensity feels too weak or too strong.	Incorrect intensity level selected or improper positioning.	Adjust the intensity level using the "Level" button. Reposition the massager or adjust pressure using the hand pull straps.
Heating function is not noticeable.	Heating function is off or subtle warmth is intended.	Ensure the heating function is activated via the "Heating" button. The infrared heating provides gentle warmth, not intense heat.
Massager stops unexpectedly.	Auto shut-off activated (10-minute timer) or battery depleted.	This is normal operation due to the 10-minute auto shut-off. Restart the massager if desired. If it stops before 10 minutes, recharge the battery.

If the problem persists after trying these solutions, please contact customer support.

8. Product Specifications

Feature	Detail
Brand	Decare
Model	6d-grey
Product Dimensions	9 x 6 x 5.5 inches
Item Weight	2.86 Pounds
Power Source	Battery Powered
Material	Faux Leather
Massage Type	6D Shiatsu Kneading
Massage Modes	3 Modes
Intensity Levels	3 Levels
Heating Function	Infrared Heating
Auto Shut-off	10 minutes
Battery Life	Up to 100 minutes per full charge

9. Warranty and Customer Support

For warranty information or technical support, please refer to the product packaging or contact Decare customer service directly. Contact details are typically provided on the product box or through the retailer's support channels.

Decare 6d-grey
