Introduction
This manual provides comprehensive instructions for the PERFASCIN RC813-FMB1 Voice Remote Control. This replacement remote is designed for use with various TCL Google Smart TVs, including Mini LED, 4K, 8K, OLED, LED, and LCD models. It features voice control capabilities and dedicated shortcut keys for popular streaming services.
Front view of the PERFASCIN RC813-FMB1 Voice Remote Control.
Setup
1. Battery Installation
The remote control requires two AAA batteries (not included). Follow these steps to install them:
- Locate the battery compartment cover on the back of the remote control.
- Slide the cover downwards to open the compartment.
- Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Slide the battery compartment cover back into place until it clicks securely.
Image showing the back of the remote control with the battery compartment open for AAA battery installation.
2. Pairing the Remote Control
Before using the voice control and other advanced features, the remote must be paired with your TCL Google TV. Ensure your TV is powered on and in Google TV mode.
- Point the remote control towards your TCL Google TV.
- Press and hold the "HOME" button and the "OK" button simultaneously for 3 seconds.
- Release the buttons when a pairing confirmation message appears on your TV screen.
- The remote control should now be successfully paired and ready for use.
Visual guide for the remote pairing process, showing the "pairing successfully" message on a TV screen.
Operating the Remote Control
The PERFASCIN RC813-FMB1 remote control offers intuitive navigation and quick access to your TV's features.
Key Functions Overview
- Power Button: Turns the TV on or off.
- Navigation Pad (Up, Down, Left, Right, OK): Used to navigate menus and select items.
- Back Button: Returns to the previous screen or menu.
- Home Button: Accesses the TV's home screen.
- Volume Up/Down: Adjusts the audio volume.
- Channel Up/Down: Changes TV channels.
- Mute Button: Mutes or unmutes the TV audio.
- Settings Button: Opens the TV's settings menu.
- Input/Source Button: Changes the input source (HDMI, AV, etc.).
Voice Control Functionality
The remote features a built-in microphone for voice commands. After successful pairing, you can use your voice to search for content, control playback, and access various TV functions.
- Press the Microphone Button (usually located near the top of the remote).
- Speak clearly into the microphone. For example, say "Hey Google, open Netflix" or "Find action movies."
- The TV will process your command and respond accordingly.
Illustration of the voice search feature, showing the microphone button and examples of voice commands.
Shortcut Keys
The remote includes dedicated shortcut buttons for quick access to popular streaming applications:
- Netflix
- Prime Video
- YouTube
- TCL Channel
- TCL Home
- Apple TV
Pressing these buttons will directly launch the corresponding application on your TCL Google TV.
Maintenance
Cleaning the Remote Control
To maintain the remote control's performance and appearance:
- Wipe the surface with a soft, dry cloth.
- For stubborn dirt, lightly dampen the cloth with water or a mild, non-abrasive cleaner.
- Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the remote's finish or internal components.
Battery Care
- Replace batteries when the remote's performance degrades or if the TV does not respond reliably.
- Always replace both batteries at the same time with new AAA batteries.
- Do not mix old and new batteries, or different types of batteries.
- If the remote control will not be used for an extended period, remove the batteries to prevent leakage and potential damage.
Troubleshooting
If you encounter issues with your PERFASCIN RC813-FMB1 remote control, try the following solutions:
Remote Not Responding
- Check Batteries: Ensure batteries are correctly inserted and not depleted. Replace with fresh AAA batteries if necessary.
- Line of Sight: For infrared functions, ensure there is a clear line of sight between the remote and the TV's IR receiver.
- Re-pair Remote: If the remote uses Bluetooth (for voice control), try re-pairing it with your TV using the instructions in the "Setup" section.
- Obstructions: Remove any objects that might be blocking the signal between the remote and the TV.
Voice Control Not Working
- Pairing: Confirm the remote is successfully paired with your TCL Google TV. Voice control requires Bluetooth pairing.
- Microphone Button: Ensure you are pressing the microphone button before speaking your command.
- Speak Clearly: Speak clearly and at a normal volume, holding the remote a reasonable distance from your mouth.
- TV Internet Connection: Voice commands often require an active internet connection on your TV. Check your TV's network settings.
Compatibility Issues
This remote is compatible with a wide range of TCL Google Smart TV models. A partial list of compatible models includes:
- 50S546, 43S446, 50S446, 55S446, 65S446, 75S446, 85S446
- 75R646, 65R646, 55R646
- 75S546, 65S546, 55S546
- 43S370G, 43S470G, 50S470G, 58S470G, 65S470G, 70S470G, 75S470G, 85S470G
- 43S450G, 50S450G, 55S450G, 58S450G, 65S450G, 75S450G, 85S450G
- 55Q550G, 50Q550G, 65Q550G, 50S45G, 98S550G, 55S470G
- 55Q670G, 65Q670G, 75Q670G, 85Q670G
- 65QM850G, 75QM850G, 85QM850G, 98QM850G
- 85Q650G, 75Q650G, 65Q650G, 55Q650G
- 55Q750G, 65Q750G, 75Q750G, 85Q750G
- 32S370G, 40S370G
If your TV model is not listed or you are unsure about compatibility, refer to your TV's manual or contact the manufacturer for assistance.
Image displaying the remote control and a comprehensive list of compatible TCL Smart TV models.
Specifications
| Model Number | RC813-FMB1, RC813, FMB1, RC902V |
| Brand | PERFASCIN |
| Product Dimensions | 5 x 2 x 0.5 inches |
| Item Weight | 2.39 ounces |
| Batteries Required | 2 AAA batteries |
| Special Feature | Voice Search |
| Color | Black |
| Compatible Devices | TCL Google Smart Televisions |

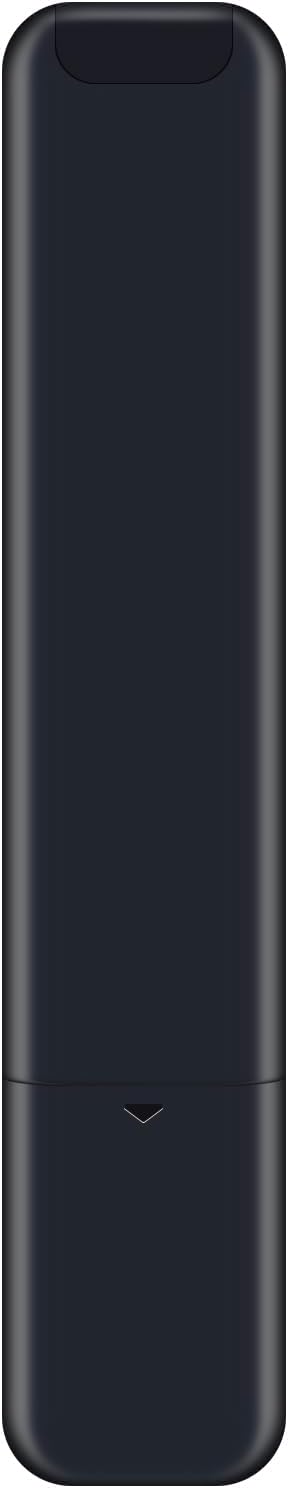

Back view of the remote control, showing its sleek design.
Warranty Information
Specific warranty information for the PERFASCIN RC813-FMB1 Voice Remote Control is not provided in the product details. Please refer to the seller's return policy or contact the seller directly for warranty details.
Customer Support
If you require further assistance or have questions regarding your PERFASCIN RC813-FMB1 Voice Remote Control, please contact the seller or refer to the support resources provided by your TCL Google TV manufacturer.
The seller, PERFASCIN, offers professional suggestions within 24 hours if you contact them regarding compatibility or other issues.
