XIBANY Replacement Dust Bags and Hepa Filters Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of XIBANY replacement dust bags and Hepa filters. These parts are specifically designed to ensure optimal performance and filtration for compatible Karcher wet and dry vacuum cleaner models.

2. Compatibility

These replacement dust bags and Hepa filters are compatible with the following Karcher vacuum cleaner models:

• Karcher MV4
• Karcher MV4 PREMIUM
• Karcher MV5
• Karcher MV6
• Karcher WD4 (including WD4000 to WD5999 series)
• Karcher WD4 Premium
• Karcher WD5
• Karcher WD5 P
• Karcher WD5 P Premium
• Karcher WD5 Premium
• Karcher WD6 P Premium

3. Package Contents

Your package includes:

• 6 x Dust Bags
• 2 x Hepa Filters

4. Installation

Follow these steps to correctly install the dust bags and Hepa filters into your Karcher vacuum cleaner. Always ensure the vacuum cleaner is unplugged before performing any maintenance or installation.

4.1. Dust Bag Installation

1. Ensure the vacuum cleaner is unplugged from the power source.
2. Open the vacuum cleaner housing according to your specific Karcher model's instructions.
3. Remove the old dust bag, if present, and dispose of it properly.
4. Align the new dust bag's collar with the vacuum cleaner's inlet port. Push firmly until it is securely seated and sealed.
5. Close the vacuum cleaner housing securely.

Image showing a white non-woven dust bag with a black plastic collar for attachment to the vacuum cleaner's inlet.

4.2. Hepa Filter Installation

1. Ensure the vacuum cleaner is unplugged from the power source.
2. Locate the filter compartment, which is typically found at the top or side of the vacuum cleaner, or within the motor head. Consult your vacuum's manual if unsure.
3. Remove the old Hepa filter. Pay attention to its orientation for correct installation of the new filter.
4. Insert the new Hepa filter into the compartment, ensuring it fits snugly and is properly sealed. For rectangular filters, ensure the grid side faces the correct direction as per your vacuum's design.
5. Close the filter compartment cover securely.

Image of a rectangular Hepa filter with an orange plastic frame and pleated yellow filter material, designed for efficient air filtration.

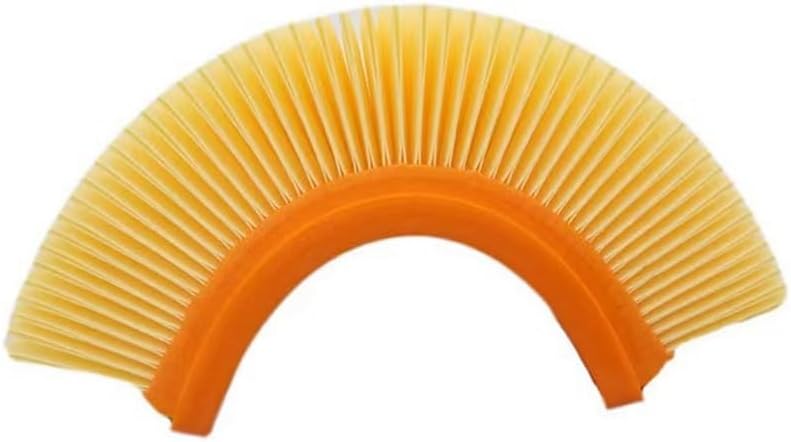

Image of a curved Hepa filter with an orange plastic frame and pleated yellow filter material, suitable for specific Karcher models.

5. Operation

Once the new dust bag and Hepa filter are correctly installed, your vacuum cleaner is ready for use. These replacement parts are designed to maintain optimal suction and filtration performance, ensuring effective cleaning and cleaner exhaust air.

6. Maintenance

6.1. Dust Bags

Dust bags should be replaced when they are full or when you observe a noticeable decrease in suction power. Do not attempt to empty and reuse disposable dust bags, as this can compromise the filtration efficiency and potentially damage the vacuum cleaner's motor.

6.2. Hepa Filters

It is recommended to replace the Hepa filter every 2-3 months, or more frequently if the vacuum cleaner is used heavily or in dusty environments. Regular filter replacement ensures optimal filtration, prevents motor strain, and maintains the air quality by reducing the release of dust and allergens.

7. Troubleshooting

7.1. Reduced Suction Power

If you experience reduced suction power after installing new parts, please check the following:

• Ensure the dust bag is correctly seated and not overfilled.
• Verify that the Hepa filter is clean and properly installed, with no gaps.
• Check for any blockages in the vacuum hose, attachments, or the vacuum cleaner's inlet port.

7.2. Dust Leakage

If dust is escaping from the vacuum cleaner during operation, ensure that:

• The dust bag is fully sealed and correctly attached to the inlet port.
• The Hepa filter is correctly positioned and not damaged.
• The vacuum cleaner housing and filter compartment covers are securely closed.

8. Specifications

• Vacuum Part Type: Replacement Dust Bags and Hepa Filters
• Dust Bag Material: Non-woven fabric
• Hepa Filter Material: Pleated filter material with plastic frame
• Package Contents: 6 Dust Bags, 2 Hepa Filters

8.1. Filter Dimensions (Approximate)

Image displaying the dimensions of the rectangular Hepa filter, showing a length of approximately 159mm and a width of approximately 101mm.

9. Warranty and Support

For specific warranty information or technical support regarding your XIBANY replacement parts, please refer to the seller's contact information or the product listing where these items were purchased. This manual provides general installation and maintenance guidelines.
