LOVPOI GPS Navigator User Manual

1. Introduction

This user manual provides comprehensive instructions for the LOVPOI D7 GPS Navigator. It covers essential information regarding product setup, operation, maintenance, and troubleshooting to ensure optimal performance and a safe navigation experience. Please read this manual thoroughly before using your device.

2. What's in the Box

Upon opening the package, please verify that all the following components are included:

• LOVPOI D7 GPS Navigator Unit
• Type-C Car Charger
• USB-C Cable
• Suction Cup Mount
• Back Bracket
• User Manual (this document)

Figure 2.1: Included Components. This image displays the LOVPOI D7 GPS Navigator, a Type-C car charger, a USB-C cable, a suction cup mount, a back bracket, and the user manual, illustrating all items typically found in the product packaging.

3. Product Overview

The LOVPOI D7 is a 7-inch GPS navigator designed for various vehicle types, including cars, trucks, RVs, ambulances, buses, and taxis. It features a clear and sensitive touch screen with an 800 x 480 resolution, providing detailed 2D/3D navigation maps in both day and night modes.

Figure 3.1: LOVPOI D7 GPS Navigator. This image shows the 7-inch GPS navigator mounted, displaying a detailed map with navigation information, including current location, route, and estimated arrival time.

Key Features:

• 7-inch Touch Screen: High-resolution display (800 x 480) for clear map viewing.
• Free Lifetime Map Updates: Pre-installed with 2025 North America maps (USA, Canada, Mexico) and free lifetime updates.
• Multiple Vehicle Modes: Optimized routing for Car, Truck, RV, Ambulance, Bus, and Taxi.
• Customized Truck Routing: Tailors routes based on truck size and weight, with warnings for bridge heights and weight limits.
• Driver Alerts: Provides warnings for dangerous curves, speed changes, speed cameras, railroad crossings, animal crossings, recognizable landmarks, buildings, and traffic lights.
• Voice Navigation: Offers turn-by-turn voice guidance in over 40 languages.
• FM Amplify Volume Function: Transmits navigation audio to your car's audio system for clearer sound.

Figure 3.2: Multi-Function GPS Navigation. This image highlights various features of the GPS navigator, such as voice assist, IPS touch screen, Point of Interest (POI) and ZIP code search, 2D/3D map views, FM transmitter, speed warnings, smart route planning, and the 7-inch display size.

4. Setup

4.1 Initial Charging

Before first use, ensure the GPS navigator is fully charged using the provided Type-C car charger. Connect the charger to the device and your vehicle's power outlet. A full charge is recommended for optimal battery performance.

4.2 Mounting the Device

1. Attach the back bracket to the rear of the GPS navigator until it clicks into place.
2. Connect the suction cup mount to the back bracket.
3. Clean the desired mounting surface on your windshield or dashboard.
4. Press the suction cup firmly against the surface and engage the lever to secure it.
5. Adjust the angle of the GPS unit for optimal viewing without obstructing your driving view.

4.3 Satellite Signal Acquisition

For the GPS to function correctly, it needs to acquire satellite signals. This process is best performed outdoors in an open area with a clear view of the sky. If you are indoors, the device may not be able to find a signal.

5. Operating Instructions

5.1 Map Updates

The LOVPOI D7 comes with pre-installed 2025 North America maps and offers free lifetime updates. To update your maps (or to install maps for other regions like EU, UK, Ireland, Australia):

• Option 1 (Windows PC): Connect your LOVPOI GPS Navigator to a Windows PC using the provided USB-C cable. Follow the instructions provided by LOVPOI support to download and install the latest maps.
• Option 2 (TF Card): Use an external TF card for map updates. This method is particularly useful if your system is not compatible with Mac. Contact LOVPOI support for detailed instructions on using a TF card for updates.

For any map update inquiries, please contact LOVPOI customer support.

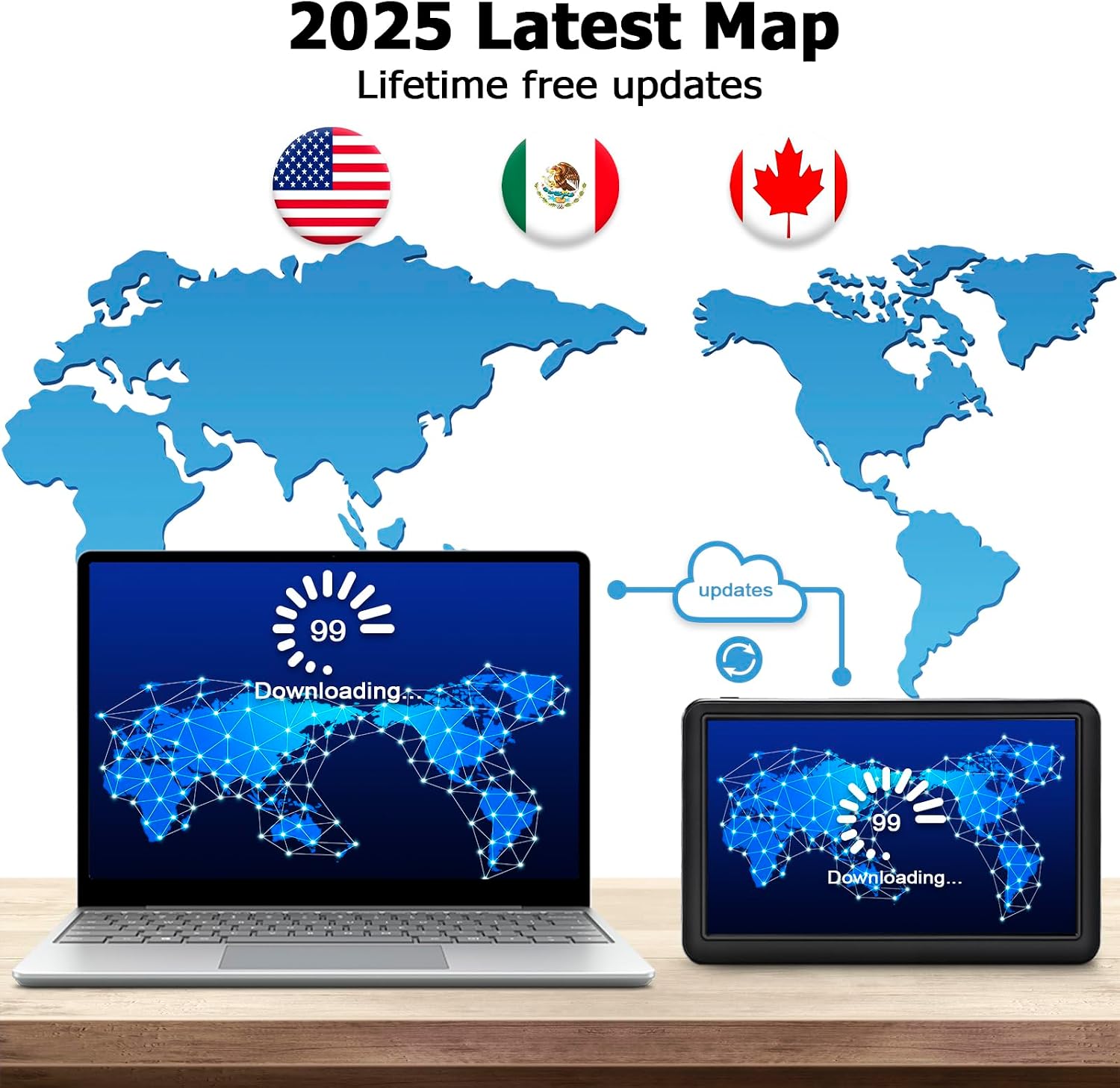

Figure 5.1: Map Update Process. This illustration depicts how to update the GPS maps, showing a laptop connected to the GPS navigator, with a download progress indicator on both screens, signifying the map update in progress.

5.2 Navigation Modes

The LOVPOI D7 supports multiple vehicle modes to provide optimized routing:

• Car Mode: Standard navigation for passenger vehicles.
• Truck Mode (Commercial/Semi Truck): Allows customization of truck routing based on vehicle size (length, height, width) and weight. Provides warnings for upcoming bridge heights, weight limits, and other truck-specific restrictions.
• RV (Motorhome) Mode: Optimized routes for recreational vehicles.
• Ambulance, Bus, Taxi Modes: Specific routing considerations for these vehicle types.

To select your vehicle type, navigate to the settings menu on the device and choose the appropriate vehicle profile. For truck mode, ensure you accurately input your truck's dimensions and weight for precise routing.

Figure 5.2: Improve Truck Routing. This image demonstrates the truck routing capabilities, including a semi-truck on the road and visual cues for truck lane indicators, maximum weight limits, speed limits, and height restrictions, emphasizing the customized navigation for commercial vehicles.

Figure 5.3: Multiple Vehicle Modes. This image displays a range of vehicles, including cars, trucks, RVs, and buses, to highlight the GPS navigator's compatibility with various vehicle types and its ability to provide intelligent route planning based on vehicle parameters.

5.3 Voice Guidance and Driver Alerts

The navigator provides clear turn-by-turn voice directions in over 40 languages, reducing the need to constantly look at the screen. It also issues various driver alerts to enhance safety:

• Dangerous curves
• Speed changes and speed limit warnings
• Speed cameras
• Railroad crossings
• Animal crossings
• Recognizable landmarks and buildings
• Traffic lights

Figure 5.4: GPS Navigation with Voice Guidance & Warnings. This image illustrates the GPS's ability to provide voice guidance and visual warnings for various road conditions, including traffic lights, speed limits, speed cameras, and height restrictions, enhancing driver awareness.

5.4 FM Amplify Volume Function

The FM Amplify volume function allows the navigation audio to be transmitted to your car's FM radio, increasing the volume and clarity of the navigation broadcast. This feature does not provide radio functionality but enhances the audio output of the GPS directions.

5.5 Intelligent Navigation Features

• Turn-by-turn direction: Clear visual and audio cues for upcoming turns.
• Lane Guidance: Helps you navigate complex intersections by indicating the correct lane to be in.
• Speed Limit Display: Shows the current speed limit for the road you are on.
• Traffic Light Information: Provides alerts related to upcoming traffic lights.

Figure 5.5: Intelligent Navigation. This image highlights the intelligent navigation features such as turn-by-turn directions, lane guidance, speed limit display, and traffic light indicators, all visible on the GPS screen mounted in a car, aiding the driver.

6. Maintenance

• Cleaning: Use a soft, dry cloth to clean the screen and exterior of the device. Avoid abrasive cleaners or solvents.
• Storage: When not in use, store the GPS navigator in a cool, dry place, away from direct sunlight and extreme temperatures.
• Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Charge the device regularly, especially if it will be stored for an extended period.
• Software Updates: Regularly check for map and software updates as instructed by LOVPOI to ensure the device operates with the latest features and data.

7. Troubleshooting

8. Specifications

9. Warranty and Support

9.1 Warranty Information

The LOVPOI D7 GPS Navigator comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized repairs, or natural disasters. Please retain your proof of purchase for warranty claims.

9.2 Customer Support

LOVPOI has an established professional technician team in the United States dedicated to providing support for their products. For assistance with map updates, technical issues, or any other inquiries, please contact LOVPOI customer support. Regular map upgrades are provided, and the support team is available to answer your questions.

For the most up-to-date contact information, please refer to the LOVPOI official website or the contact details provided with your product packaging.
