1. Introduction
Thank you for choosing the Cloudenergy 48V 100Ah LiFePO4 Lithium Battery. This advanced battery is designed for a wide range of applications, including RV, solar, marine, overland, and off-grid systems. It features a durable automotive-grade A-prismatic cell construction, an intelligent 100A BMS for comprehensive protection, and a user-friendly interface with a touch screen and mobile app control. This manual provides essential information for the safe and efficient use of your battery.
Figure 1: Cloudenergy 48V 100Ah LiFePO4 Lithium Battery with its smart display and mobile app interface.
Video 1: Overview of the Cloudenergy 48V 100Ah Wall & Rack 2 in 1 Mounted LiFePO4 Battery, highlighting its features and applications in a home energy system.
2. Safety Information
Please read and understand all safety instructions before installing or operating the battery. Failure to follow these instructions may result in electric shock, fire, serious injury, or death.
- Do NOT short circuit: Ensure proper wiring and connections to prevent short circuits.
- Do NOT immerse the battery in water or allow it to get wet: This battery is not waterproof. Exposure to water can cause damage and create a safety hazard.
- Do NOT heat above 60°C (140°F): High temperatures can damage the battery and pose a fire risk.
- Do NOT disassemble: Tampering with the battery can lead to severe injury or damage and voids the warranty.
- Use appropriate personal protective equipment (PPE): Always wear insulated gloves and eye protection when handling batteries.
- Ensure proper ventilation: Although LiFePO4 batteries do not off-gas significantly, adequate ventilation is recommended for any battery installation.
- Keep out of reach of children: This product is not a toy and contains hazardous components.

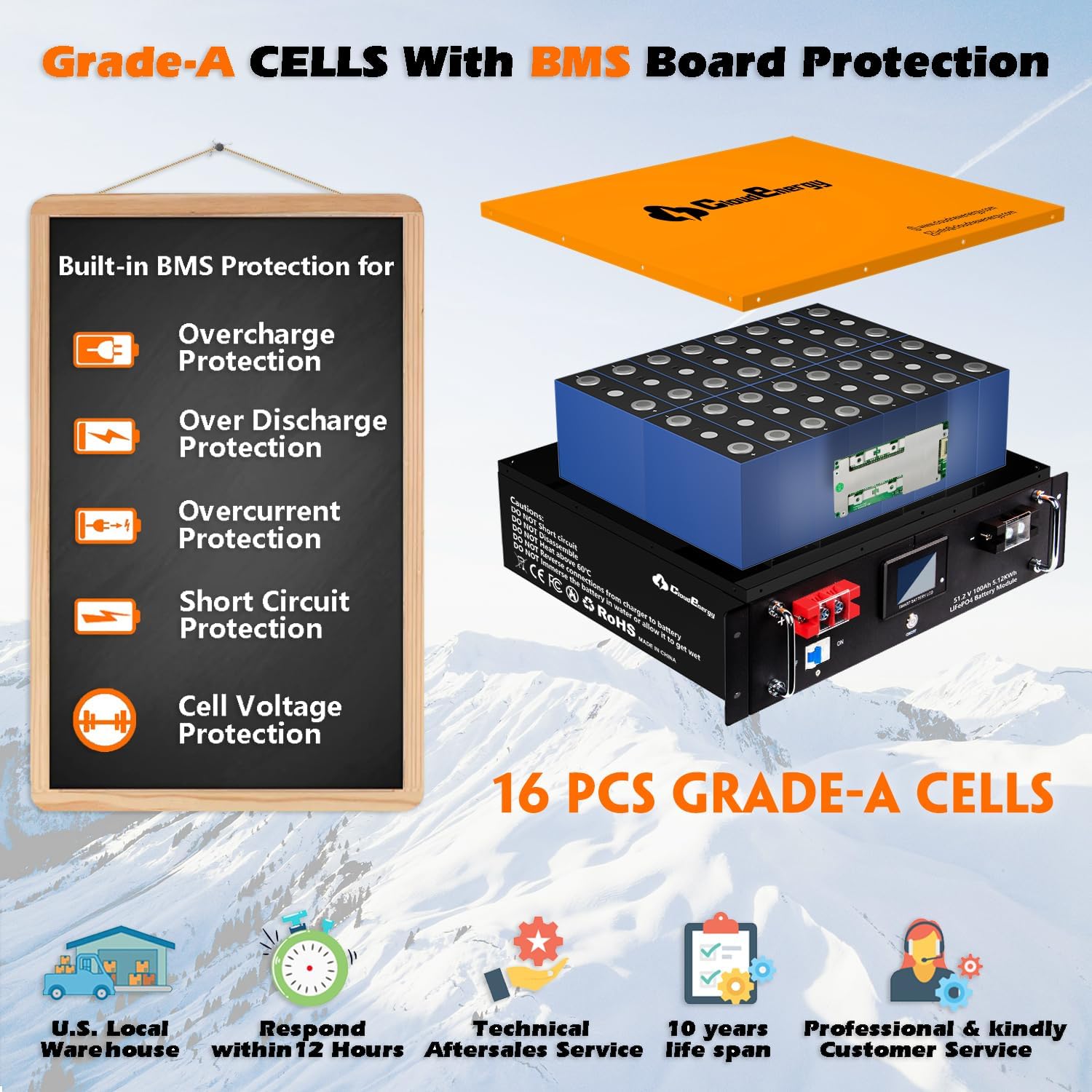

Figure 2: The battery's advanced 100A BMS provides comprehensive protection against overcharge, overdischarge, overcurrent, short-circuit, and cell voltage imbalances.
3. What's in the Box
Your Cloudenergy 48V 100Ah LiFePO4 Lithium Battery package includes the following components:
- Lifepo4 battery pack
- BMS (Battery Management System)
- LCD Display
- Bluetooth module
4. Setup
The Cloudenergy 48V 100Ah battery offers versatile installation options, supporting both wall and rack mounting configurations. The rotatable LCD screen allows for flexible viewing angles depending on your chosen setup.
4.1 Wall Mounted Installation
For wall mounting, ensure the chosen wall can support the battery's weight (approximately 99 pounds). Use appropriate mounting hardware and follow local electrical codes. The battery's design allows for the LCD screen to be rotated for optimal viewing when wall-mounted.
Figure 3: Dimensions for wall-mounted installation, showing the battery's size and weight.
Figure 4: Step-by-step illustration of how to convert the battery for wall mounting, including the rotating LCD display screen.
4.2 Rack Mounted Installation
For rack mounting, the battery is designed to fit standard rack systems. Ensure the rack is stable and can support the combined weight of multiple batteries if expanding your system. The dual positive and negative terminal design helps distribute current evenly.

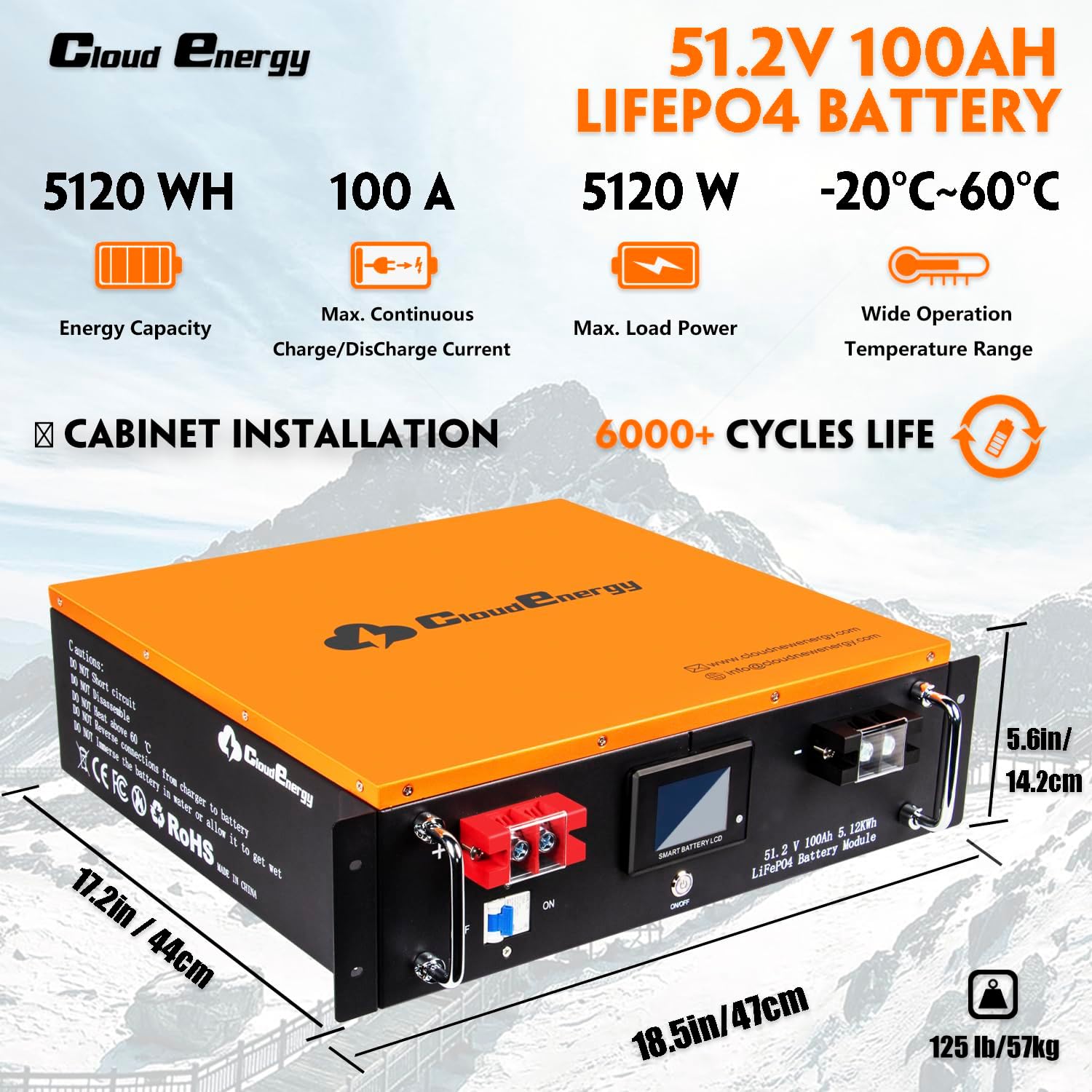

Figure 5: Dimensions for cabinet installation, providing details for integrating the battery into a rack system.
Figure 6: A setup showing multiple Cloudenergy batteries installed in a rack, demonstrating scalability up to 16 units for increased capacity.
4.3 Initial Charging
Before first use, it is recommended to fully charge the battery. Connect the battery to a compatible LiFePO4 charger. The smart display will indicate the charging status.
5. Operating Instructions
Your Cloudenergy battery is equipped with a smart touch screen display and Bluetooth connectivity for convenient monitoring and control.
5.1 Smart Touch Screen Display
The integrated touch screen provides real-time information about the battery's status, including capacity, voltage, temperature, and current. You can also control charge and discharge modes directly from the display.
5.2 Mobile App Control
For enhanced user interaction, download the Cloudenergy mobile app (refer to the user manual included in the box for app download instructions). Connect via Bluetooth to seamlessly manage and monitor your battery from your smartphone.
Figure 7: The Cloudenergy battery shown alongside a smartphone displaying the mobile app interface for remote monitoring.
Figure 8: A closer look at the mobile app and LCD display, illustrating real-time capacity, voltage, temperature, current, and controllable charge/discharge modes.
6. Performance and Applications
The Cloudenergy 48V 100Ah LiFePO4 battery delivers robust performance with a 5120Wh energy capacity and a life cycle exceeding 6000+ cycles, significantly outlasting traditional lead-acid batteries. It is ideal for various energy storage needs.
6.1 Energy Storage System Integration
This battery is designed to integrate seamlessly into solar energy systems, providing reliable power for your home or off-grid setup. It supports connecting up to 16 units in parallel for a maximum of 81.92 kWh usable battery energy and 81.92 kW load power.

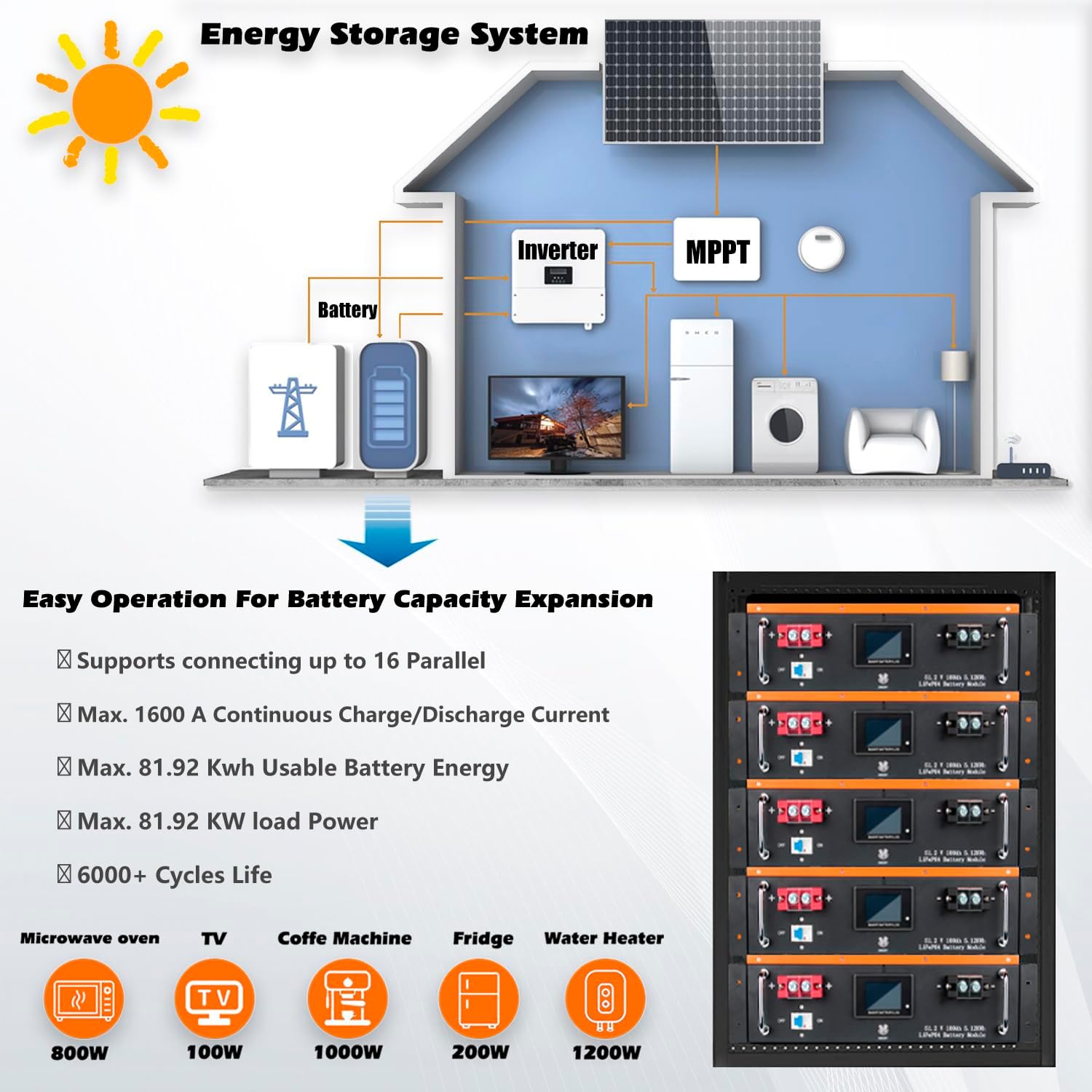

Figure 9: A diagram illustrating the Cloudenergy battery integrated into a home energy storage system with solar panels and an inverter.
Video 2: Demonstrates the Cloudenergy LiFePO4 batteries as part of a comprehensive home energy storage system, showcasing their ability to power a household.
6.2 Powering Appliances
The 48V 100Ah battery can power various household appliances for extended periods, making it suitable for both daily use and emergency backup. Examples include:
- 48" TV (260W): Approximately 20 hours
- Washer (280W): Approximately 18 hours
- Freezer (200W): Approximately 25 hours
- Air conditioner (735W): Approximately 7 hours
- Oven (1000W): Approximately 5 hours
- Coffee machine (650W): Approximately 8 hours
Figure 10: Illustrates the estimated runtimes for various common appliances when powered by the Cloudenergy 48V 100Ah LiFePO4 battery.
Figure 11: The Cloudenergy battery seamlessly integrated into a workshop environment, demonstrating its practical application for meeting daily household electricity needs.
7. Maintenance
To ensure the longevity and optimal performance of your Cloudenergy LiFePO4 battery, follow these maintenance guidelines:
- Regular Inspection: Periodically check the battery for any physical damage, loose connections, or signs of corrosion.
- Clean Terminals: Keep the battery terminals clean and free of dirt or debris. Use a dry cloth to wipe them if necessary.
- Temperature Control: Operate and store the battery within the recommended temperature range (-20°C to 60°C). Avoid extreme heat or cold.
- Charge Level: For long-term storage, maintain the battery at approximately 50% state of charge. Avoid leaving the battery fully discharged for extended periods.
- Software Updates: If available, ensure your mobile app and battery firmware are updated to the latest versions for optimal performance and features.
8. Troubleshooting
This section addresses common issues you might encounter with your Cloudenergy battery. For more complex problems, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Loose connections, charger malfunction, BMS protection engaged (e.g., low temperature cut-off) | Check all cable connections. Verify charger functionality. Ensure ambient temperature is above 0°C for charging. |
| No power output | Battery discharged, BMS protection engaged (e.g., over-discharge, overcurrent), faulty inverter/load | Check battery charge level. Reduce load if overcurrent protection is active. Inspect external components. |
| LCD display not working | Power issue, display malfunction | Ensure battery is powered on. Check connections to the display. If issue persists, contact support. |
| Mobile app not connecting | Bluetooth off, app not updated, incorrect pairing procedure | Ensure Bluetooth is enabled on your device. Update the app. Follow pairing instructions in the full manual. |
Video 3: Illustrates the battery's quick activation and ability to restore power during an outage, emphasizing its reliability for emergency situations.
9. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 18.5 x 17.2 x 5.6 inches |
| Item Weight | 99 pounds |
| Item Model Number | CL48V-100Ah-Wall+Rack |
| Batteries Required | 16 Lithium Ion batteries (included) |
| Battery Cell Composition | Lithium-Phosphate (LiFePO4) |
| Battery Capacity | 100 Amp Hours (Ah) |
| Energy Capacity | 5120 Wh |
| Max. Load Power | 5120 W |
| Life Cycles | 6000+ cycles |
| Operating Temperature Range | -20°C to 60°C |
| BMS | Advanced 100A BMS with comprehensive protection |
| Connectivity | Touchable Smart Display & Mobile APP (Bluetooth) |
| Mounting Options | Wall & Rack 2 in 1 Mounted |
| Recommended Uses | RV, Solar, Marine, Overland, Off-Grid |
10. Warranty and Support
Cloudenergy is committed to providing excellent customer service and technical support. We offer a 10-year lifetime for our batteries, ensuring long-term reliability.
If you encounter any product-related issues or have questions, please do not hesitate to contact our support team. We provide fast feedback within 24 hours to assist you with any concerns.
For technical assistance or warranty claims, please refer to the contact information provided in your product packaging or visit the official Cloudenergy website.
