VLAND LED Headlights for 2014-2022 Jeep Grand Cherokee (Black Housing)

1. Introduction

This instruction manual provides comprehensive guidance for the installation, operation, and maintenance of your VLAND LED Headlights. These headlights are designed to enhance the visibility and aesthetic appeal of your 2014-2022 Jeep Grand Cherokee. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Product Features

• Vehicle Compatibility: Specifically designed for 2014-2022 Jeep Grand Cherokee models.
• Full LED Illumination: No additional bulbs required.
• Enhanced Visibility: Improves nighttime driving safety for you and your family.
• Dynamic Lighting: Features sequential turn signals and blue dynamic startup running lights.
• Plug-and-Play Installation: Direct replacement for original headlights, requiring no splicing. Professional installation is recommended.
• Quality Certified: DOT or SAE, FMVSS 108 certification. Constructed with PC, ABS, PMMA, and Glass materials.
• Durable Design: Fully sealed, waterproof, dust-resistant, and corrosion-resistant for reliable performance in various weather conditions.

Figure 2.1: Headlight functions including Daytime Running Light, Sidemarker Light, Turn Signal, High Beam, and Low Beam.

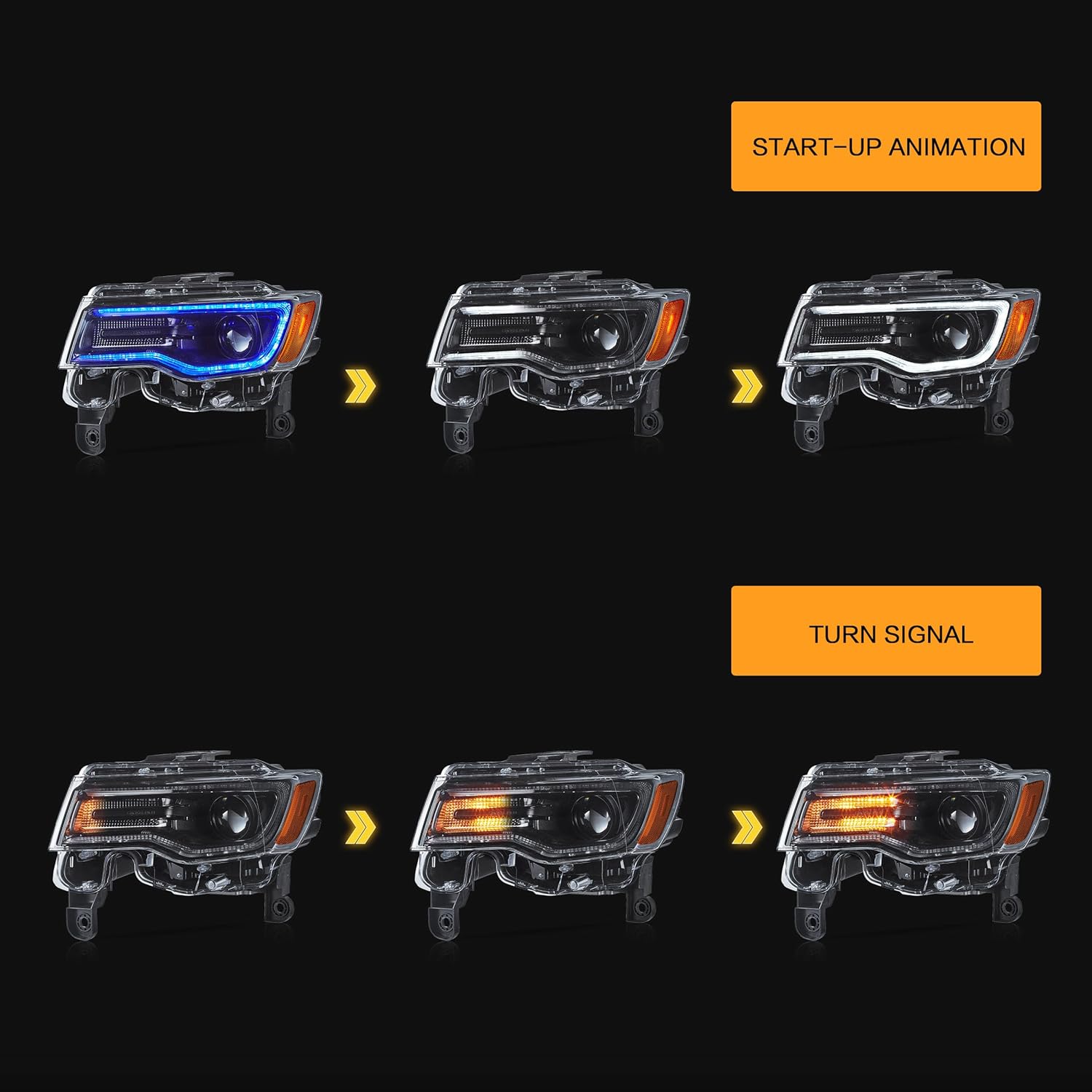

Figure 2.2: Visual representation of the dynamic startup animation and sequential turn signal.

3. Package Contents

Upon opening the package, please verify that all the following components are included:

• 1 set of VLAND LED Headlights (Driver's side and Passenger's side)
• 1 Instruction Manual
• 1 ACC Wire Harness
• 2 Adapter Harnesses
• 2 Dummy Loads

4. Specifications

Figure 4.1: VLAND LED Headlights for 2014-2022 Jeep Grand Cherokee.

5. Installation Instructions

These VLAND LED Headlights are designed for direct replacement and are generally plug-and-play. However, professional installation is highly recommended to ensure correct wiring and alignment.

5.1 General Installation Steps

1. Preparation: Ensure the vehicle is turned off and the battery is disconnected before beginning installation.
2. Remove Old Headlights: Carefully remove the existing headlights by unbolting them and disconnecting the wiring harnesses.
3. Connect New Headlights: Connect the new VLAND LED Headlights using the provided adapter harnesses. Ensure all connections are secure.
4. ACC Wire Harness: The included ACC wire harness is used to power the blue dynamic startup running lights. Refer to the 'ACC Connection Guide' video for detailed instructions on connecting this harness to your vehicle's fuse box.
5. High Beam Troubleshooting: If high beams do not activate after installation, check the adapter harness. It is possible the high beam plugs are inserted backward. Rotate the high beam plug 180 degrees and reinsert it to correct this issue.
6. Secure New Headlights: Mount the new headlights securely using the original mounting points.
7. Reconnect Battery: Reconnect the vehicle battery.
8. Test Functions: Test all headlight functions, including DRL, turn signals, low beam, high beam, and dynamic startup.
9. Alignment: Adjust the headlight aim as necessary using the adjustment screws located on the back of the headlight assembly.

Figure 5.1: Rear view of the headlight assembly, highlighting low & high beam horizontal/vertical adjustment screws, ACC plug, and Main plug.

5.2 ACC Connection Guide Video

6. Operating Instructions

Your VLAND LED Headlights offer several advanced lighting features:

• Daytime Running Lights (DRL): These lights illuminate automatically when the vehicle is on, enhancing daytime visibility.
• Blue Dynamic Startup: Upon vehicle startup, the headlights will display a distinctive blue dynamic light sequence.
• Sequential Turn Signals: When the turn signal is activated, the amber lights will illuminate in a sequential pattern, providing a modern and clear indication of your turning intentions.

Note: The sequential steering effect and the blue dynamic start effect are controlled by a selector line. Refer to the provided wiring diagram or consult a professional installer to choose whether to enable or disable these effects based on your preference and local regulations.

6.1 Feature Demonstration Videos

7. Maintenance

To ensure the longevity and optimal performance of your VLAND LED Headlights, follow these maintenance guidelines:

• Regular Cleaning: Clean the headlight lenses regularly with a soft cloth and mild automotive cleaning solution. Avoid abrasive cleaners or harsh chemicals that could damage the lens material.
• Inspect for Damage: Periodically inspect the headlights for any signs of physical damage, cracks, or moisture intrusion. Although designed to be waterproof, severe impacts can compromise the seal.
• Wiring Check: Ensure all wiring connections remain secure and free from corrosion.
• Avoid High-Pressure Washing: When washing your vehicle, avoid directing high-pressure water jets directly at the headlight seals for extended periods.

8. Troubleshooting

If you encounter any issues with your VLAND LED Headlights, consider the following troubleshooting steps:

• High Beams Not Working: If the high beams do not illuminate, verify that the adapter harness plugs are correctly oriented. As mentioned in the installation section, switching the high beam plug 180 degrees and reinserting it can resolve this issue.
• Lights Not Functioning: Check all wiring connections to ensure they are secure. Inspect the vehicle's fuse box for any blown fuses related to the headlights.
• Flickering Lights: Ensure all connections are tight. If flickering persists, consult a professional auto electrician.
• Moisture Inside Lens: Small amounts of condensation can occur due to temperature changes. This usually dissipates. If significant moisture or water droplets are present, check the seals and ensure the vent caps are properly installed. Contact customer support if the issue persists.

For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact VLAND customer support.

9. Warranty and Support

VLAND is committed to providing high-quality products and excellent customer service.

• Warranty: Your VLAND LED Headlights come with a 12-month after-sale service period.
• Return & Replace Policy: Products have comprehensive after-sales service support and can be returned or exchanged for free within one month of purchase. If any quality issues arise within a year, replacement parts or product services will be provided.
• Customer Support: If you encounter any installation or quality issues after receiving the product, please contact us. We provide 7x24 hour online service to assist you.
• Important: Please retain all user manuals and barcodes on the box or on the lights for warranty purposes.
