1. Product Overview
The PawHut Outdoor Dog Kennel provides a secure and comfortable enclosure for your pet. Designed for outdoor use, it features a sturdy welded wire steel frame, a water and UV-resistant canopy for protection from the elements, and convenient rotating bowl holders for easy feeding. This manual will guide you through the assembly, operation, and maintenance of your new dog kennel.
2. Safety Information
- Read all instructions carefully before assembly and use.
- Ensure all connections are secure and tightened before placing your pet inside.
- Do not allow children to climb on or play inside the kennel unsupervised.
- Regularly inspect the kennel for any signs of wear, damage, or loose parts. Repair or replace as necessary.
- Anchor the kennel to the ground, especially in windy conditions, to prevent tipping or movement.
- Keep the area around the kennel clear of obstructions.
3. Components List
Verify that all parts are present before beginning assembly. If any parts are missing or damaged, contact customer support.
- Welded Wire Steel Panels (various sizes for walls and gate)
- Gate Panel with Latch
- Rotating Bowl Holder Panels
- Stainless Steel Bowls (2 included)
- Canopy Frame Components
- Water and UV-Resistant Oxford Fabric Canopy
- Connecting Clamps/Hardware
- Rubber Bands/Bungee Cords for Canopy Attachment
- Assembly Tools (typically wrenches or hex keys, not always included)
4. Setup and Assembly
Assembly is required for this product. It is recommended to have at least two people for easier and safer assembly.
- Unpack and Identify Parts: Carefully unpack all components and lay them out. Refer to the components list to ensure everything is accounted for.
- Assemble Wall Panels: Connect the welded wire steel panels using the provided clamps or connecting hardware. Ensure panels are aligned correctly to form the desired kennel shape (96"L x 48"W x 72"H).
- Install Gate and Bowl Holders: Integrate the gate panel and the panels with rotating bowl holders into the main structure. Ensure the gate opens and closes smoothly and the latch functions correctly. The rotating bowl holders allow for easy feeding without entering the kennel.
- Assemble Canopy Frame: Construct the canopy frame according to the diagrams. This frame will support the fabric canopy.
- Attach Canopy: Drape the water and UV-resistant Oxford fabric canopy over the assembled frame. Secure the canopy to the kennel frame using the provided rubber bands or bungee cords through the grommets. Ensure the canopy is taut to allow for proper water runoff and UV protection.
- Final Inspection: Double-check all connections and hardware to ensure they are tight and secure.
5. Operating Instructions
- Accessing the Kennel: Use the walk-in gate to enter or exit the kennel. Ensure the gate latch is securely closed after each use to prevent your pet from escaping.
- Feeding Your Pet: Utilize the rotating bowl holders for convenient feeding. Simply rotate the holder outwards, place the food or water bowl, and rotate it back inside the kennel. This allows you to feed your pet without needing to open the main gate.

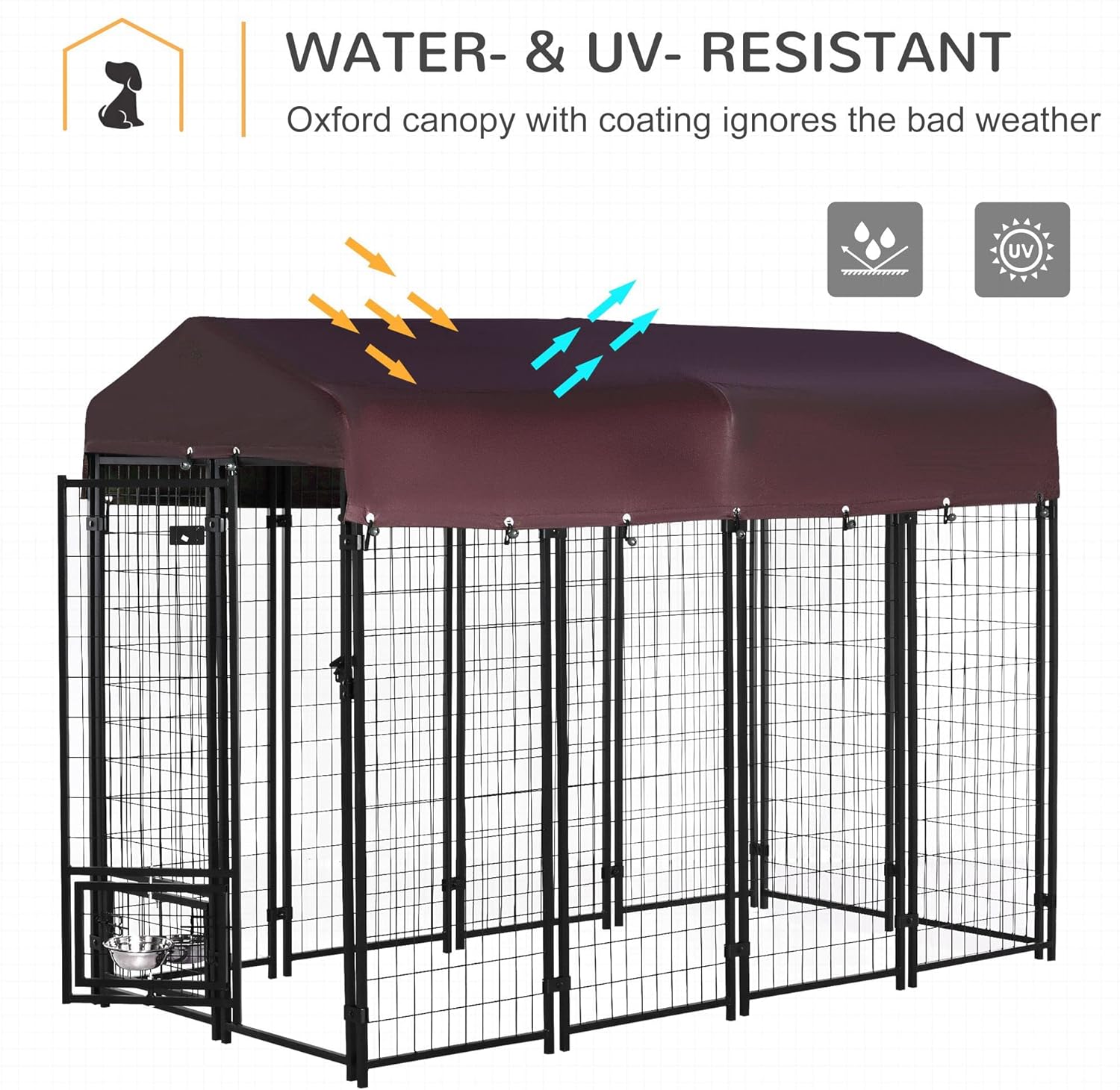

- Canopy Use: The canopy provides shade and protection from light rain and UV rays. Ensure it is properly secured to maximize its effectiveness.
6. Maintenance
Regular maintenance will extend the life of your PawHut dog kennel.
- Cleaning: Clean the kennel regularly after use. Use mild soap and water to wipe down the metal frame and wire panels. Rinse thoroughly and allow to air dry.
- Canopy Care: The Oxford fabric canopy is water and UV-resistant. Clean it with a damp cloth and mild detergent as needed. Avoid harsh chemicals or abrasive cleaners that could damage the fabric or its protective coating.
- Inspection: Periodically check all bolts, screws, and connections to ensure they remain tight. Inspect the wire panels for any bends or damage. Check the canopy for tears or excessive wear, especially after severe weather.
- Bowl Cleaning: The stainless steel bowls should be removed and cleaned regularly to maintain hygiene for your pet.
7. Troubleshooting
- Kennel Instability: If the kennel feels wobbly, ensure all connecting clamps and hardware are fully tightened. Consider anchoring the kennel to the ground using stakes or weights, especially on uneven surfaces or in areas prone to strong winds.
- Canopy Damage/Wear: Over time, exposure to harsh weather can affect the canopy. If the canopy shows signs of shredding or significant wear, it may need to be replaced to maintain protection. Ensure it is always secured tightly to prevent flapping in the wind, which can accelerate wear.
- Gate Latch Issues: If the gate latch is not securing properly, check for any obstructions or misalignment of the gate panel. Ensure all bolts holding the latch mechanism are tight.
- Rotating Bowl Holder Stiffness: If the rotating bowl holder becomes stiff, clean any debris from the pivot points. A small amount of silicone spray can be applied to the pivot points if needed, avoiding contact with the bowls.
8. Specifications
| Attribute | Detail |
|---|---|
| Model Number | D02-093RD |
| Overall Dimensions (L x W x H) | 96.0" x 48.0" x 72.0" (Includes Roof) |
| Gate Dimensions (W x H) | 18" x 53.25" |
| Material | Alloy Steel (Frame), Oxford Fabric (Canopy) |
| Color | Red |
| Item Weight | 110 Pounds |
| Special Feature | Ventilated, UV-Resistant Canopy, Rotating Bowl Holders |
| Target Audience | Dogs (Large Breed Recommended) |
| Included Components | Two Bowls |
9. Warranty and Support
This PawHut product comes with a 1-Year Warranty from the manufacturer, Aosom LLC. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, missing parts, or technical support, please contact the manufacturer directly. Keep your proof of purchase for warranty validation.
For returns, please refer to the retailer's return policy, which typically allows for 30-day easy returns.
