FOLD AND TRAVEL FT9000 Fold Electric Wheelchair User Manual

1. Introduction

This manual provides essential instructions for the safe and effective operation, maintenance, and care of your FOLD AND TRAVEL FT9000 Fold Electric Wheelchair. Please read this manual thoroughly before using the wheelchair to ensure proper understanding of its features and functions. Retain this manual for future reference.

The FT9000 is designed as a lightweight, foldable electric wheelchair, offering enhanced mobility and convenience for users. It features dual motors, a joystick control, and a portable design suitable for various environments.

2. Safety Information

Your safety is paramount. Always adhere to the following safety guidelines:

• Always wear the seat belt provided to ensure stability and prevent falls.
• Ensure the anti-tipper wheels are properly engaged before operation, especially on inclines or uneven surfaces.
• Do not operate the wheelchair under the influence of alcohol or medication that may impair your judgment or reaction time.
• Avoid operating the wheelchair on excessively steep inclines or declines beyond its specified capabilities.
• Exercise caution when navigating tight spaces or crowded areas.
• Regularly inspect tires, brakes, and battery connections for wear or damage.
• Keep hands and clothing clear of moving parts, especially wheels and motors.
• Consult a healthcare professional or qualified technician if you experience any issues or require adjustments.

3. Components Overview

Familiarize yourself with the main components of your FT9000 electric wheelchair.

Figure 3.1: Front View Components
This image displays the front perspective of the FT9000, pointing out the 360-degree controller joystick, premium seat cushion, soft handle, side storage bags, large storage bag, 19.5-inch seat width, shock absorbers, and puncture-proof solid honeycomb tires.

Figure 3.2: Rear View Components
This image shows the rear of the FT9000, indicating the adjustable backrest height, detachable lithium battery, premium fender, override switch, 250x2 watt motors, anti-tip wheels, and rear shock absorbers.

• Joystick Controller: Provides 360-degree control for movement and speed adjustment.
• Seat Belt: For user safety and security.
• Anti-Tipper Wheels: Prevents backward tipping, enhancing stability.
• Motors: Dual 300W motors for powerful propulsion.
• Lithium Battery: Detachable for charging and extended range.
• Footrest: Foldable for ease of access and storage.
• Armrests: Swing-up design for easy transfers.
• Shock Absorbers: Front and back suspension springs for a comfortable ride.
• Tires: Puncture-proof solid honeycomb tires.
• Override Switch: Allows for manual pushing by a caregiver.

4. Setup and Unfolding

Follow these steps to safely unfold and prepare your FT9000 wheelchair for use.

1. Unpacking: Carefully remove the wheelchair from its packaging.
2. Unfolding:
   • Place the folded wheelchair on a flat, stable surface.
   • Gently pull the backrest upwards while simultaneously pushing the armrests outwards until the frame locks into place.
   • Ensure all locking mechanisms are securely engaged.
3. Battery Installation:
   • Locate the battery compartment, typically under the seat or at the rear.
   • Insert the fully charged lithium battery, ensuring it clicks into place.
   • Connect the battery cable if it is not automatically connected.
4. Footrest Adjustment: Adjust the footrest to a comfortable position for the user.
5. Pre-Operation Check: Before first use, verify that all components are securely attached and functioning correctly.

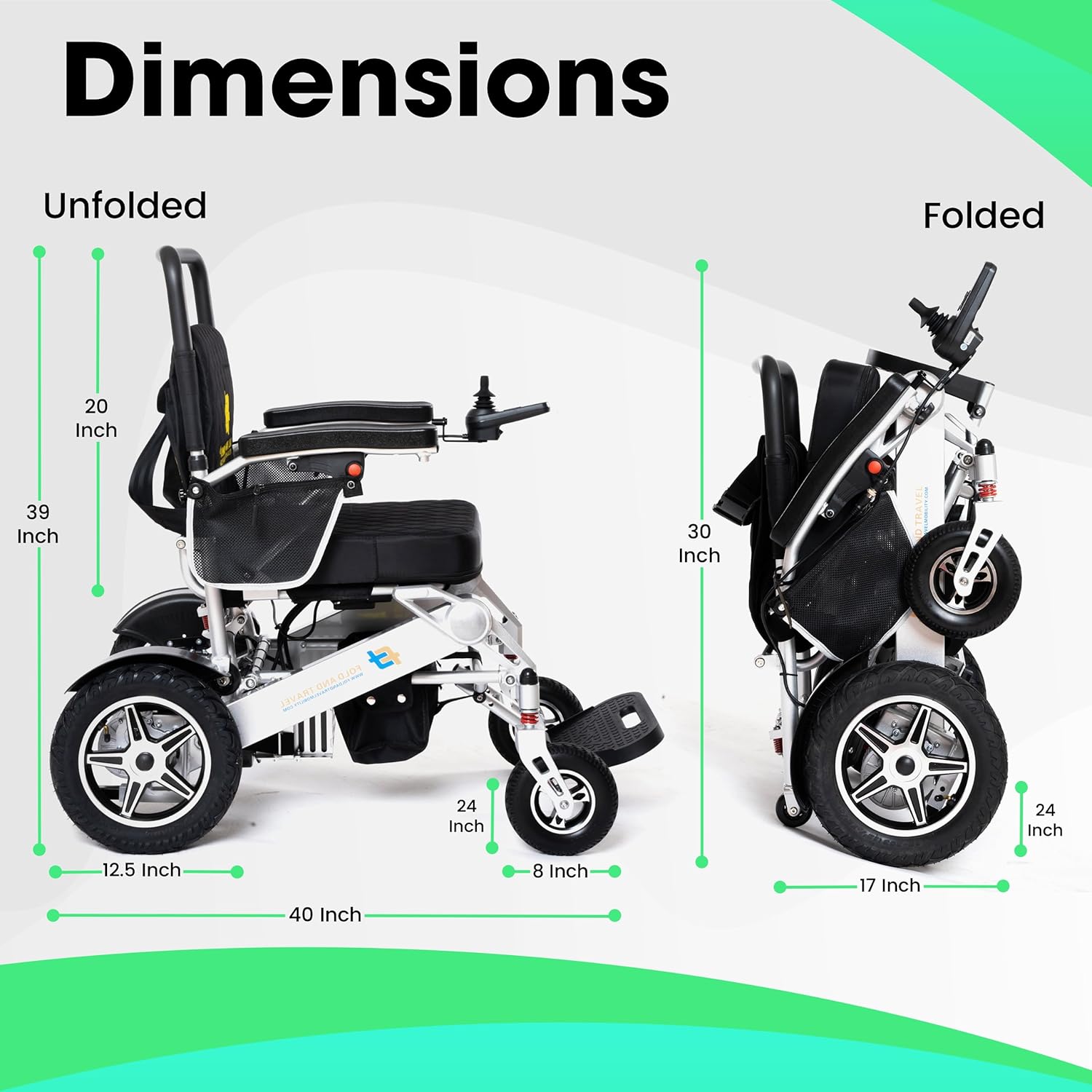

Figure 4.1: Unfolded and Folded Dimensions
This diagram illustrates the dimensions of the FT9000 in both its unfolded state (40 inches long, 39 inches high, 24 inches wide) and folded state (17 inches long, 30 inches high, 24 inches wide), demonstrating its compact design for storage and transport.

5. Operating Instructions

Learn how to operate your FT9000 electric wheelchair safely and efficiently.

5.1. Powering On/Off

• To Power On: Press the power button on the joystick controller. The indicator lights will illuminate.
• To Power Off: Press and hold the power button until the indicator lights turn off.

5.2. Driving with the Joystick

• Forward/Backward: Gently push the joystick forward to move forward, and pull it backward to move in reverse.
• Turning: Push the joystick left or right to steer the wheelchair in the desired direction.
• Speed Control: Use the speed adjustment buttons on the joystick to increase or decrease your travel speed. Start with a low speed until you are comfortable.
• Stopping: Release the joystick, and the electromagnetic brakes will automatically engage, bringing the wheelchair to a smooth stop.

5.3. Manual Mode

To allow a caregiver to push the wheelchair manually, locate the override switch (typically near the motors at the rear) and disengage the motors. Remember to re-engage the motors for electric operation.

5.4. Navigating Various Terrains

The FT9000 is designed for versatility across different surfaces. Exercise caution and reduce speed when encountering challenging terrains.

Figure 5.1: All-Terrain Capability
This image demonstrates the FT9000's ability to handle diverse environments such as grass, ramps, bumpy surfaces, brick roads, muddy paths, and snow, thanks to its powerful motors and suspension system.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your wheelchair.

• Battery Care:
  • Charge the battery fully after each use.
  • Avoid completely draining the battery.
  • Store the battery in a cool, dry place if not in use for extended periods, and charge it periodically.
  • Charging time is typically 6-8 hours for a full charge.
• Cleaning:
  • Wipe down the frame and seat with a damp cloth and mild detergent.
  • Avoid using abrasive cleaners or excessive water, especially near electrical components.
• Tire Inspection: Regularly check the puncture-proof tires for any signs of wear or damage.
• Fastener Check: Periodically inspect all bolts, screws, and fasteners to ensure they are tight.
• Professional Servicing: It is recommended to have your wheelchair professionally serviced annually by a qualified technician.

Figure 6.1: Battery Range Illustration
This image emphasizes the wheelchair's lithium battery, capable of providing up to 15 miles of range on a full charge, suitable for extended outings.

7. Troubleshooting

Refer to this section for solutions to common issues. If the problem persists, contact customer support.

8. Specifications

Key technical specifications for the FOLD AND TRAVEL FT9000 Electric Wheelchair.

• Model: FT9000
• Motor Type: Dual 300W
• Battery Type: Lithium (1 Battery option)
• Range: Up to 15+ miles (with 1 battery)
• Maximum Speed: 4 mph (as per image)
• Charging Time: 6-8 hours
• Turning Radius: 33 inches
• Front Wheel Size: 8 inches
• Rear Wheel Size: 12.5 inches (inferred from image)
• Seat Width: 19.5 inches (as per image)
• Seat Height: 20 inches
• Unfolded Dimensions (L x H x W): 40 x 39 x 24 inches (approximate, from image)
• Folded Dimensions (L x H x W): 17 x 30 x 24 inches (approximate, from image)
• Brakes: Electromagnetic
• Suspension: Front and Back Springs

Figure 8.1: Performance Specifications
This image highlights key performance metrics: a 15-mile range, a maximum speed of 4 mph, and a battery charging time of 6-8 hours.

9. Warranty and Support

For warranty information, technical support, or service inquiries, please contact FOLD AND TRAVEL customer service.

• Customer Service: Refer to your purchase documentation or the FOLD AND TRAVEL website for contact details.
• Online Resources: Visit the official FOLD AND TRAVEL website for FAQs, product registration, and additional support materials.
