McbeAn Electrified Hose for Xclea Qy50/Qyxcq01/P10 Floor Brush

1. Introduction

This manual provides essential instructions for the installation, operation, and maintenance of your McbeAn Electrified Hose, designed for compatibility with Xclea Qy50, Qyxcq01, and P10 handheld wireless vacuum cleaner floor brushes. Please read this manual thoroughly before use to ensure proper function and longevity of the accessory.

2. Safety Information

Always observe basic safety precautions when using electrical appliances and accessories. Failure to do so may result in electric shock, fire, or serious injury.

• Ensure the vacuum cleaner is turned off and unplugged before installing or removing the hose.
• Do not attempt to modify the hose or its electrical connections.
• Keep the hose away from water or other liquids to prevent electric shock. The product image shows a warning "Do not splash water or wash the brush".
• Inspect the hose for any damage before each use. Do not use if damaged.
• This accessory is designed for specific Xclea models (Qy50, Qyxcq01, P10). Using it with incompatible models may cause damage.

3. Product Overview

The McbeAn Electrified Hose is a replacement or accessory part designed to connect the main vacuum unit to the floor brush, providing electrical power to the brush motor for effective cleaning.

3.1 Components

• Electrified Hose: The main flexible conduit with internal wiring.
• Connector Ends: Specific connectors for attaching to the vacuum unit and the floor brush.

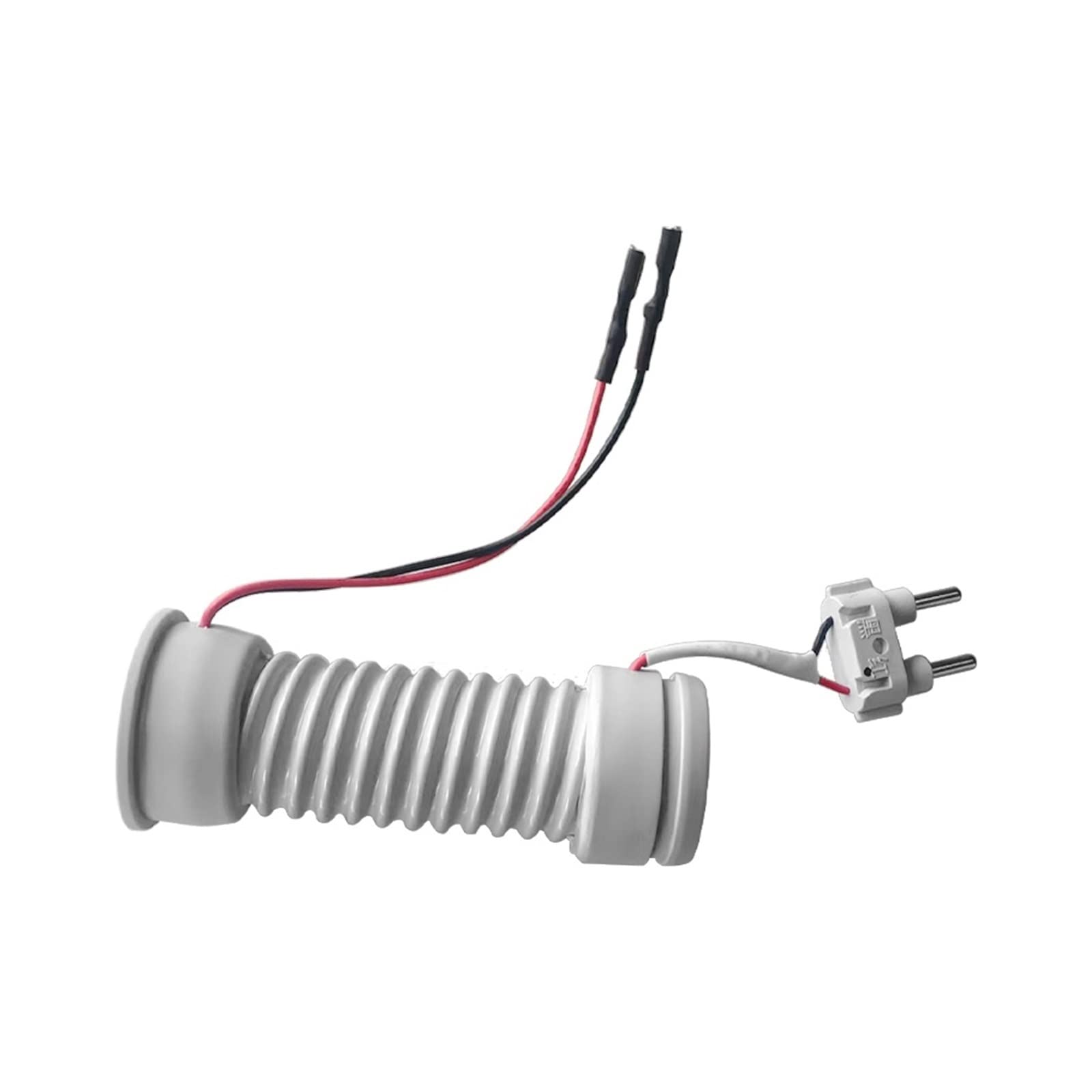

Figure 3.1: The McbeAn Electrified Hose, showing the flexible body and the electrical connectors at each end. One end features a two-pin plug, and the other has two separate wire terminals (red and black).

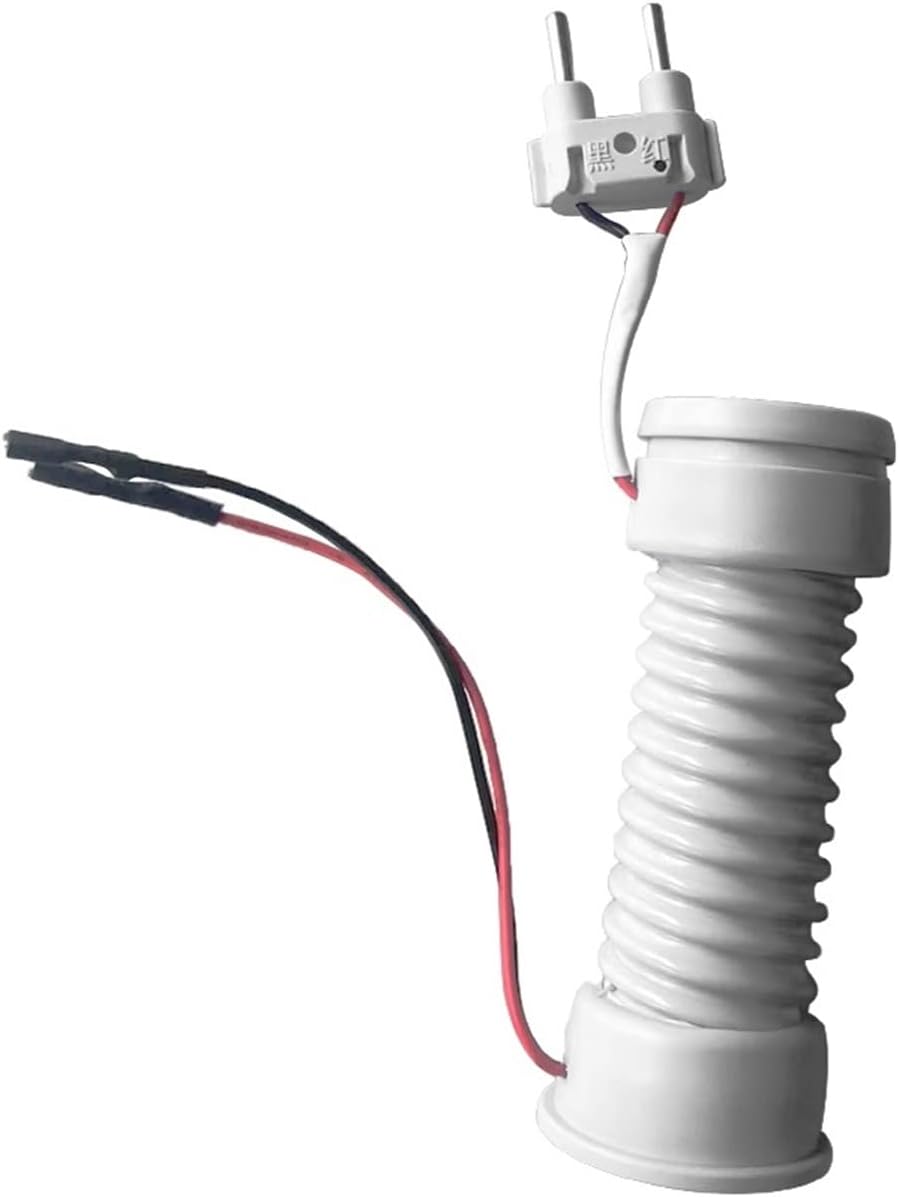

Figure 3.2: Another view of the McbeAn Electrified Hose, highlighting the two-pin plug connector and the individual red and black wire terminals for connection.

4. Setup and Installation

This electrified hose is designed for easy installation and is perfectly compatible with the specified Xclea floor brushes.

4.1 Identifying the Connection Points

Figure 4.1: The connection point on the floor brush where the electrified hose attaches. The red circle indicates the area where the hose's spring-loaded connector will be inserted.

Figure 4.2: The electrified hose properly connected to the floor brush, showing a secure and flush fit.

4.2 Installation Steps

1. Power Off: Ensure your Xclea vacuum cleaner is completely powered off and disconnected from any power source.
2. Remove Old Hose (if applicable): If replacing an existing hose, carefully disconnect it from both the vacuum unit and the floor brush. Refer to your vacuum cleaner's manual for specific removal instructions.
3. Connect to Floor Brush: Align the end of the McbeAn Electrified Hose with the connection port on the Xclea floor brush (refer to Figure 4.1). Gently push until it clicks securely into place (refer to Figure 4.2). Ensure the electrical pins are properly seated.
4. Connect to Vacuum Unit: Connect the other end of the electrified hose to the main vacuum cleaner unit. Ensure a firm connection.
5. Verify Connection: Lightly tug on both ends of the hose to confirm it is securely attached and will not detach during operation.

5. Operating Instructions

Once the electrified hose is securely installed, your vacuum cleaner's floor brush should receive power, enabling its motorized functions.

1. Power On: Reconnect your vacuum cleaner to its power source and turn it on according to its operating instructions.
2. Test Functionality: Activate the vacuum cleaner and observe if the floor brush motor engages. If the brush does not spin, refer to the Troubleshooting section.
3. Normal Use: Use your vacuum cleaner as you normally would. The electrified hose ensures continuous power supply to the brush for effective cleaning.

6. Maintenance and Care

Proper maintenance will extend the life of your electrified hose.

• Cleaning: Wipe the exterior of the hose with a dry or slightly damp cloth. Do not immerse the hose in water or use harsh cleaning agents.
• Inspection: Regularly inspect the hose for any signs of wear, cracks, or damage to the wiring.
• Storage: Store the hose in a dry place, away from direct sunlight and extreme temperatures. Avoid kinking or sharply bending the hose during storage.

7. Troubleshooting

If you encounter issues with your electrified hose, refer to the following common problems and solutions:

8. Specifications

• Package Dimensions: 0.39 x 0.39 x 0.39 inches
• Item Weight: 1.76 ounces
• Manufacturer: jiangxiuyingying
• Compatibility: Xclea Qy50, Qyxcq01, XCLEA P10 Floor Brush
• Batteries Required: No

9. Warranty and Support

No specific warranty information is provided with this product. For support or inquiries regarding this McbeAn accessory, please refer to the retailer or manufacturer's contact information where the product was purchased.
