eHoodax 3-Wheel Electric Fat Tire Scooter Model 05WQ User Manual

1. Introduction

Thank you for choosing the eHoodax 3-Wheel Electric Fat Tire Scooter, Model 05WQ. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your scooter. Please read this manual thoroughly before using the product to ensure proper function and to prevent injury or damage.

This electric scooter is designed for mobility, offering a comfortable and stable ride with its three-wheel design and fat tires. It features a powerful 3000W motor, a 60V20Ah lithium battery, and a maximum speed of 28 MPH with a range of up to 30 miles. It is equipped with full suspension, dual hydraulic brakes, and convenient storage options including a rear basket and a rear box.

2. Safety Information

WARNING: Failure to follow these safety instructions could result in serious injury or death.

• Always wear a helmet and appropriate safety gear (gloves, knee pads, elbow pads) when operating the scooter.
• Do not operate the scooter under the influence of alcohol or drugs.
• Observe all local traffic laws and regulations.
• Ensure all components are securely fastened and in good working order before each ride.
• Do not exceed the maximum weight limit of 550 pounds (250 kg).
• Avoid riding in heavy rain, snow, or icy conditions. The scooter is not waterproof.
• Use caution when riding on uneven terrain or slopes.
• Keep hands and feet away from moving parts.
• Children should not operate this scooter without adult supervision. This product is intended for adult use.

3. Package Contents

Upon unpacking, please verify that all the following items are included and undamaged:

• eHoodax 3-Wheel Electric Fat Tire Scooter (main frame, partially assembled)
• 60V20Ah Lithium-Ion Battery
• Battery Charger
• Rear Basket
• Rear Storage Box
• Handlebar Assembly
• Mirrors (if applicable)
• Assembly Tools (basic wrench, hex keys)
• Keys (for ignition and storage box)
• User Manual (this document)

If any items are missing or damaged, please contact customer support immediately.

4. Setup and Assembly

Your eHoodax scooter arrives approximately 80% assembled. The following steps outline the remaining assembly required before first use. It is recommended to have a second person assist with some steps.

4.1 Unpacking

1. Carefully remove the scooter and all components from the packaging.
2. Inspect for any shipping damage.
3. Retain packaging materials for future transport or returns.

4.2 Handlebar Installation

1. Locate the handlebar assembly.
2. Insert the handlebar stem into the front fork tube.
3. Align the handlebars straight with the front wheel.
4. Tighten the stem bolts securely using the provided tools. Ensure the handlebars do not rotate independently of the front wheel.

Image: Front view of the eHoodax 3-wheel electric scooter, highlighting the handlebar and front wheel assembly.

4.3 Rear Basket and Storage Box Attachment

1. Position the rear basket onto the designated mounting points at the rear of the scooter.
2. Secure the basket using the provided bolts and nuts. Ensure it is firmly attached.
3. Mount the rear storage box onto the rack above the basket or on its dedicated mounting points, if separate.
4. Lock the storage box into place and test its security.

Image: Rear view of the eHoodax 3-wheel electric scooter, displaying the securely attached rear basket and storage box.

Image: Detailed close-up of the rear section of the eHoodax scooter, showing the rear basket and storage box in detail.

4.4 Battery Installation

1. Locate the battery compartment, typically under the seat or floorboard.
2. Carefully insert the 60V20Ah lithium battery.
3. Connect the battery terminals according to the markings (+ to +, - to -).
4. Secure the battery in place to prevent movement during operation.
5. Close and lock the battery compartment.

4.5 Pre-Ride Check

Before your first ride, and before every subsequent ride, perform the following checks:

• Brakes: Test both front and rear hydraulic brakes for proper function and responsiveness.
• Tires: Check tire pressure. Ensure tires are properly inflated (refer to tire sidewall for recommended pressure).
• Lights: Verify that the front headlight, taillights, and turn signals are working.
• Horn: Test the horn.
• Throttle: Ensure the throttle operates smoothly and returns to the off position when released.
• Fasteners: Check all visible bolts, nuts, and quick-release levers for tightness.

5. Operating Instructions

Familiarize yourself with the controls before operating the scooter.

5.1 Controls Overview

• Ignition Key: Insert and turn to power on/off the scooter.
• Throttle: Located on the right handlebar. Twist to accelerate.
• Brake Levers: Left lever for rear brake, right lever for front brake (dual hydraulic brake system).
• Headlight Switch: Activates the front headlight.
• Turn Signal Switch: Activates left or right turn signals.
• Horn Button: Activates the horn.
• Display Panel: Shows speed, battery level, and other indicators.

Image: Side view of the eHoodax 3-wheel electric scooter, illustrating the position of handlebars and various controls.

5.2 Starting the Scooter

1. Ensure the battery is charged and properly installed.
2. Insert the ignition key and turn it to the 'ON' position. The display panel should illuminate.
3. Place both feet on the footrest.
4. Slowly twist the throttle to accelerate. Start gently to get accustomed to the power.

5.3 Riding Tips

• Maintain a comfortable and balanced posture.
• Use both brake levers simultaneously for effective and stable braking.
• Anticipate turns and obstacles.
• Be aware of your surroundings and other traffic.
• Avoid sudden acceleration or braking, especially at higher speeds.

Image: A person demonstrating the eHoodax 3-wheel electric scooter in an outdoor setting, showcasing its operational use.

5.4 Stopping the Scooter

1. Release the throttle completely.
2. Gently apply both brake levers until the scooter comes to a complete stop.
3. Once stopped, turn the ignition key to the 'OFF' position and remove the key.

6. Battery Charging and Care

Proper battery care is crucial for extending the lifespan and maintaining the performance of your 60V20Ah lithium battery.

6.1 Charging Procedure

1. Ensure the scooter is turned off and the ignition key is removed.
2. Locate the charging port on the scooter.
3. Connect the charger to the charging port.
4. Plug the charger into a standard wall outlet (AC 100-240V).
5. The charger indicator light will typically show red during charging and turn green when fully charged.
6. Once fully charged, disconnect the charger from the wall outlet first, then from the scooter.

6.2 Battery Care Tips

• Do not overcharge the battery. Disconnect the charger once the indicator turns green.
• Avoid completely draining the battery. Charge it regularly, even if not used frequently.
• Store the scooter and battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• If storing for an extended period, charge the battery to approximately 50-60% and recharge every 1-2 months.
• Only use the charger provided by eHoodax. Using an unauthorized charger may damage the battery and void the warranty.

7. Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter.

7.1 Routine Checks (Before Each Ride)

• Tire Pressure: Check and adjust tire pressure. The 18-inch fat tires require specific pressure for optimal performance and safety. Refer to the tire sidewall for recommended PSI.
• Brakes: Test brake levers and ensure they engage smoothly and effectively. Check brake pads for wear.
• Lights & Horn: Verify all lights (headlight, taillights, turn signals) and the horn are functional.
• Fasteners: Visually inspect all bolts, nuts, and connections for tightness.

7.2 Monthly Maintenance

• Cleaning: Wipe down the scooter with a damp cloth. Avoid using high-pressure water jets directly on electrical components.
• Suspension: Inspect the dual suspension system for any signs of damage, leaks, or excessive play. Ensure all suspension bolts are tight.

Image: Detailed view of the rear suspension system on the eHoodax electric scooter, important for maintenance checks.

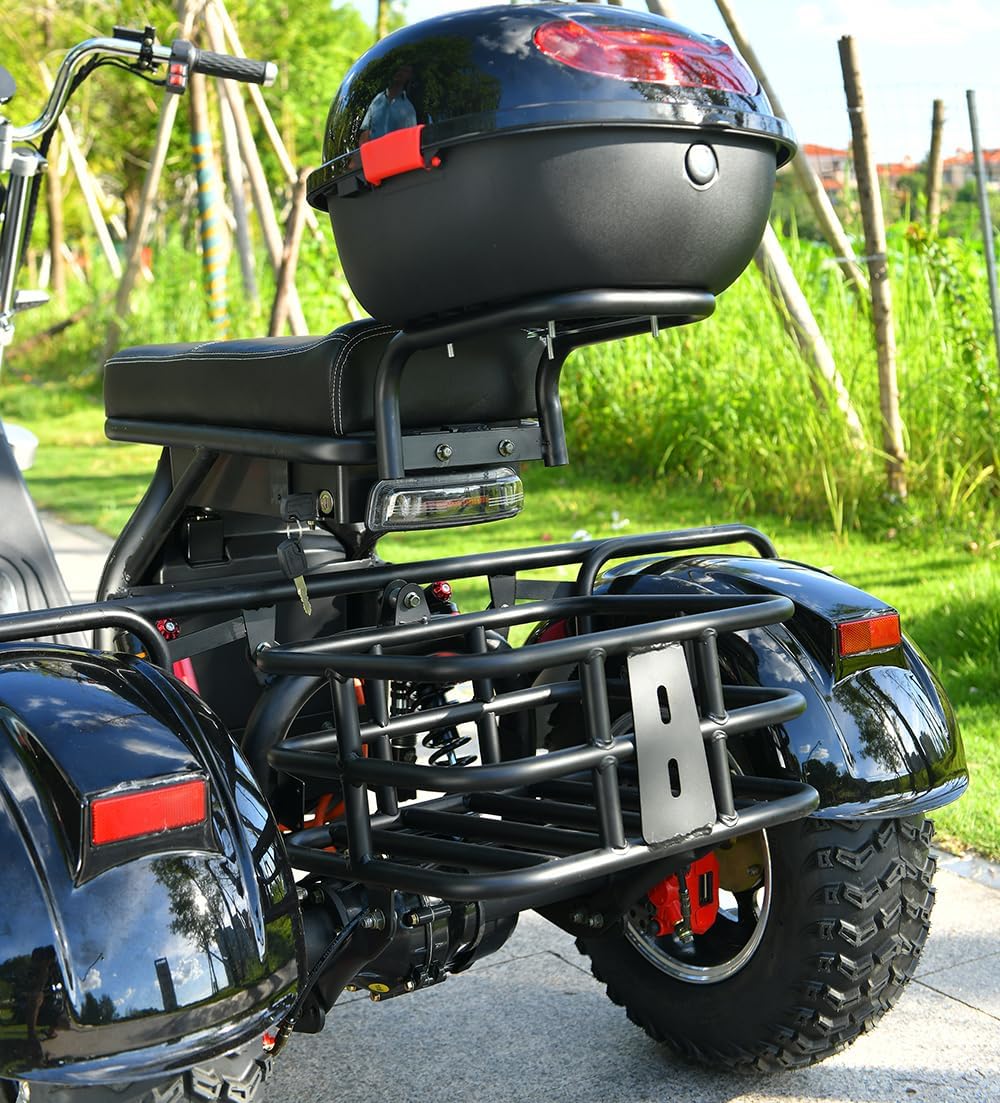

Image: Close-up of the rear suspension and wheel assembly of the eHoodax electric scooter, showing components for inspection.

7.3 Professional Service

For complex repairs or issues beyond basic maintenance, it is recommended to seek professional service from a qualified technician.

8. Troubleshooting

This section addresses common issues you might encounter with your eHoodax scooter.

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact eHoodax customer support.

9. Specifications

Detailed technical specifications for the eHoodax 3-Wheel Electric Fat Tire Scooter Model 05WQ:

• Model Name: 05WQ
• Motor: 3000W
• Battery: 60V20Ah Lithium-Ion (removable)
• Max Speed: Up to 28 MPH
• Max Range: Up to 30 Miles (depending on terrain, load, and riding style)
• Tires: 18-inch Fat Tires (215-40-12)
• Brake System: Dual Hydraulic Brake
• Suspension: Dual Suspension
• Weight Limit: 550 Pounds (approx. 250 kg)
• Item Weight: 90 Kilograms (approx. 198 lbs)
• Frame Material: Alloy Steel
• Wheel Material: Rubber
• Number of Wheels: 3
• Special Features: Front Light, Horn, Rear Basket, Rear Storage Box, Long Soft Seat
• Age Range: Adult
• Manufacturer: YONGKANG HD INDUSTRY TRADE CO., LTD

10. Warranty Information

eHoodax products are manufactured to high-quality standards. Specific warranty terms and conditions may vary by region and retailer. Please refer to your purchase documentation or contact the seller (YTUSA) for detailed warranty information regarding your eHoodax 3-Wheel Electric Fat Tire Scooter Model 05WQ.

Typically, warranties cover manufacturing defects in materials and workmanship for a specified period from the date of purchase. Normal wear and tear, damage from misuse, accidents, or unauthorized modifications are generally not covered.

11. Customer Support

If you have any questions, require technical assistance, or need to report an issue with your eHoodax 3-Wheel Electric Fat Tire Scooter, please contact the seller, YTUSA, through your purchase platform or their provided contact channels.

When contacting support, please have the following information ready:

• Your order number
• The model name (05WQ)
• A detailed description of the issue
