HOMBCK Queen Bed Frame with Headboard Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your HOMBCK Queen Bed Frame with Headboard. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

The HOMBCK Queen Bed Frame features a linen fabric upholstered headboard with button tufting, wood slat support, and is designed for use without a box spring. It offers a comfortable and stylish foundation for your mattress.

2. Safety Information

WARNING:

• Do not use mattresses thicker than 12 inches.
• Maximum weight capacity is 800 pounds.
• Be cautious when adjusting the headboard to avoid injury.
• Always follow assembly instructions to prevent instability or collapse.
• Keep all small parts away from children during assembly.

3. Package Contents

Before assembly, ensure all components listed below are present and undamaged. All parts and tools are typically packed in one box.

• Headboard
• Bed Frame Components (side rails, center support, legs)
• Wood Slats
• Assembly Hardware (screws, bolts, washers, Allen wrench)
• Installation Manual (this document)

Figure 3.1: Key features including linen fabric, heavy-duty support, and quick assembly design.

4. Setup and Assembly

Assembly is designed to be straightforward. It is recommended to have two people for easier and safer assembly. Follow these steps:

1. Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface (like a rug or blanket) to prevent scratches. Verify all parts are present against the package contents list.
2. Assemble Side Rails: Connect the side rails to the headboard and footboard using the provided hardware. Ensure all connections are secure but do not fully tighten bolts until the entire frame is assembled.
3. Install Center Support: Attach the center support beam and its legs to the frame. This provides crucial stability for the mattress.
4. Attach Wood Slats: Place the wood slats across the frame. Many designs include a sticky strip or Velcro to keep slats in place and prevent noise. Ensure they are evenly spaced and secured.
5. Final Tightening: Once all components are in place, go back and fully tighten all bolts and screws. Do not overtighten.

Video 4.1: A brief overview of the HOMBCK Linen Fabric Upholstered Bed Frame with Headboard, demonstrating its design and potential assembly aspects. This video is a 7-second preview.

5. Operating the Adjustable Headboard

The HOMBCK Queen Bed Frame features an adjustable headboard designed to accommodate various mattress thicknesses, typically ranging from 8 to 12 inches. The headboard has 3 adjustable modes.

• To adjust the headboard height, locate the adjustment points on the headboard supports.
• Carefully lift or lower the headboard to your desired height. Ensure both sides are adjusted evenly.
• Secure the headboard in place using the designated locking mechanisms or bolts. Refer to the specific assembly diagrams for your model if needed.

Figure 5.1: Illustration of the adjustable headboard feature, suitable for mattresses between 8 and 12 inches thick.

6. Maintenance

To ensure the longevity and appearance of your HOMBCK bed frame, follow these maintenance guidelines:

• Cleaning Fabric: For the linen upholstered headboard and frame, gently vacuum regularly to remove dust. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner following the product instructions, testing on an inconspicuous area first.
• Frame Care: Periodically check all bolts and screws to ensure they remain tight. Retighten if necessary to maintain stability and prevent squeaking.
• Avoid Harsh Chemicals: Do not use abrasive cleaners or strong chemical solutions on any part of the bed frame, as this may damage the finish or fabric.

7. Troubleshooting

If you encounter any issues with your bed frame, refer to the following common problems and solutions:

• Squeaking Noises:
  • Ensure all bolts and screws are securely tightened.
  • Check that the wood slats are properly seated and not rubbing against the frame. Some models include sticky strips to prevent slat movement.
  • Verify the center support legs are firmly on the floor.
• Instability/Wobbling:
  • Recheck all connections and ensure they are fully tightened.
  • Ensure the bed frame is on a level surface. Adjust leg levelers if applicable.
• Headboard Not Adjusting:
  • Ensure no obstructions are preventing movement.
  • Verify that the adjustment mechanisms are disengaged before attempting to move the headboard and re-engaged once the desired height is reached.

8. Specifications

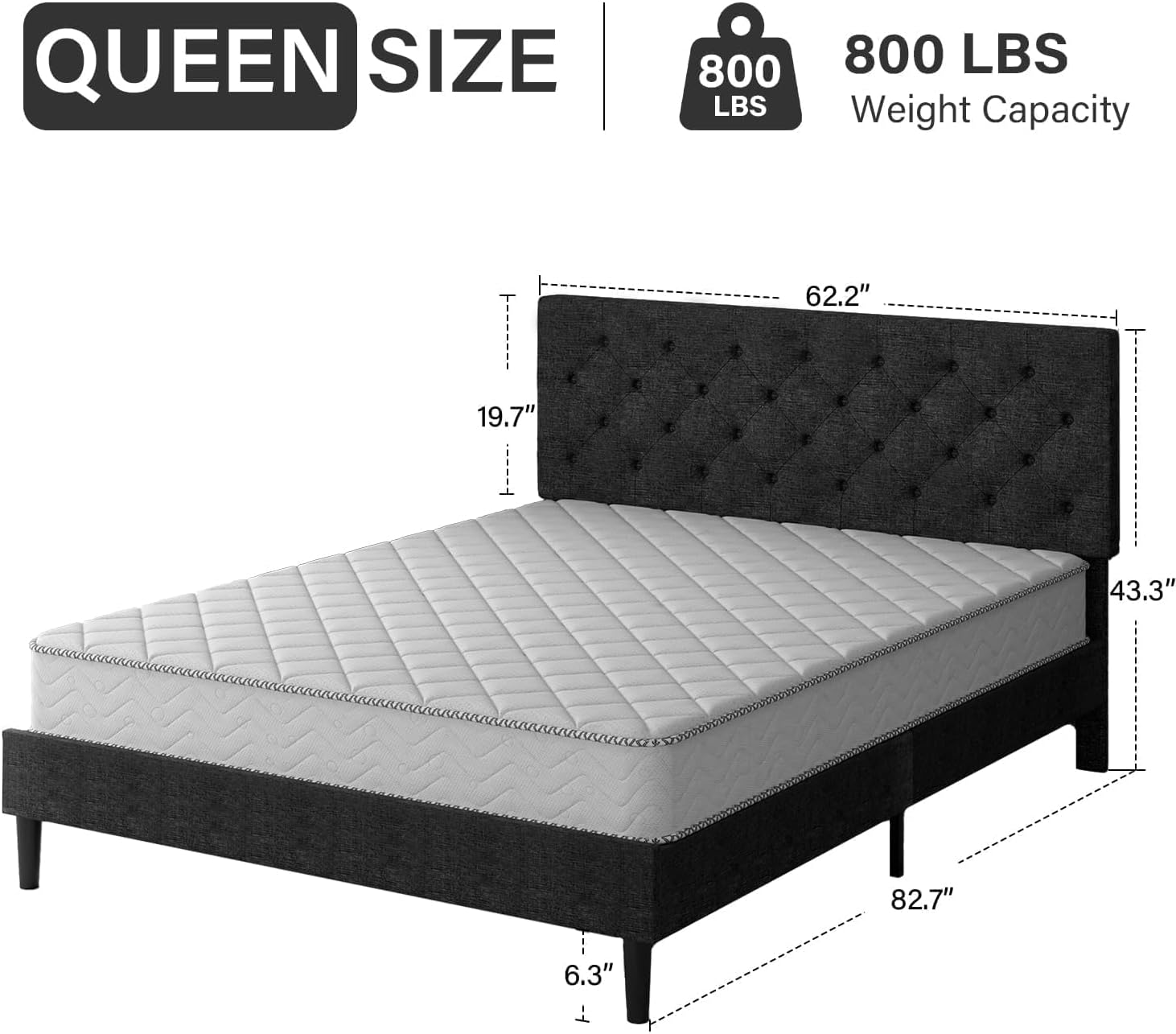

Figure 8.1: Detailed dimensions and weight capacity for the HOMBCK Queen Bed Frame.

Figure 8.2: Illustration of the 6.3-inch under-bed clearance for storage.

9. Warranty and Support

For warranty information or customer support, please refer to the documentation included with your purchase or contact HOMBCK directly through their official channels. Keep your purchase receipt as proof of purchase.
