Tangkula 10x20 Ft Pop Up Canopy Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Tangkula 10x20 Ft Pop Up Canopy. Designed for outdoor events, this canopy offers a large shaded area with UPF 50+ protection and versatile sidewall configurations. Please read this manual thoroughly before setup and retain it for future reference.

Important Safety Information

WARNING: Failure to follow these safety instructions may result in injury or damage to the product.

• Do not use this canopy in heavy rain or strong winds. The structure is designed for temporary shade and light weather conditions.
• Always secure the canopy to the ground using the provided wind ropes and ground stakes to prevent it from being lifted by wind.
• Ensure all frame connections are securely locked before use.
• Keep children and pets away from the canopy during assembly and disassembly.
• Avoid placing heat sources or open flames near the canopy fabric.

Package Contents

Verify that all components listed below are present before beginning assembly.

• 1 x Pop-up Canopy Tent Frame
• 1 x Top Canopy Fabric
• 4 x Sidewalls (with windows)
• 2 x Zippered Sidewalls (doors)
• 12 x Metal Ground Stakes
• 6 x Wind Ropes
• 1 x Carry Bag

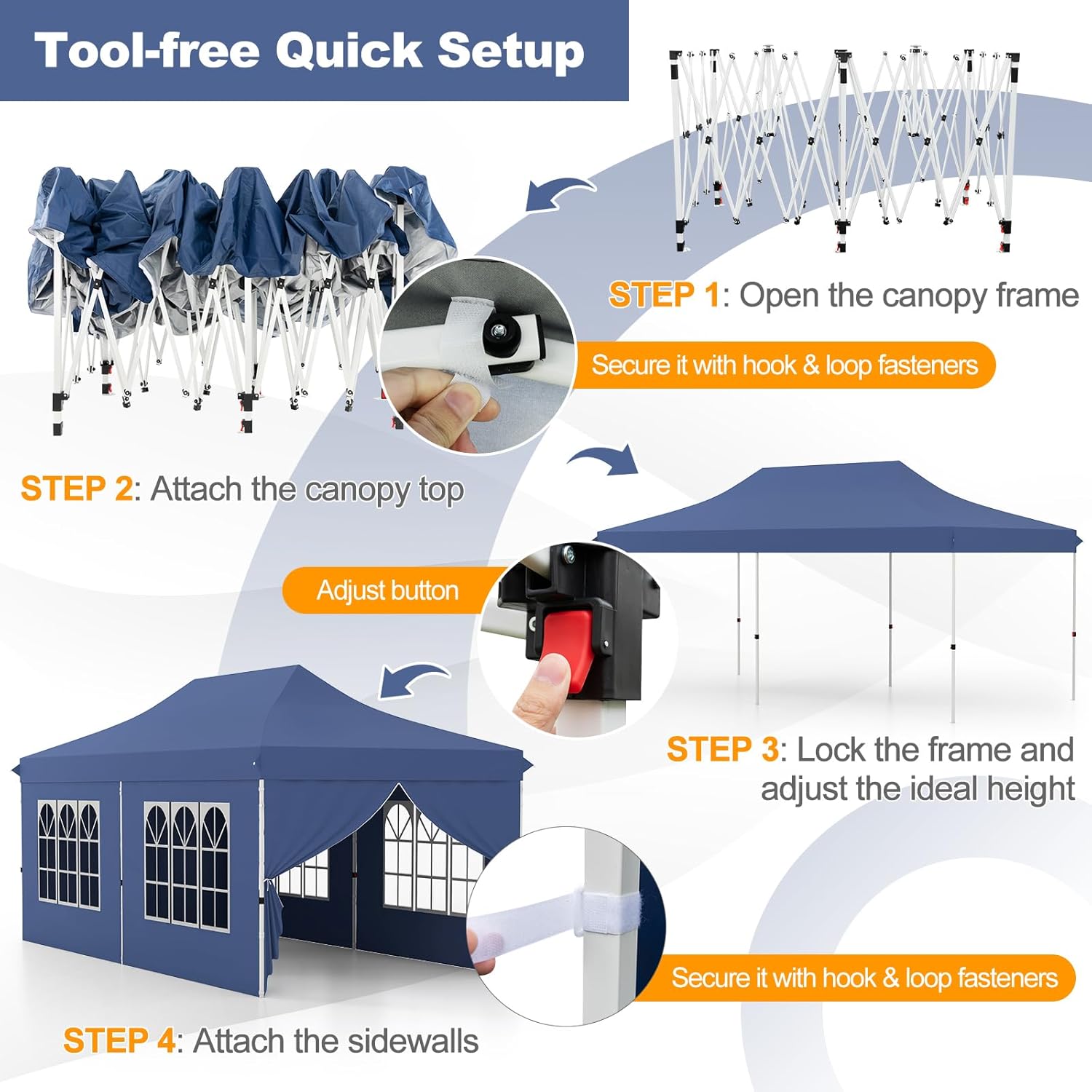

Setup Instructions

Assembly is designed for quick setup. It is recommended that two or more people assist with the setup process.

1. Step 1: Open the Canopy Frame. Carefully pull the canopy frame outwards from its folded position. Partially extend the legs. Secure the frame with the hook & loop fasteners if present on the frame.
2. Step 2: Attach the Canopy Top. Place the canopy fabric over the partially opened frame. Ensure the fabric is centered and all corners are aligned with the frame's corners. Secure the canopy top to the frame using any integrated hook & loop fasteners.
3. Step 3: Lock the Frame and Adjust Height. Fully extend the canopy frame until it locks into place. Press the adjust button on each leg to select your desired height (9.7 ft, 10 ft, or 10.4 ft). Ensure all legs are set to the same height and are securely locked.
4. Step 4: Attach the Sidewalls. Attach the sidewalls to the canopy frame using the hook & loop fasteners. The 2 zippered sidewalls can be placed on any side for entry/exit, and the 4 window sidewalls can be arranged as desired.

Securing the Canopy: After assembly, use the provided ground stakes and wind ropes. Attach the wind ropes to the canopy frame's corners and stake them firmly into the ground at an angle. This enhances stability, especially in light wind conditions.

Operating Instructions

• Height Adjustment: To adjust the canopy height, press the red adjust button on each leg and slide the inner leg to the desired position. Ensure the button clicks into place at the chosen height.
• Sidewall Usage: The 6 detachable sidewalls offer flexibility. Use all six for maximum enclosure, or fewer for an open feel. The two zippered sidewalls provide convenient entry and exit points.
• Sun Protection: The canopy fabric features UPF 50+ silver coating for sun protection. While it offers excellent UV resistance, prolonged exposure to direct sunlight is not recommended.
• Drizzle Resistance: The 210D Oxford fabric is drizzle-resistant, providing protection from light rain. It is not designed for heavy rainfall.

Maintenance

• Cleaning Fabric: Clean the canopy fabric and sidewalls with a mild soap solution and a soft cloth. Rinse thoroughly with water and allow to air dry completely before storage. Do not use harsh chemicals or abrasive cleaners.
• Frame Care: Inspect the metal frame periodically for any signs of rust or damage. Clean any dirt or debris from the frame. If rust appears, clean it and apply a rust-inhibiting paint.
• Inspection: Before each use, inspect all components for wear, tear, or damage. Replace any damaged parts immediately to ensure safe operation.

Storage

Proper storage extends the life of your canopy.

• Ensure the canopy fabric and sidewalls are completely dry before folding and storing to prevent mold and mildew.
• Disassemble the canopy by reversing the setup steps.
• Fold the canopy fabric and sidewalls neatly.
• Place all components into the provided carrying bag for convenient storage and transport.
• Store the canopy in a cool, dry place away from direct sunlight and extreme temperatures.
