DJFHDIHRFHBVCASIJ 2.2L Air Fryer User Manual

1. Introduction

Thank you for purchasing the DJFHDIHRFHBVCASIJ 2.2L Air Fryer. This appliance is designed to provide a healthier way to cook your favorite foods with little to no oil. Please read this manual thoroughly before using the appliance to ensure safe and efficient operation. Keep this manual for future reference.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure adequate ventilation around the appliance during use.
• This appliance operates on 220V. Ensure your power supply matches this requirement.

3. Product Overview

The DJFHDIHRFHBVCASIJ 2.2L Air Fryer is designed for rapid, healthy cooking. It features a compact design and intuitive controls.

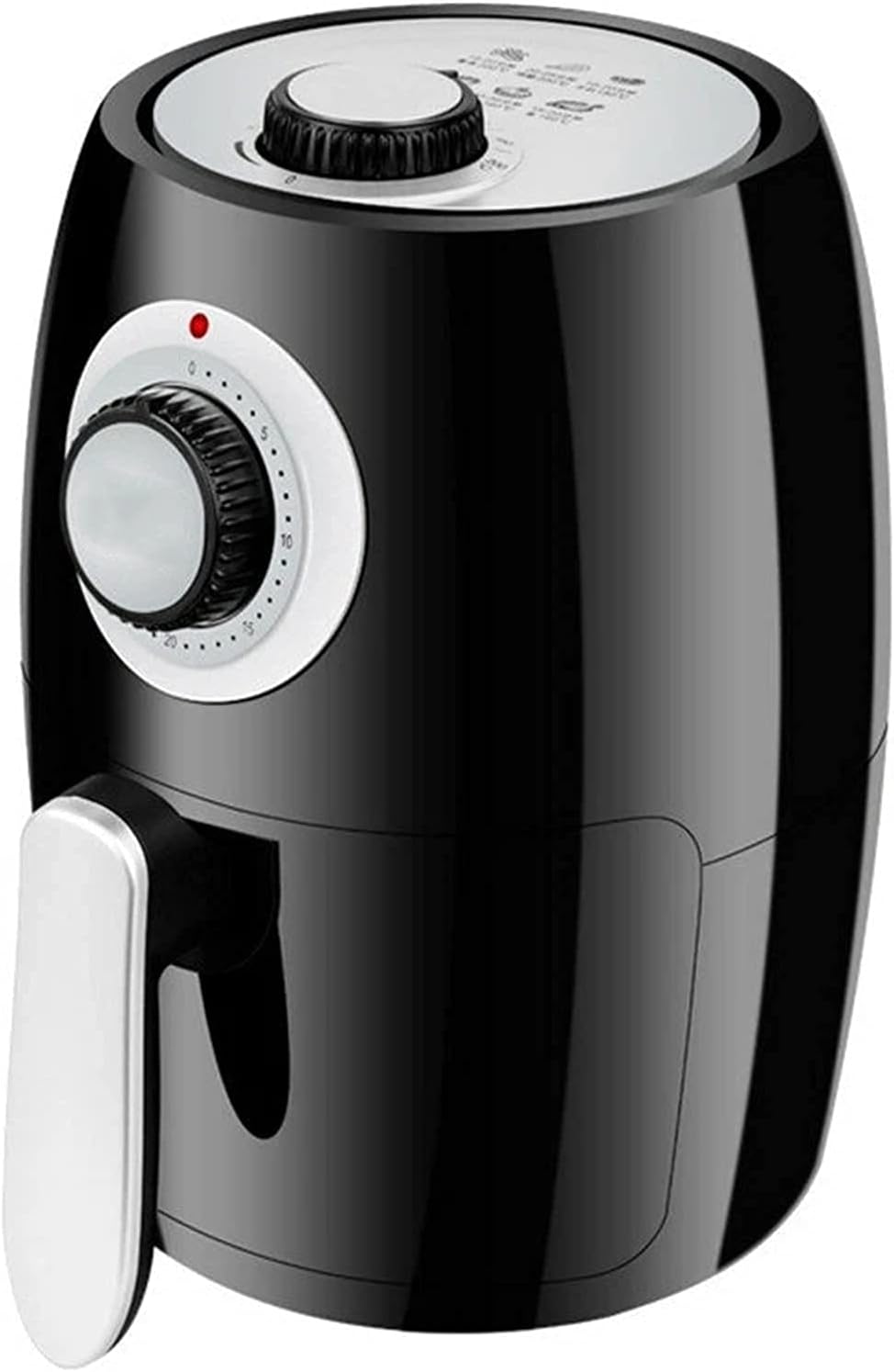

Figure 3.1: Main view of the DJFHDIHRFHBVCASIJ 2.2L Air Fryer. This image displays the compact black unit with its control dials and handle.

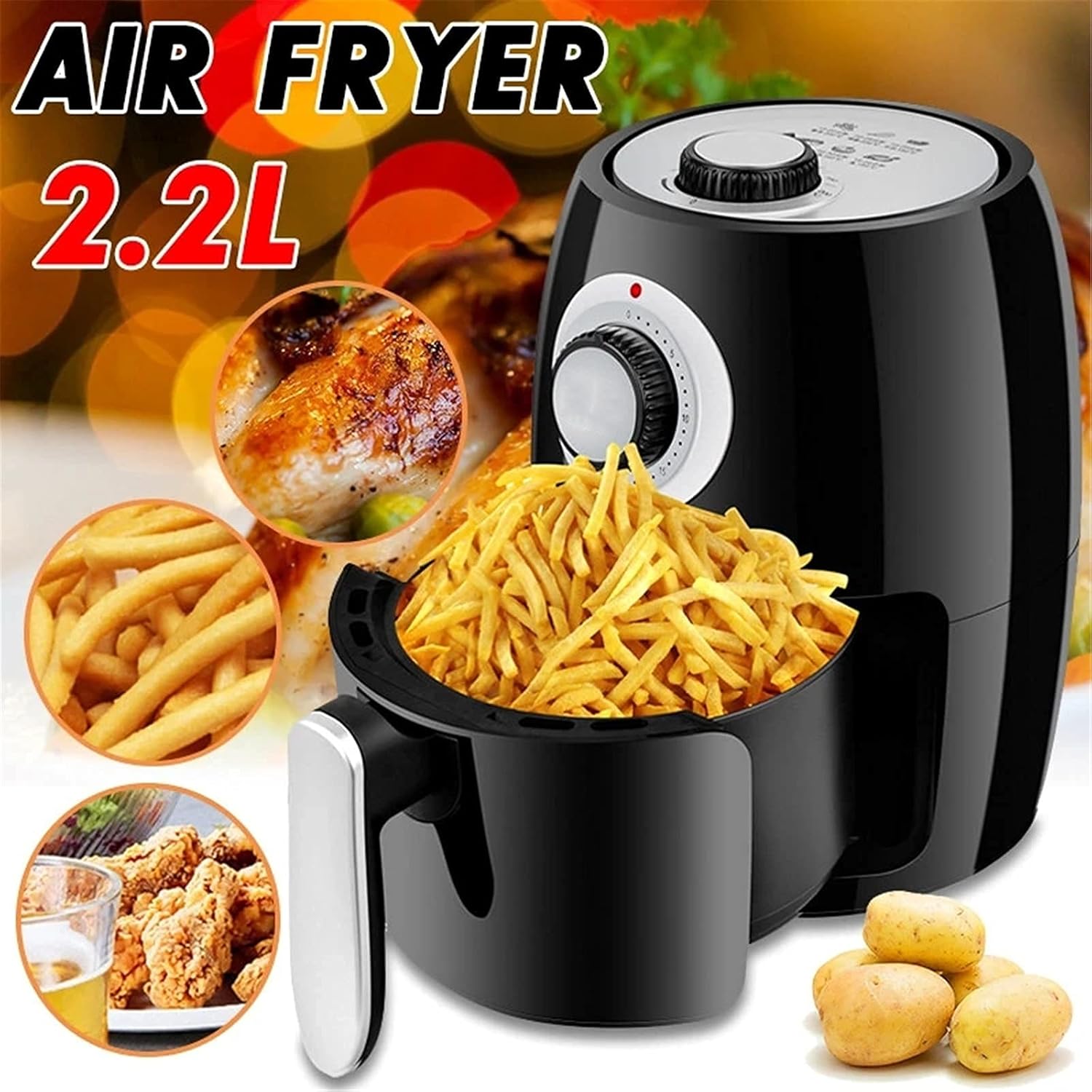

Figure 3.2: The air fryer shown with various food items it can prepare, including french fries, chicken wings, and raw potatoes, highlighting its versatility.

Components:

• Main Unit: Houses the heating element and fan.
• Control Panel: Features a timer dial and a temperature dial.
• Fry Basket: Non-stick coated basket for holding food.
• Handle: For safely removing the fry basket.
• Air Inlet/Outlet: For proper air circulation.

4. Setup

1. Unpacking: Carefully remove all packaging materials and promotional labels from the air fryer.
2. Initial Cleaning: Before first use, clean the fry basket and the inside of the appliance with a damp cloth and mild detergent. Wipe the exterior with a clean, damp cloth. Ensure all parts are completely dry before use.
3. Placement: Place the air fryer on a stable, heat-resistant, and level surface. Ensure there is at least 10 cm (4 inches) of free space around the back and sides of the appliance, and 10 cm (4 inches) above it, to allow for proper air circulation.
4. Power Connection: Plug the power cord into a grounded 220V wall outlet.

5. Operating Instructions

Operating your DJFHDIHRFHBVCASIJ Air Fryer is straightforward. Follow these steps for optimal results.

1. Prepare Food: Place the food you wish to air fry into the fry basket. Do not overfill the basket to ensure even cooking.
2. Insert Basket: Slide the fry basket back into the main unit until it clicks securely into place.
3. Set Temperature: Use the temperature control dial (usually the top dial) to set the desired cooking temperature. Refer to the cooking guide or recipe for recommended temperatures.
4. Set Timer: Use the timer control dial (usually the bottom dial) to set the desired cooking time. The air fryer will automatically start heating once the timer is set.
5. Cooking Process: The indicator light will illuminate, indicating the air fryer is heating. During cooking, you may need to shake the basket halfway through for even browning, especially for items like fries. To do this, carefully pull out the basket by its handle, shake, and then reinsert it. The air fryer will resume cooking.
6. Completion: When the timer reaches zero, the air fryer will emit an audible signal and automatically shut off. Carefully pull out the basket and transfer the cooked food to a plate.
7. Cool Down: Allow the appliance to cool down completely before cleaning or storing.

Figure 5.1: View of the integrated inner tank and removable perforated plate, designed for efficient heat distribution and easy cleaning.

Figure 5.2: The fry basket filled with french fries, demonstrating how food is placed inside the appliance for cooking.

6. Cooking Guide

The top panel of your air fryer provides a quick reference for common food items, including recommended temperatures and cooking times. These are general guidelines and may vary based on food quantity and desired crispiness.

Figure 6.1: Top view of the air fryer showing the control dials and a printed cooking guide for various foods like drumsticks, french fries, steak, shrimp, fish, and cake, with recommended temperatures and times.

General Cooking Tips:

• Preheating: While not always necessary, preheating for 3-5 minutes at the desired temperature can improve cooking results for some foods.
• Oil: A small amount of oil (1 tablespoon or less) can be added to some foods to enhance crispiness, but it is often not required.
• Shaking: For smaller items like fries or nuggets, shaking the basket halfway through cooking ensures even browning.
• Batch Cooking: For larger quantities, cook in smaller batches to maintain optimal air circulation and cooking performance.

7. Cleaning and Maintenance

Regular cleaning ensures the longevity and optimal performance of your air fryer.

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
2. Fry Basket and Pan: The non-stick fry basket and pan are easy to clean. Wash them with hot water, dish soap, and a non-abrasive sponge. For stubborn food residue, soak the basket in hot soapy water for about 10 minutes.
3. Interior: Wipe the interior of the appliance with a damp cloth. For stubborn residue, a mild detergent can be used. Avoid abrasive cleaners or metal scouring pads.
4. Exterior: Wipe the exterior of the air fryer with a damp cloth. Do not immerse the main unit in water or any other liquid.
5. Heating Element: If necessary, gently clean the heating element with a soft brush to remove any food particles.
6. Storage: Ensure all parts are clean and dry before storing the air fryer in a cool, dry place.

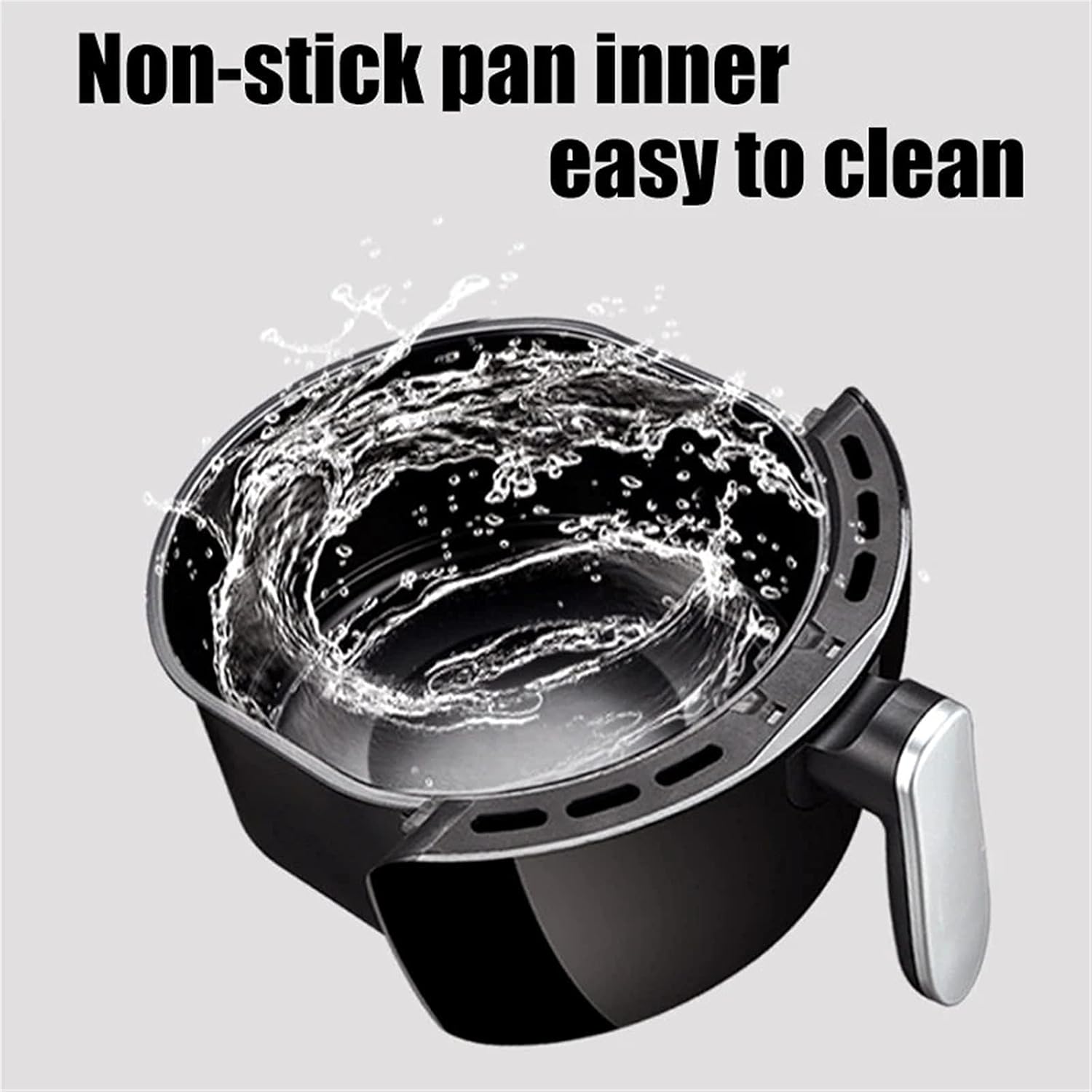

Figure 7.1: Illustration of the non-stick inner pan being cleaned with water, emphasizing its easy-to-clean surface.

8. Troubleshooting

If you encounter any issues with your air fryer, please refer to the following common problems and solutions:

9. Specifications

Detailed technical specifications for the DJFHDIHRFHBVCASIJ 2.2L Air Fryer:

• Model: 2.2L Air Fryer
• Brand: DJFHDIHRFHBVCASIJ
• Capacity: 2.2 Liters
• Voltage: 220V
• Power: 1000W
• Control Method: Touch (referring to the dials as touch controls)
• Material: Plastic (outer), 304 Stainless steel (inner components), Non-stick coating
• Special Feature: Temperature Control, Overheating Protection, Timing Function (0-30 Minutes)
• Dimensions (Approximate): 17cm (Width) x 28cm (Height) x 17cm (Depth)
• Fry Basket Dimensions (Approximate): 17cm (Diameter) x 10cm (Height)

Figure 9.1: Diagram illustrating the approximate dimensions of the air fryer unit and its removable fry basket.

10. Warranty and Support

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact the retailer where the product was acquired. Please have your product model number (2.2L Air Fryer) and purchase details ready when contacting support.
