Pishengfa Portable LED Rechargeable Flashlight

Introduction

This manual provides essential information for the safe and effective use of your Pishengfa Portable LED Rechargeable Flashlight. Please read this manual thoroughly before operating the device and retain it for future reference.

A close-up view of the Pishengfa Portable LED Flashlight in green, highlighting its textured body, toggle clip, and front light array.

Three flashlights in different colors (black, silver, green) displayed together, showcasing the available color options.

Product Features

• Portable and Convenient: Compact and lightweight design with a toggle clip for easy carrying and hands-free use.
• Wide Illumination: Floodlight design provides a large viewing angle, wide coverage, high brightness, and a long light range.
• IPX6 Water Resistance: Designed to withstand outdoor weather conditions.
• Multi-functional Lighting: Features three built-in white LED wicks with low power consumption. Offers four lighting modes: strong light, medium light, low light, and flash.
• Magnetic Base: Equipped with a built-in magnet at the bottom for attachment to metal surfaces, enabling work lighting.
• Fast Charging: USB charging interface for quick and convenient recharging.
• Durable Design: Constructed from ABS material for durability.

A detailed view of the flashlight's head, showcasing the LED light source and its compact design.

The flashlight clipped onto a strap, demonstrating the functionality of its stainless steel toggle clip for hands-free use.

Package Contents

Verify that all items are present upon unpacking:

• 1 x Pishengfa Portable LED Rechargeable Flashlight
• 1 x USB Charging Cable

Setup

1. Initial Charge: Before first use, fully charge the flashlight. Refer to the 'Charging Instructions' section for details.
2. Familiarize Components: Identify the power button, charging port, LED light array, toggle clip, and magnetic base.

Operating Instructions

1. Power On/Off: Press the power button once to turn the flashlight on. Press and hold the power button for approximately 2 seconds to turn it off.
2. Change Lighting Modes: While the flashlight is on, press the power button repeatedly to cycle through the four lighting modes: Strong Light → Medium Light → Low Light → Flash.
3. Using the Toggle Clip: Attach the integrated toggle clip to pockets, belts, or straps for convenient hands-free illumination.
4. Using the Magnetic Base: The flashlight features a built-in magnet in its base. Attach it to any suitable metal surface for stationary lighting during tasks.

A person using the flashlight outdoors at night, demonstrating its powerful beam illuminating a distant area.

Charging Instructions

The flashlight is equipped with a built-in 800mAh battery and a USB charging interface.

1. Locate the USB charging port on the flashlight.
2. Connect the provided USB charging cable to the flashlight's charging port.
3. Connect the other end of the USB cable to a compatible power source, such as a laptop, power bank, car charger, or a wall adapter (not included).
4. The charging indicator light (if present) will typically show red during charging and turn green or off when fully charged.
5. Charging time may vary depending on the power source.

The flashlight connected via a USB cable to a power bank, illustrating its direct USB charging capability.

Maintenance

• Cleaning: Wipe the flashlight with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: To prolong battery life, avoid completely draining the battery frequently. Recharge the flashlight regularly, even if not in use for extended periods.
• Water Resistance: While IPX6 water resistant, avoid submerging the flashlight in water. Ensure the charging port cover is securely closed when not charging to maintain water resistance.

Troubleshooting

Specifications

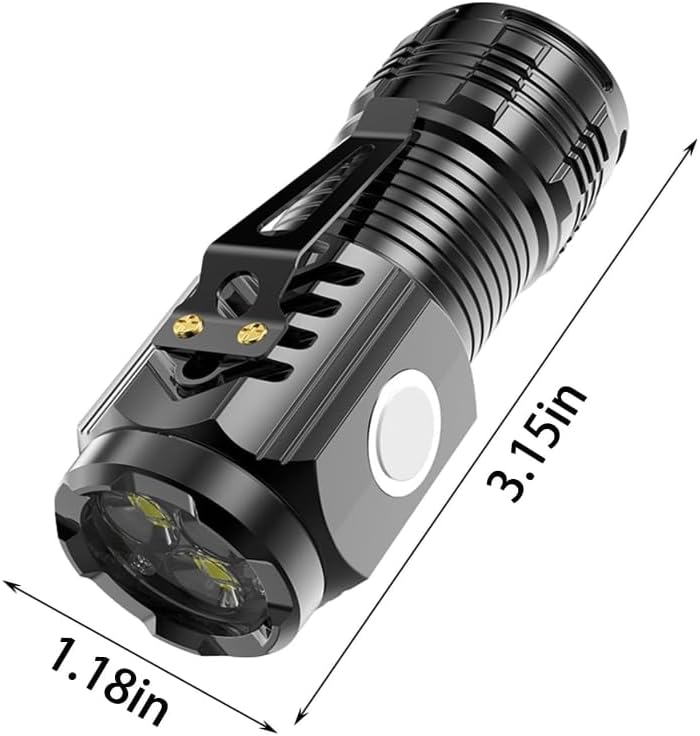

An illustration of the flashlight with its dimensions labeled: 1.18 inches width and 3.15 inches length.

Warranty and Support

For warranty information or technical support, please refer to the retailer where the product was purchased or contact Pishengfa customer service through their official channels. Keep your purchase receipt as proof of purchase.
